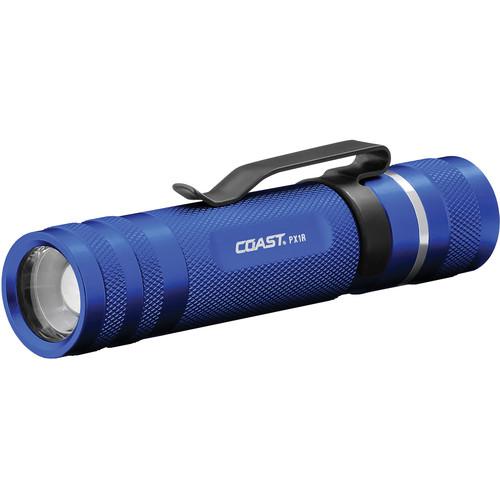

User Manual for COAST PX1R Pure Beam Focusing Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the COAST PX1R Pure Beam Focusing Rechargeable
- Product category: Handheld Flashlights COAST
- Brand: COAST
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COAST Handheld Flashlights
|
User manual for the COAST PX1R Pure Beam Focusing Rechargeable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COAST product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COAST user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COAST product will considerably shorten its lifespan!
|
Product description Designed for power, versatility, and convenience, the COAST PX1R Pure Beam Focusing Rechargeable LED Flashlight offers a low output for tasks such as reading and a high output to light larger areas, with the capability of running on both disposable and rechargeable battery chemistries.For even more usability, the light is outfitted with a focusing system that allows you to focus the beam from a wide flood for close-up work to a spotlight for a further throw distance when you need it. The beam focuses by simply twisting the head. Its flood beam is smooth with consistent brightness from one edge to the other without a hotspot, and when focused it produces COAST's "Bull's-Eye" Beam, which has a bright center circle that smoothly transitions to a dimmer "halo" around it, providing maximum illumination precisely where you need it with plenty of spill to keep you aware of your surroundings. Its two outputs are controlled by a simple on/off push-button switch on the tailcap.The light is capable of running on dual battery chemistries, and COAST provides both to get you started. First, you have a lithium-ion rechargeable battery pack that can be charged in or out of the light using the included USB cable and the included 110 VAC wall outlet adapter. If you run out of power and still need a light, you can use three AAA batteries. Outputs will be a bit lower and runtimes are different...but at least you won't be left in the dark. - Light Performance
-
- Selectable low and high outputs
- Internal reflector lens helps to direct and focus beam
- Head twists side to side to focus beam with one-hand operation
- Focus system allows the beam to be adjusted from a wide flood to a tight spotlight
- Ultra View flood beam produces a wide flood of light that is consistent across the full diameter without a center hotspot
- Bull's-eye spotlight beam has a bright center circle that smoothly transitions to a dimmer spill around it
Output, lithium-ion battery pack:- Low: 50 lumens, 14-hour runtime
- High: 460 lumens, 3.5-hour runtime
Output, alkaline batteries:- Low: 40 lumens, 24-hour runtime
- High: 330 lumens, 2-hour runtime
- Switching
-
- Type: Push button
- Location: Tailcap
- Constant-on activation
- Fully exposed button allows for easy access and use
- Construction Details
-
- Durable aluminum-alloy housing
- Scratch-resistant blue anodized finish
- IPX4-rated to be water resistant to splashing water and rain
- Dual-Power Flex Charge electronics, includes rechargeable and disposable batteries
- Integrated and covered USB charging port allows lithium-ion battery pack to be charged in the light while preserving the water-resistance rating when not charging
- Light 5.1-ounce weight
- Power Options
-
- Lithium-ion rechargeable battery pack. Charge in or outside the light
- Three AAA alkaline batteries
- USB charging cable
- 110 VAC power adapter for charging at home/office
UPC: 015286207593 In the Box COAST PX1R Pure Beam Focusing Rechargeable LED Flashlight (Blue) Pocket Clip Lithium-Ion Battery Pack Battery Cartridge 3 x AAA Batteries USB Charging Cable 110 VAC USB Wall Outlet Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COAST PX1R Pure Beam Focusing Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOAST PX1R Specs | | | Lumen Output | Proprietary Lithium-Ion:
Low: 50 Lumens
High: 460 Lumens
AAA Alkaline:
Low: 40 Lumens
High: 330 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | Proprietary Lithium-Ion
Low: 14 Hours
High: 3.5 Hours
AAA Alkaline
Low: 24 Hours
High: 2 Hours | | Battery Type | 1 x Rechargeable Pack or
3 x AAA Alkaline | | | | Material of Construction | Aluminum | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | No | | Dimensions | L: 5.0" / L: 12.7 cm | | Weight | 5.11 oz / 145.0 g |
