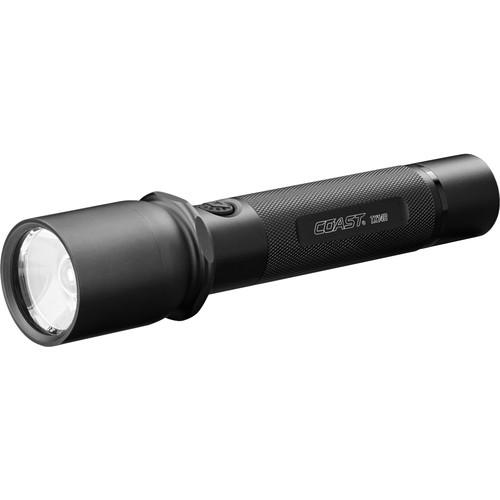

User Manual for COAST TX14R Long Distance Focusing Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the COAST TX14R Long Distance Focusing Rechargeable
- Product category: Handheld Flashlights COAST
- Brand: COAST
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COAST Handheld Flashlights
|
User manual for the COAST TX14R Long Distance Focusing Rechargeable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COAST product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COAST user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COAST product will considerably shorten its lifespan!
|
Product description With the needs of law enforcement or tactical professionals who require a versatile light that turns on every time they click the switch in mind, COAST made the TX14R Long Distance Focusing Rechargeable LED Flashlight with high and low outputs, a focusable beam angle, a disorienting strobe, and dual power source capability. This handy and versatile light is made to be your go-to illumination tool when you're on duty, out patrolling, in the field, or anywhere your job takes you.The Long Range Focusing system is accessed by sliding the head forward and back with convenient one-handed operation, and it allows you to change the beam from a wide flood that lights large areas close to you into a focused spotlight that is optimized for a long throw. When you get the beam set where you need it, just twist the head, lock the beam angle, and get to work.The TX14R is capable of running on multiple battery chemistries, and COAST provides both to get you started. First, you have a set of lithium-ion rechargeable battery packs that provides the low 165-lumen output and darkness-piercing high 900-lumen output and can be charged in or out of the light using the included USB cable and either the 110 VAC wall outlet adapter or 12 VDC car/vehicle plug adapter. If you run out of power and still need a light, you can use four AAA batteries—output and runtimes will be lower and shorter, but you still have light. O-rings seal the housing to make it IPX4-rated weather resistant against rain and snow. Easy to use. Easy to power. Easy to carry. The TX14R is designed and built for everyday carry and everyday use. - Light Performance
-
- Selectable low and high outputs
- Strobe mode can be used to signal to a partner or disorient potential threats
- Internal reflector lens helps to direct and focus beam
- Head slides forward and back to focus beam; twist head to lock beam
- Sliding Long Range Focusing system allows the beam to be adjusted from a wide flood to a tight spotlight
- Broad View Flood Beam is optimized to cover a wide area with consistent intensity from edge to edge without a center hotspot of brighter light for easy visibility at close range
- X-Range Spot Beam has a small circle of light with consistent edge-to-edge brightness specifically designed for a far throw
- Output & Runtimes
- Lithium-ion battery packs:
- Low: 165 lumens, 8-hour runtime
- High: 900 lumens, 4.25-hour runtime
Alkaline batteries:- Low: 130 lumens, 3.5-hour runtime
- High: 565 lumens, 1.5-hour runtime
- Switching
-
- Type: Push button
- Location: Handle, behind head
- Constant-on activation
- Recessed to make drawing from a pocket faster and easier while minimizing the risk of accidental activation
- Construction Details
-
- Durable aluminum-alloy housing
- Scratch-resistant black anodized finish
- IPX4-rated to be water resistant to splashing water and rain
- Flex Charge Dual-Power electronics, includes rechargeable and disposable batteries
- Integrated and covered USB charging port allows lithium-ion battery pack to be charged in the light while preserving the water-resistance rating when not charging
- Included Accessories
-
- Two lithium-ion rechargeable battery packs—charge in or outside the light
- Four AAA alkaline batteries
- USB charging cable
- 110 VAC and 12 VDC power adapters for charging at home/office or on the road
UPC: 015286215420 In the Box COAST TX14R Long Distance Focusing Rechargeable LED Flashlight USB Charging Cable 12 VDC Car/Vehicle Plug Power Adapter 110 VAC Wall Outlet Power Adapter Alkaline Battery Cartridge 2 x Li-Ion Battery Packs 4 x AAA Alkaline Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COAST TX14R Long Distance Focusing Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOAST TX14R Specs | | | Lumen Output | Proprietary Lithium-Ion:
Low: 165 Lumens
High: 900 Lumens
AAA Alkaline:
Low: 130 Lumens
High: 565 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | Proprietary Lithium-Ion
Low: 8 Hours
High: 4.25 Hours
AAA Alkaline
Low: 3.5 Hours
High: 1.5 Hours | | Battery Type | 2 x Rechargeable Pack Lithium-Ion or
4 x AAA Alkaline | | | | Material of Construction | Aluminum | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | No | | Dimensions | L: 7.6" / L: 19.4 cm | | Weight | 8.82 oz / 250.0 g | | | | Package Weight | 1.79 lb | | Box Dimensions (LxWxH) | 8.8 x 6.2 x 3.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
