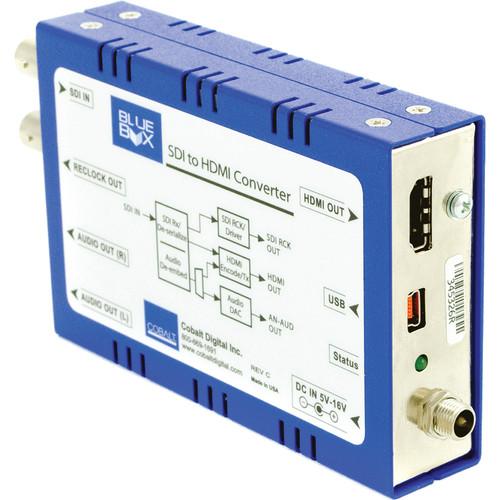

User Manual for Cobalt Blue Box Group SDI to HDMI Converter Click to enlarge the picture
Contents of the user manual for the Cobalt Blue Box Group SDI to
- Product category: Signal Converters Cobalt
- Brand: Cobalt
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cobalt Signal Converters
|
User manual for the Cobalt Blue Box Group SDI to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cobalt product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cobalt user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cobalt product will considerably shorten its lifespan!
|
Product description The Blue Box Group SDI to HDMI Converter from Cobalt allows you to monitor broadcast SDI video sources on an inexpensive HDMI monitor. It is notable because it can power from USB or the included AC adapter. You can even have both the USB and AC adapter connected at the same time for redundancy. It supports SD, HD and 3G-SDI signals on the input side and outputs a reclocked version of the incoming signal through the loop-out for connecting to another downstream SDI device. - Full 5.1 channel audio conversion to HDMI audio with selectable C/LFE line-up control
- Embeds up to 8 SDI channels in HDMI stream: group 1/group 2 selectable
- Supports 48 kHz sampling, 24-bit resolution digital audio
- Stereo unbalanced analog outputs for local audio monitoring
- Selectable YPbPr or RGB colorspace for use with HDMI or DVI devices
- Compact size designed so that it can be affixed directly to camera or host device chassis
In the Box Cobalt Blue Box Group SDI to HDMI Converter Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cobalt Blue Box Group SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCobalt CB-BBG-STOH Specs | Supported Standards | SMPTE 259M, 292M, and 424M (10-bit video processing) | | Inputs | 1 x SDI on 75 ohm BNC connector
1 x USB type B mini for third-party power source
1 x Locking DC connector for supplied AC adapter | | Output | 1 x HDMI (HDMI 1.4a compliant)
1 x SDI on 75 ohm BNC connector (reclocked copy of input)
1 x Stereo analog audio on 2 x RCA connectors | | Audio Format | Resolution: 48 kHz, 24-bit
Embedding: SDI groups 1 and 2 to HDMI channels 1 to 8 (with user-selectable C/LFE line-up) | | Power Requirements | 5 to 16 VDC, 2.4 W
Powers from USB source or included AC adapter | | Dimensions (W x H x D) | 5.5 x 3 x 1" / 139 x 77 x 26 mm (including projections) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 14.2 x 4.7 x 4.5" |
