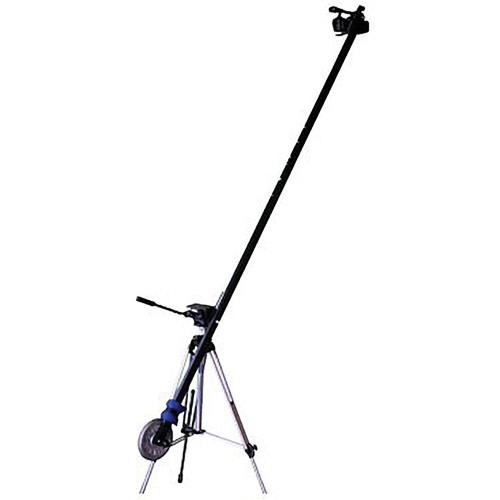

User Manual for CobraCrane CC1HD Heavy-Duty Single-Arm Camera Jib Click to enlarge the picture
Contents of the user manual for the CobraCrane CC1HD Heavy-Duty Single-Arm Camera Jib
- Product category: Cranes & Jibs CobraCrane
- Brand: CobraCrane
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CobraCrane Cranes & Jibs
|
User manual for the CobraCrane CC1HD Heavy-Duty Single-Arm Camera Jib contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CobraCrane product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CobraCrane user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CobraCrane product will considerably shorten its lifespan!
|
Product description The CobraCrane CC1HD Heavy Duty Single Arm Camera Jib is a lightweight portable crane designed for use with DSLR and video cameras. The 10' crane can reach a height of 14' on a 5' tripod (not included), and operate at ground level as well. It's streamlined, with several pivot points making it easy to mount higher or lower on a tripod for increased control of balance. The CobraCrane 1HD's chain and sprocket design is particularly effective when using front-heavy cameras or large lenses--it helps eliminate the tendency of a large lens or heavy camera to tilt forward.Minimal break-down time (5 minutes) means more efficient and productive shooting schedules. An improved 1/2" axle and new cable chain drive mechanism makes this an unusually versatile portable crane. The tripod quick release plate is removable, so that switching to your tripod's quick release plate for a secure fit onto your tripod head is quick and easy. The CobraCrane 1HD is compatible with virtually all heavy-duty tripods including Manfrotto 501/503/504 heads. The Manfrotto 503HDV-028B is recommended for use with the CobraCrane I HD. Mounting the crane on an available tripod with a fluid head adds tilt capability. - Quick Setup & Breakdown
- Sets up in minutes - no additional tools required, with breakdown time of approximately 5 minutes
- Compatibility
- Suitable for DSLR & video cameras
- Lightweight
- The CobraCrane I HD weighs just 22 lb (9.97 kg)
- Ease of Use
- With only minutes of practice, get those hard-to-get shots
- Adjustable Height
- Crane can operate up to 14' high (on a 5' tripod) and down as low as ground level
- Precise Control
- The CobraCrane I HD has a bigger and stronger 1/2" axle and a new cable chain drive mechanism, for a lighter crane with a chain and sprocket tilt drive mechanism
- Flexible
- Works with a wide variety of cameras and tripods
- Proper Tool for the Job
- Optional extension kit offers two lengths for a variety of shot requirements
- Reliable
- Solid construction and built to last--CobraCranes are rock solid
- Camera Tilt
- In basic configuration, the camera platform stays set and does not tilt as you crane up and down. However, mounting the crane on an available, suitable tripod with fluid head allows you to tilt the fluid head and have the cranes camera platform follow the motion of the tilt.
UPC: 854103006045 In the Box CobraCrane CC1HD Heavy-Duty Single-Arm Camera Jib (10') CobraCrane I HD Single Arm Crane QR Plate (Similar to Manfrotto 501PL) Installation Guide 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CobraCrane CC1HD Heavy-Duty Single-Arm Camera Jib in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCobraCrane CC1HD Specs | Construction | Metal | | Payload Capacity | 6.5 lb (2.94 kg) | | Counterbalance System | Counterweights not included | | Height Range | Maximum crane height of 14' (4.26 m) on a 5' (1.52 m) tripod | | Tilt Lock | Not specified by manufacturer | | Tilt Drag | Not specified by manufacturer | | Pan Lock | Not specified by manufacturer | | Spring Loaded Counter Balance | Not specified by manufacturer | | Pan Range | Not specified by manufacturer | | Head Attachment | 1/4"-20 | | Head Arm Leveling | Not specified by manufacturer | | Leveling Indicators | Not specified by manufacturer | | Fold Down | Breaks down to 6' (1.82 m) | | Weight | 22 lb (9.97 kg) | | | | Package Weight | 23.55 lb | | Box Dimensions (LxWxH) | 73.0 x 12.0 x 5.0" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
