Product description The FotoCrane 2 with Pan Head ONE from CobraCrane combines a dual bar jib arm that supports loads up to 11 pounds and a manually operated panning kit. It can be operated at either 3.5' or 8' lengths, with tilt adjustment possible using a chain and sprocket pulley system. Attaching the included Pan Kit V2 ONE adds a pan head, pulley cable, and hand crank for controlling pan with cameras weighing up to 5 pounds. A tripod capable of supporting the weight of the arm, pan head, camera, and optional counterweights is required.

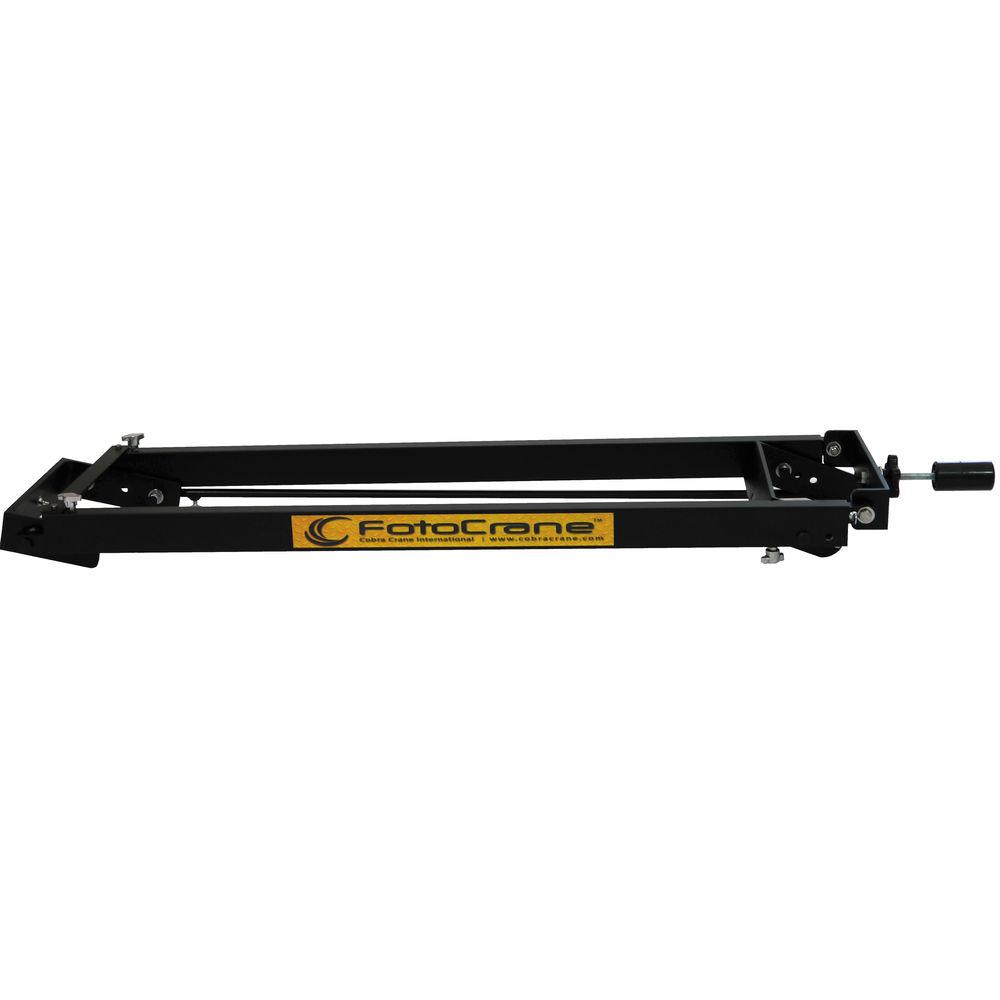

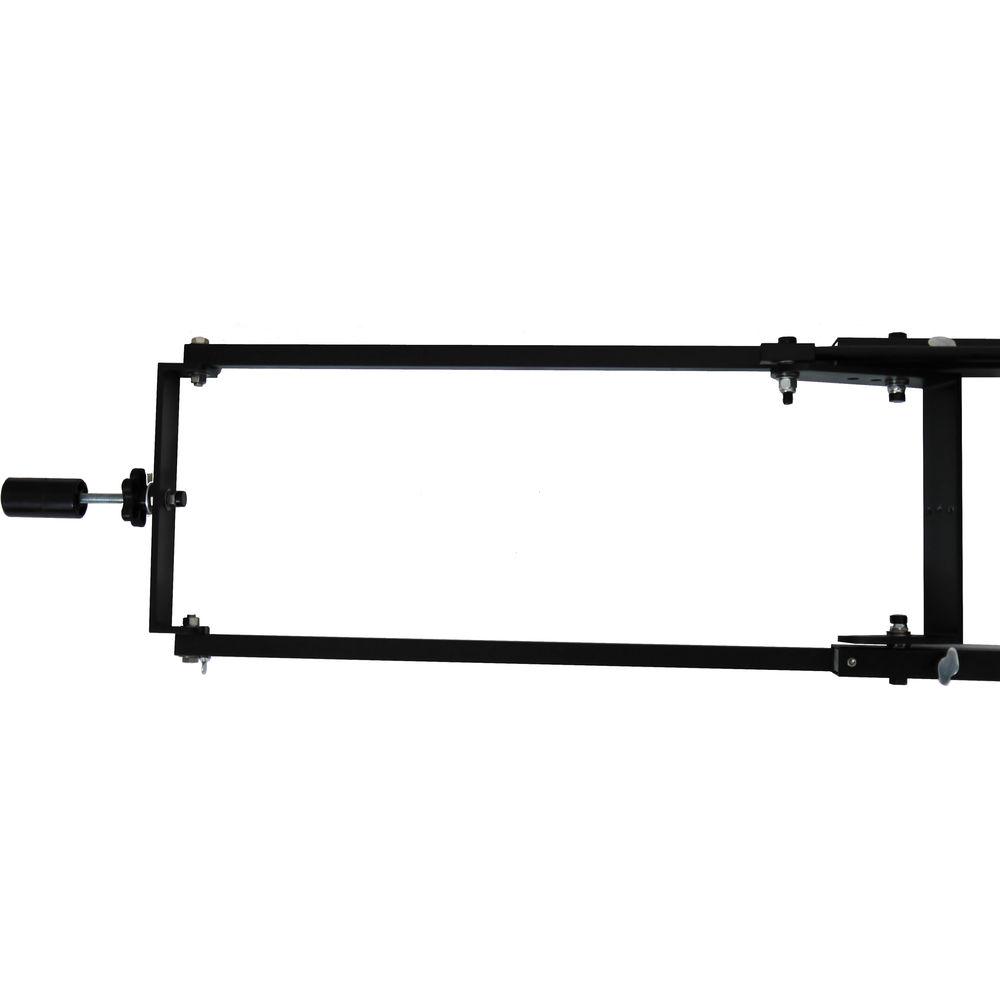

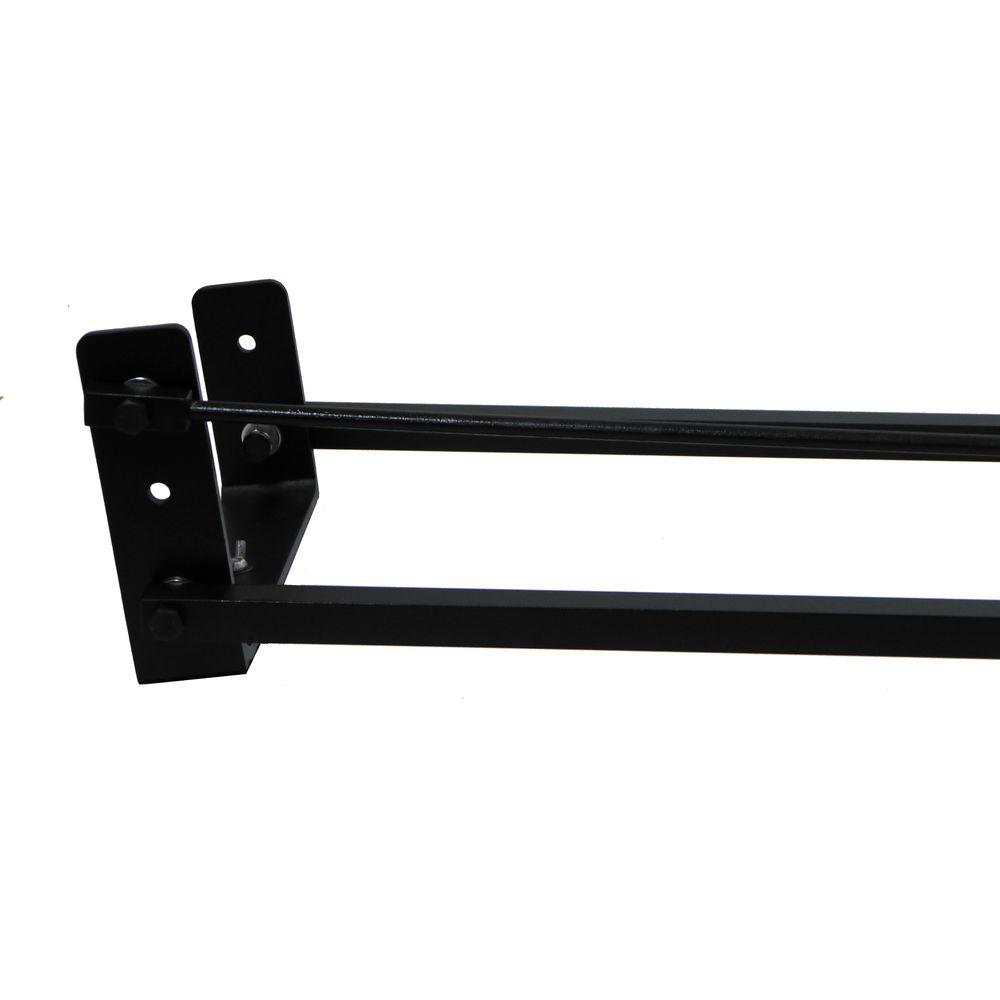

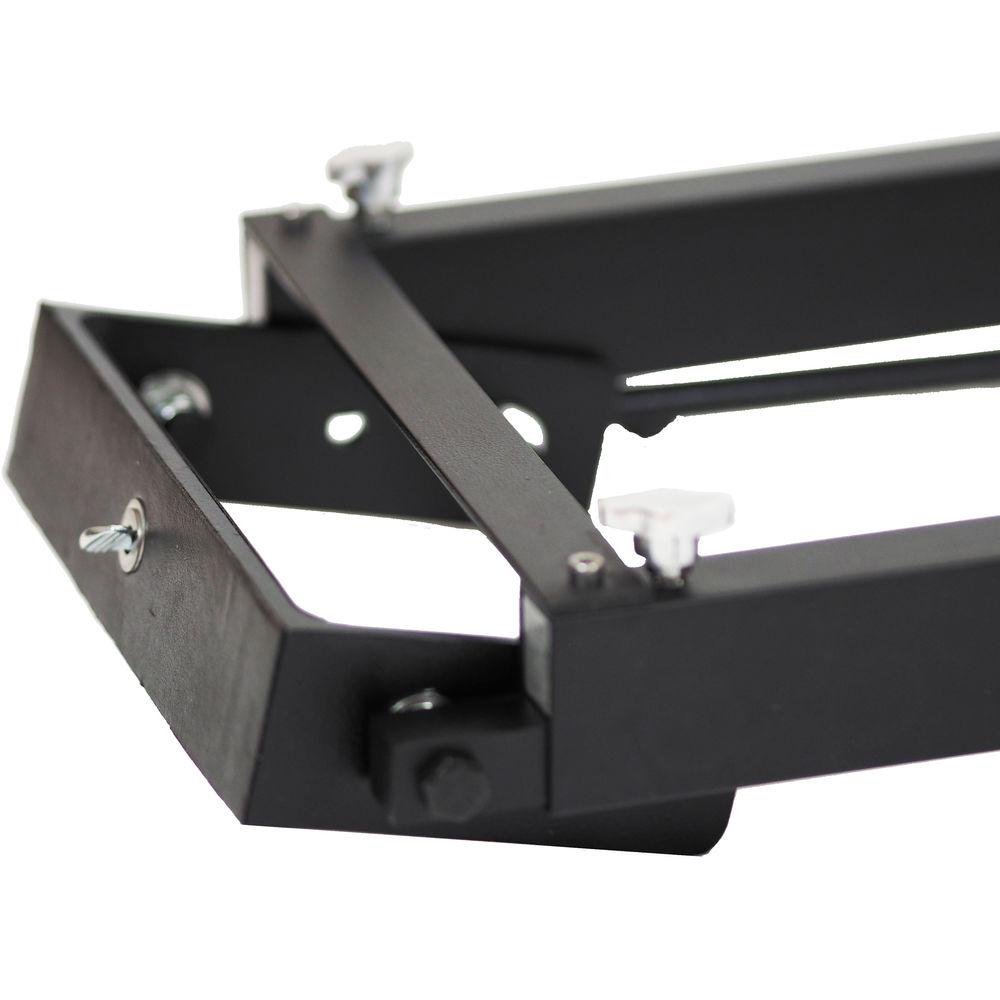

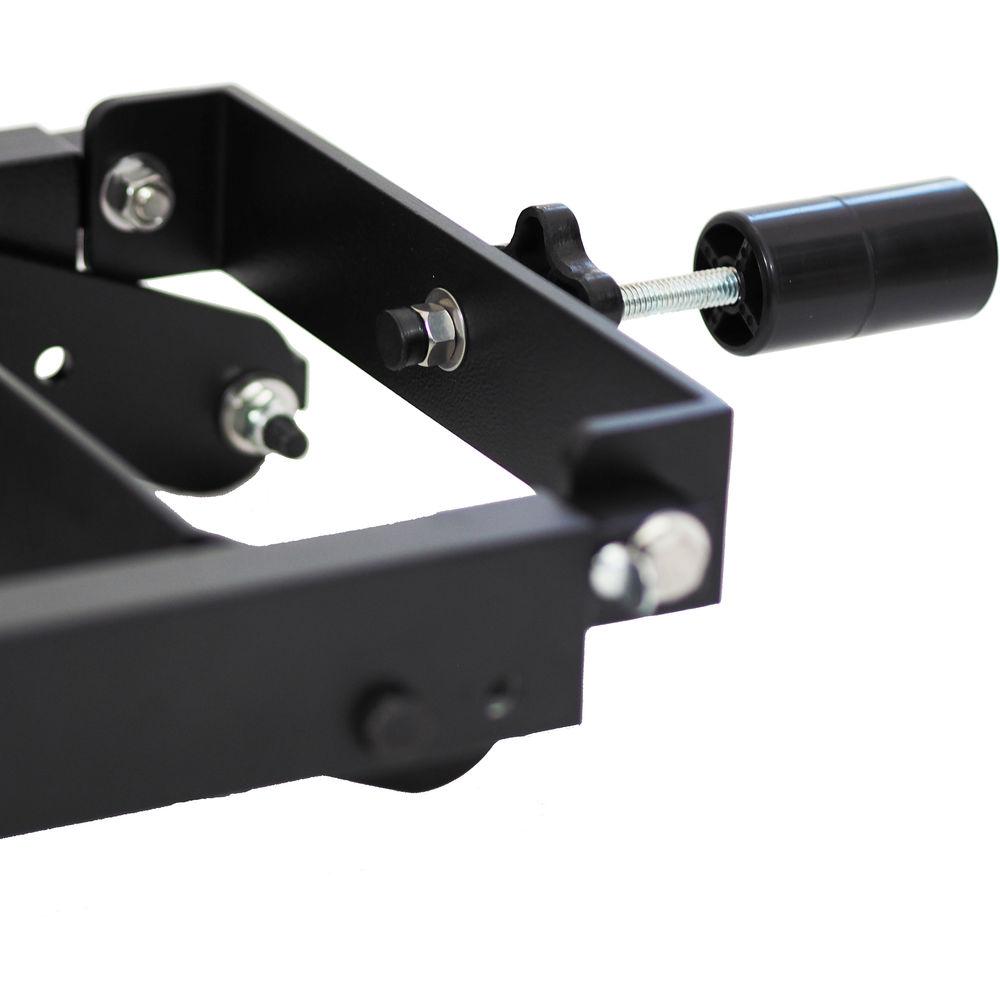

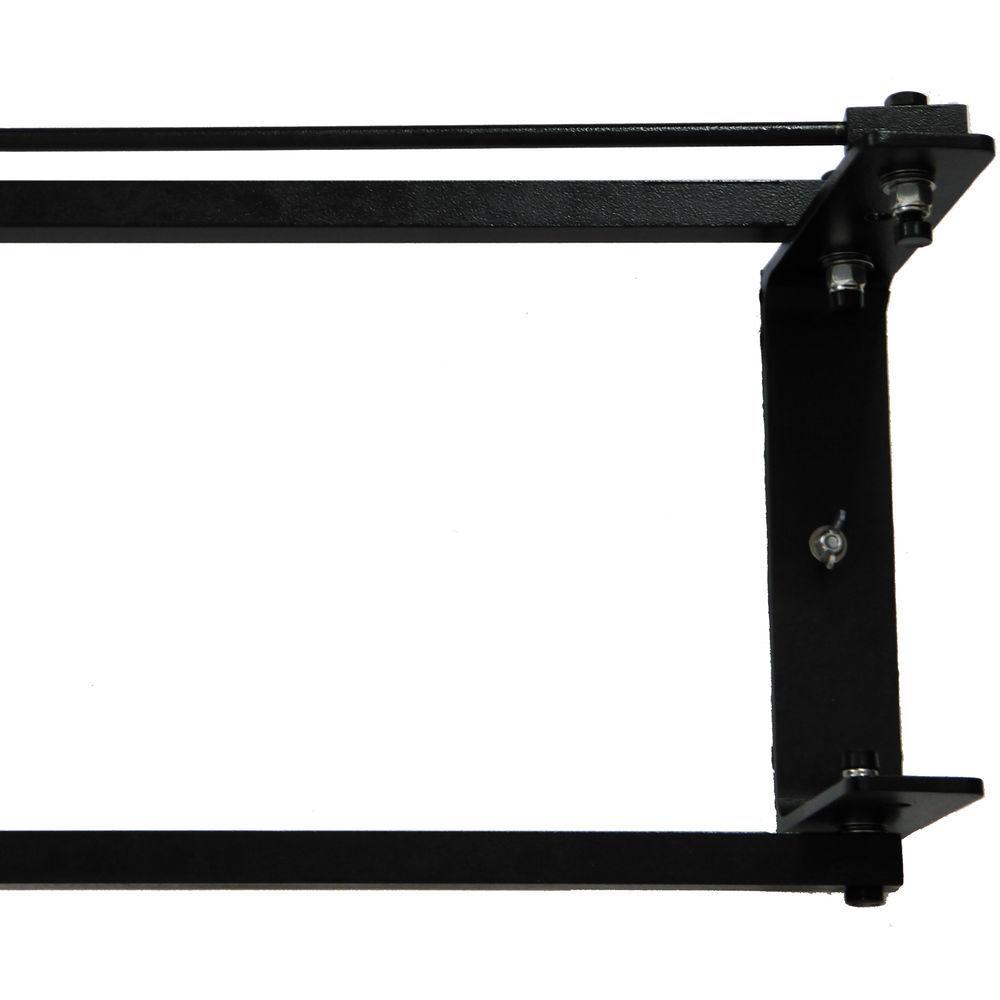

Please see the links below for more information on the components of this bundle. - FotoCrane 2 The CobraCrane FotoCrane 2 is a dual bar camera crane, adjustable between 3.6 ft and 8 ft of operating length, and weighing in at 15 lb. The main frame is made up of two parallel aluminum arms with a tripod mount platform running between them. A steel pulley chain runs along one arm. A camera mount plate on the end supports loads up to 11 lb. For counterbalance, the crane supports standard size weight plates, sold separately. FotoCrane 2 will allow you to move your camera across large vertical and horizontal spans as well as capture shots from high angles.
The aluminum arms are powder coated to prevent scratches. A tripod and tripod head supporting 33 lb or more are required. - Key Features
-
- Length adjustable between 3.6 ft and 8 ft of operating length
- Dual bar system with steel pulley chain tilt adjustment
- Supports loads up to 11 lb
- Powder coated to prevent scratches
- Weighs 15 lb

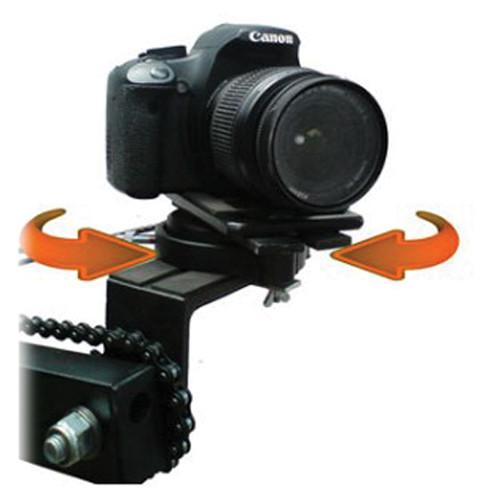

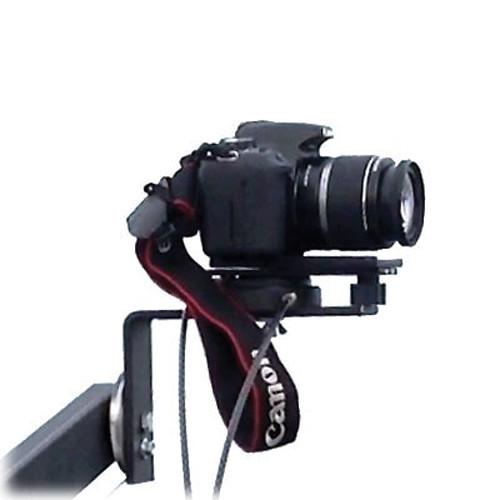

UPC: 692868014321 Pan Kit V2 One The CobraCrane Pan Kit V2 One is a manual-operated panner that attaches to a CobraCrane and at the turn of a crank pans left and right by a pulley system. The kit is compatible with CobraCrane I, II, and I and II with Extensions (and is not compatible with CobraCrane's BackPacker or FotoCrane).
The kit supports cameras weighing up to 6 lbs. The camera connects by its 1/4"-20 thread to a specially designed plate. The main part of the kit attaches to the end of any of the compatible cranes, and the pulley system attaches a bit further down the crane. At the turn of a crank, the kit pans left and right. The pulley cables are standard, durable field cables. UPC: 854103006212 In the Box Bundle Items FotoCrane 2 - Length Adjustable Dual Arm Frame
- 1/4"-20 Mounting Thumbscrew
Pan Kit V2 One syxffxfazczutsyvatcfwsvzfv Table of Contents
|
Upload User Manual
Have you got an user manual for the CobraCrane FotoCrane 2 with Pan Head ONE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FotoCrane 2
| Length | Operating Lengths: 3.6 ft (1.1 m) and 8 ft (2.4 m) | | Load Capacity | 11 lb (5 kg) | | Camera Mount Type | 1/4"-20 | | Weight | 15 lb (6.8 kg) | | | | Box Dimensions (LxWxH) | 50.25 x 12.4 x 6.5" | - Pan Kit V2 One
| Camera Support | Supports cameras up to 6 lbs (2.7 kg) | | | | Box Dimensions (LxWxH) | 14.1 x 12.2 x 4.6" |
