User Manual for CobraCrane FotoCrane HD2 with Pan Head ONE Click to enlarge the picture
Contents of the user manual for the CobraCrane FotoCrane HD2 with Pan Head
- Product category: Cranes & Jibs CobraCrane
- Brand: CobraCrane
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CobraCrane Cranes & Jibs
 |
User manual for the CobraCrane FotoCrane HD2 with Pan Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CobraCrane product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CobraCrane user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CobraCrane product will considerably shorten its lifespan!
|
Product description The FotoCrane HD2 with Pan Head ONE from CobraCrane combines a dual bar jib arm that supports loads up to 15 pounds and a manually operated panning kit. It can be operated at either 8' or 12' lengths, with tilt adjustment possible using a chain and sprocket pulley system. Pulley chains for both lengths are included. Attaching the included Pan Kit V2 ONE adds a pan head, pulley cable, and hand crank for controlling pan with cameras weighing up to 5 pounds. A tripod capable of supporting the weight of the arm, pan head, camera, and optional counterweights is required.

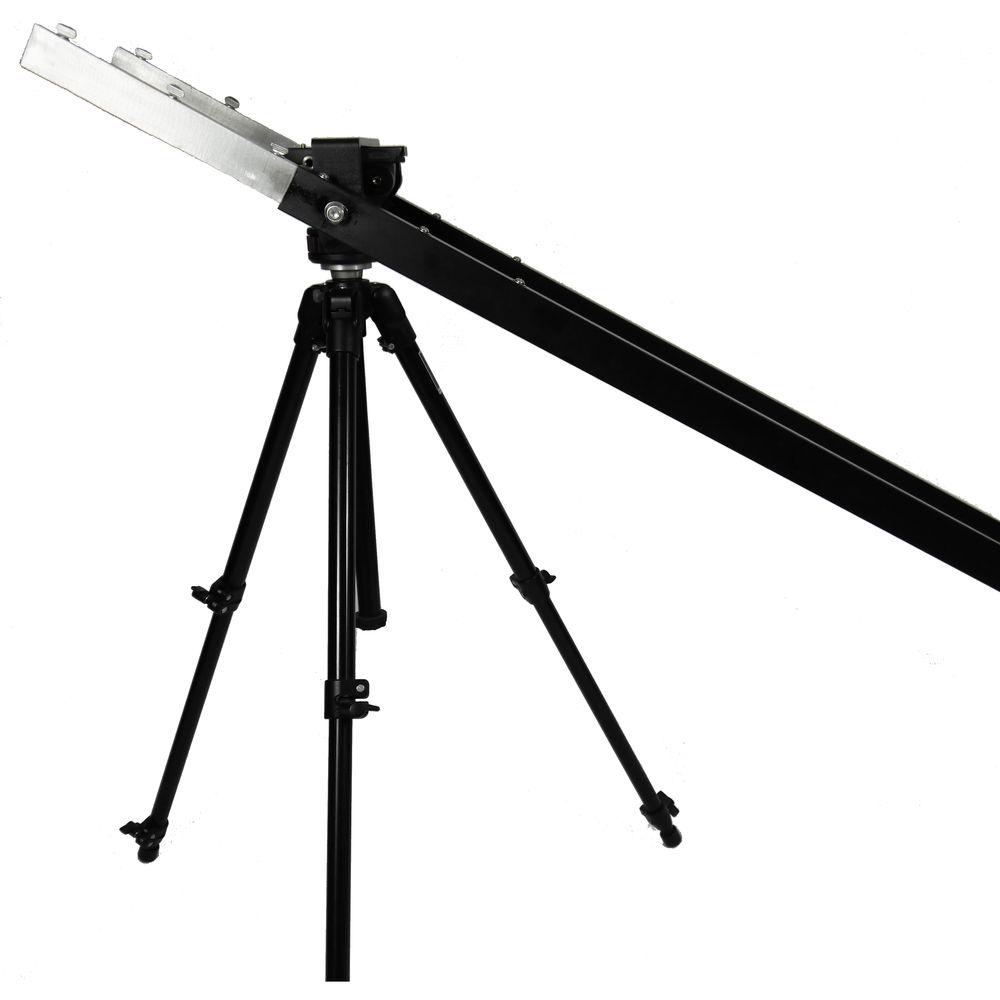

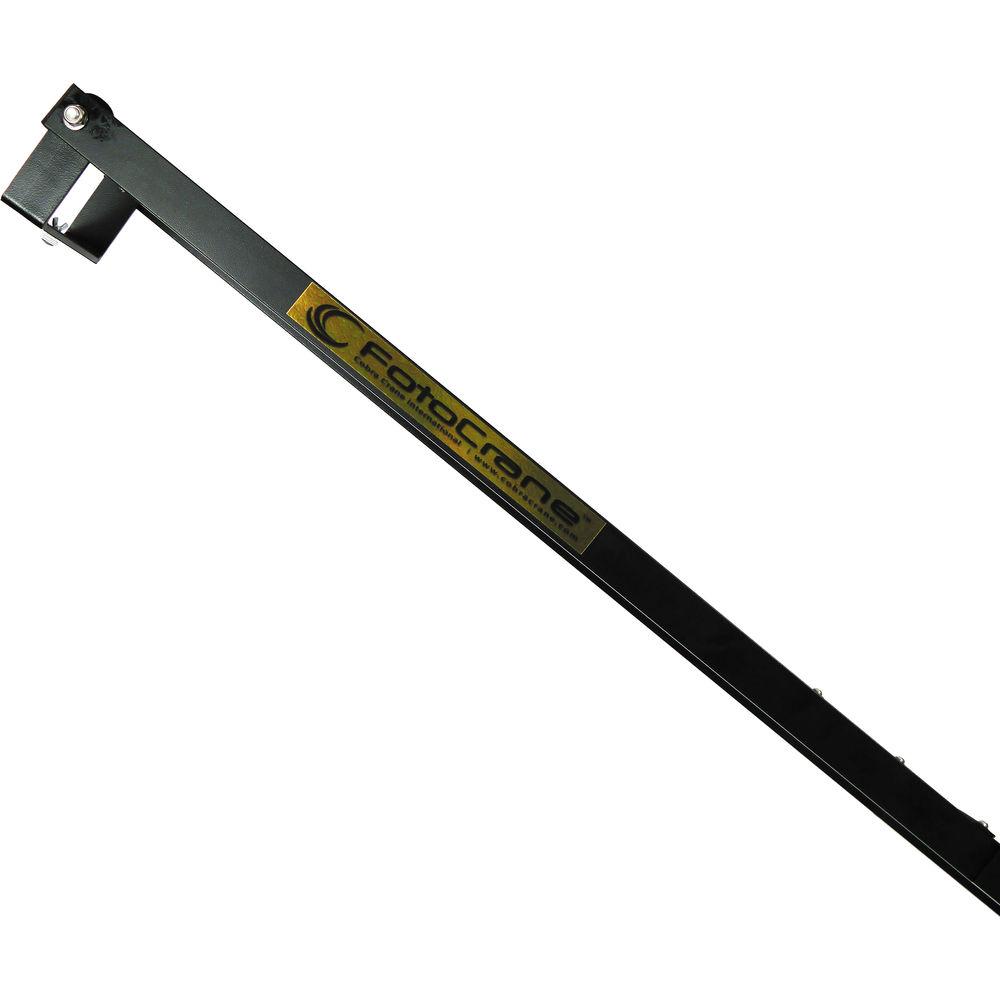

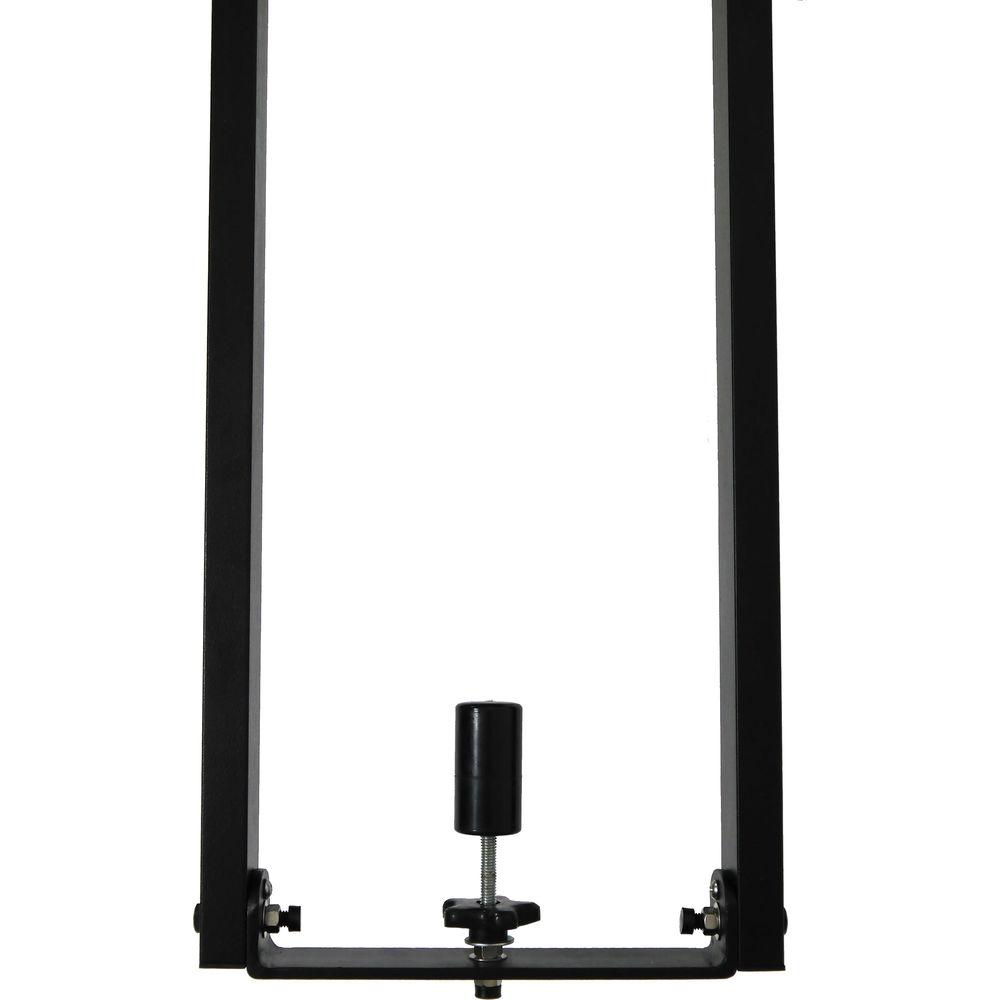

Please see the links below for more information on the components of this bundle. - FotoCrane HD2 The CobraCrane FotoCrane HD2 is a dual bar camera crane, adjustable between 8 ft and 12 ft of operating length, and weighing in at 22 lb. The main frame is made up of two parallel aluminum arms with a tripod mount platform running between them. A steel pulley chain runs along one arm. Two pulley chains are included, one for each length. A camera mount plate on the end supports loads up to 15 lb. For counterbalance, the crane supports standard size weight plates, sold separately. FotoCrane HD2 will allow you to move your camera across expansive vertical and horizontal spans as well as capture shots from high angles.
The aluminum arms are powder coated to prevent scratches. A 1/4"-20 thumbscrew is included. A tripod and tripod head supporting the weight of the crane and camera load are required. - Key Features
-
- Length adjustable between 8 ft and 12 ft of operating length

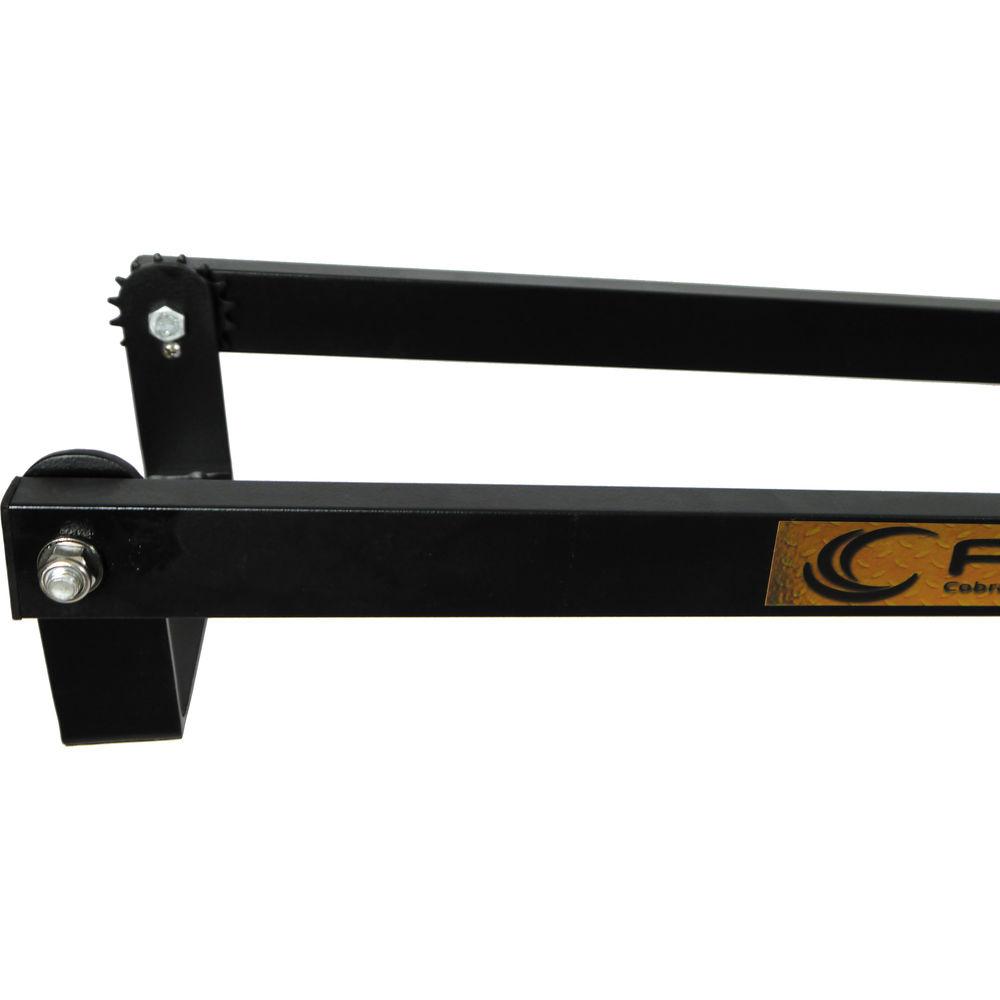

- Dual bar system with steel pulley chain tilt adjustment
- Supports loads up to 15 lb
- Powder coated to prevent scratches
- Weighs 22 lb

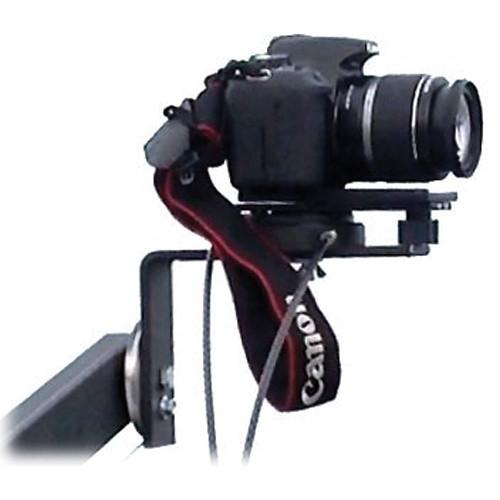

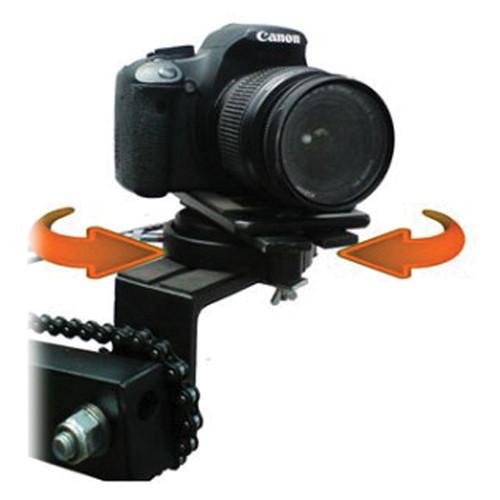

Pan Kit V2 One The CobraCrane Pan Kit V2 One is a manual-operated panner that attaches to a CobraCrane and at the turn of a crank pans left and right by a pulley system. The kit is compatible with CobraCrane I, II, and I and II with Extensions (and is not compatible with CobraCrane's BackPacker or FotoCrane).
The kit supports cameras weighing up to 6 lbs. The camera connects by its 1/4"-20 thread to a specially designed plate. The main part of the kit attaches to the end of any of the compatible cranes, and the pulley system attaches a bit further down the crane. At the turn of a crank, the kit pans left and right. The pulley cables are standard, durable field cables. UPC: 854103006212 In the Box Bundle Items FotoCrane HD2 - Length Adjustable Dual Arm Frame
- 2 x Pulley Chains (One for Each Length)
- 1/4"-20 Mounting Thumbscrew
Pan Kit V2 One Table of Contents
|
Upload User Manual
Have you got an user manual for the CobraCrane FotoCrane HD2 with Pan Head ONE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FotoCrane HD2
| Length | Operating Lengths: 8 ft (2.4 m) and 12 ft (3.7 m) | | Load Capacity | 15 lb (6.8 kg) | | Tilt Range | Up to 90° forward, 60° back | | Camera Mount Type | 1/4"-20 | | Weight | 22 lb (10 kg) | - Pan Kit V2 One
| Camera Support | Supports cameras up to 6 lbs (2.7 kg) | | | | Box Dimensions (LxWxH) | 14.1 x 12.2 x 4.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
