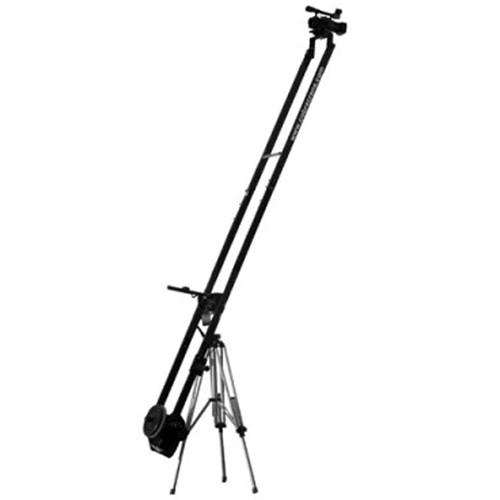

Product description The CobraCrane II HD with Pan Head PLUS combines an 11' foot jib arm that supports loads up to 30 pounds and a manually-operated panning kit. It can reach a height of 14' when used on a 5' tripod (not included), has multiple pivot points, and features an adjustable cable assembly. Attaching the included Pan Kit V2 PLUS adds a pan head, pulley cable, and hand crank for controlling camera pan with cameras up to 5 pounds. The crane's chain and sprocket tilt drive mechanism provides added stability and helps keep front-heavy cameras with large lenses from tilting forward. The CobraCrane II HD can be set up in a matter of minutes and, for added versatility, easily converts to a 6' crane by removing an end piece.

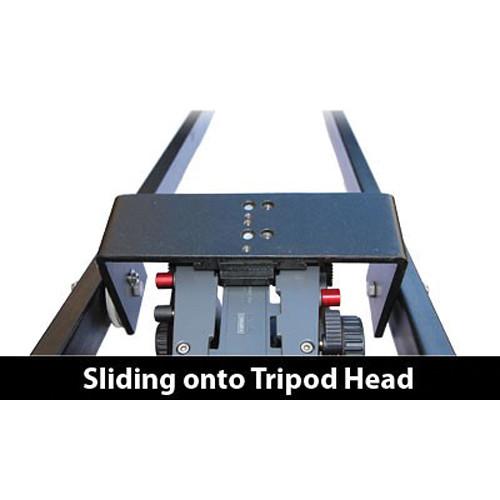

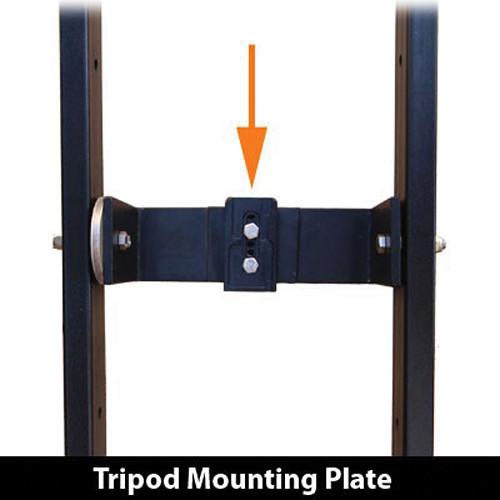

Please see the links below for more information on the components of this bundle. - CC2HD Heavy-Duty Single-Arm Camera Jib (10') The CobraCrane CC2HD Heavy-Duty Single-Arm Camera Jib is a portable crane designed for use with DSLR and video cameras. The 10' crane can reach a height of 14' on a 5' tripod (not included), and operate at ground level as well. It's streamlined, with several pivot points making it easy to mount higher or lower on a tripod for increased control of balance. It can also easily convert to a 6' crane by removing the 4' end. The CobraCrane 2HD's chain and sprocket design is particularly effective when using front-heavy cameras or large lenses--it helps eliminate the tendency of a large lens or heavy camera to tilt forward. Minimal break-down time (5 minutes) means more efficient and productive shooting schedules. An improved 1/2" axle and new cable chain drive mechanism makes this an unusually versatile portable crane. The tripod quick release plate is removable, so that switching to your tripod's quick release plate for a secure fit onto your tripod head is quick and easy. Any tripod that currently is used with a shoulder mount Beta, Digibeta, Varicam, Arri, Viper or Cinealta camera will most likely do very well with a CobraCrane. If your tripod is not listed here it may still work. Look for the weight rating of the tripod. If your tripod has a crank-up head, it's a good indication that its design is meant for heavier cameras and cranes. Keep in mind the size and weight of crane you plan to use. The CobraCrane 2HD is compatible with Manfrotto 510, 516, 519, 526 heads, or similarly rated heads. Mounting the crane on an available tripod with a fluid head adds tilt capability.
- Quick Setup & Breakdown
- Sets up in minutes - no additional tools required, with breakdown time of approximately 5 minutes
- Compatibility
- Suitable for DSLR & video cameras
- Lightweight
- The CobraCrane II HD weighs just 36 lb (16.32 kg)
- Ease of Use
- With only minutes of practice, get those hard-to-get shots
- Adjustable Height
- Crane can operate up to 14' high (on a 5' tripod) and down as low as ground level
- Camera Tilt
- In basic configuration, the camera platform stays set and does not tilt as you crane up and down. However, mounting the crane on an available, suitable tripod with fluid head allows you to tilt the fluid head and have the cranes camera platform follow the motion of the tilt.
- Precise Control
- The CobraCrane II HD has a bigger and stronger 1/2" axle and a new cable chain drive mechanism, for a lighter crane with a chain and sprocket tilt drive mechanism
- Flexible
- Works with a wide variety of cameras and tripods
- Proper Tool for the Job

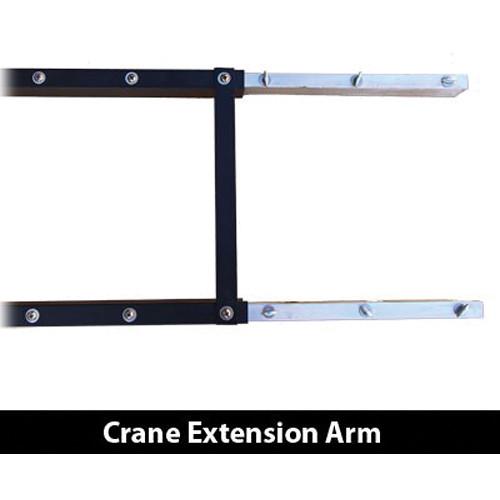

- Optional extension kit offers two lengths for a variety of shot requirements
- Reliable
- Solid construction and built to last--CobraCranes are rock solid

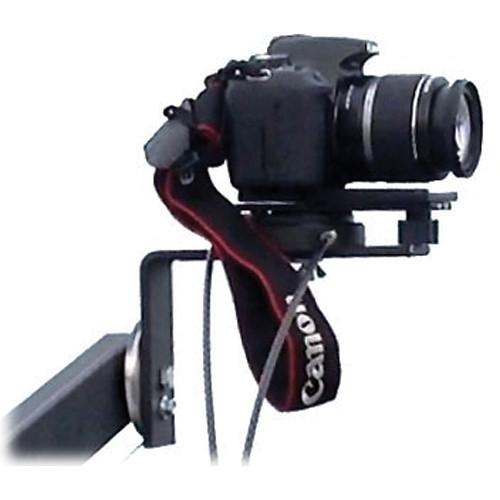

- Pan Kit V2 PLUS The CobraCrane Pan Kit V2 PLUS is a manually-operated pulley-system panning kit for the CobraCrane I Plus, II Plus, I HD, II HD, I HD-VL, and II HD-VL cranes. It weighs only 6 lb and supports loads up to 5 lb. The pulley system works at the turn of a crank using standard, durable field cables. The camera plate features 1/4"-20 mounting threads, and a set of mounting screws is included. UPC: 854103006229
In the Box Bundle Items CC2HD Heavy-Duty Single-Arm Camera Jib (10') - CobraCrane II HD Single Arm Crane
- QR Plate (Similar to Manfrotto 501PL)
Pan Kit V2 PLUS acxswqstvyttvtaesrderzducwuxwqurbzq Table of Contents
|
Upload User Manual
Have you got an user manual for the CobraCrane II HD with Pan Head PLUS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CC2HD Heavy-Duty Single-Arm Camera Jib (10')

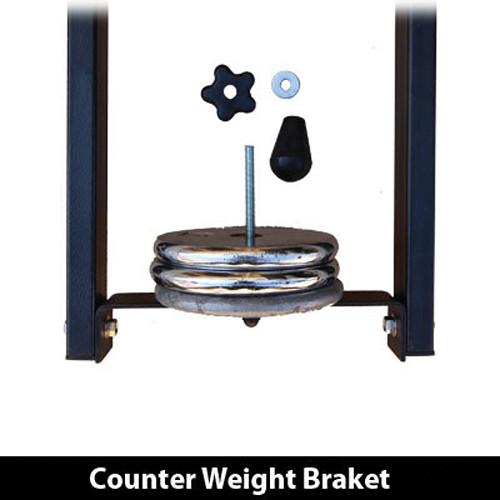

| Construction | Metal | | Payload Capacity | 30 lb (13.6 kg) | | Counterbalance System | Counterweights not included | | Height Range | Maximum crane height of 14' (4.26 m) on a 5' (1.52 m) tripod | | Tilt Lock | Not specified by manufacturer | | Pan Lock | Not specified by manufacturer | | Spring Loaded Counter Balance | Not specified by manufacturer | | Head Attachment | 1/4"-20 | | Leveling Indicators | Not specified by manufacturer | | Fold Down | Breaks down to 6' (1.82 m) | | Weight | 36 lb (16.32 kg) | | | | Box Dimensions (LxWxH) | 73.0 x 15.0 x 6.0" | - Pan Kit V2 PLUS
| Payload | 5 lb (2.3 kg) | | Mount Types | 1/4"-20 camera mount threads | | Weight | 6 lb (2.7 kg) | | | | Box Dimensions (LxWxH) | 15.35 x 12.75 x 4.1" |
