User Manual for CobraCrane II Plus with Pan Head PLUS Click to enlarge the picture
Contents of the user manual for the CobraCrane II Plus with Pan Head
- Product category: Cranes & Jibs CobraCrane
- Brand: CobraCrane
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CobraCrane Cranes & Jibs
 |
User manual for the CobraCrane II Plus with Pan Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CobraCrane product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CobraCrane user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CobraCrane product will considerably shorten its lifespan!
|
Product description The CobraCrane II HD with Pan Head PLUS combines a 10' foot dual-bar jib arm that supports loads up to 20 pounds with a manually operated panning kit. It can be setup in a matter of minutes and lets you position your camera from ground level to a maximum height of 12' when used on a 5' tripod (not included). Attaching the included Pan Kit V2 PLUS adds a head, pulley cable, and hand crank for controlling camera pan with cameras up to 5 pounds. When mounted on a suitable tripod with a fluid head, the camera platform will follow the tilt motion of the head.
Please see the links below for more information on the components of this bundle. - CC2P Dual Arm Camera Jib (10') The CobraCrane CC2P Dual Arm Camera Jib is a dual-arm jib arm for mid-sized camcorders. This crane offers a 12' reach when matched with a 5' tripod and can sweep the ground for low-angle applications. This model comes with a 4' extension kit for an upgrade from the standard CobraCrane 2. Mounting the crane on an available tripod with a fluid head adds tilt capability. Note: Tripod and head are sold separately.
- Camera Movement
- From the ground level the camera can be tilted up over 90 degrees, allowing the user to obtain a great perspective shot. Sweeping vista shots of landscapes, panoramas, and sporting events are possible. The over the top shot is also ideal for cooking videos, food marketing videos, and variety of higher perspective shots
- Quick Set-Up
- This device is easily assembled with a quick no-tool set-up system.
- Construction
- The CobraCrane is solidly constructed from metal and is built to last.
- Plus System

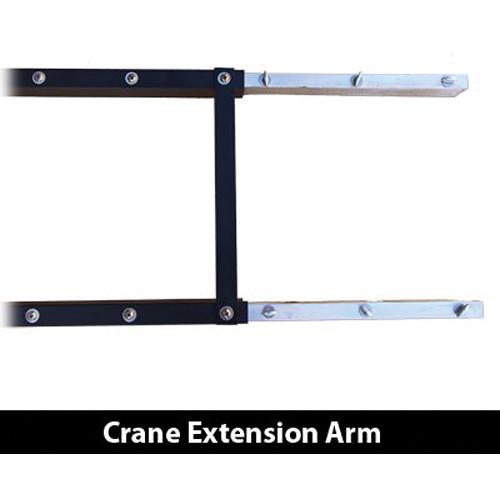

- The extension kit allows 4' more length above the standard CobraCrane II plus a 6' main section.
- Camera Tilt

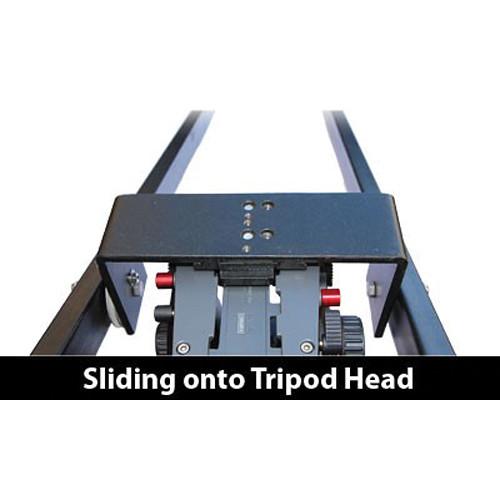

- In basic configuration, the camera platform stays set and does not tilt as you crane up and down. However, mounting the crane on an available, suitable tripod with fluid head allows you to tilt the fluid head and have the cranes camera platform follow the motion of the tilt.

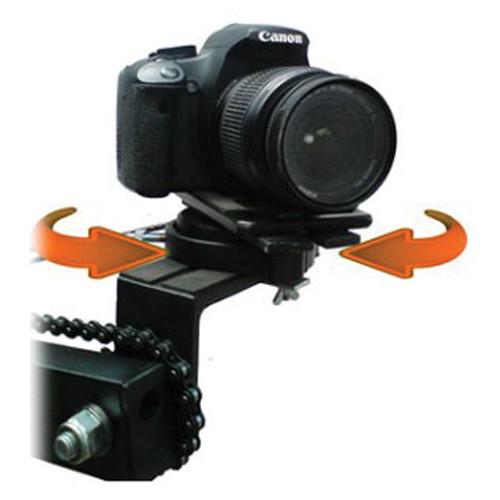

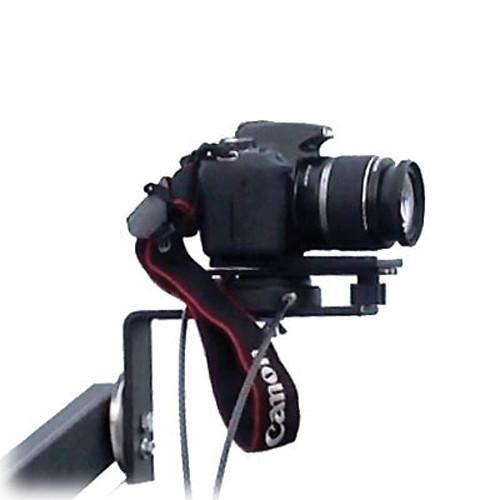

UPC: 854103006076 - Pan Kit V2 PLUS The CobraCrane Pan Kit V2 PLUS is a manually-operated pulley-system panning kit for the CobraCrane I Plus, II Plus, I HD, II HD, I HD-VL, and II HD-VL cranes. It weighs only 6 lb and supports loads up to 5 lb. The pulley system works at the turn of a crank using standard, durable field cables. The camera plate features 1/4"-20 mounting threads, and a set of mounting screws is included. UPC: 854103006229
In the Box Bundle Items CC2P Dual Arm Camera Jib (10') vtubtywqzvfccxsrareczs Pan Kit V2 PLUS vtubtywqzvfccxsrareczs Table of Contents
|
Upload User Manual
Have you got an user manual for the CobraCrane II Plus with Pan Head PLUS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CC2P Dual Arm Camera Jib (10')
| Construction | Metal | | Payload Capacity | 20 lbs

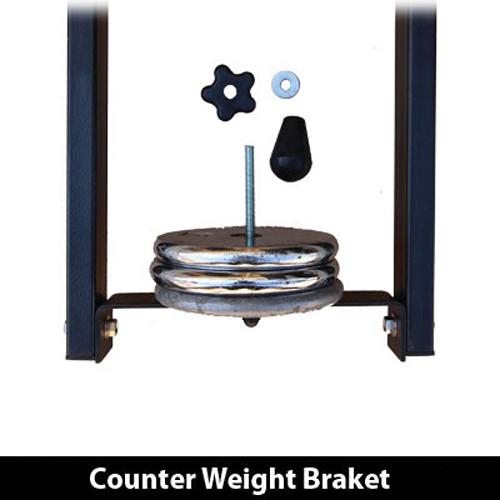

8kg | | Counterbalance System | Weight system at rear of assembly

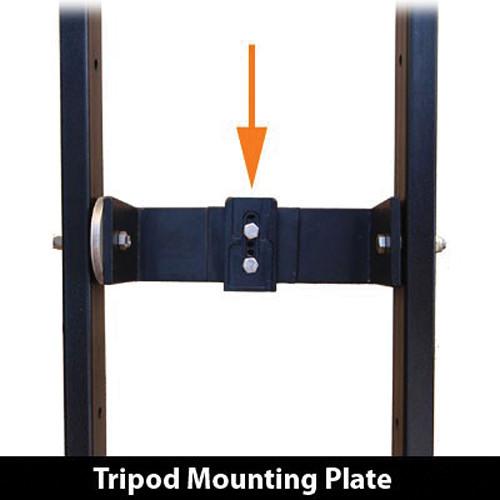

Not Included | | Height Range | 4' or 7' (1.2m or 2.1m) above tripod | | Tilt Lock | Not Specified by Manufacturer | | Tilt Drag | Not Specified by Manufacturer | | Pan Lock | Not Specified by Manufacturer | | Spring Loaded Counter Balance | Not Specified by Manufacturer | | Pan Range | 180° | | Tripod Attachment | 1/4-20 and/or 3/8" Camera Attachment | | Head Attachment | 1/4-20 and/or 3/8" Camera Attachment | | Head Arm Leveling | Not Specified by Manufacturer | | Leveling Indicators | Not Specified by Manufacturer | | Fold Down | 6'
1.8m | | Weight | 38 lbs
17.2kg | | | | Box Dimensions (LxWxH) | 73.0 x 16.0 x 5.2" | - Pan Kit V2 PLUS
| Payload | 5 lb (2.3 kg) | | Mount Types | 1/4"-20 camera mount threads | | Weight | 6 lb (2.7 kg) | | | | Box Dimensions (LxWxH) | 15.35 x 12.75 x 4.1" |
