User Manual for CobraCrane Two Stage XL Tripod System Click to enlarge the picture
Contents of the user manual for the CobraCrane Two Stage XL Tripod System
- Product category: Crane & Jib Accessories CobraCrane
- Brand: CobraCrane
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CobraCrane Crane & Jib Accessories
|
User manual for the CobraCrane Two Stage XL Tripod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CobraCrane product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CobraCrane user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CobraCrane product will considerably shorten its lifespan!
|

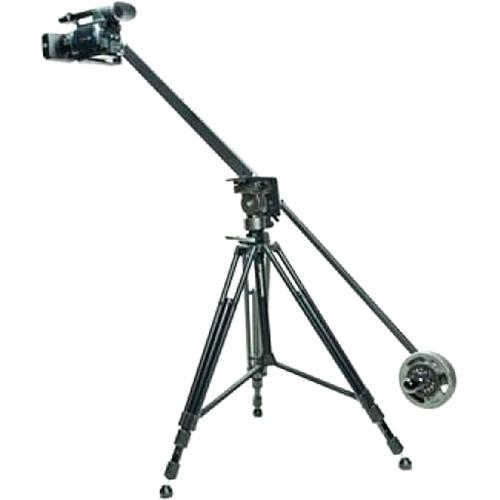

Product description The CobraCrane Two Stage XL Tripod System is a tripod and fluid head support system for CobraCrane I/II and BackPacker cranes with or without extensions. It also supports both the FotoCrane UltraLite and Xtreme. The system features a two-stage aluminum alloy tripod with a center support column, mid-level spreader and fluid head and will support 20 pounds in addition to the optional cranes. CobraCrane recommends leaving the center column completely lowered when using a crane, and raising the tripod's center column only when a camera is mounted to the tripod. The tripod legs feature foot spikes for increased traction on soft ground, and retractable rubber feet for use on interior floors.
The included fluid head provides tilt functionality to available cranes and features die-cast aluminum alloy construction for strength. It also has a built-in bubble level, and includes two pan handles for left- and right-hand operation. The head features a plus 90° to minus 90° tilt range, 360° pan rotation and individual locks for pan and tilt. The heavy duty QR plate accommodates both 3/8"-16 and 1/4"-20 tie down screws, and you can mount a crane, or camera to the fluid head. The fluid head is removable from the tripod legs, revealing a 3/8"-16 threaded stud, allowing you to mount an available tripod head of your choice. - Camera Tilt
- In basic configuration the camera platform stays set, and does not tilt, as you crane up and down. However, mounting the crane on an available suitable tripod with fluid head, allows you to tilt the fluid head and have the cranes camera platform follow the motion of the tilt.
In the Box CobraCrane Two Stage XL Tripod System Two Stage Aluminum Tripod Two Way Fluid Head 2 x Pan Handles QR Plate 2 x 1/4"-20 Tie Down Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CobraCrane Two Stage XL Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCobraCrane 6083 Specs | Maximum Load Capacity | 20 lb (9.07 kg) plus crane | | Pan Rotation | 360° | | Tilt | +90 to -90° | | Pan/Tilt Locks | Individual | | Stages | 2 stage | | Spreader | Mid-level | | Diameter | Leg: 1.26" (32 mm) | | Feet | Spiked feet, with retractable rubber covers | | Height | Minimum: 33" (83.8 cm)
Maximum: 70" (177.8 cm)
Closed: 37" (94 cm) | | Weight | 10.0 lb (4.5 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 38.0 x 6.7 x 6.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
