User Manual for Cokin Evo Aluminum X-Pro Series Filter Holder Click to enlarge the picture
Contents of the user manual for the Cokin Evo Aluminum X-Pro Series Filter
- Product category: Filter Holders & Frames Cokin
- Brand: Cokin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cokin Filter Holders & Frames
 |
User manual for the Cokin Evo Aluminum X-Pro Series Filter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cokin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cokin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cokin product will considerably shorten its lifespan!
|

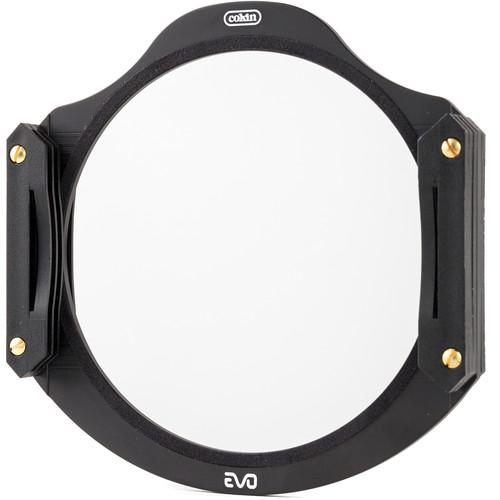

Product description The Evo Aluminum X-Pro Series Filter Holder is designed to accommodate multiple Cokin X-Pro Series, or 130mm-wide, rectangular filters in order to help create the shot you envision. It can hold up to three rectangular filters that are each up to 2.3mm thick; or two rectangular filters that are each 3mm thick or 2.3mm thick, plus one 127mm screw-on filter. Alternatively, it can hold either two 3mm-thick rectangular filters along with another rectangular filter that is 2.3mm thick, or two 2.3mm-thick rectangular filters along with another rectangular filter that is 3mm thick.
Use of the filter holder can be easily accomplished by first screwing a separately available, Cokin X-Pro Series Filter Holder Adapter Ring onto a camera lens. Adapter rings are available for lenses with 62mm, 67mm, 72mm, 77mm, 82mm, 95mm, 96mm, 105mm, or 112mm front filter threads. Cokin X-Pro Series filter holder adapter rings are also available for Hasselblad Bay 60 and Bay 70 lenses and Rolleiflex Bay VI lenses. The Cokin Universal X-Pro Series Filter Holder Adapter Ring may be used as well, and is designed for lenses that are 60mm to 115mm in diameter.

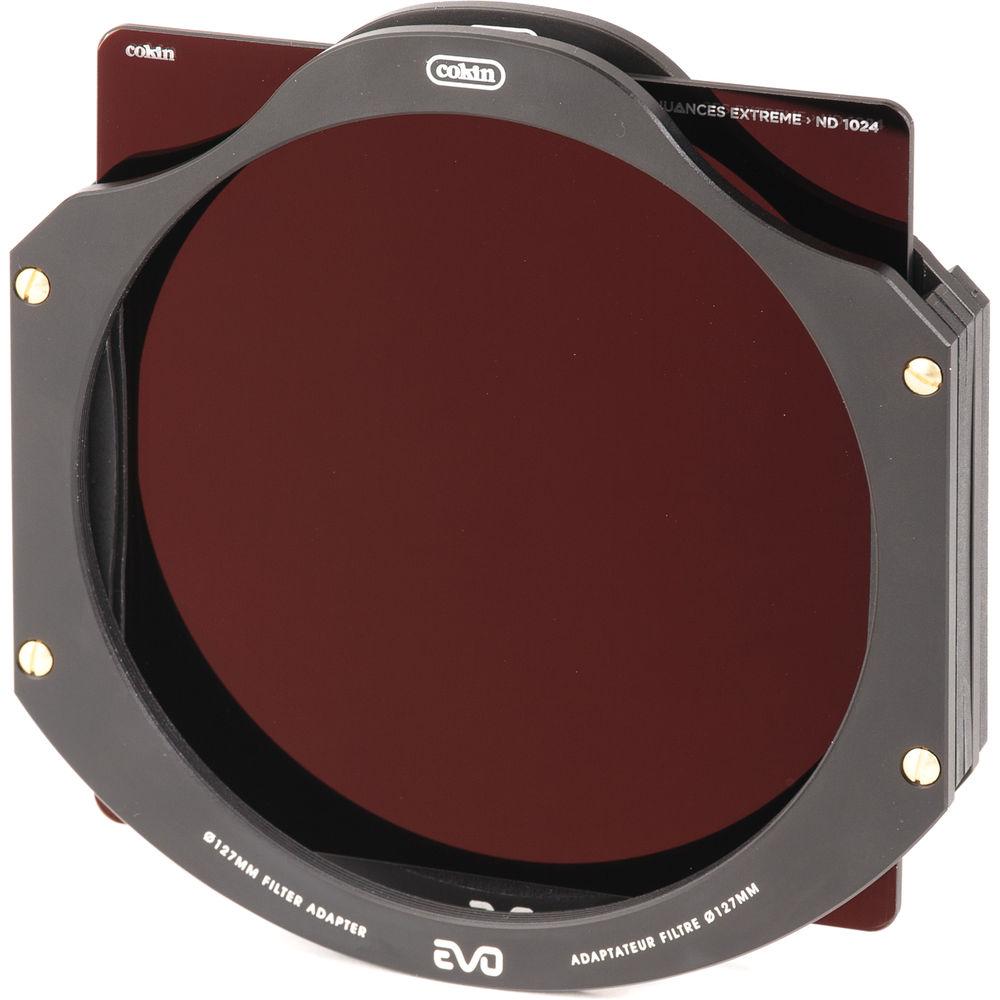

The filter holder's back plate integrates the components that allow a Cokin X-Pro Series, or a 130mm-wide, rectangular filter to be secured to a lens with a compatible adapter ring. Five pairs of filter slots are included, up to three of which can be used to create a configuration that accommodates three rectangular filters that are each 2.3mm thick, or two 3mm-thick filters and one 2.3mm-thick filter, or two 2.3mm-thick filters and one 3mm-thick filter. These slots are attached to the front of the back plate while a pair of adapter ring slots for the back plate's rear snaps onto a Cokin X-Pro Series Filter Holder Adapter Ring. After being fitted onto an adapter ring, the back plate can be rotated 360°, permitting the use of graduated neutral density and other filters that are enhanced by varied positioning. Four brass screws held in place by four brass nuts attach the adapter ring slots and any filter slots in use to the back plate. Those screws can be loosened or tightened to vary the level of grip upon the inserted filters, which also can complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot.

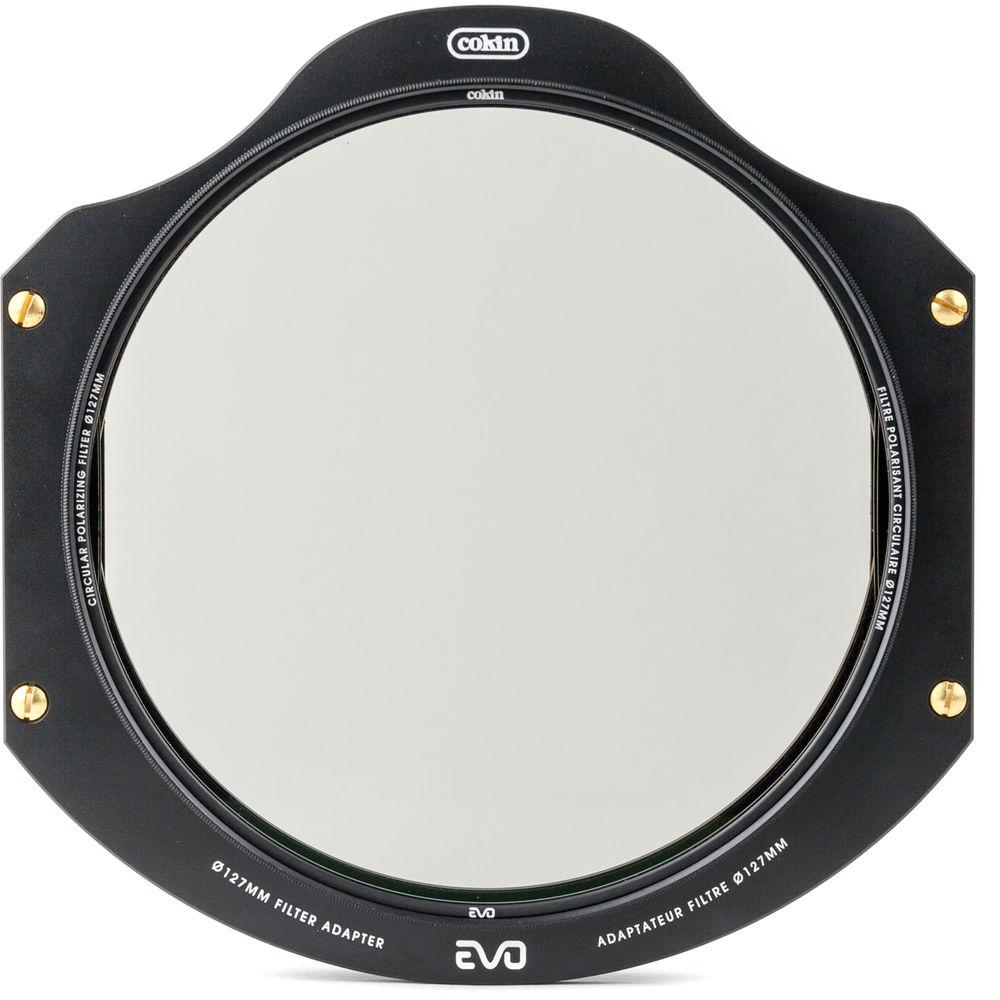

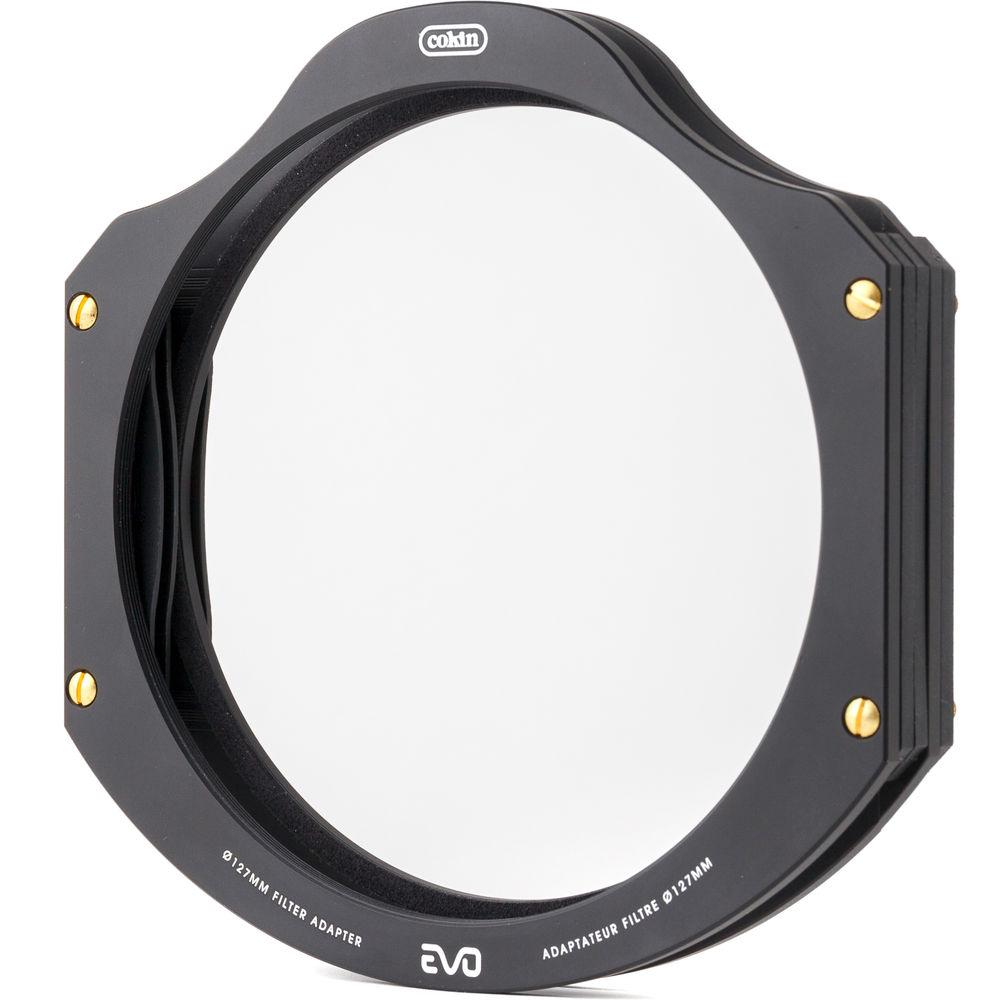

Also included is a second plate that can be installed in front of the back plate, or in front of up to two of the back plate's filter slots. While in use, this front plate is attached to the same screws and nuts that hold the filter holder's main components together and provides the ability to place a screw-on 127mm filter at the very top of the filter holder assembly. This ensures that a filter such as a screw-on circular polarizer, which includes a filter ring that must be rotated in order to adjust the intensity of its effect, remains accessible.
To enable the use of 130mm-wide, 3mm-thick filters, a pair of spacers can be placed between the back plate and a pair of filter slots. Alternatively, the spacers can be placed between two pairs of filter slots so that a 130mm-wide, 3mm-thick filter can be installed ahead of a Cokin X-Pro Series, 130mm-wide, 3mm- or 2.3mm-thick filter. Together, these spacers help to ensure that a 3mm-thick filter is not obstructed along its side that faces the lens, whether by the back plate or by a 3mm- or 2.3mm-thick filter that is already installed.
To help prevent stray light, which could have unwanted effects on exposure, from coming in between the filter holder and a connected lens, a gasket is positioned along the front of the back plate. This gasket is designed to form a seal between the back plate and the first rectangular filter placed in front of it. -
- With a separately available Cokin X-Pro Series Filter Holder Adapter Ring, allows multiple Cokin X-Pro Series, or 130mm-wide, rectangular filters to be conveniently used on lenses with 62mm, 67mm, 72mm, 77mm, 82mm, 95mm, 96mm, 105mm, or 112mm front filter threads
- Usable with Cokin X-Pro Series filter holder adapter rings for Hasselblad Bay 60 and Bay 70 lenses and Rolleiflex Bay VI lenses
- Can hold up to three rectangular filters that are each 2.3mm thick, or two 3mm-thick filters and one 2.3mm-thick filter, or two 2.3mm-thick filters and one 3mm-thick filter
- Can be rotated 360°, permitting the use of graduated neutral density and other filters that are enhanced by varied positioning
- Grip on installed rectangular filters can be adjusted, allowing those filters to be moved up or down to better suit changing lighting conditions or creative demands
- While in use, 127mm screw-on filters are positioned at the very front of the filter holder assembly by a dedicated filter plate, ensuring that a filter such as a screw-on circular polarizer, which includes a filter ring that must be rotated in order to adjust the intensity of its effect, remains accessible
- Two pairs of spacers are included to ensure clearance behind a pair of filter slots used to hold a 130mm-wide, 3mm-thick filter
- Built-in gasket helps to prevent stray light, which could have unwanted effects on exposure, from coming in between a connected lens and a rectangular filter placed directly in front of it
- Durable and lightweight aluminum construction with brass fittings
In the Box Cokin Evo Aluminum X-Pro Series Filter Holder Filter Holder Back Plate 10 x Filter Holder Slots for Rectangular Filters Filter Holder Font Plate for 127mm Screw-On Filter 2 x Adapter Ring Slots for Filter Holder Back Plate 4 x Spacers for 3mm Rectangular Filter 8 x Screws 4 x Nuts Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cokin Evo Aluminum X-Pro Series Filter Holder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCokin X-Pro Evo Specs | Material | Filter Holder Plates: Aluminum
Filter Holder Slots: Nylon
Adapter Ring Slots: Nylon
Spacers: Nylon
Screws: Brass
Nuts: Brass | | Compatibility | Adapter Ring: Cokin X-Pro Series Filter Holder Adapter Ring
Filters: Accepts up to three rectangular filters (130mm-wide, 2.3mm-thick), up to two rectangular filters (130mm-wide, 3mm or 2.3mm-thick) plus one 127mm screw-on filter, up to three rectangular filters (130mm-wide, two 3mm and one 2.3mm-thick), or up to three rectangular filters (130mm-wide, two 2.3mm and one 3mm-thick) | | Rotating | Yes, 360° | | Dimensions | With up to Two 2.3mm-Thick Filters: 5.8 x 5.8 x 1.0" / 148.0 x 148.0 x 25.0 mm
With Two 3.0mm-Thick Filters and One 2.3mm-Thick Filter: 5.8 x 5.8 x 1.2" / 148.0 x 148.0 x 30.0 mm | | Weight | Without Front Plate: 3.5 oz / 100.0 g
With Front Plate: 5.5 oz / 155.0 g | | | | Package Weight | 0.595 lb | | Box Dimensions (LxWxH) | 7.8 x 6.3 x 2.1" |
