Product description This Cokin P Series Infrared Filter Kit is designed to help capture images of how a subject reflects or transmits infrared light.
Infrared light waves occupy the space in the electromagnetic spectrum behind visible light due to their longer wavelengths. Many surfaces and materials react to, or emit infrared light waves differently than visible light waves, which provide the potential for photographs of subjects or subject properties that are otherwise invisible to the human eye. Such images require an infrared-sensitive medium such as infrared film or a digital photographic sensor which may be more effective when used without the infrared-blocking filters that are frequently built over them.
Conventional light sources such as the sun, photographic strobes, or incandescent lighting may be used to provide infrared illumination. However, because infrared films or digital photographic sensors can be more sensitive to the relatively higher energy and shorter-wavelength visible light those sources also emit, the effects of infrared light can be otherwise obscured. The included Cokin P Series Infrared Filter corresponds to a Wratten 89B filter and makes it possible to capture images of how subjects are illuminated by infrared light by blocking near-infrared, visible, and ultraviolet light waves while allowing 90% of infrared light waves 770nm or greater into the lens it is mounted in front of.

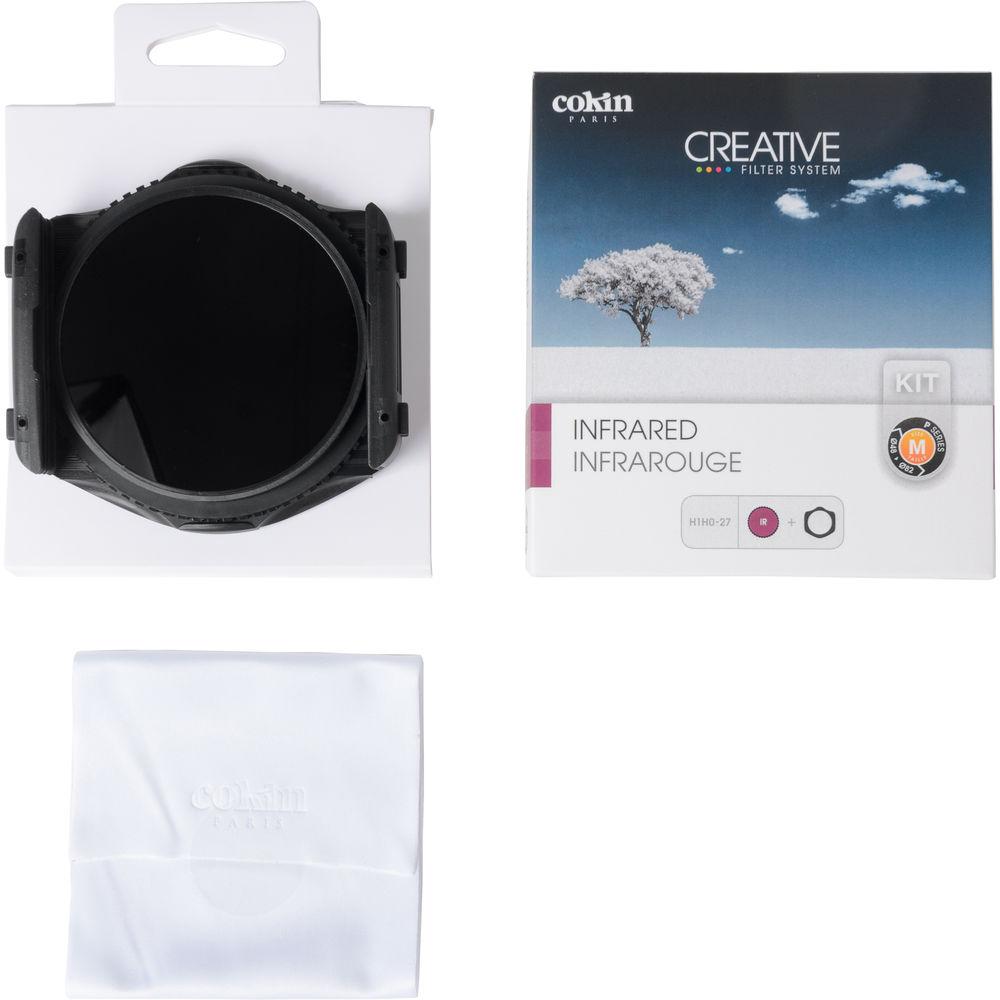

To allow this filter to be placed in front of a lens, this kit contains a filter holder that can accommodate a Cokin P Series Infrared Filter as well as rectangular filters that are 84mm wide and 1.6mm thick. The Cokin P Series Infrared Filter is mounted within a circular frame that helps prevent stray light, which could have unwanted effects on exposure, from coming in between an installed Cokin P Series Infrared Filter and a connected lens.
To connect the filter holder to a lens's front filter threads, a separately available Cokin P Series lens adapter ring is required. For cleaning and maintenance of the filter which is made of durable, optical resin (CR39), a microfiber cloth is also included. - P007 Infrared Resin Filter for Black and White This filter is for black and white infrared film when you only want to transmit the infrared spectrum and none of the visible spectrum. Filter factor is determined by the film sensitivity.This filter measures 85 x 85mm and fits the Cokin P series holder. UPC: 085831277302
- P Series Filter Holder The Cokin P Series Filter Holder is designed to accommodate multiple Cokin P Series Filters in order to help create the shot you envision. It can hold up to three rectangular filters, or two rectangular filters and one round filter such as a rotating circular polarizer, for the Cokin P Series Filter Holders.

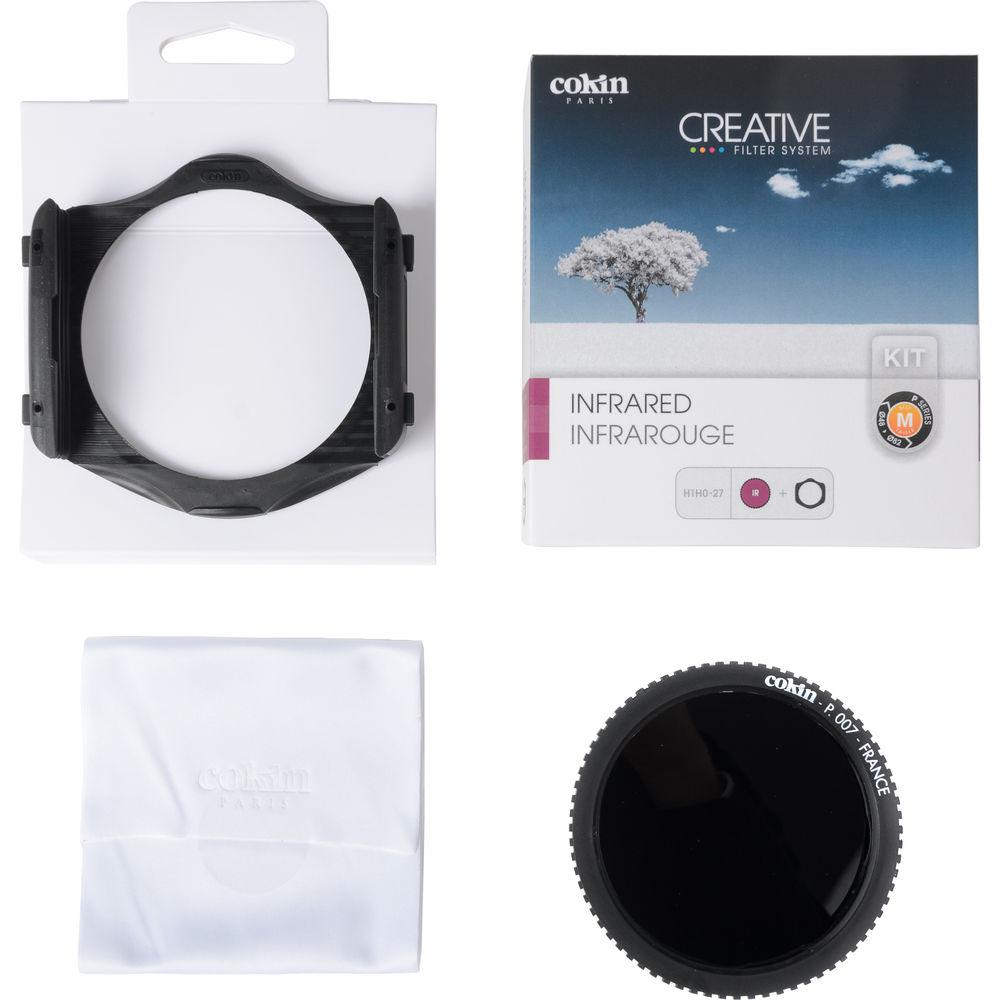

Rectangular Cokin P Series Filters are 84mm-wide and 1.6mm-thick. A Cokin P Series Filter Holder Adapter Ring can be used to connect this filter holder to the front of a lens. UPC: 085831418347 In the Box Bundle Items P007 Infrared Resin Filter for Black and White ccuwdcaevcfbezvrvryurwwdasaztbsyfcxbz P Series Filter Holder
Also Includes - Microfiber Cloth
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Cokin P Series Infrared Filter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - P007 Infrared Resin Filter for Black and White
| | | Box Dimensions (LxWxH) | 6.0 x 4.8 x 0.2" | - P Series Filter Holder
| Filter Capacity | 3 x 2.6 x 2.6", 2.6 x 2.8", 67 x 67 mm, 67 x 72 mm, Cokin P (1.6 mm Thick)
or
2 x 2.6 x 2.6", 2.6 x 2.8", 67 x 67 mm, 67 x 72 mm, Cokin P (1.6 mm Thick) and
1 x Round Cokin P | | Material | Plastic | | | | Box Dimensions (LxWxH) | 7.402 x 5.118 x 0.866" |
