Product description This Cokin P Series Neutral Density Filter Kit contains three filters that can be used individually or in various combinations to improve the results of your photography. The included filters consist of an 84 x 84mm solid neutral density filter as well as two 84 x 100mm graduated neutral density filters.
The included solid neutral density filter is an ND filter with a 4x filter factor that provides a 2-stop exposure reduction. Its 0.6 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.
Graduated neutral density filters can be used to prevent overexposure in specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The included graduated neutral density filters reduce the amount of light entering a lens by up to two and three stops respectively. Additionally, they feature a hard-edged line of transition between their dense and clear areas. A graduated neutral density filter with a hard-edged line of transition is useful for images which have defined horizon lines.

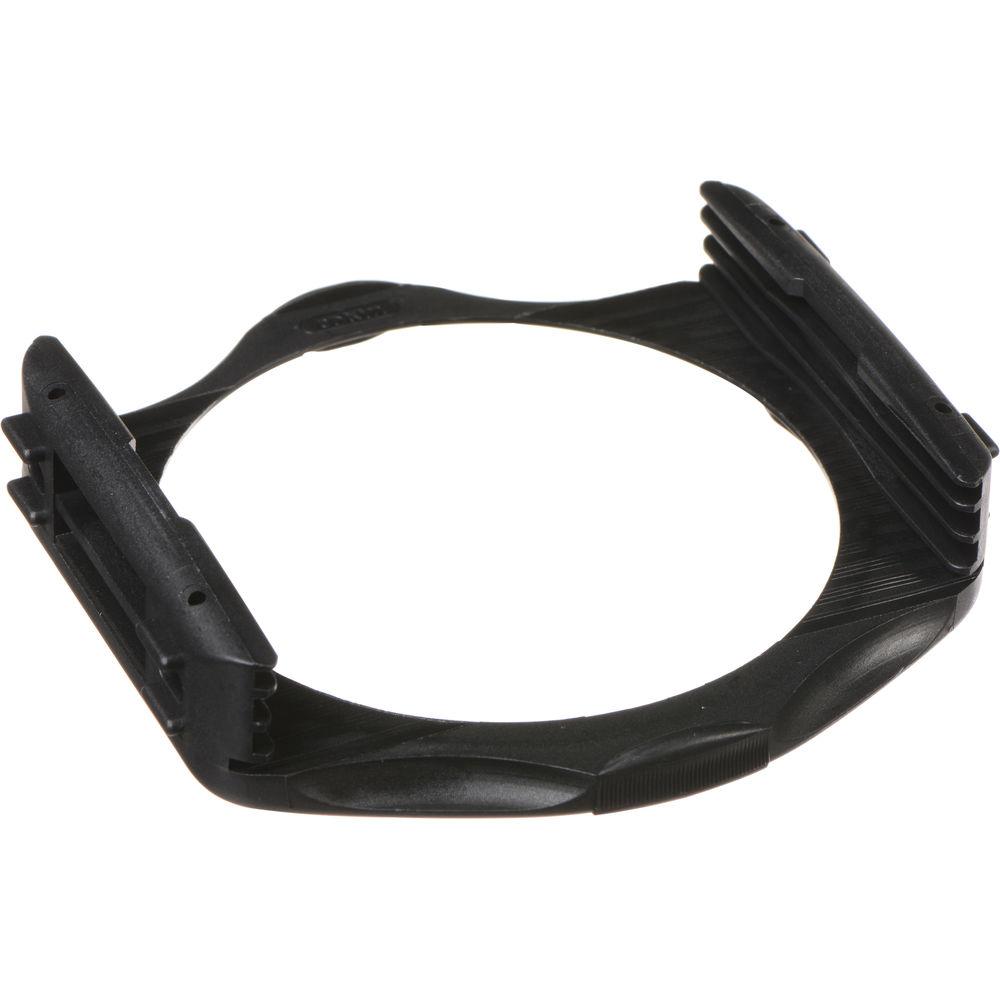

Together, these filters provide a versatile solution for various lighting conditions. To allow these filters to be placed in front of a lens, this kit contains a filter holder for rectangular filters that are 84mm wide and 1.6mm thick. Four Cokin P-Series lens adapter rings are provided to connect that filter holder to a lens that features 52mm, 55mm, 58mm, or 62mm front filter threads. Other lens adapter rings are separately-available for lenses with different-sized front filter threads. Each filter is made of durable, optical resin (CR39) and measures 1.6mm thick. - P Series Filter Holder The Cokin P Series Filter Holder is designed to accommodate multiple Cokin P Series Filters in order to help create the shot you envision. It can hold up to three rectangular filters, or two rectangular filters and one round filter such as a rotating circular polarizer, for the Cokin P Series Filter Holders.
Rectangular Cokin P Series Filters are 84mm-wide and 1.6mm-thick. A Cokin P Series Filter Holder Adapter Ring can be used to connect this filter holder to the front of a lens. UPC: 085831418347 - P Series ND 0.6 Filter (2-Stop) The Cokin P Series ND 0.6 Filter is a neutral density filter providing a 2-stop exposure reduction. This 0.6 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By increasing your aperture or slowing your exposure time, you can control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.
Cokin filters are constructed from optical resin and are notably light in weight, have a high resistance to shocks and drops, and provide optimum light transmission for high image quality. This filter measures 3.3 x 3.3" / 84 x 84mm and is compatible with the Cokin P filter holder. - 0.6 neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
- Providing a 2-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
- Neutral density filters do not affect the overall coloration of the image.
- Filter measures 3.3 x 3.3" / 84 x 84mm and is compatible with the Cokin P filter holder.
UPC: 085831271652 - P Series Hard-Edge Graduated Neutral Density 0.6 Filter (2-Stop) This Cokin P Series Hard-Edge Graduated Neutral Density 0.6 Filter is designed for use with a Cokin P Series Filter Holder. It helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The filter is densest at the edge and tapers to clear by the middle, with a hard-edged line of transition between the dense and clear areas. A neutral density filter with a hard-edged line of transition is useful for images which include defined horizon lines. Neutral density filters do not affect the coloration of the image and this filter provides up to a 2-stop reduction in light from entering a lens.
This filter is made of durable, optical resin (CR39) and measures 1.6mm thick. -
- Compatible with a Cokin P Series Filter Holder
- Darkens bright areas of an image, such as skies, while leaving the remainder of the frame unaffected
- Provides up to a 2-stop reduction of light in selective areas
- Hard-edged line of transition between the dense and clear areas
- Useful for images which include defined horizon lines
- Filter does not affect the overall coloration of the image
- Constructed from optical resin (CR39) for clarity and durability
UPC: 085831449242 - P Series Hard-Edge Graduated Neutral Density 0.9 Filter (3-Stop) This Cokin P Series Hard-Edge Graduated Neutral Density 0.9 Filter is designed for use with a Cokin P Series Filter Holder. It helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The filter is densest at the edge and tapers to clear by the middle, with a hard-edged line of transition between the dense and clear areas. A neutral density filter with a hard-edged line of transition is useful for images which include defined horizon lines. Neutral density filters do not affect the coloration of the image and this filter provides up to a 3-stop reduction in light from entering a lens.
This filter is made of durable, optical resin (CR39) and measures 1.6mm thick. -
- Compatible with a Cokin P Series Filter Holder
- Darkens bright areas of an image, such as skies, while leaving the remainder of the frame unaffected
- Provides up to a 3-stop reduction of light in selective areas
- Hard-edged line of transition between the dense and clear areas
- Useful for images which include defined horizon lines
- Filter does not affect the overall coloration of the image
- Constructed from optical resin (CR39) for clarity and durability

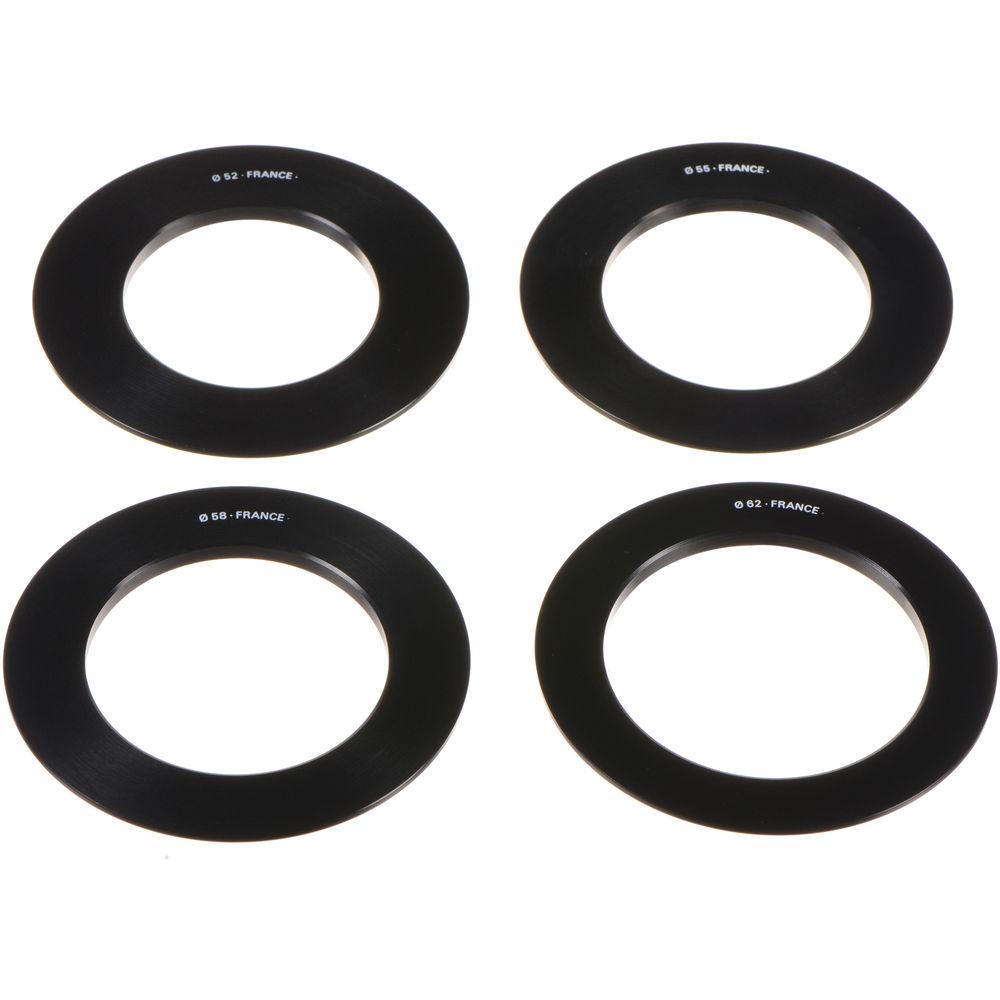

UPC: 085831270587 - P Series Filter Holder Adapter Ring (52mm) This 52mm P Series Filter Holder Adapter ring from Cokin screws onto the lens' front threads of the same diameter and enables the P Series Adapter Ring to attach to the P series Filter Holder. Once the adapter and holder are attached to the lens filters can be slid into the holder and be used accordingly.The adapter ring is made from aluminum, which has been anodized for durability. UPC: 085831271362
- P Series Filter Holder Adapter Ring (55mm) This 55mm P Series Filter Holder Adapter ring from Cokin screws onto the lens' front threads of the same diameter and enables the P Series Adapter Ring to attach to the P series Filter Holder. Once the adapter and holder are attached to the lens filters can be slid into the holder and be used accordingly.The adapter ring is made from aluminum, which has been anodized for durability. UPC: 085831271379
- P Series Filter Holder Adapter Ring (58mm) This 58mm P Series Filter Holder Adapter ring from Cokin screws onto the lens' front threads of the same diameter and enables the P Series Adapter Ring to attach to the P series Filter Holder. Once the adapter and holder are attached to the lens filters can be slid into the holder and be used accordingly.The adapter ring is made from aluminum, which has been anodized for durability. UPC: 085831271386
- P Series Filter Holder Adapter Ring (62mm) This 62mm P Series Filter Holder Adapter ring from Cokin screws onto the lens' front threads of the same diameter and enables the P Series Adapter Ring to attach to the P series Filter Holder. Once the adapter and holder are attached to the lens filters can be slid into the holder and be used accordingly.The adapter ring is made from aluminum, which has been anodized for durability. UPC: 085831271393
In the Box Bundle Items P Series Filter Holder sxfuvbrufqtwzrwvdyuttqdvryetcddtdx P Series ND 0.6 Filter (2-Stop) P Series Hard-Edge Graduated Neutral Density 0.6 Filter (2-Stop) P Series Hard-Edge Graduated Neutral Density 0.9 Filter (3-Stop) P Series Filter Holder Adapter Ring (52mm) P Series Filter Holder Adapter Ring (55mm) P Series Filter Holder Adapter Ring (58mm) P Series Filter Holder Adapter Ring (62mm) sxfuvbrufqtwzrwvdyuttqdvryetcddtdx
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Cokin P Series Solid and Hard-Edge Graduated Neutral Density Filter Kit with P Series Filter Holder and Adapter Rings in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - P Series Filter Holder
| Filter Capacity | 3 x 2.6 x 2.6", 2.6 x 2.8", 67 x 67 mm, 67 x 72 mm, Cokin P (1.6 mm Thick)
or
2 x 2.6 x 2.6", 2.6 x 2.8", 67 x 67 mm, 67 x 72 mm, Cokin P (1.6 mm Thick) and
1 x Round Cokin P | | Material | Plastic | | | | Box Dimensions (LxWxH) | 7.402 x 5.118 x 0.866" | - P Series ND 0.6 Filter (2-Stop)
| Filter Type | Solid ND | | Density | 0.6 (2 Stops) | | Rectangular Size | 3.3 x 3.3" / 84.0 x 84.0 mm | | Filter Material | Resin | | | | Box Dimensions (LxWxH) | 4.4 x 3.7 x 0.6" | - P Series Hard-Edge Graduated Neutral Density 0.6 Filter (2-Stop)
| Filter Type | Graduated ND | | Graduation Type | Hard Edge | | Density | 0.6 (2 Stops) | | Shape | Rectangle | | Rectangular Size | 3.3 x 3.9" / 84.0 x 100.0 mm | | Cokin Compatibility | Cokin P | | Filter Thickness | 0.06" / 1.6 mm | | Filter Material | Resin | | | | Box Dimensions (LxWxH) | 5.8 x 4.4 x 0.02" | - P Series Hard-Edge Graduated Neutral Density 0.9 Filter (3-Stop)
| Filter Type | Graduated ND | | Graduation Type | Hard Edge | | Density | 0.9 (3 Stops) | | Shape | Rectangle | | Rectangular Size | 3.3 x 3.9" / 84.0 x 100.0 mm | | Cokin Compatibility | Cokin P | | Filter Thickness | 0.06" / 1.6 mm | | Filter Material | Resin | | | | Box Dimensions (LxWxH) | 5.9 x 4.4 x 0.02" | - P Series Filter Holder Adapter Ring (52mm)
| Compatible Lens Filter Thread | 52 mm | | Filter Holder System | Cokin P | | Material | Aluminum | | | | Box Dimensions (LxWxH) | 4.0 x 3.7 x 0.1" | - P Series Filter Holder Adapter Ring (55mm)
| Compatible Lens Filter Thread | 55 mm | | Filter Holder System | Cokin P | | Material | Aluminum | | | | Box Dimensions (LxWxH) | 4.3 x 3.8 x 0.04" | - P Series Filter Holder Adapter Ring (58mm)
| Compatible Lens Filter Thread | 58 mm | | Filter Holder System | Cokin P | | Material | Aluminum | | | | Box Dimensions (LxWxH) | 4.9 x 4.0 x 0.02" | - P Series Filter Holder Adapter Ring (62mm)
| Compatible Lens Filter Thread | 62 mm | | Filter Holder System | Cokin P | | Material | Aluminum | | | | Box Dimensions (LxWxH) | 4.8 x 3.9 x 0.02" |
