Cokin P Series Solid, Hard-Edge Graduated

User Manual for Cokin P Series Solid, Hard-Edge Graduated Neutral Density, and Polarizer Filter Kit with P Series Filter Holder and Filter Wallet

• Product category: Filter Kits Cokin
• Brand: Cokin
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Cokin Filter Kits

Product description

• P Series Filter Holder The Cokin P Series Filter Holder is designed to accommodate multiple Cokin P Series Filters in order to help create the shot you envision. It can hold up to three rectangular filters, or two rectangular filters and one round filter such as a rotating circular polarizer, for the Cokin P Series Filter Holders.

  Rectangular Cokin P Series Filters are 84mm-wide and 1.6mm-thick. A Cokin P Series Filter Holder Adapter Ring can be used to connect this filter holder to the front of a lens. UPC: 085831418347
• P Series ND 0.9 Filter (3-Stop) The Cokin P Series ND 0.9 Filter is a neutral density filter providing a 3-stop exposure reduction. This 0.9 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By increasing your aperture or slowing your exposure time, you can control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.

  Cokin filters are constructed from optical resin and are notably light in weight, have a high resistance to shocks and drops, and provide optimum light transmission for high image quality. This filter measures 3.3 x 3.3" / 84 x 84mm and is compatible with the Cokin P filter holder.
  • 0.9 neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 3-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Neutral density filters do not affect the overall coloration of the image.
  • Filter measures 3.3 x 3.3" / 84 x 84mm and is compatible with the Cokin P filter holder.
  UPC: 085831271683
• P Series Hard-Edge Graduated Neutral Density 0.6 Filter (2-Stop) This Cokin P Series Hard-Edge Graduated Neutral Density 0.6 Filter is designed for use with a Cokin P Series Filter Holder. It helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The filter is densest at the edge and tapers to clear by the middle, with a hard-edged line of transition between the dense and clear areas. A neutral density filter with a hard-edged line of transition is useful for images which include defined horizon lines. Neutral density filters do not affect the coloration of the image and this filter provides up to a 2-stop reduction in light from entering a lens.

  This filter is made of durable, optical resin (CR39) and measures 1.6mm thick.
  • • Compatible with a Cokin P Series Filter Holder
    • Darkens bright areas of an image, such as skies, while leaving the remainder of the frame unaffected
    • Provides up to a 2-stop reduction of light in selective areas
    • Hard-edged line of transition between the dense and clear areas
    • Useful for images which include defined horizon lines
    • Filter does not affect the overall coloration of the image
    • Constructed from optical resin (CR39) for clarity and durability
  UPC: 085831449242
• P164 Circular Polarizer Glass Filter This is the P164 Circular Polarizer Glass Filter from Cokin. It fits in the optional Cokin P Holder. Light rays which are reflected become polarized. Polarizing filters are used to select which light rays enter your camera lens. A polarizer helps make a blue sky bluer as well as making clouds stand out. It can remove unwanted reflections from non-metallic surfaces such as water or glass and also saturate colors providing better contrast. The effect can be seen through the viewfinder and changed by rotating the filter. The filter factor varies according to how the filter is rotated and its orientation to the sun. Note: Circular polarizers are specifically designed for use with auto-focus SLR cameras (They will also work on manual systems without problems) UPC: 085831270792

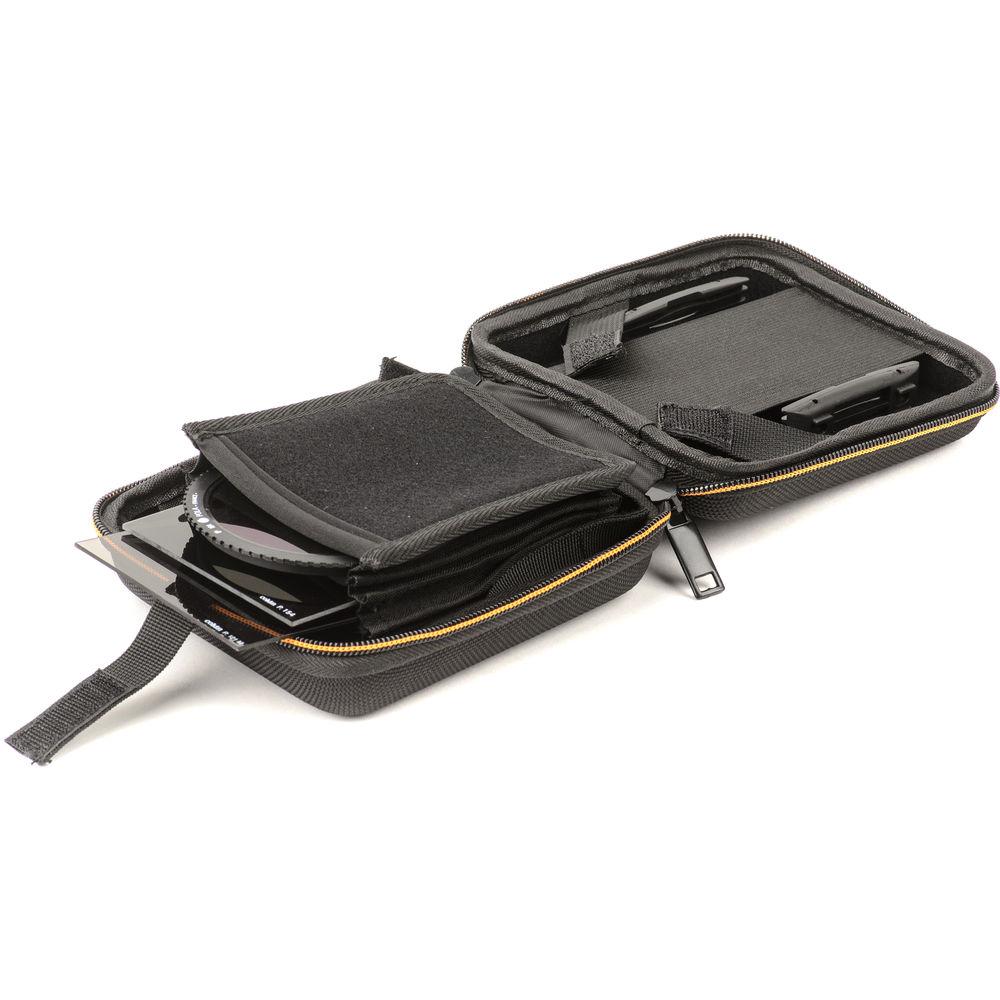

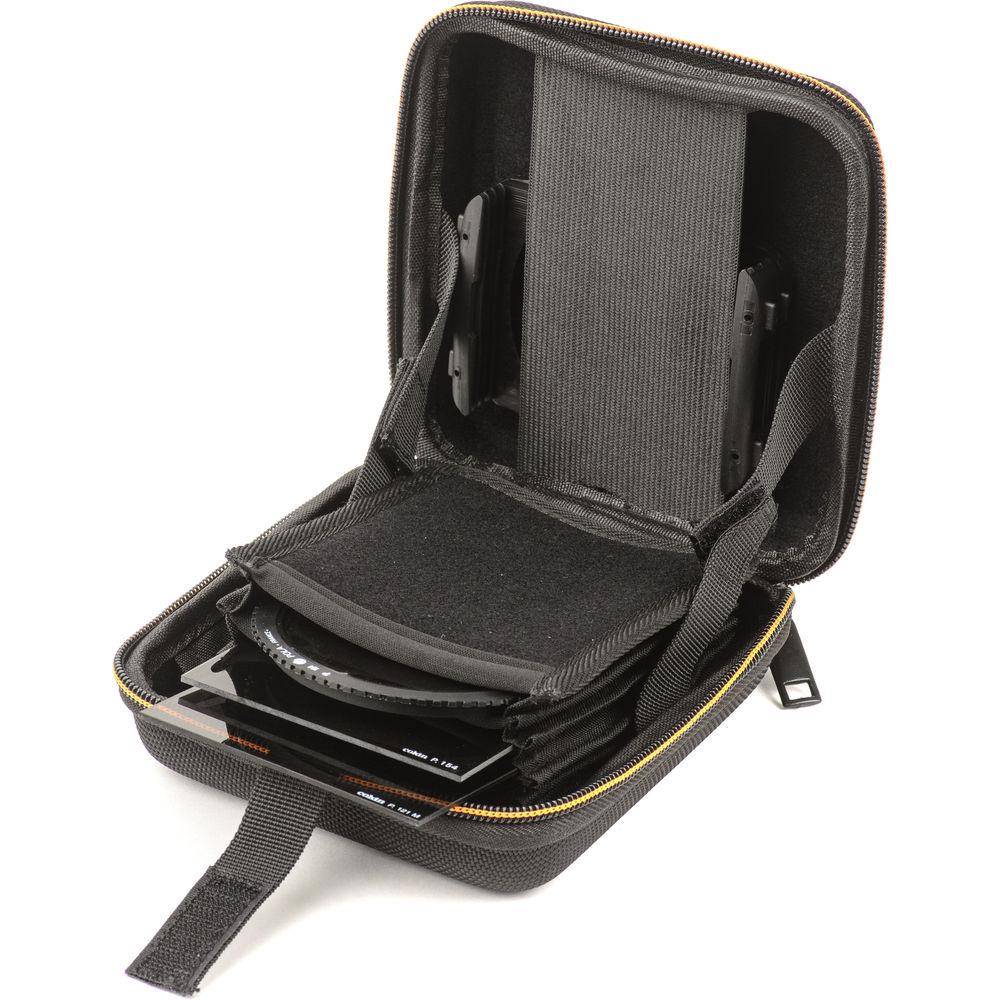

• P3068 P Series Filter Wallet This Cokin P3068 P Series Filter Wallet is a secure and convenient, transport and storage solution for up to five Cokin P Series Filters, plus a Cokin P Series Filter Holder with an attached filter holder adapter ring, and three additional Cokin P Series filter holder adapter rings.

  Five padded, nonabrasive slots occupy half of the filter wallet and can each accommodate a Cokin P Series filter measuring 84 x 84mm or 84 x 100mm, or a Cokin P Series Polarizer Filter that is designed to be rotated within a filter holder. The slots can be easily accessed by opening the filter wallet's zippered closure and releasing its filter slot retaining strap. One end of the retaining strap is attached to the inside wall of the filter wallet, while the opposite end features a touch-tab fastener that connects to filter slot closest to the center of the filter wallet. When in use, this retaining strap stretches over the filter slots, helping to prevent any inserted filters from accidentally sliding out while the filter wallet is opened.

  The remaining half of the filter wallet is a compartment with a wide, elastic retaining strap. That compartment accommodates a Cokin P Series Filter Holder with an attached filter holder adapter ring or a Cokin P Series Wide-Angle Filter Holder with an attached filter holder adapter ring. Along with one of either type of those Cokin P Series filter holders and an attached adapter ring, three additional Cokin P Series filter holder adapter rings can be placed within the filter holder compartment as well.

  To further prevent any items from accidentally falling out when the filter wallet is opened, two pairs of safety gussets along its inside edge each connect using a touch tab fastener to form two hinges. When in use, these hinges prevent the P3068 P Series filter wallet from opening to angle that is greater than 90°.

  This filter wallet's exterior is constructed from EVA plastic for durability, and an adjustable, clip-on wrist strap provides a convenient carrying option.
  • • Designed to hold up to five Cokin P Series Filters, plus a Cokin P Series Filter Holder with an attached filter holder adapter ring, and three additional Cokin P Series filter holder adapter rings
    • Padded, nonabrasive slots can each accommodate a Cokin P Series filter measuring 84 x 84mm or 84 x 100mm, or a Cokin P Series Polarizer Filter that is designed to be rotated within a filter holder
    • While in use, interior filter slot retaining strap stretches over the filter slots, helping to prevent any inserted filters from accidentally sliding out while the filter wallet is opened
    • Filter holder compartment with wide, elastic retaining strap holds a Cokin P Series Filter Holder with an attached filter holder adapter ring or a Cokin P Series Wide-Angle Filter Holder with an attached filter holder adapter ring, plus three additional Cokin P Series filter holder adapter rings
    • Two pairs of interior safety gussets connect using a touch tab fastener to form two hinges
    • Gussets restrict filter wallet from opening to angle that is greater than 90°, further preventing inserted filters, filter holders, or filter holder adapter rings from falling out
    • Clip-on wrist strap
    • Durable, EVA plastic exterior with zippered closure

• Limited 1 Year Warranty

• Protective Filter Case

• Limited 1-Year Warranty

• Limited 1 Year Warranty

• Limited 1-Year Warranty

• Wrist Strap

• Limited 1-Year Warranty

Also Includes

• Microfiber Cloth
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• P Series Filter Holder

  Filter Capacity	3 x 2.6 x 2.6", 2.6 x 2.8", 67 x 67 mm, 67 x 72 mm, Cokin P (1.6 mm Thick) or 2 x 2.6 x 2.6", 2.6 x 2.8", 67 x 67 mm, 67 x 72 mm, Cokin P (1.6 mm Thick) and 1 x Round Cokin P
  Material	Plastic

  Box Dimensions (LxWxH)	7.402 x 5.118 x 0.866"

• P Series ND 0.9 Filter (3-Stop)

  Filter Type	Solid ND
  Density	0.9 (3 Stops)
  Rectangular Size	3.3 x 3.3" / 84.0 x 84.0 mm
  Filter Material	Resin

  Box Dimensions (LxWxH)	4.4 x 3.7 x 0.5"

• P Series Hard-Edge Graduated Neutral Density 0.6 Filter (2-Stop)

  Filter Type	Graduated ND
  Graduation Type	Hard Edge
  Density	0.6 (2 Stops)
  Shape	Rectangle
  Rectangular Size	3.3 x 3.9" / 84.0 x 100.0 mm
  Cokin Compatibility	Cokin P
  Filter Thickness	0.06" / 1.6 mm
  Filter Material	Resin

  Box Dimensions (LxWxH)	5.8 x 4.4 x 0.02"

• P164 Circular Polarizer Glass Filter

  Filter Type	Circular Polarizer
  Filter Factor	2.3 - 2.8 (1.2 - 1.5 Stop)
  Shape	Rectangle
  Circular Size	84 mm
  Rotating	Yes
  Cokin Compatibility	Cokin P
  Front Accessory Thread / Bayonet	Unthreaded
  Filter Material	Glass
  Coatings	None

  Box Dimensions (LxWxH)	4.646 x 3.78 x 0.472"

• P3068 P Series Filter Wallet

  Filter Capacity	5 x 3.3 x 3.9" / 84 x 100 mm
  Carrying/Transport Options	Shoulder Strap
  Type of Closure	Zipper
  Exterior Material	Plastic
  Exterior Dimensions	7.1 x 5.5 x 6.3" / 18.0 x 14.0 x 16.0 cm
  Weight	7.6 oz / 215.0 g

  Box Dimensions (LxWxH)	6.2 x 5.6 x 2.3"
