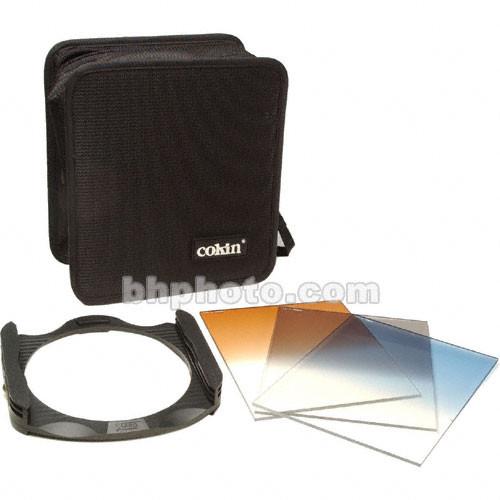

User Manual for Cokin X-Pro Series Hard and Soft-Edge Graduated Filter Kit with X-Pro Series Filter Holder and Filter Pouch Click to enlarge the picture
Contents of the user manual for the Cokin X-Pro Series Hard and Soft-Edge
- Product category: Filter Kits Cokin
- Brand: Cokin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cokin Filter Kits
|
User manual for the Cokin X-Pro Series Hard and Soft-Edge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cokin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cokin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cokin product will considerably shorten its lifespan!
|
Product description This Cokin X-Pro Series Soft-Edge Graduated Filter Kit contains three filters that can be used individually or in various combinations to improve the results of your landscape photography. The included filters consist of a graduated neutral density filter, a graduated blue filter, and a graduated tobacco filter. The graduated neutral density filter helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. Neutral density filters do not affect the coloration of the image and this graduated neutral density filter provides up to a one-stop reduction in light from entering a lens. The graduated blue filter can be used to add blue to a hazy or colorless sky. When used instead of a polarizer filter to enhance the sky within an image, the desired effect can be applied only to the sky, without any unwanted polarization or additional contrast to any part of the image. The graduated tobacco filter can also enhance a hazy or colorless sky, as well as complement an existing sunrise or sunset within a scene. The graduated blue and graduated tobacco filters reduce light from entering a lens by up to two-thirds of a stop and by up to two stops respectively.
Each filter is densest at the edge and tapers to clear by the middle. The graduated neutral density filter has a hard-edged line of transition between the dense and clear areas while the graduated blue and graduated tobacco filters each have a soft-edged line of transition between the dense and clear areas. A neutral density filter with a hard-edged line of transition is useful for images which include defined horizon lines. A graduated filter with a soft-edged line of transition is able to filter the sky while minimizing its effect on the land. It is particularly useful where the transition between sky and foreground is indeterminate, such as images featuring mist, fog, or the tops of trees. Together, these filters provide a versatile solution for various lighting and atmospheric conditions. To allow these filters to be placed in front of a lens, this kit contains a filter holder for rectangular filters that are 130mm wide and 3.0mm thick. To connect the filter holder to a lens's front filter threads, a separately-available Cokin X-Pro Series lens adapter ring is required. For storage and transport of each filter which is made of durable, optical resin (CR39) and measures 3.0mm thick, a padded pouch is also included. - X-Pro Series Hard-Edge Graduated Neutral Density 0.3 Filter (1-Stop) This Cokin X-Pro Series Hard-Edge Graduated Neutral Density 0.3 Filter is designed for use with a Cokin X-Pro Series Filter Holder. It helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The filter is densest at the edge and tapers to clear by the middle, with a hard-edged line of transition between the dense and clear areas. A neutral density filter with a hard-edged line of transition is useful for images which include defined horizon lines. Neutral density filters do not affect the coloration of the image and this filter provides up to a 1-stop reduction in light from entering a lens.
This filter is made of durable, optical resin (CR39) and measures 3.0mm thick. -
- Compatible with a Cokin X-Pro Series Filter Holder
- Darkens bright areas of an image, such as skies, while leaving the remainder of the frame unaffected
- Provides up to a 1-stop reduction of light in selective areas
- Hard-edged line of transition between the dense and clear areas
- Useful for images which include defined horizon lines
- Filter does not affect the overall coloration of the image
- Constructed from optical resin (CR39) for clarity and durability
UPC: 085831500417 - X-Pro Series Soft-Edge Graduated Blue 0.2 Filter (0.6-Stop) The Cokin X-Pro Series Soft-Edge Graduated Blue 0.2 Filter is designed for use with a Cokin X-Pro Series Filter Holder. It can be used to add blue to a hazy or colorless sky. When used instead of a polarizer filter to enhance the sky within an image, the desired effect can be applied only to the sky, without any unwanted polarization or additional contrast to any part of the image. The filter is densest at the edge and tapers to clear by the middle, with a soft-edged line of transition between the dense and clear areas. A graduated filter with a soft-edged line of transition can filter the sky while minimizing its effect on the land. It is particularly useful where the transition between sky and foreground is indeterminate, such as images featuring mist, fog, or the tops of trees. This filter has up to a 0.2 density and reduces light from entering a lens by up to two-thirds of a stop.
This filter is made of durable, optical resin (CR39) and measures 3.0mm thick. -
- Compatible with a Cokin X-Pro Series Filter Holder
- Adds blue to a hazy or colorless sky
- Soft-edged line of transition between the dense and clear areas
- Useful for images where the transition between sky and foreground is indeterminate, such as images featuring mist, fog, or the tops of trees
- 0.2 density and 1.5x filter factor provides up to two-thirds of a stop reduction of light in selective areas
- Constructed from optical resin (CR39) for clarity and durability
UPC: 085831500455 - X-Pro Series Soft-Edge Graduated Tobacco 0.6 Filter (2-Stop) The Cokin X-Pro Series Soft-Edge Graduated Tobacco 0.6 Filter is designed for use with a Cokin X-Pro Series Filter Holder. It can be used to add a tobacco tint to complement an existing sunrise or sunset within a scene, or to otherwise enhance a hazy or colorless sky. When used to enhance the sky within an image, the desired effect can be applied only to the sky, without any unwanted changes to any other part of the image. The filter is densest at the edge and tapers to clear by the middle, with a soft-edged line of transition between the dense and clear areas. A graduated filter with a soft-edged line of transition can filter the sky while minimizing its effect on the land. It is particularly useful where the transition between sky and foreground is indeterminate, such as images featuring mist, fog, or the tops of trees. This filter has up to a 0.6 density and reduces light from entering a lens by up to two stops.
This filter is made of durable, optical resin (CR39) and measures 3.0mm thick. -
- Compatible with a Cokin X-Pro Series Filter Holder
- Adds a tobacco tint to complement an existing sunrise or sunset, or to enhance a hazy or colorless sky
- Soft-edged line of transition between the dense and clear areas
- Useful for images where the transition between sky and foreground is indeterminate, such as images featuring mist, fog, or the tops of trees
- 0.6 density and 4x filter factor provides up to a two-stop reduction of light in selective areas
- Constructed from optical resin (CR39) for clarity and durability
UPC: 085831500509 - X-Pro Series Filter Holder The Cokin X-Pro Series Filter Holder is designed to accommodate multiple Cokin X-Pro Series Filters in order to help create the shot you envision. It can hold up to two rectangular filters, or one rectangular filter and one round filter such as a rotating circular polarizer, for the Cokin X-Pro Series Filter Holders.
Rectangular Cokin X-Pro Series Filters are 130mm-wide and 3mm-thick. A Cokin X-Pro Series Filter Holder Adapter Ring can be used to connect this filter holder to the front of a lens. UPC: 085831520019 - X-Pro Filter Wallet The Cokin X-Pro Filter Wallet is designed to hold five Cokin X-Pro Series filters for storage or transport.
In the Box Bundle Items X-Pro Series Hard-Edge Graduated Neutral Density 0.3 Filter (1-Stop) advbeysxxtbxyvbqazeyre X-Pro Series Soft-Edge Graduated Blue 0.2 Filter (0.6-Stop) X-Pro Series Soft-Edge Graduated Tobacco 0.6 Filter (2-Stop) X-Pro Series Filter Holder X-Pro Filter Wallet
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Cokin X-Pro Series Hard and Soft-Edge Graduated Filter Kit with X-Pro Series Filter Holder and Filter Pouch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - X-Pro Series Hard-Edge Graduated Neutral Density 0.3 Filter (1-Stop)
| Filter Type | Graduated ND | | Graduation Type | Hard Edge | | Density | 0.3 (1 Stop) | | Shape | Rectangle | | Rectangular Size | 5.1 x 6.7" / 130.0 x 173.0 mm | | Filter Thickness | 0.12" / 3 mm | | Filter Material | Resin | | | | Box Dimensions (LxWxH) | 8.6 x 6.1 x 0.5" | - X-Pro Series Soft-Edge Graduated Blue 0.2 Filter (0.6-Stop)
| Graduation Color | Blue | | Shape | Rectangle | | Rectangular Size | 5.3 x 6.7" / 130.0 x 170.0 mm | | Graduation Type | Soft Edge | | Cokin Compatibility | Cokin X-Pro | | | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 1.0" | - X-Pro Series Soft-Edge Graduated Tobacco 0.6 Filter (2-Stop)
| Graduation Color | Tobacco | | Shape | Rectangle | | Rectangular Size | 5.3 x 6.7" / 130.0 x 170.0 mm | | Graduation Type | Soft Edge | | Cokin Compatibility | Cokin X-Pro | | | | Box Dimensions (LxWxH) | 8.6 x 6.3 x 0.8" | - X-Pro Series Filter Holder
| Filter Capacity | 2 x 5.6 x 5.6", 5.6 x 6.6", 130 x 130 mm, 130 x 170 mm, Cokin X-Pro (3 mm Thick)
or
1 x Round Cokin X-Pro, 5.6 x 5.6", 5.6 x 6.6", 130 x 130 mm, 130 x 170 mm (3 mm Thick) and
1 x Round Cokin X-Pro | | Material | Plastic | | | | Box Dimensions (LxWxH) | 8.5 x 7.3 x 1.5" | - X-Pro Filter Wallet
| | | Box Dimensions (LxWxH) | 8.3 x 7.9 x 4.4" |
