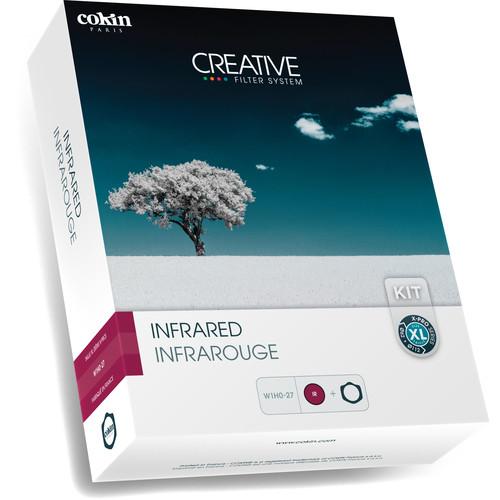

User Manual for Cokin X-Pro Series Infrared Filter Kit Click to enlarge the picture
Contents of the user manual for the Cokin X-Pro Series Infrared Filter Kit
- Product category: Filter Kits Cokin
- Brand: Cokin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cokin Filter Kits
|
User manual for the Cokin X-Pro Series Infrared Filter Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cokin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cokin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cokin product will considerably shorten its lifespan!
|
Product description This Cokin X-Pro Series Infrared Filter Kit is designed to help capture images of how a subject reflects or transmits infrared light.
Infrared light waves occupy the space in the electromagnetic spectrum behind visible light due to their longer wavelengths. Many surfaces and materials react to, or emit infrared light waves differently than visible light waves, which provide the potential for photographs of subjects or subject properties that are otherwise invisible to the human eye. Such images require an infrared-sensitive medium such as infrared film or a digital photographic sensor which may be more effective when used without the infrared-blocking filters that are frequently built over them.
Conventional light sources such as the sun, photographic strobes, or incandescent lighting may be used to provide infrared illumination. However, because infrared films or digital photographic sensors can be more sensitive to the relatively higher energy and shorter-wavelength visible light those sources also emit, the effects of infrared light can be otherwise obscured. The included Cokin X-Pro Series Infrared Filter corresponds to a Wratten 89B filter and makes it possible to capture images of how subjects are illuminated by infrared light by blocking near-infrared, visible, and ultraviolet light waves while allowing 90% of infrared light waves 770nm or greater into the lens it is mounted in front of.
To allow this filter to be placed in front of a lens, this kit contains a filter holder that can accommodate a Cokin X-Pro Series Infrared Filter as well as rectangular filters that are 130mm wide and 3.0mm thick. The Cokin X-Pro Series Infrared Filter is mounted within a circular frame that helps prevent stray light, which could have unwanted effects on exposure, from coming in between an installed Cokin X-Pro Series Infrared Filter and a connected lens.
To connect the filter holder to a lens's front filter threads, a separately available Cokin X-Pro Series lens adapter ring is required. For cleaning and maintenance of the filter which is made of durable, optical resin (CR39), a microfiber cloth is also included. In the Box Cokin X-Pro Series Infrared Filter Kit X-Pro 007 Infrared (89B) Filter ezatzsvbdryeqtaya X-Pro Series Filter Holder Microfiber Cloth Limited 1-Year Warranty Table of Contents
|
