Product description This Cokin X-Pro Series Filter Kit contains three filters that can be used individually or in various combinations to improve the results of your travel photography. The included filters consist of a 130 x 170mm solid neutral density filter, a 130 x 170mm graduated neutral density filter, and a circular polarizer filter.
Together, these filters provide a versatile solution for various lighting conditions. To allow these filters to be placed in front of a lens, this kit contains a filter holder for a Cokin X-Pro Series Circular Polarizer Filter as well as rectangular Cokin X-Pro Series filters that are 130mm wide and 3mm thick.

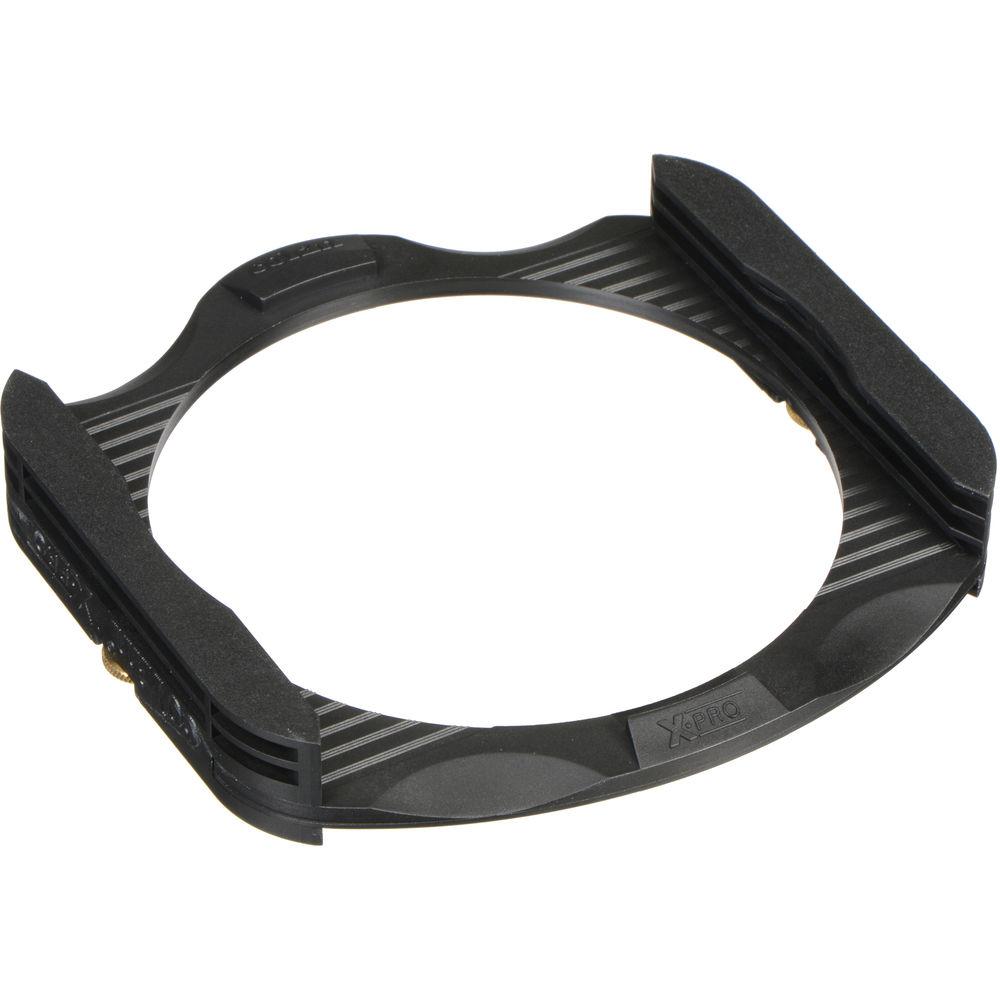

This kit's filter wallet provides a secure and convenient, transport and storage solution for up to five Cokin X-Pro Series Filters, plus a Cokin X-Pro Series Filter Holder with an attached filter holder adapter ring, and three additional Cokin X-Pro Series filter holder adapter rings. For cleaning and maintenance of the filters, a microfiber cloth is also included. - Cokin X-Pro Series Filter Holder (2018 Edition)
-
- Designed to accommodate multiple Cokin X-Pro Series Filters
- Can hold up to two rectangular filters, or one rectangular filter and one round filter such as a rotating circular polarizer
- Requires a separately available Cokin X-Pro Series Filter Holder Adapter Ring to connect the filter holder to the front of a lens

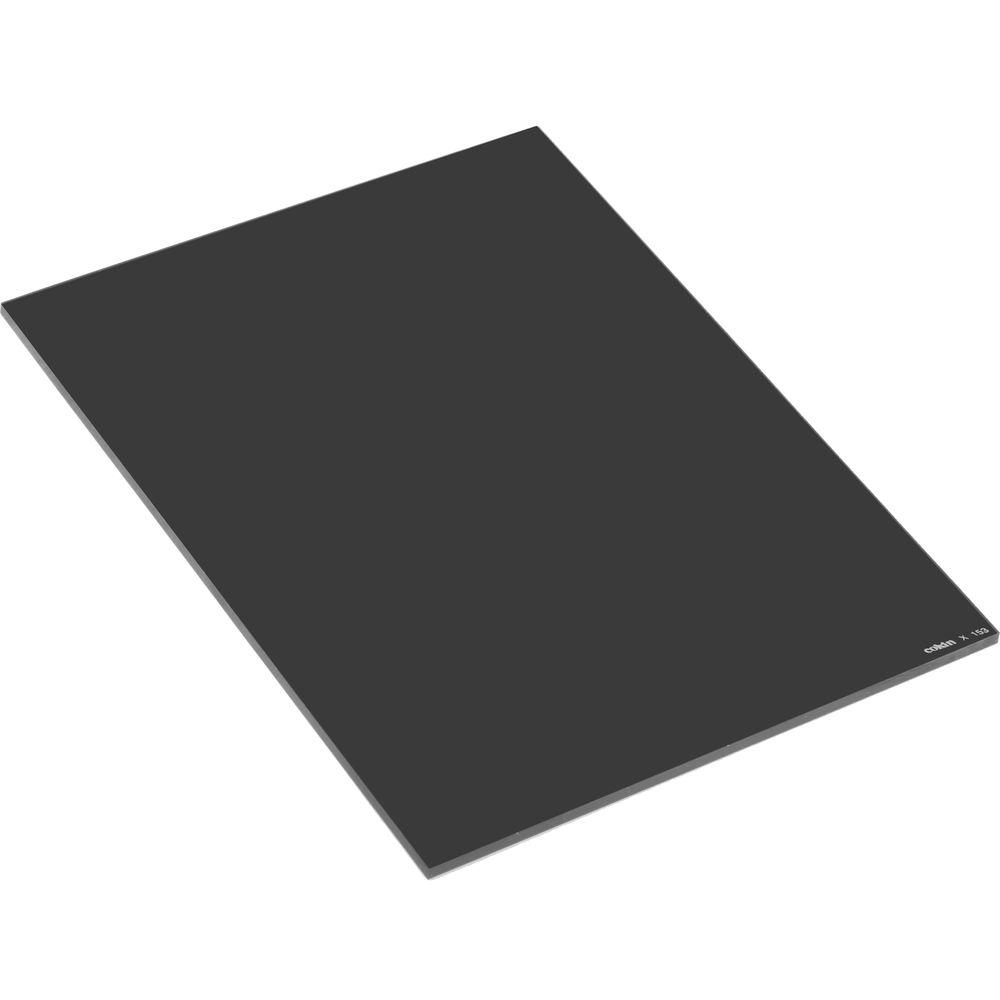

- Cokin X-Pro Neutral Density 0.9 Filter (3 Stops)
-
- 0.9 neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required
- Providing a 3-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily
- Filter does not affect coloration of the image and is ideal for use with other filters
- Constructed from optical resin (CR39) for clarity and durability
- Cokin X-Pro Series Hard-Edge Graduated Neutral Density 0.6 Filter (2 Stops)
-
- Compatible with a Cokin X-Pro Series Filter Holder
- Darkens bright areas of an image, such as skies, while leaving the remainder of the frame unaffected
- Provides up to a 2-stop reduction of light in selective areas
- Hard-edged line of transition between the dense and clear areas
- Useful for images which include defined horizon lines
- Filter does not affect the overall coloration of the image
- Constructed from optical resin (CR39) for clarity and durability
- Cokin X-Pro Series Circular Polarizer Filter (2018 Edition)
-
- Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light
- Clears up haze in distant landscapes and provides more saturated, vivid colors
- Strongest effect when used at a 90° angle from the sun
- Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features
- 77% of ultraviolet light waves are blocked at 400 nanometers, before which they are progressively eliminated, reducing bluish cast of daylight when recording video or still photos
- 16-layer Cokin EVERCLEAR 5 multi-coating prevents internal ghosting and reflections, is oil, dust, dirt, as well as scratch-resistant, and provides an improved beading effect with water for more efficient cleaning
- 2x filter factor reduces exposure by 1 stop
- Constructed from Schott glass for optical clarity
- Filter frame features a knurled edge so that the filter can be easily rotated and its polarization effect adjusted while placed within a compatible holder

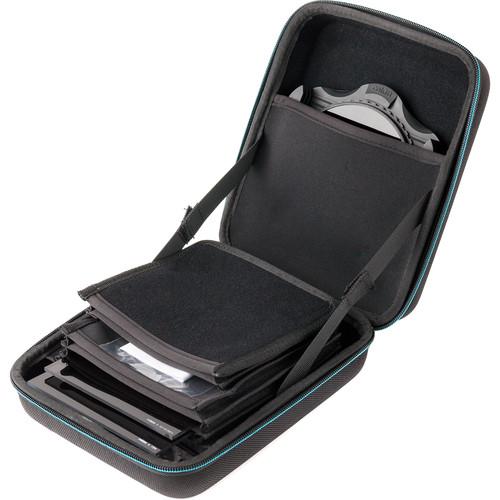

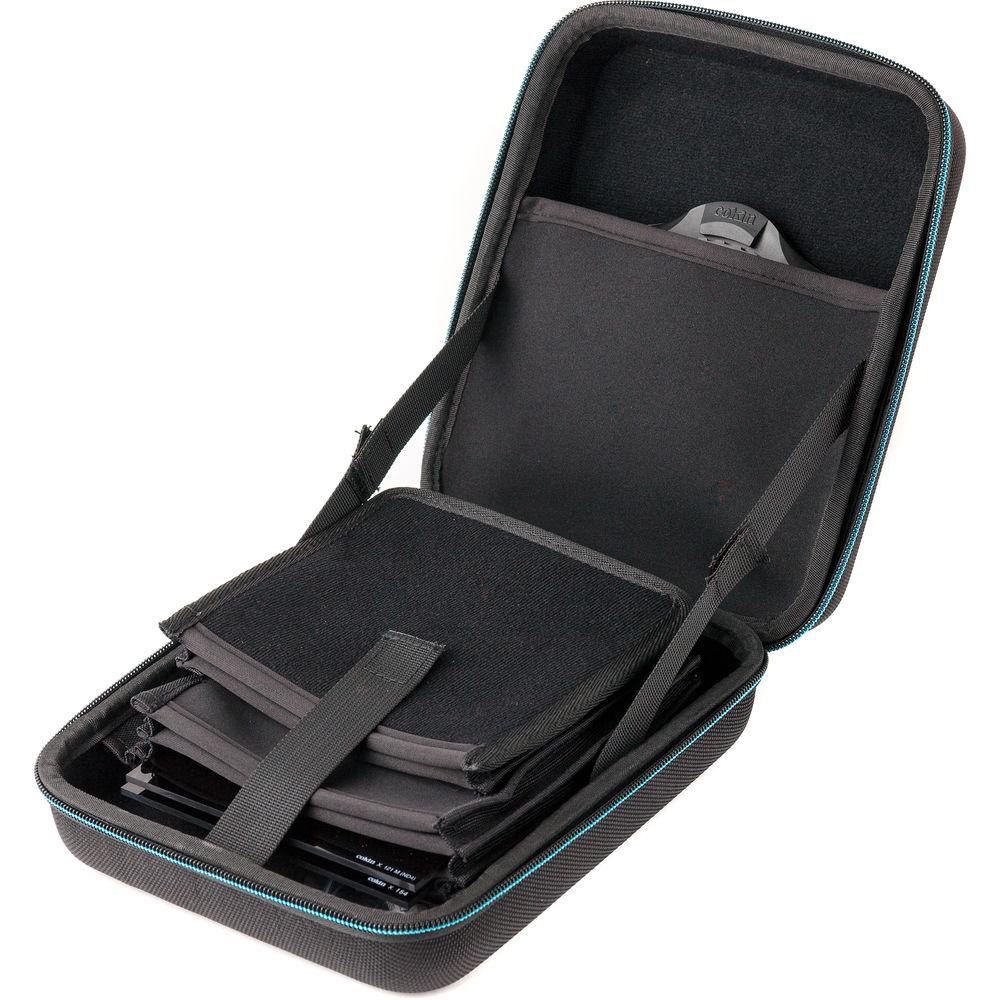

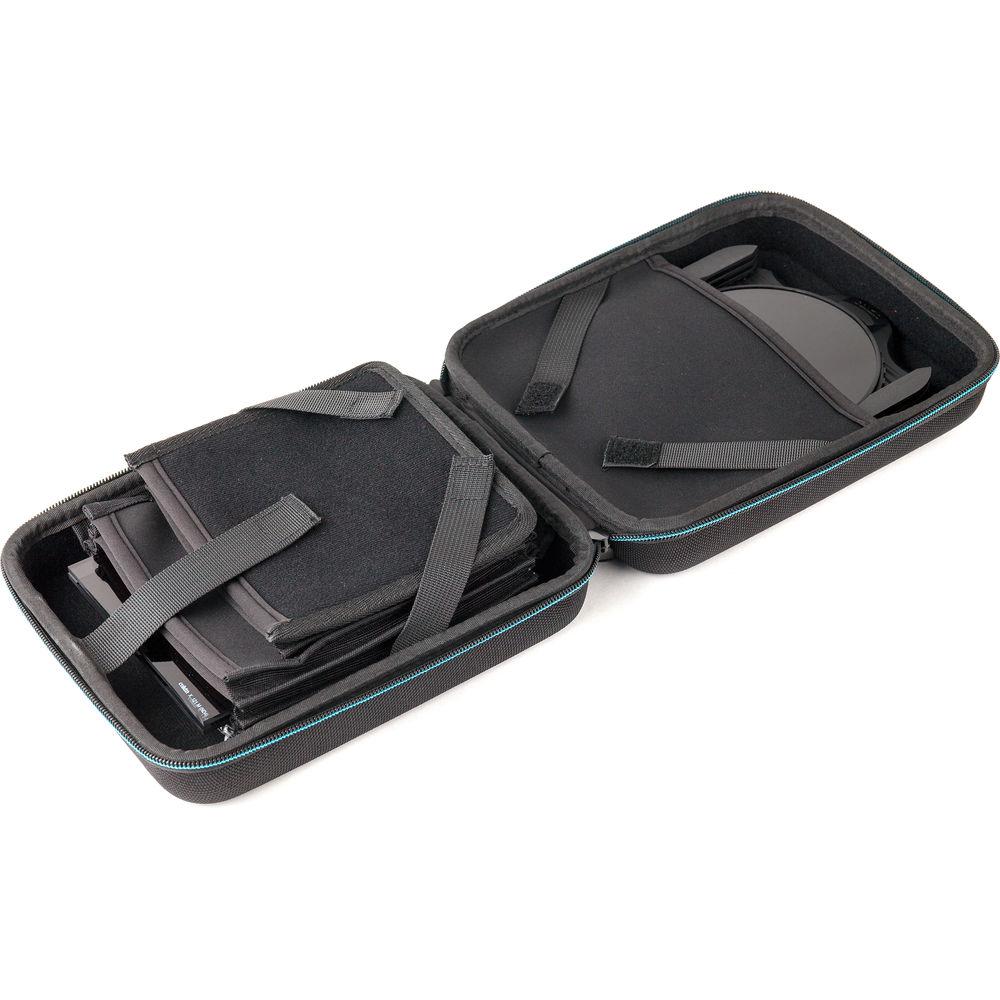

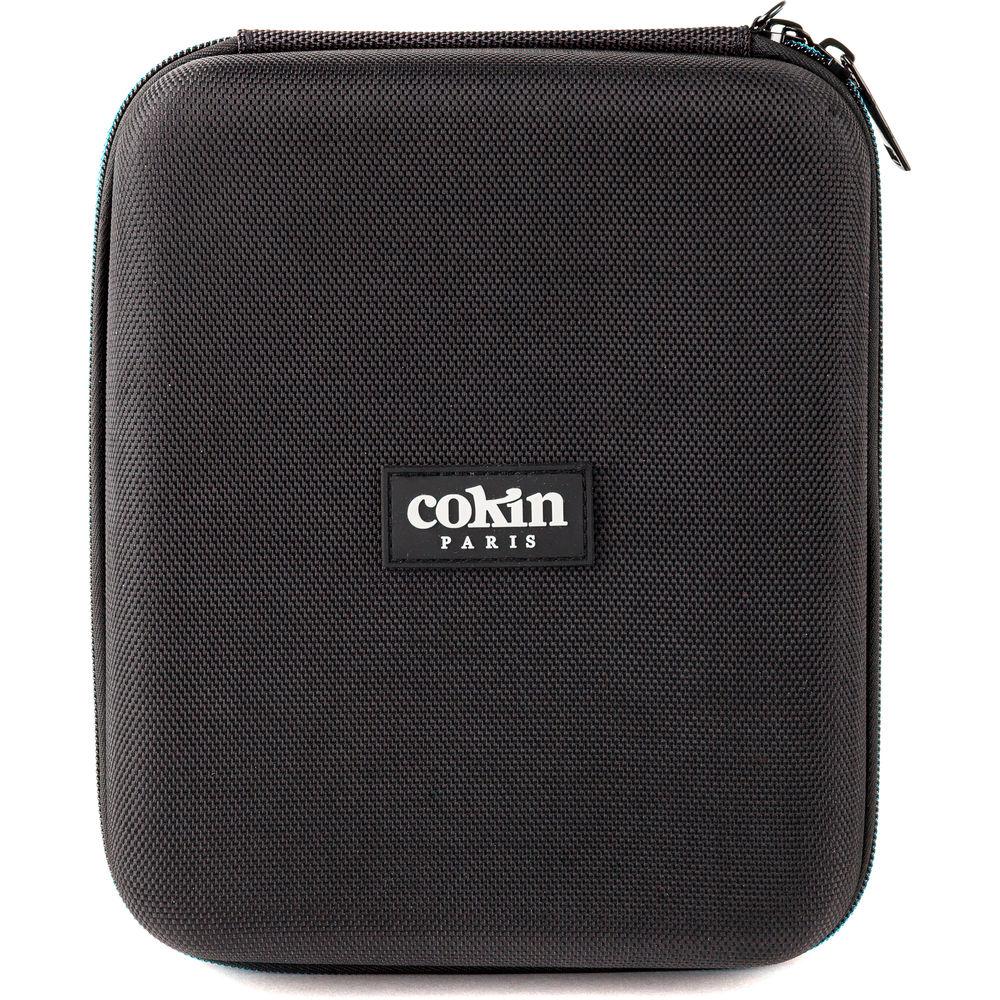

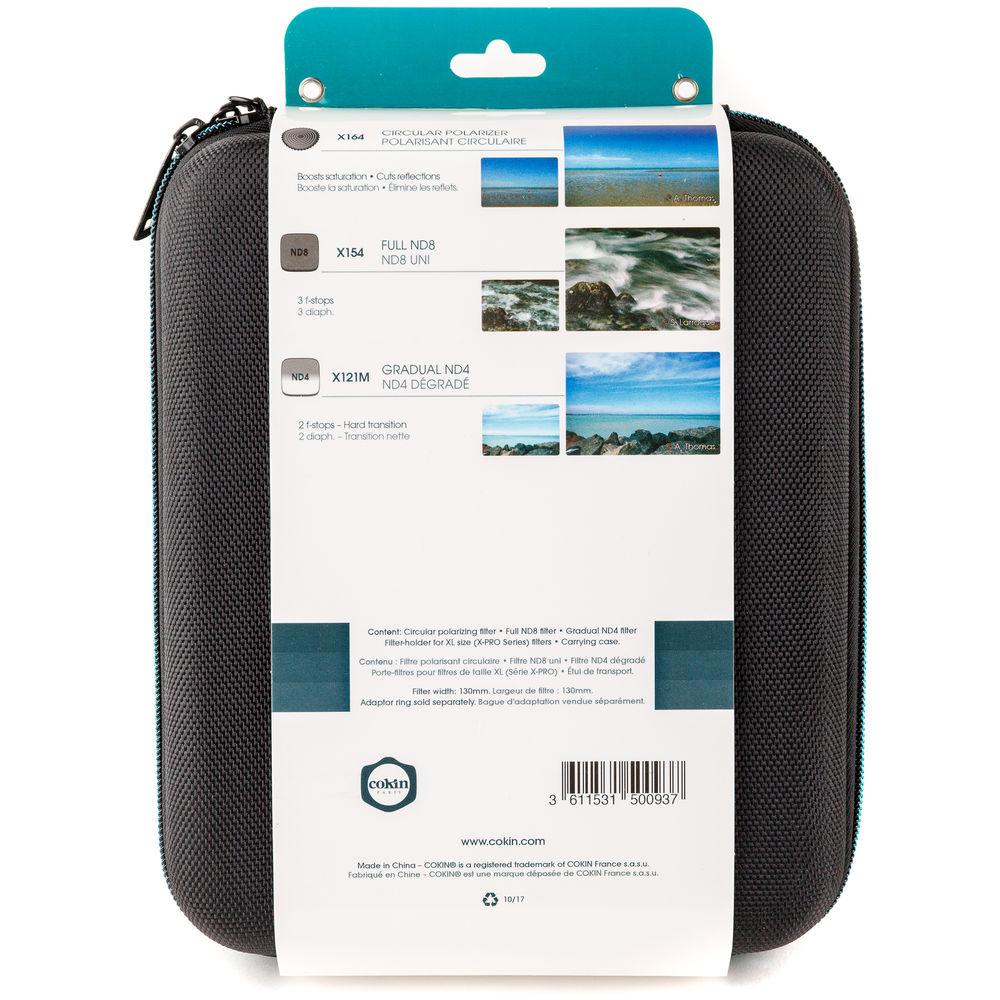

- Cokin X3068 X-Pro Series Filter Wallet
-
- Filter holder compartment with wide, elastic retaining strap designed to hold up to five Cokin X-Pro Series Filters, plus a Cokin X-Pro Series Filter Holder (or Cokin X-Pro Series Wide-Angle Filter Holder) with an attached filter holder adapter ring, and three additional Cokin X-Pro Series filter holder adapter rings
- Padded, nonabrasive slots can each accommodate a Cokin X-Pro Series filter measuring 130 x 130mm or 130 x 170mm, or a Cokin X-Pro Series Polarizer Filter that is designed to be rotated within a filter holder
- Interior filter slot retaining strap stretches over the filter slots, helping to prevent any inserted filters from accidentally sliding out while the filter wallet is opened
- Two pairs of interior safety gussets connect using a touch tab fastener to form two hinges
- Gussets restrict filter wallet from opening to an angle that is greater than 90°, further preventing inserted filters, filter holders, or filter holder adapter rings from falling out
- Clip-on wrist strap
- Durable, EVA plastic exterior with zippered closure

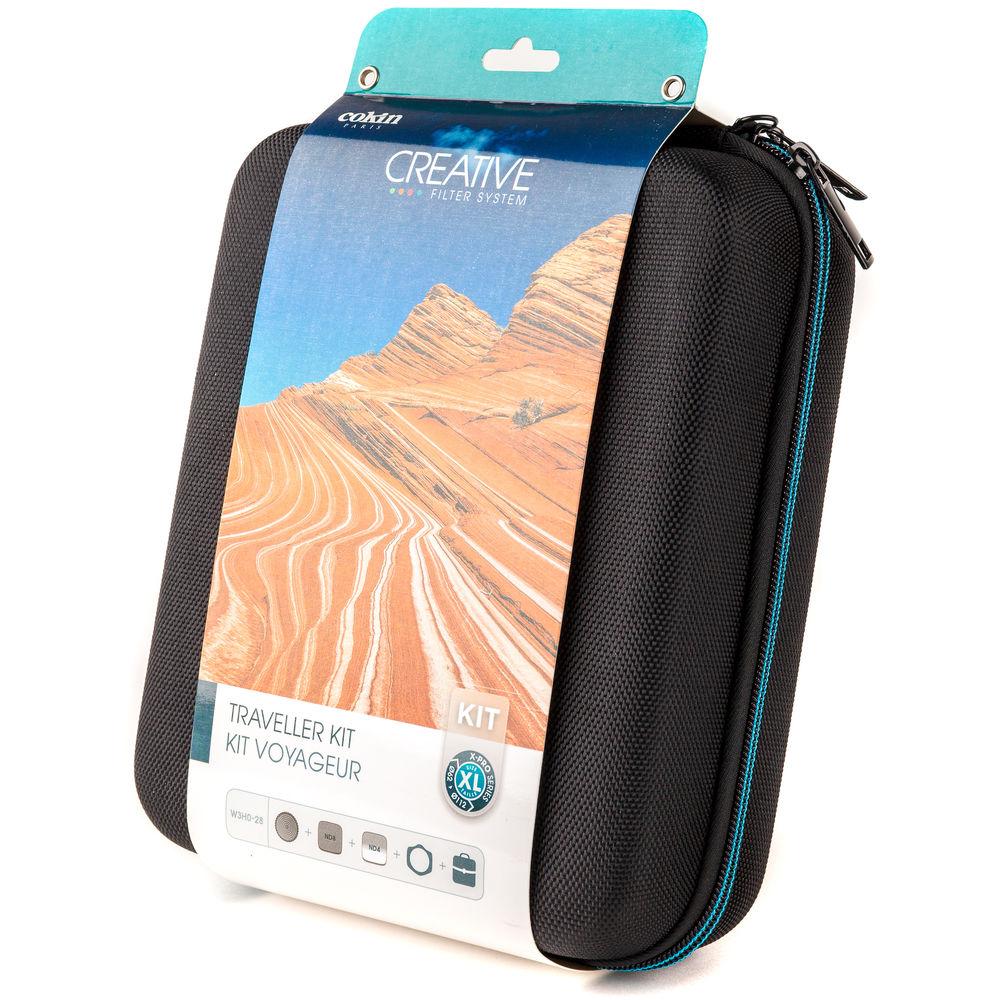

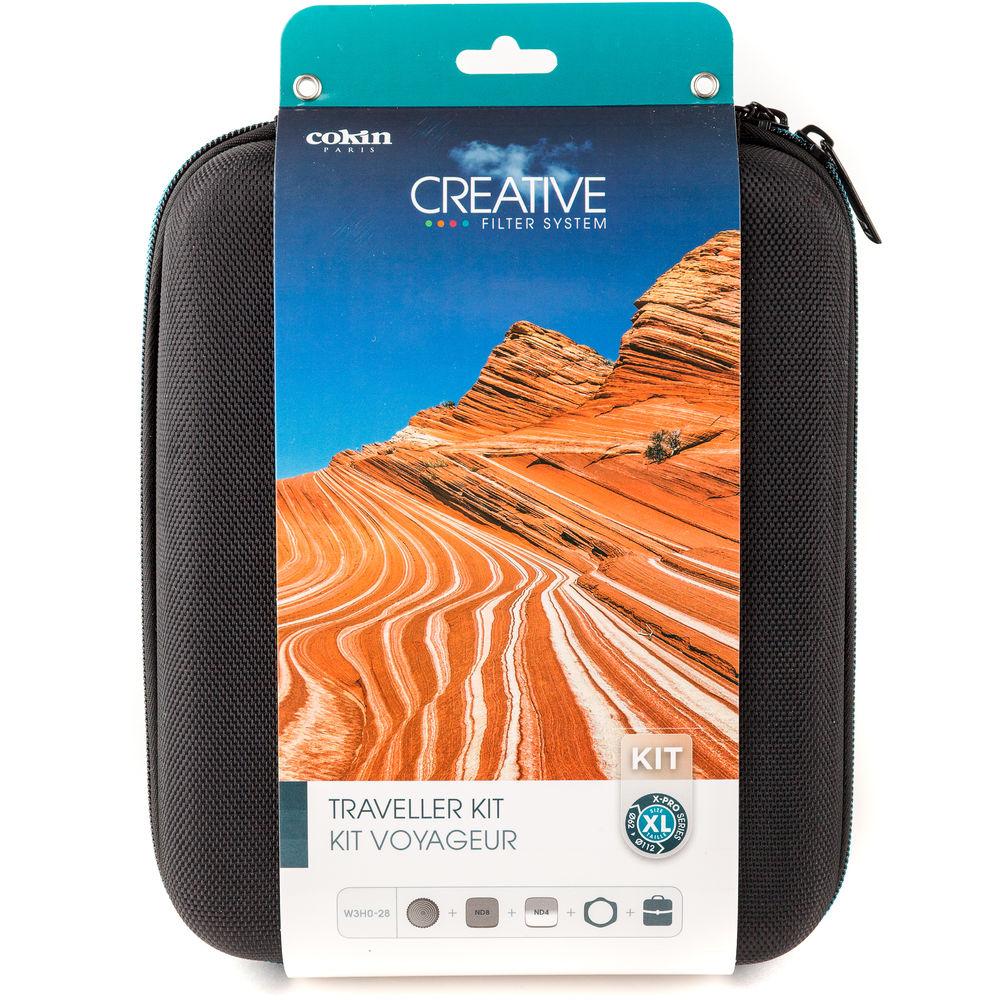

In the Box Cokin X-Pro Series Solid, Hard-Edge Graduated Neutral Density, and Polarizer Filter Kit with X-Pro Series Filter Holder and Filter Wallet X-Pro Series Filter Holder (2018 Edition) zyfsatctfebfzdfxbe X-Pro Series ND 0.9 Filter (3-Stop) X-Pro Series Hard-Edge Graduated Neutral Density 0.6 Filter (2-Stop) Cokin X-Pro Series Circular Polarizer Filter (2018 Edition) X3068 X-Pro Series Filter Wallet Wrist Strap Microfiber Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cokin X-Pro Series Solid, Hard-Edge Graduated Neutral Density, and Polarizer Filter Kit with X-Pro Series Filter Holder and Filter Wallet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCokin Traveller Specs | Kit Components | X-Pro Series Filter Holder (2018 Edition)
Material: Plastic
Adapter Ring Compatibility: Cokin X-Pro Series Filter Holder Adapter Rings
Filter Compatibility: Accepts up to two rectangular filters (130 mm wide, 3 mm thick) or up to one rectangular (130 mm wide, 3 mm thick) and one round filter made for a Cokin X-Pro Series Filter Holder
Rotating: Yes, 360°
Cokin X-Pro Series Neutral Density 0.9 Filter (3-Stops)
Filter Type: Solid ND
Density: 0.9 (3 Stops)
Size: 5.1 x 6.7" / 130.0 x 170.0 mm
Thickness: 0.1" / 3.0 mm
Material: Resin
Cokin X-Pro Series Hard-Edge Graduated Neutral Density 0.6 Filter (2-Stops)
Filter Type: Graduated ND
Graduation Type: Hard Edge
Density: 0.6 (2 Stops)
Size: 5.1 x 6.7" / 130.0 x 170.0 mm
Thickness: 0.1" / 3.0 mm
Material: Resin
Cokin X-Pro Series Circular Polarizer Filter (2018 Edition)
Filter Type: Circular Polarizer
Filter Factor: 2 (1 Stop)
Material: Glass
Coatings: Multi-coated
Cokin X3068 X-Pro Series Filter Wallet
Filter Capacity: 5 x 5.1 x 6.7" / 130.0 x 170.0 mm (Cokin X-Pro)
Carrying/Transport Options: Wrist Strap
Type of Closure: Zipper
Exterior Material: Plastic
Exterior Dimensions: 7.5 x 3.0 x 9.1" / 19.0 x 7.5 x 23.0 cm
Weight: 18.0 oz / 510.0 g |
