Product description

• Z-Pro Series Filter Holder The Cokin Z-Pro Series Filter Holder is designed to accommodate multiple Cokin Z-Pro Series Filters in order to help create the shot you envision. It can hold up to two rectangular filters, or two rectangular filters and one round filter such as a rotating circular polarizer, for the Cokin Z-Pro Series Filter Holders.

  Rectangular Cokin Z-Pro Series Filters are 100mm-wide and 1.6mm-thick. A Cokin Z-Pro Series Filter Holder Adapter Ring can be used to connect this filter holder to the front of a lens. UPC: 085831418361
• Z-Pro Series ND 0.9 Filter (3-Stop) The Cokin Z-Pro Series ND 0.9 Filter is a neutral density filter providing a 3-stop exposure reduction. This 0.9 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By increasing your aperture or slowing your exposure time, you can control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.

  Cokin filters are constructed from optical resin and are notably light in weight, have a high resistance to shocks and drops, and provide optimum light transmission for high image quality. This filter measures 3.9 x 3.9" / 100 x 100mm and is compatible with the Cokin Z-Pro filter holder.
  • 0.9 neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 3-stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Neutral density filters do not affect the overall coloration of the image.
  • Filter measures 3.9 x 3.9" / 100 x 100mm and is compatible with the Cokin Z-Pro filter holder.
  UPC: 085831701548
• Z-Pro Series Hard-Edge Graduated Neutral Density 0.6 Filter (2-Stop) This Cokin Z-Pro Series Hard-Edge Graduated Neutral Density 0.6 Filter is designed for use with a Cokin Z-Pro Series Filter Holder. It helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The filter is densest at the edge and tapers to clear by the middle, with a hard-edged line of transition between the dense and clear areas. A neutral density filter with a hard-edged line of transition is useful for images which include defined horizon lines. Neutral density filters do not affect the coloration of the image and this filter provides up to a 2-stop reduction in light from entering a lens.

  This filter is made of durable, optical resin (CR39) and measures 1.6mm thick.
  • • Compatible with a Cokin Z-Pro Series Filter Holder
    • Darkens bright areas of an image, such as skies, while leaving the remainder of the frame unaffected
    • Provides up to a 2-stop reduction of light in selective areas
    • Hard-edged line of transition between the dense and clear areas
    • Useful for images which include defined horizon lines
    • Filter does not affect the overall coloration of the image
    • Constructed from optical resin (CR39) for clarity and durability
  UPC: 085831709025
• Z-PRO 164 Circular Polarizing Filter This is the Cokin Z-PRO 164 Circular Polarizing Filter. Light rays which are reflected become polarized. Polarizing filters are used to select which light rays enter your camera lens. They can remove unwanted reflections from non-metallic surfaces such as water or glass and also saturate colors providing better contrast. The effect can be seen through the viewfinder and changed by rotating the filter.The Z-PRO Series is recommended for focal lengths of 20mm onwards (in the 35mm format). Note: Circular polarizers are specifically designed for use with auto-focus SLR cameras (they will also work on manual systems and video cameras without problems).
  • This filter eliminates ultraviolet rays from outdoor shots as well as polarizing the light to remove reflections and increase color saturation without affecting the overall color balance
  • Can dramatically enhance a blue sky and make the clouds more prominent
  • Used best at right angle to the sun
  • Effective with cameras that use beam splitters in the path of the TTL light meter and with AF cameras
  • 2x filter factor reduces exposure by 1 stop
  • Constructed from optical glass for clarity and color fidelity
  UPC: 085831708523

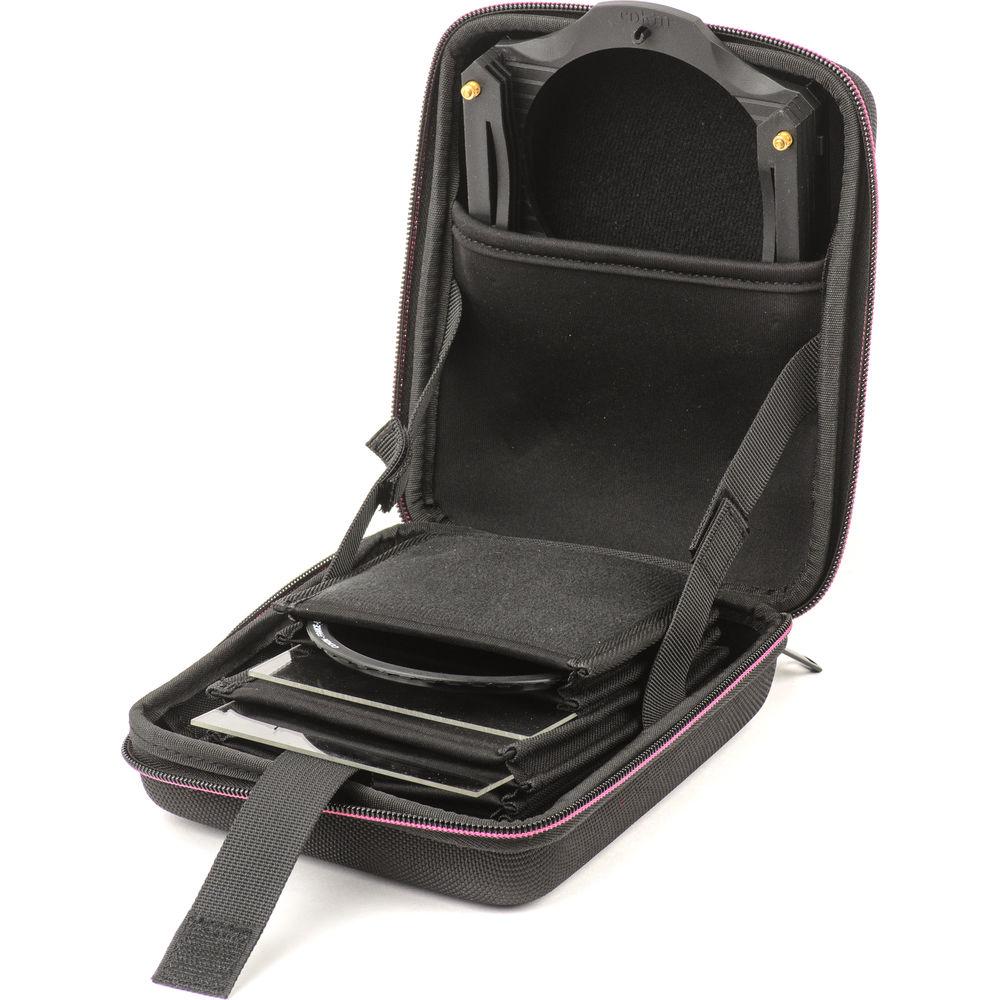

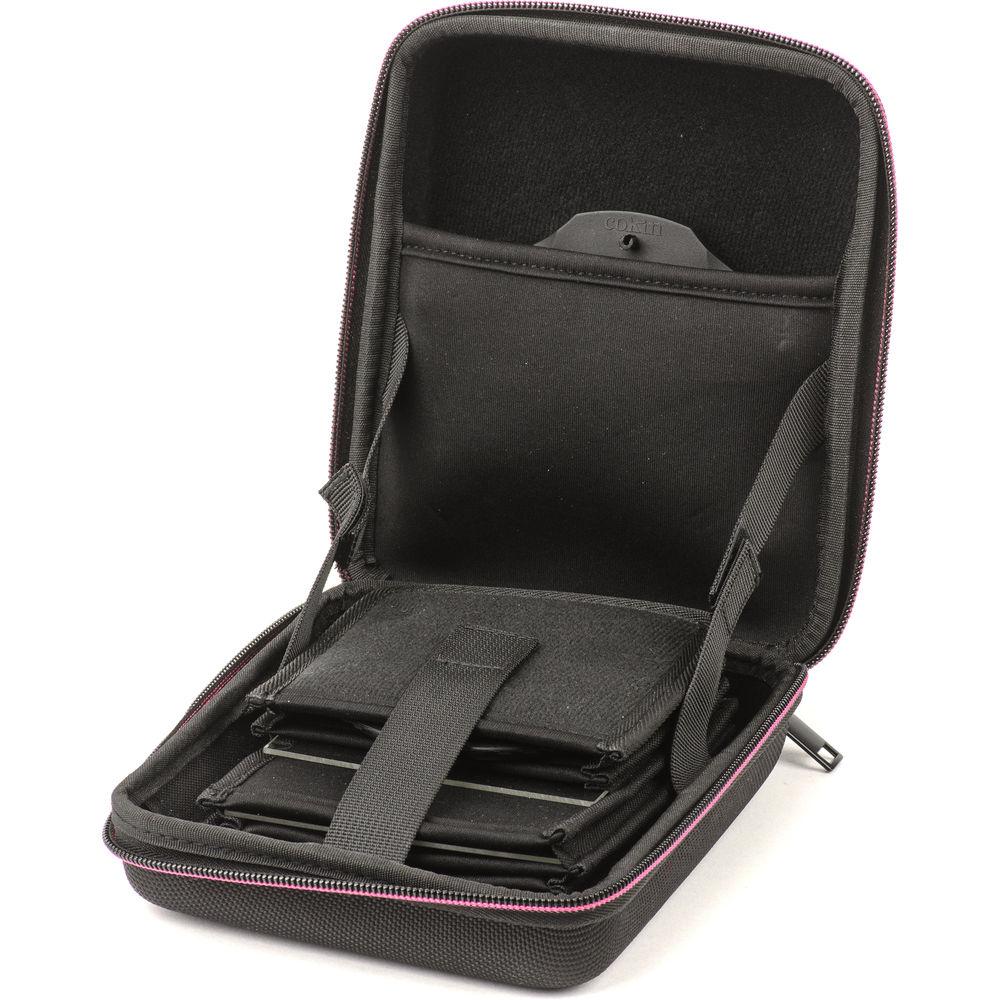

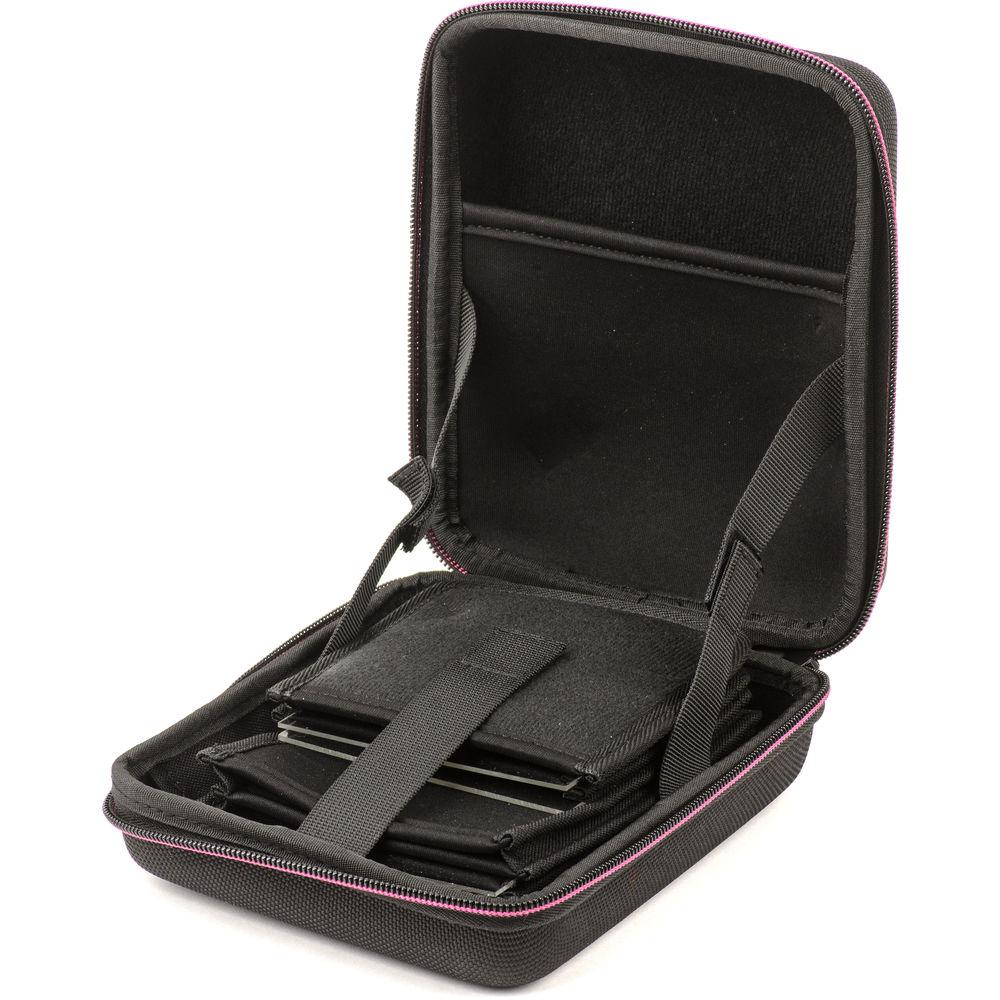

• Z3068 Z-Pro Series Filter Wallet This Cokin Z3068 Z-Pro Series Filter Wallet is a secure and convenient transport and storage solution for up to five Cokin Z-Pro Series Filters, plus a Cokin Z-Pro Series Filter Holder with an attached filter holder adapter ring, and three additional Cokin Z-Pro Series filter holder adapter rings.

  Five padded, nonabrasive slots occupy half of the filter wallet and can each accommodate a Cokin Z-Pro Series filter measuring 100 x 100mm or 100 x 150mm, or a Cokin Z-Pro Series Polarizer Filter that is designed to be rotated within a filter holder. The slots can be easily accessed by opening the filter wallet's zippered closure and releasing its filter slot retaining strap. One end of the retaining strap is attached to the inside wall of the filter wallet, while the opposite end features a touch-tab fastener that connects to filter slot closest to the center of the filter wallet. When in use, this retaining strap stretches over the filter slots and prevents any inserted filters from accidentally sliding out while the filter wallet is opened.

  The remaining half of the filter wallet is a compartment with a wide, elastic retaining strap. That compartment accommodates a Cokin Z-Pro Series Filter Holder with an attached filter holder adapter ring, or a Cokin Z-Pro Series Wide-Angle Filter Holder with an attached filter holder adapter ring. Along with one of either type of those Cokin Z-Pro Series filter holders and an attached adapter ring, three additional Cokin Z-Pro Series filter holder adapter rings can be placed within the filter holder compartment as well.

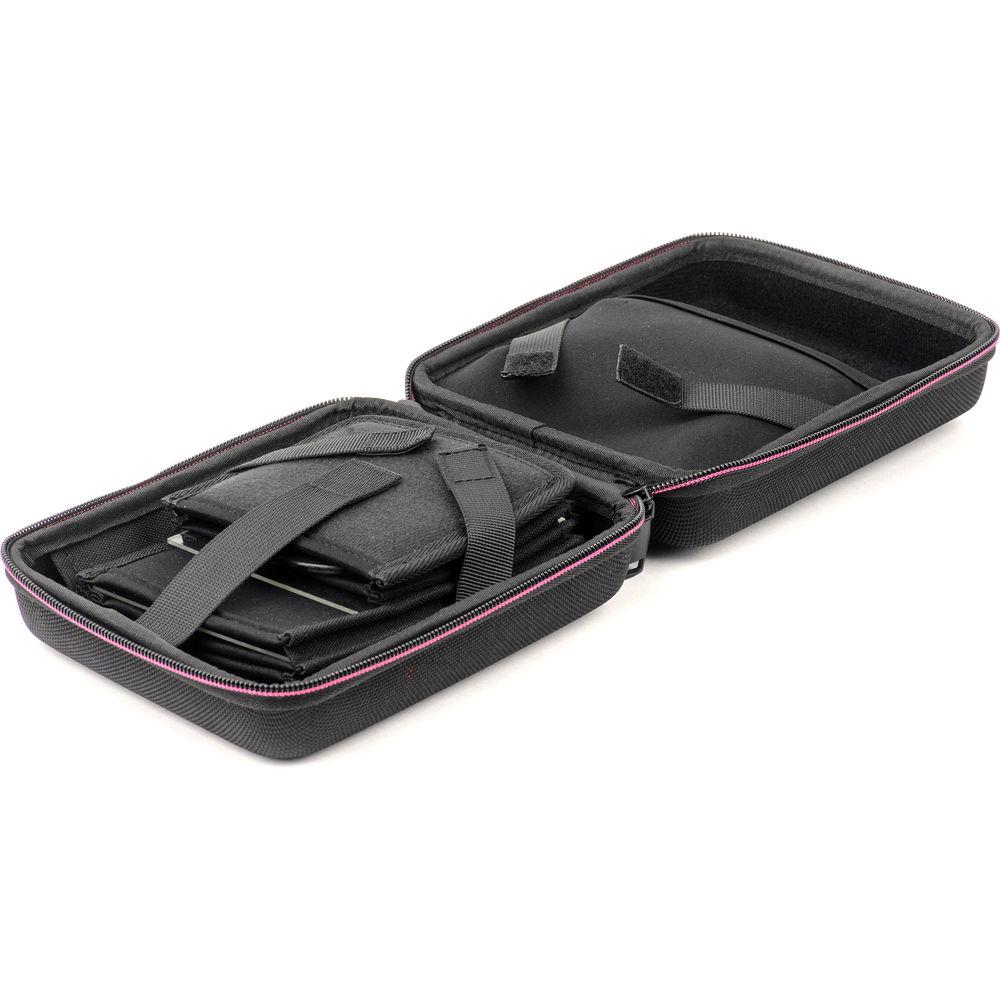

  To further prevent any items from accidentally falling out when the filter wallet is opened, two pairs of safety gussets along its inside edge each connect using a touch tab fastener to form two hinges. When in use, these hinges prevent the Cokin Z3068 Z-Pro Series filter wallet from opening to an angle that is greater than 90°.

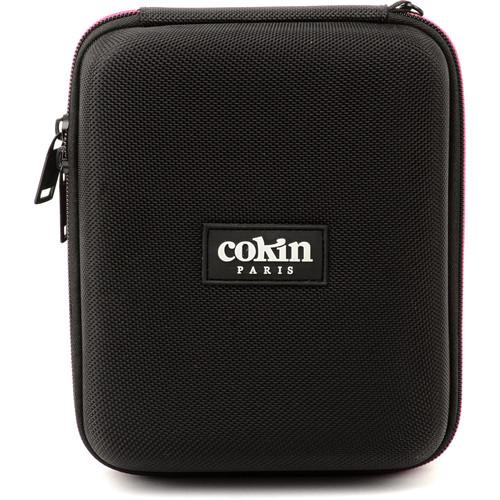

  This filter wallet's exterior is constructed from EVA plastic for durability, and an adjustable, clip-on wrist strap provides a convenient carrying option.
  • • Filter holder compartment with wide, elastic retaining strap designed to hold up to five Cokin Z-Pro Series Filters, plus a Cokin Z-Pro Series Filter Holder (or Cokin Z-Pro Series Wide-Angle Filter Holder) with an attached filter holder adapter ring, and three additional Cokin Z-Pro Series filter holder adapter rings
    • Padded, nonabrasive slots can each accommodate a Cokin Z-Pro Series filter measuring 100 x 100mm or 100 x 150mm, or a Cokin Z-Pro Series Polarizer Filter that is designed to be rotated within a filter holder
    • Interior filter slot retaining strap stretches over the filter slots, helping to prevent any inserted filters from accidentally sliding out while the filter wallet is opened
    • Two pairs of interior safety gussets connect using a touch tab fastener to form two hinges
    • Gussets restrict filter wallet from opening to an angle that is greater than 90°, further preventing inserted filters, filter holders, or filter holder adapter rings from falling out
    • Clip-on wrist strap
    • Durable, EVA plastic exterior with zippered closure

• Limited 1 Year Warranty

• Protective Filter Case

• Limited 1-Year Warranty

• Limited 1 Year Warranty

• Soft Case

• Limited 1-Year Warranty

• Wrist Strap

• Limited 1-Year Warranty

Also Includes

• Microfiber Cloth
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Z-Pro Series Filter Holder

  Filter Capacity	2 x 4 x 4", 4 x 6", 100 x 100 mm, 100 x 150 mm, Cokin Z-Pro (1.6 mm Thick) or 2 x 4 x 4", 4 x 6", 100 x 100 mm, 100 x 150 mm, Cokin Z-Pro (1.6 mm Thick) and 1 x Round Cokin Z-Pro
  Material	Plastic

  Box Dimensions (LxWxH)	9.449 x 7.087 x 1.654"

• Z-Pro Series ND 0.9 Filter (3-Stop)

  Filter Type	Solid ND
  Density	0.9 (3 Stops)
  Rectangular Size	3.9 x 3.9" / 100.0 x 100.0 mm
  Filter Material	Resin

  Box Dimensions (LxWxH)	6.9 x 4.9 x 0.4"

• Z-Pro Series Hard-Edge Graduated Neutral Density 0.6 Filter (2-Stop)

  Filter Type	Graduated ND
  Graduation Type	Hard Edge
  Density	0.6 (2 Stops)
  Shape	Rectangle
  Rectangular Size	3.9 x 5.9" / 100.0 x 150.0 mm
  Cokin Compatibility	Cokin Z-Pro
  Filter Thickness	0.06" / 1.6 mm
  Filter Material	Resin

  Box Dimensions (LxWxH)	6.7 x 4.7 x 0.4"

• Z-PRO 164 Circular Polarizing Filter

  Filter Type	Circular Polarizer
  Shape	Rectangle
  Circular Size	100 mm
  Rotating	Yes
  Rectangular Size	4 x 6" / 101.6 x 152.4 mm
  Cokin Compatibility	Cokin Z-Pro
  Front Accessory Thread / Bayonet	Unthreaded
  Filter Material	Glass
  Coatings	None

  Box Dimensions (LxWxH)	6.8 x 4.8 x 0.5"

• Z3068 Z-Pro Series Filter Wallet

  Filter Capacity	5 x 3.9 x 5.9" / 100 x 150 mm (Cokin Z-Pro)
  Carrying/Transport Options	Shoulder Strap
  Type of Closure	Zipper
  Exterior Material	Plastic
  Exterior Dimensions	6.5 x 3.0 x 8.0" / 16.5 x 7.6 x 20.3 cm
  Weight	12.8 oz / 362.9 g

  Box Dimensions (LxWxH)	8.3 x 6.3 x 2.9"
