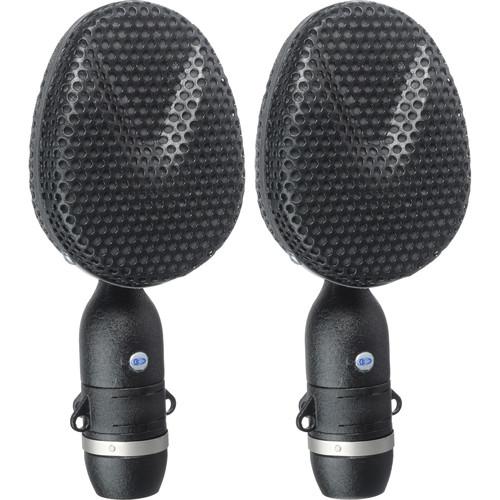

User Manual for Coles Microphones 4038 Studio Ribbon Microphone Click to enlarge the picture
Contents of the user manual for the Coles Microphones 4038 Studio Ribbon Microphone
- Product category: Ribbon Microphones Coles Microphones
- Brand: Coles Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Coles Microphones Ribbon Microphones
|
User manual for the Coles Microphones 4038 Studio Ribbon Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Coles Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Coles Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Coles Microphones product will considerably shorten its lifespan!
|
Product description The 4038MP from Coles is a matched pair of studio ribbon microphones that were originally developed by the BBC as a broadcast microphone. Recognized for its wide, flat frequency response and high sensitivity, the 4038 quickly became a valuable tool in the recording studio as well as broadcast applications. The pressure gradient ribbon transducer is capable of withstanding high sound pressure levels without distortion and the bi-directional (figure 8) polar pattern provides a uniform pick up response at either side of the diaphragm. The bi-directional pattern proves valuable when capturing multiple singers, musical instruments, ambiance capturing and more. The smooth, rich sonic detail of the 4038 has made the microphone a classic among some of the recording industries most celebrated engineers. - Pressure Gradient Ribbon Transducer
- High sensitivity and SPL handling are just some of the attributes associated with ribbon transducers, the 4038 is hailed for its overall sonic performance.
- Flat Frequency Response
- The flat and wide frequency response of 30 Hz to 15 kHz results in rich, transparent audio reproduction while eliminating low frequency noise.
- Bi-directional Polar Pattern
- The bi-directional (figure 8) polar pattern provides an even pick up response at both sides of the diaphragm.
- Low Hum and Noise Floor
- The tailored frequency response and hum eliminating electronics, result in an output stage that provides high audio gain levels and low noise floor.
In the Box Coles Microphones 4038 Studio Ribbon Microphone (Matched Pair) XLR Cable Soft Cloth Protective Bag Lined Rigid Plastic Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Coles Microphones 4038 Studio Ribbon Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersColes Microphones 4038 M/P Specs | | | Operating Principle | Pressure Gradient | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 30 Hz to 15 kHz | | Impedance | 300 Ohms | | Sensitivity | -65 dB | | Output Connectors | 1 x 3-Pin XLR | | Length | 7.76" / 197 mm | | Diameter | 3.27" / 83 mm | | Weight | 2.38 lb / 1.08 kg | | | | Package Weight | 8.6 lb | | Box Dimensions (LxWxH) | 11.26 x 9.764 x 9.213" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
