ColorKey MobilePar HEX 4 RGBAW UV

Search your instruction manual in PDF to download

User Manual for ColorKey MobilePar HEX 4 RGBAW UV LED Light

Click to enlarge the picture
ColorKey MobilePar HEX 4 RGBAW UV LED Light Contents of the user manual for the ColorKey MobilePar HEX 4 RGBAW UV
  • Product category: DJ & Effect Lights ColorKey
  • Brand: ColorKey
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ColorKey DJ & Effect Lights

ColorKey MobilePar HEX 4 RGBAW UV LED Light ColorKey MobilePar HEX 4 RGBAW UV LED Light ColorKey MobilePar HEX 4 RGBAW UV LED Light ColorKey MobilePar HEX 4 RGBAW UV LED Light ColorKey MobilePar HEX 4 RGBAW UV LED Light ColorKey MobilePar HEX 4 RGBAW UV LED Light ColorKey MobilePar HEX 4 RGBAW UV LED Light
User manual for the ColorKey MobilePar HEX 4 RGBAW UV contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ColorKey product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ColorKey user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ColorKey product will considerably shorten its lifespan!



Product description

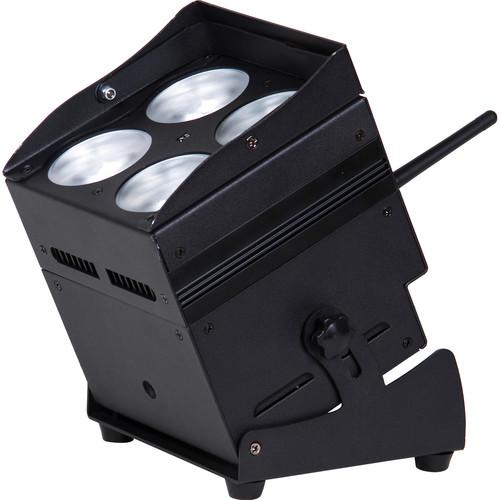

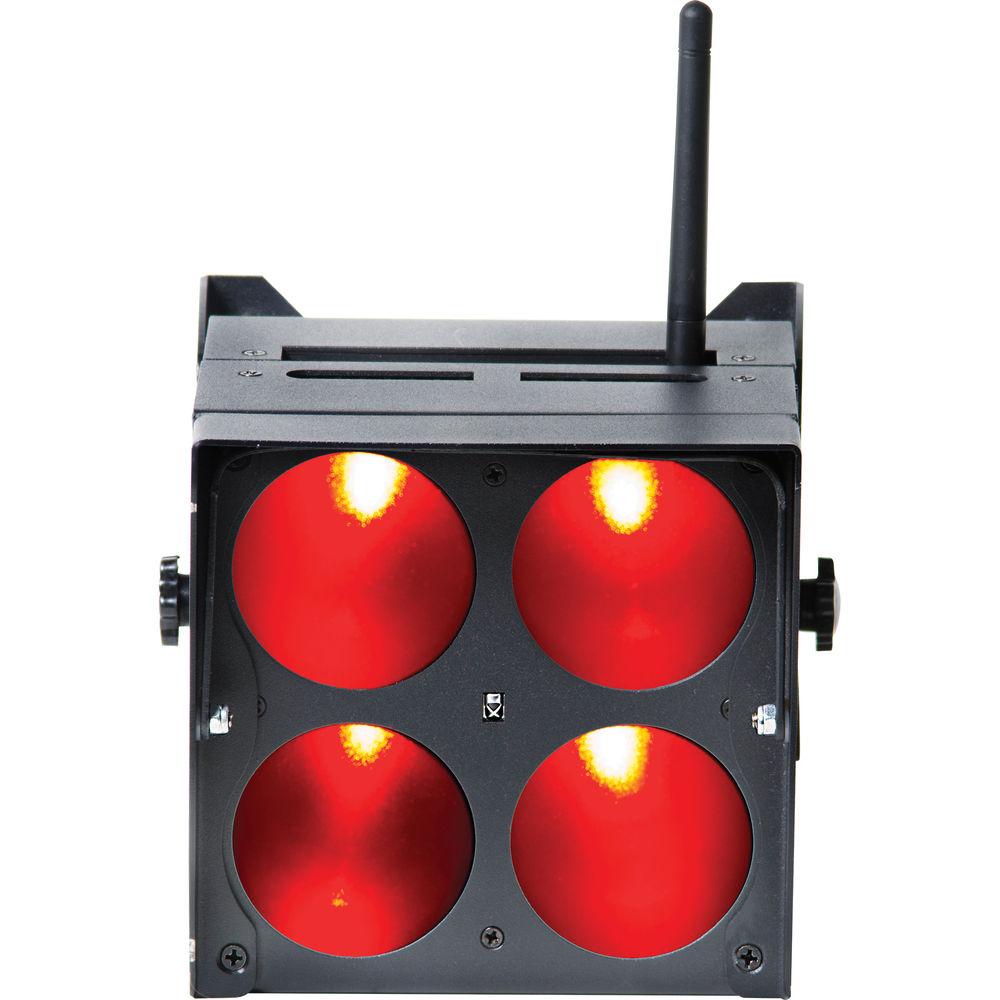

The black MobilePar HEX 4 from ColorKey is a battery-powered, wireless-DMX LED PAR light. Featuring four 12W RGBAW+UV LEDs, this light allows you to create rich color tones and smooth mixing that is ideal for uplighting or creating wash effects. The white and UV LEDs add more depth to special effects and color mixing. A built-in adjustable kickstand allows the light to be focused and moved effortlessly in any setting.
  • Stand Alone, Master/Slave, Auto, and Sound Active modes
  • Dimmer, strobe, and gradual change effects
  • Operates over 2.4 GHz band
  • 126 channels with auto frequency adjustment
  • Can be controlled for up to 30' via an IR remote
  • 5200 mAh battery
  • Natural convection (fan-less) noiseless cooling
  • IP20 rated housing
UPC: 702706437073 Table of Contents




Upload User Manual

Have you got an user manual for the ColorKey MobilePar HEX 4 RGBAW UV LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

ColorKey MobilePar HEX 4 Specs

LEDs 4 x 12 W 6-in-1 (RGBAW+UV) LEDs (red, green, blue, amber, white, ultraviolet)
Beam Angle 30°
DMX Channel Modes 5 x Modes: 3 / 6 / 8 / 10 / 11
Protocol Wi-DMX
Operating Frequency 2.4 GHz
Channels 126 with auto frequency adjustment
IR Remote Control Range: 30' (10 m)
Battery Capacity: 5200 mAh
Voltage: 14.8 V
Charger Output Voltage: 16.8 V, 3A
Refresh Rate 1.5 kHz, flicker-free operation
IP Rating IP20 rated
Anti-Electricity Intension > 1.5 kV
Insulation Resistance > 2 MOhms
Input Voltage 100 to 260 VAC, 50 to 60 Hz
Dimensions 6.5 x 5.4 x 7.4" (16.7 x 13.8 x 18.8 cm)
Weight 6.8 lb (3.1 kg)

Rating

80% users recommend this product to others. And what about you?
Rating: 4 of 5

This product has already been rated by 42 owners. Add your rating and experience with the product.
