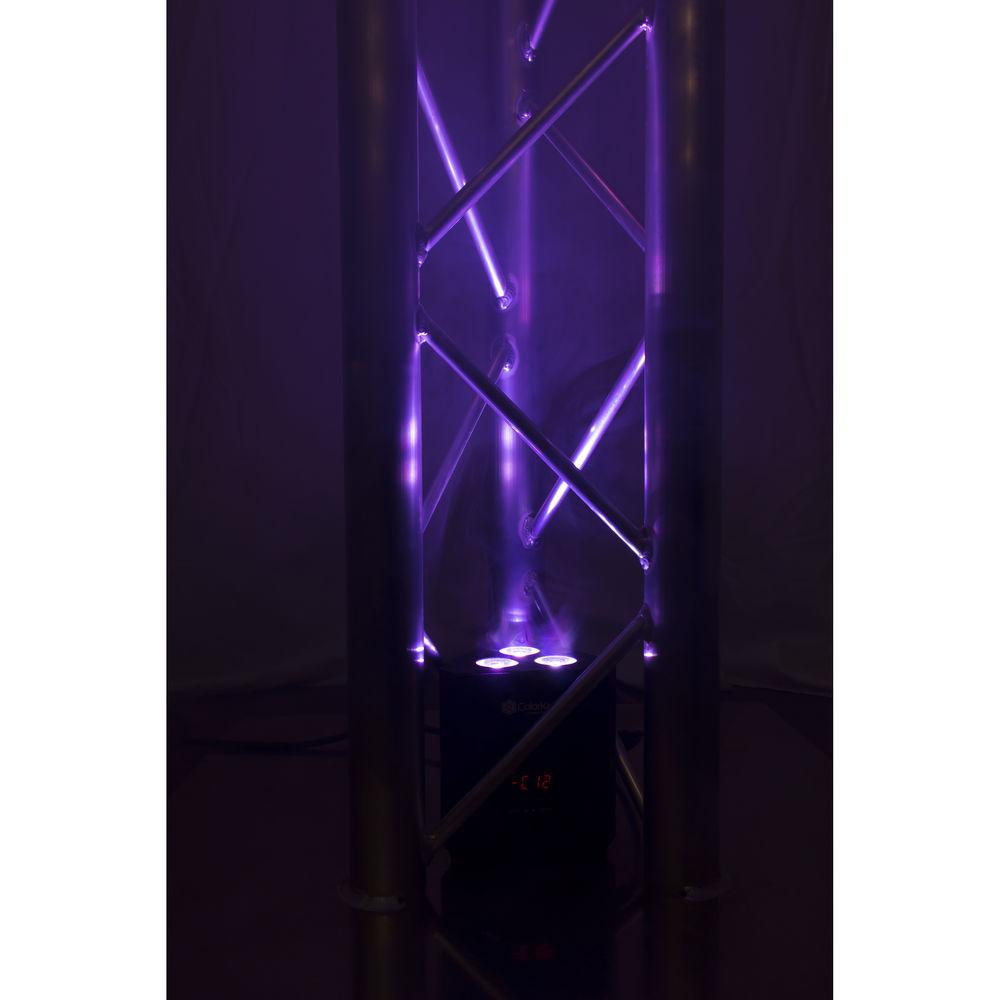

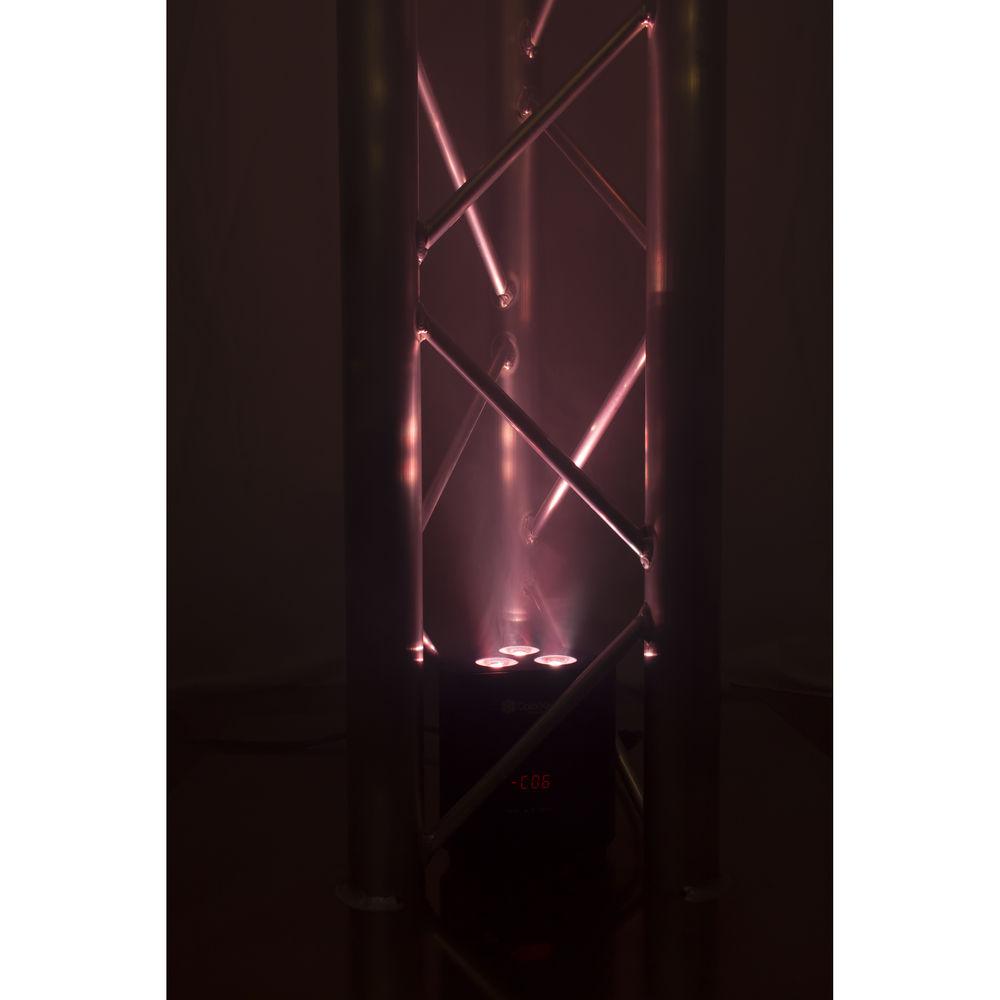

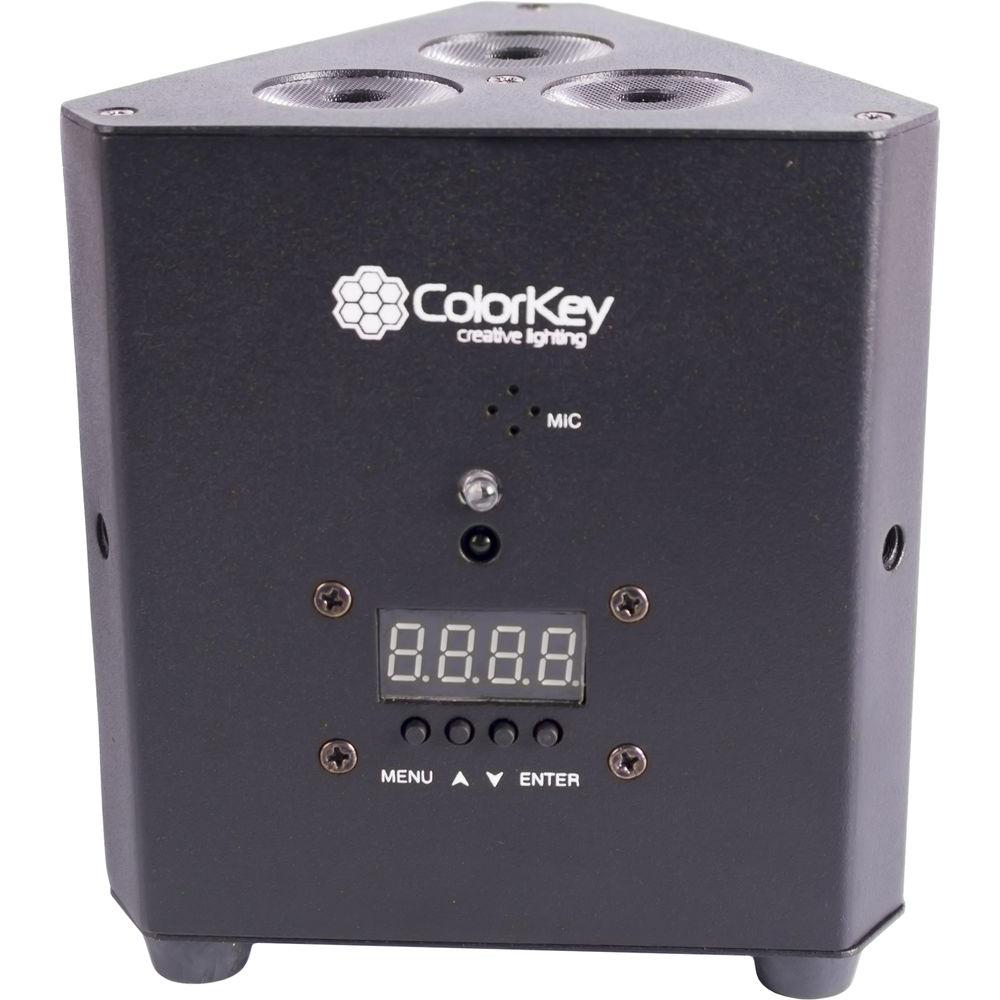

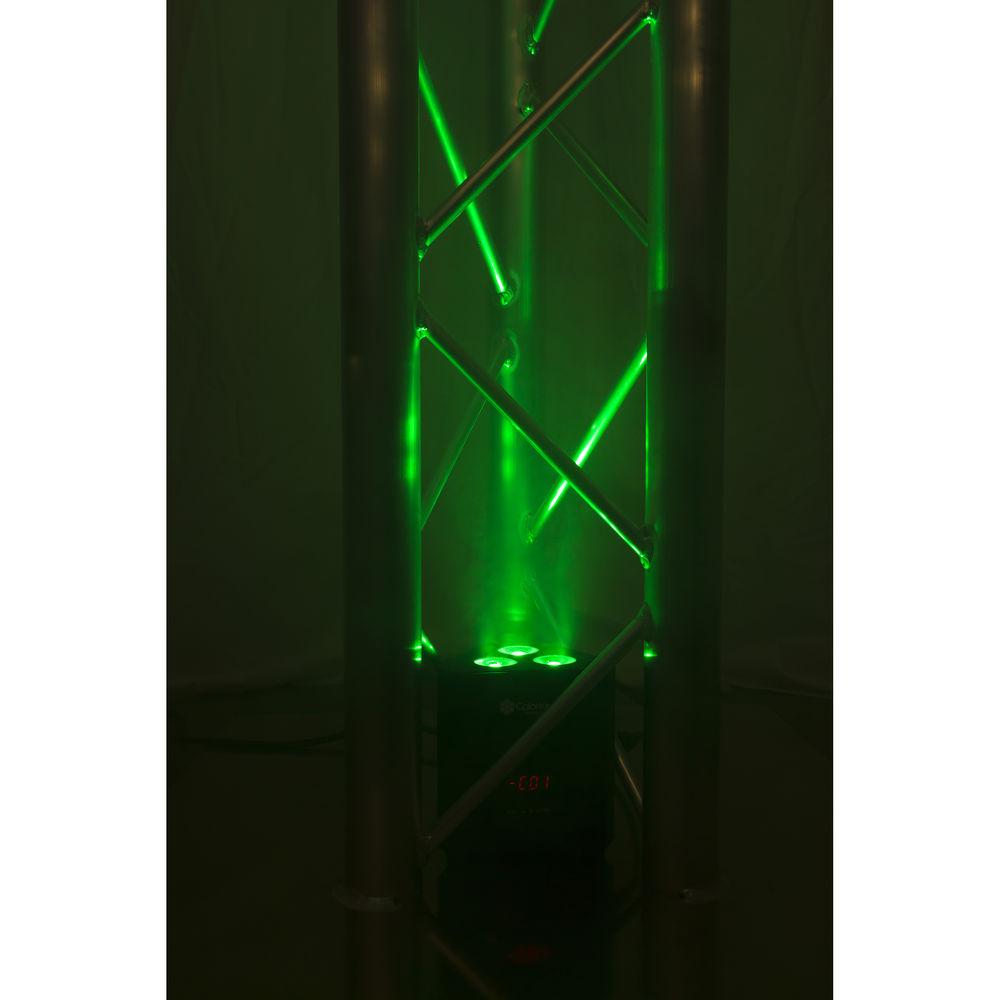

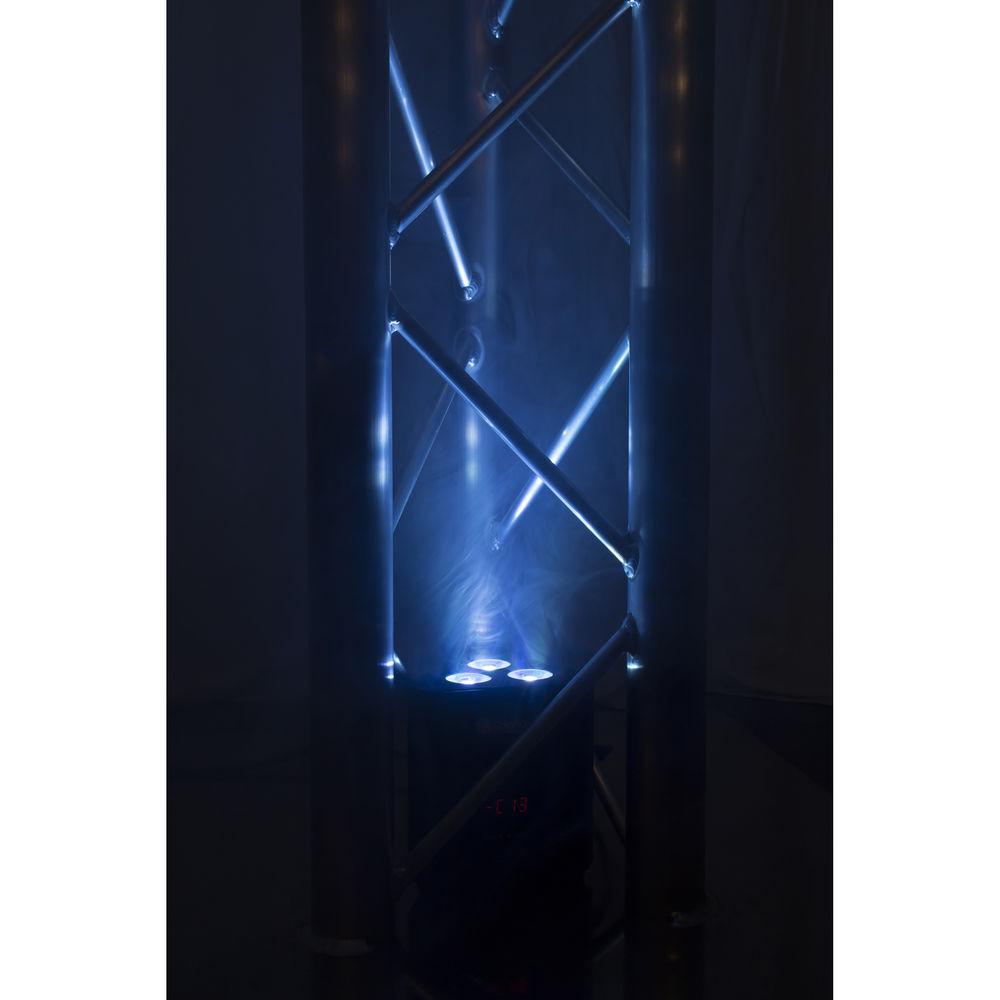

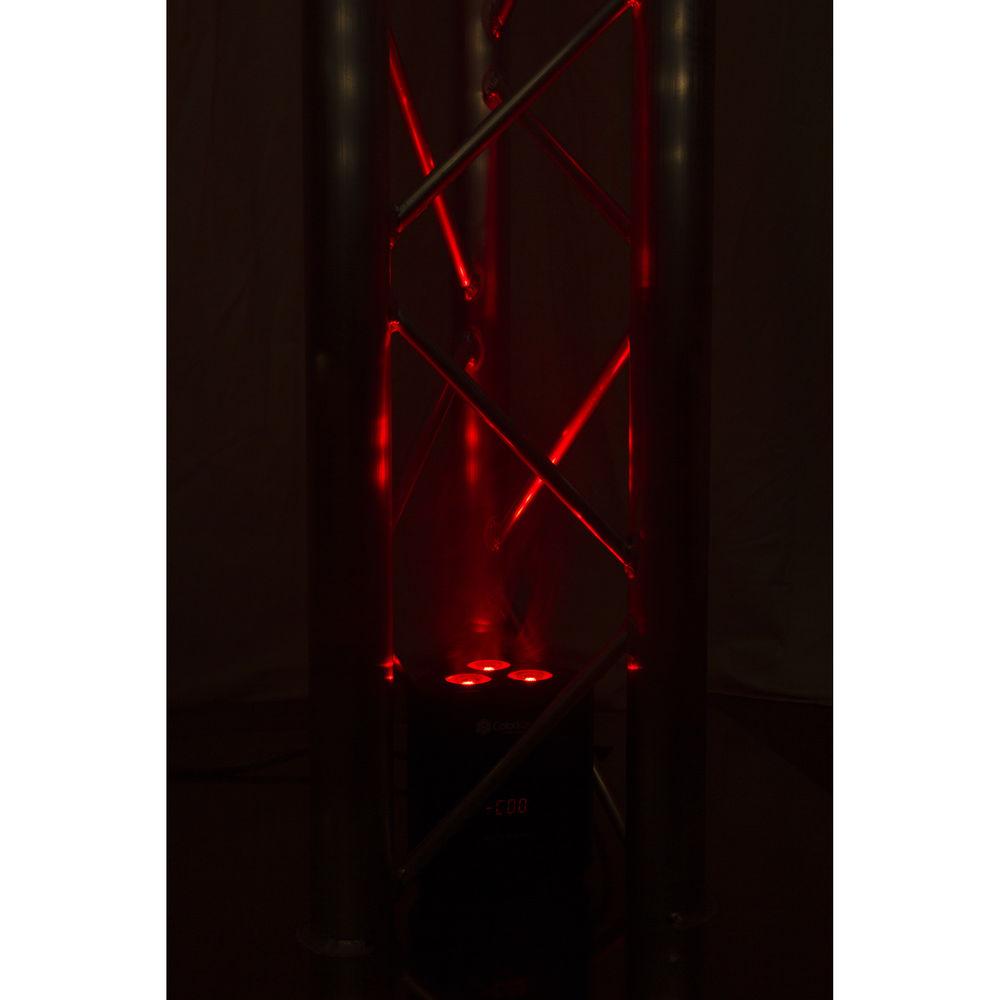

Product description The black ColorKey TrussPar QUAD 3 is an RGBW LED wash light designed to fit inside most triangular trussing for up-lighting truss legs and totems and is well suited for mobile DJs, concerts, weddings, and other mobile event applications. The instrument features three 10W 4-in-1 LEDS (Red, Green, Blue, & White) with a 16° beam angle and the ability to strobe. The LEDs are rated for up to 50,000 hours of life expectancy.

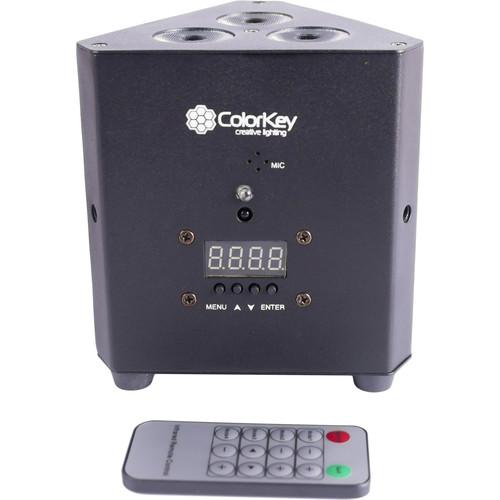

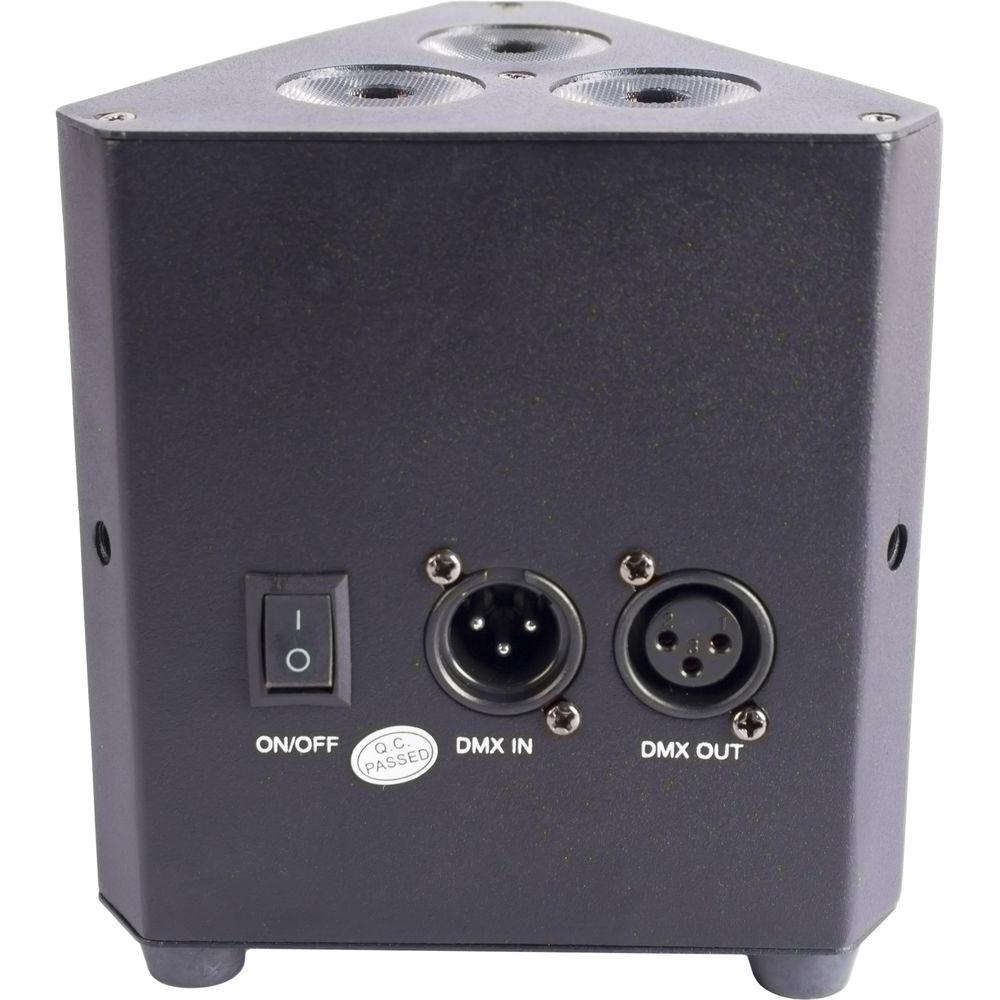

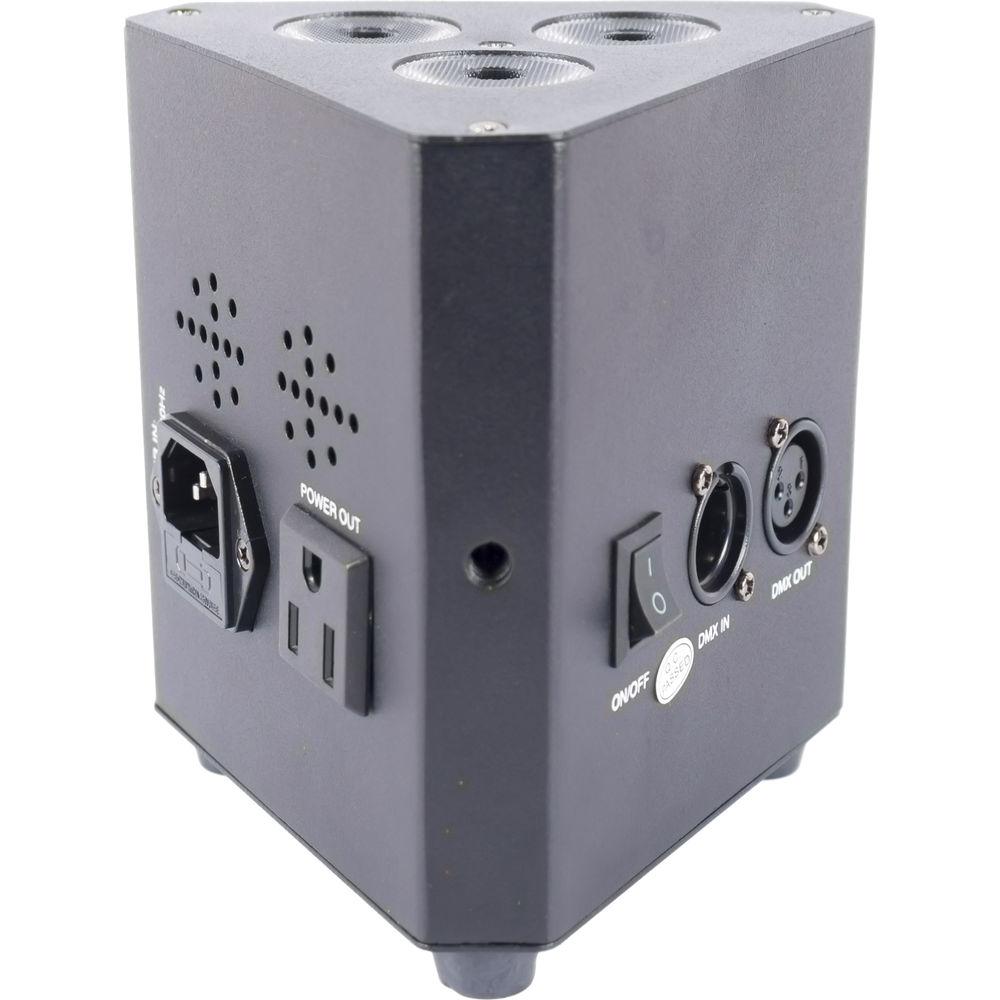

The ColorKey TrussPar QUAD 3 offers DMX control with 5 and 9 channel modes. There are 3-pin DMX input and output connectors for daisy chaining, as well as IEC power input and output for power chaining. An IRC remote is included and offers control over colors and programs. -
- Light Source: 3 x 10W RGBW LED’s
- DMX Channels: 5 & 9
- DMX Connectors: 3-pin XLR
- Strobe Rate: 0-17 Hz
- Beam Angle: 16°
- Field Angle: 30°
- Illuminance: 1,066 lux @ 6.6' / 2m
- Lamp Life: Up to 50,000 hrs
UPC: 702706437196 In the Box ColorKey TrussPar QUAD 3 (Black) Power Cord IRC Remote Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ColorKey TrussPar QUAD 3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersColorKey TrussPar Quad 3 Specs | Light Source | 3 x RGBW LEDs, 10 W
(Red, green, blue, white) | | Life Expectancy | Up to 50,000 hours | | Beam Angle | 16° | | Field Angle | 30° | | Illuminance | 1,066 lux @ 6.6' / 2.0 m | | Color Mixing | RGBW | | Built-In Programs | Yes | | Sound Active | Yes | | Master/Slave Support | Yes | | Protocols | DMX | | DMX Channels | 5 and 9 channels | | DMX Connectors | Input: 1 x XLR 3-pin

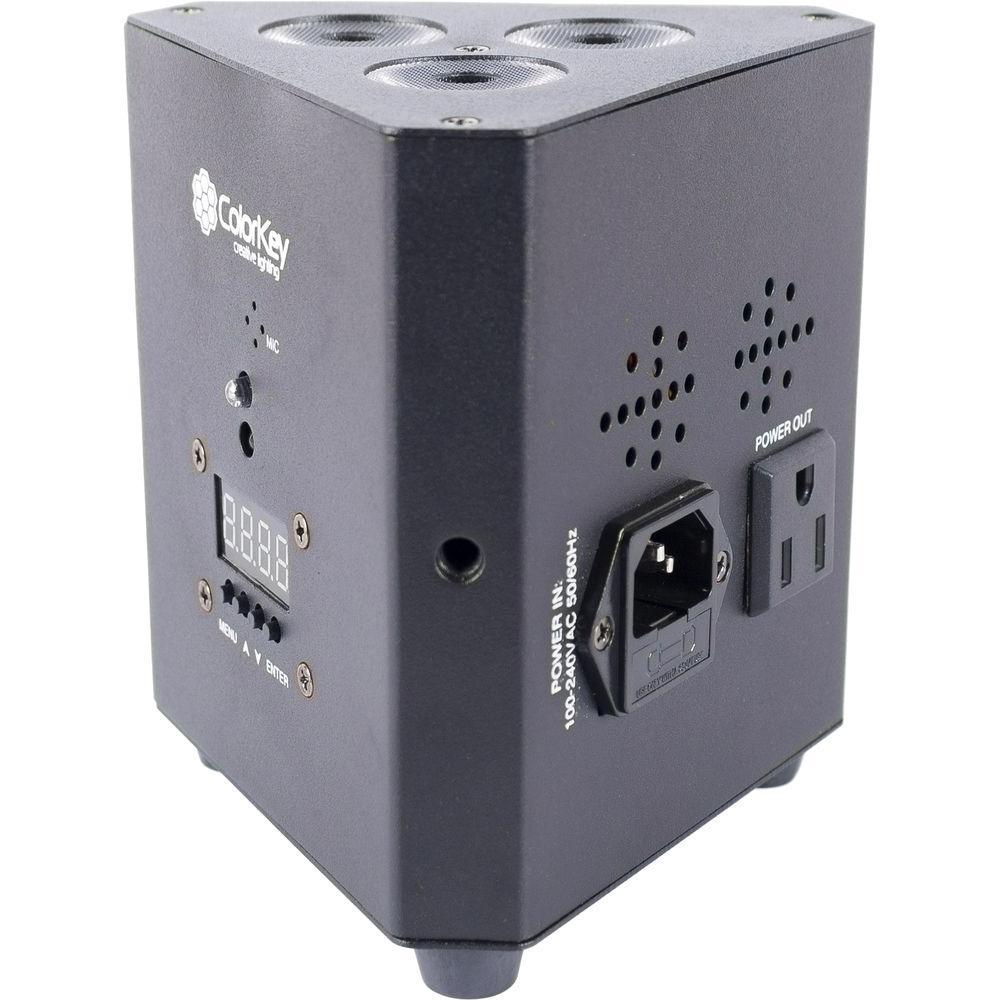

Output: 1 x XLR 3-pin | | Remote Control | Yes | | Display/Controls | Four-button LED menu | | Input Voltage | 100 to 240 VAC, 50-60 Hz | | Power Connector | Input: Standard IEC
Output: Standard Edison (for power chain) | | Dimensions (L x W x H) | 4.3 x 4.3 x 5.3" / 109.2 x 109.2 x 134.6 mm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 6.1 x 5.6 x 4.9" |
