Product description

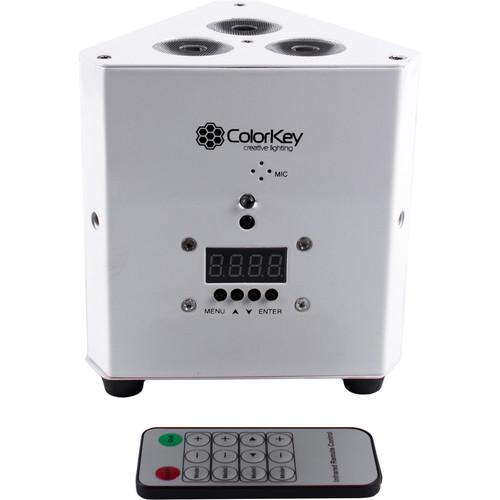

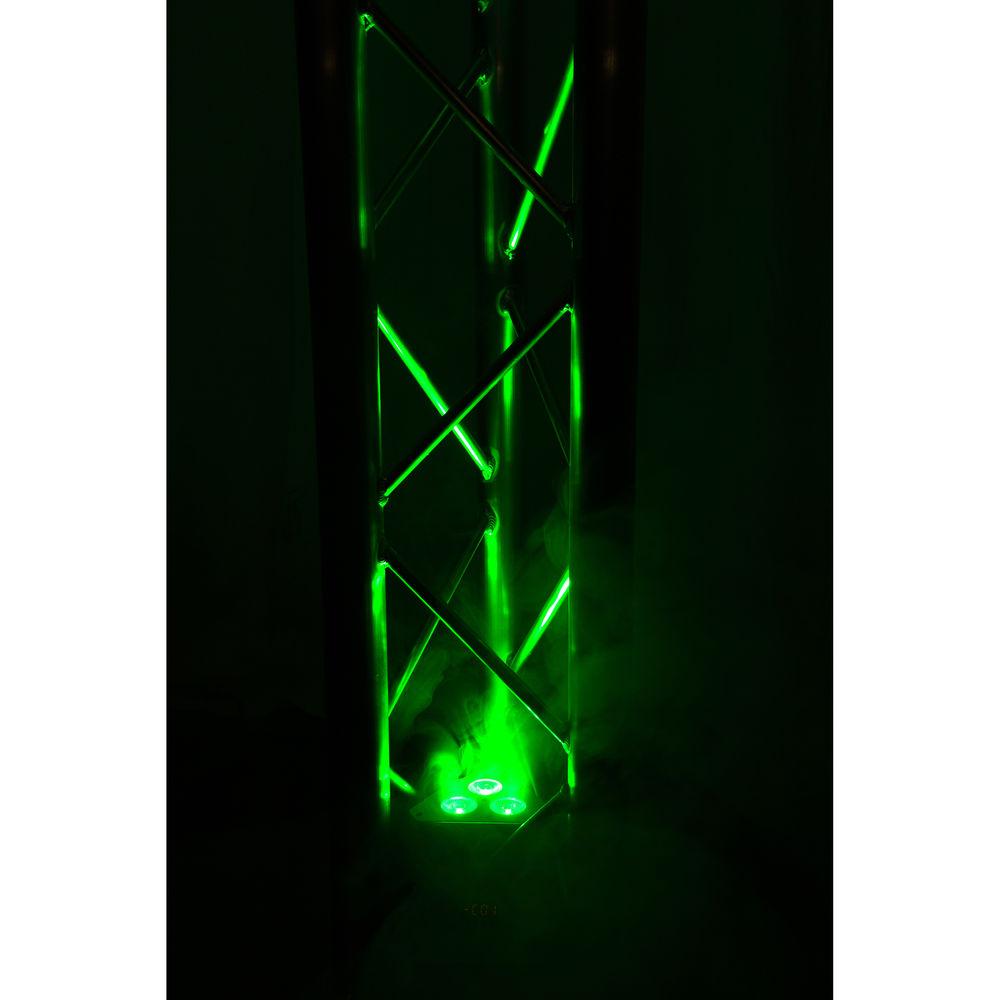

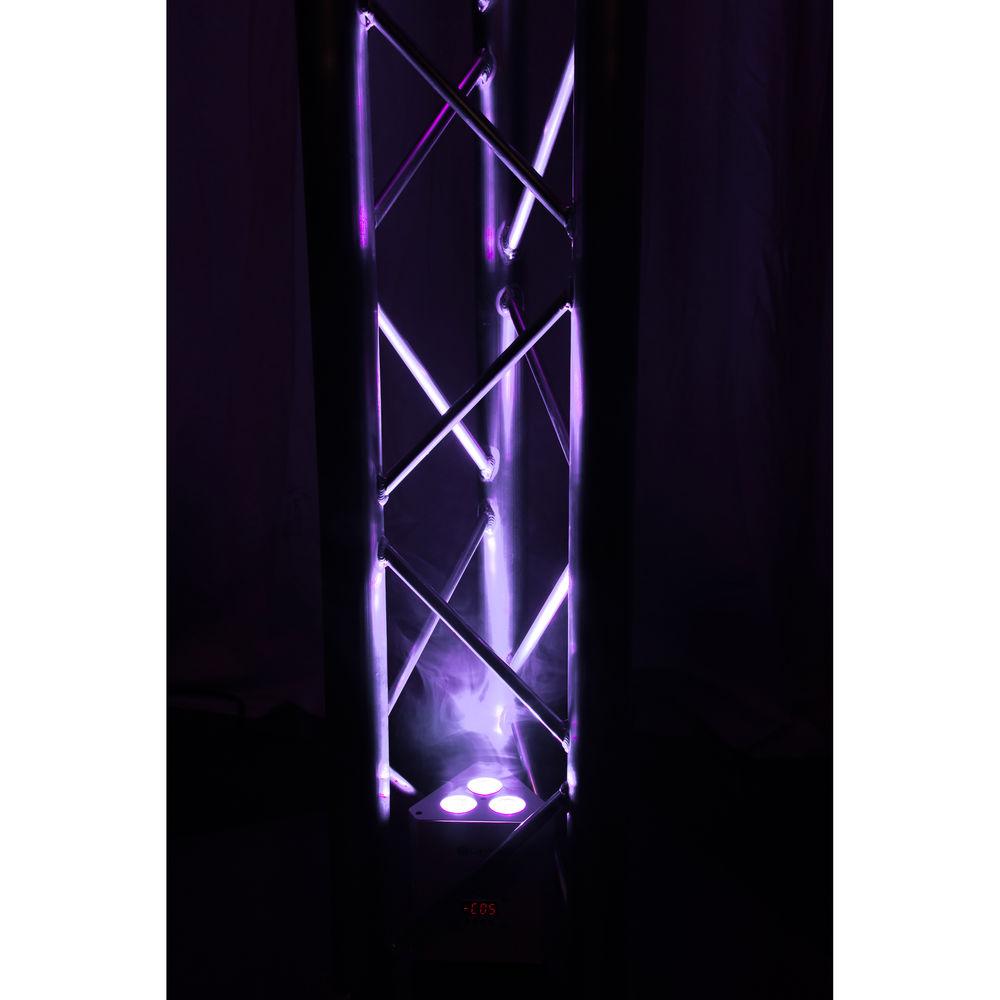

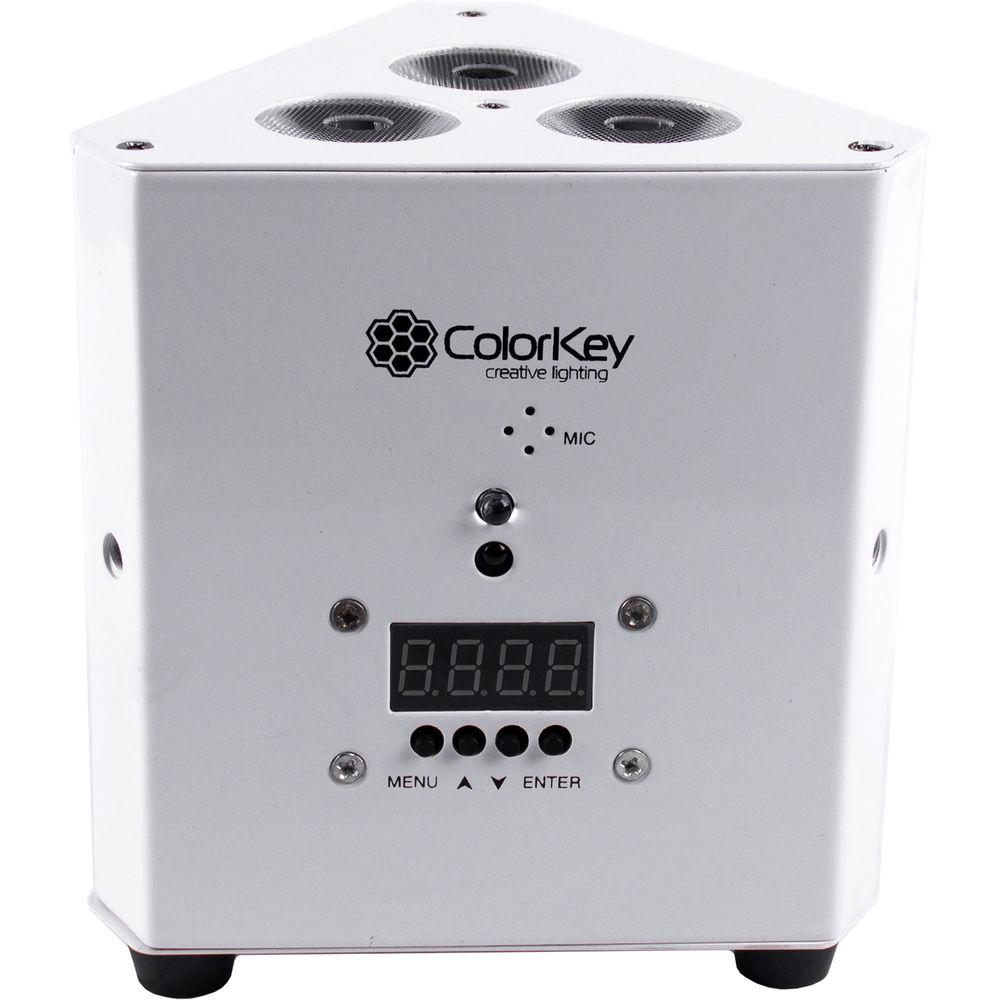

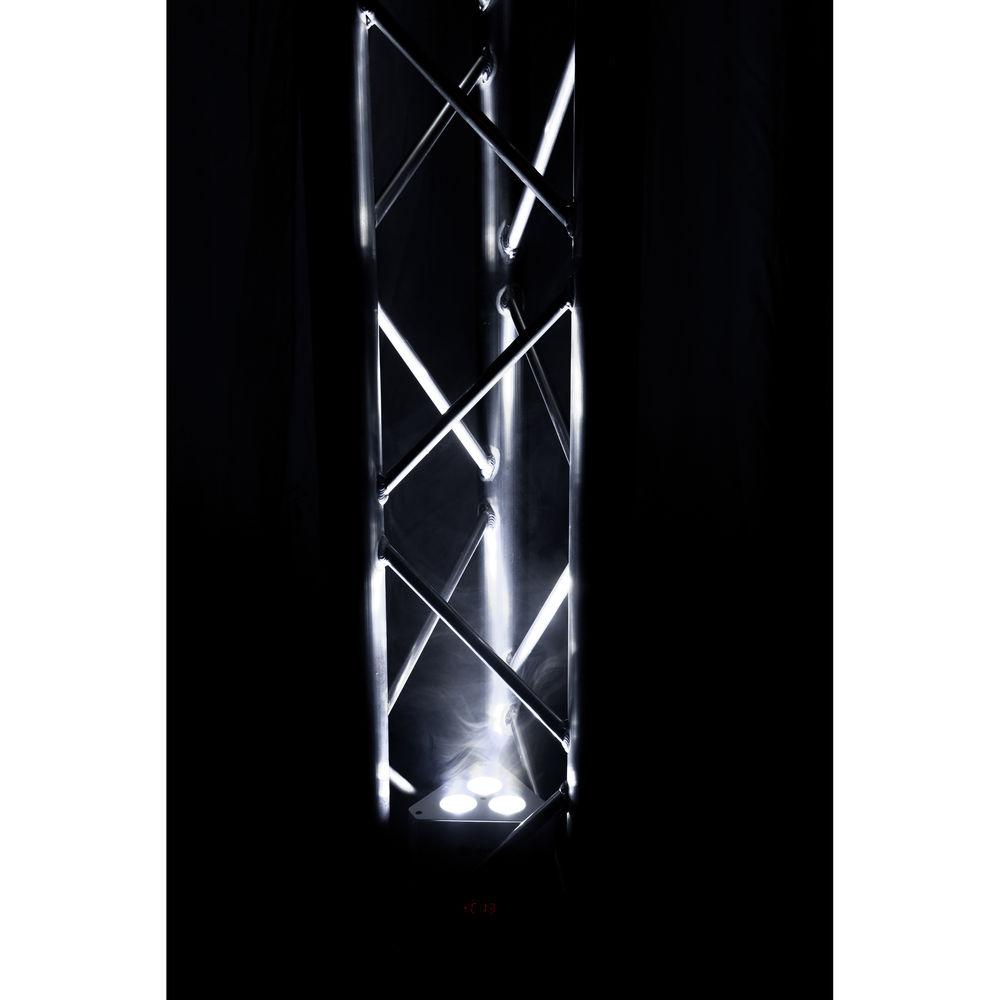

The white ColorKey TrussPar QUAD 3 is an RGBW LED wash light designed to fit inside most triangular trussing for up-lighting truss legs and totems and is well suited for mobile DJs, concerts, weddings, and other mobile event applications. The instrument features three 10W 4-in-1 LEDS (Red, Green, Blue, & White) with a 16° beam angle and the ability to strobe. The LEDs are rated for up to 50,000 hours of life expectancy.

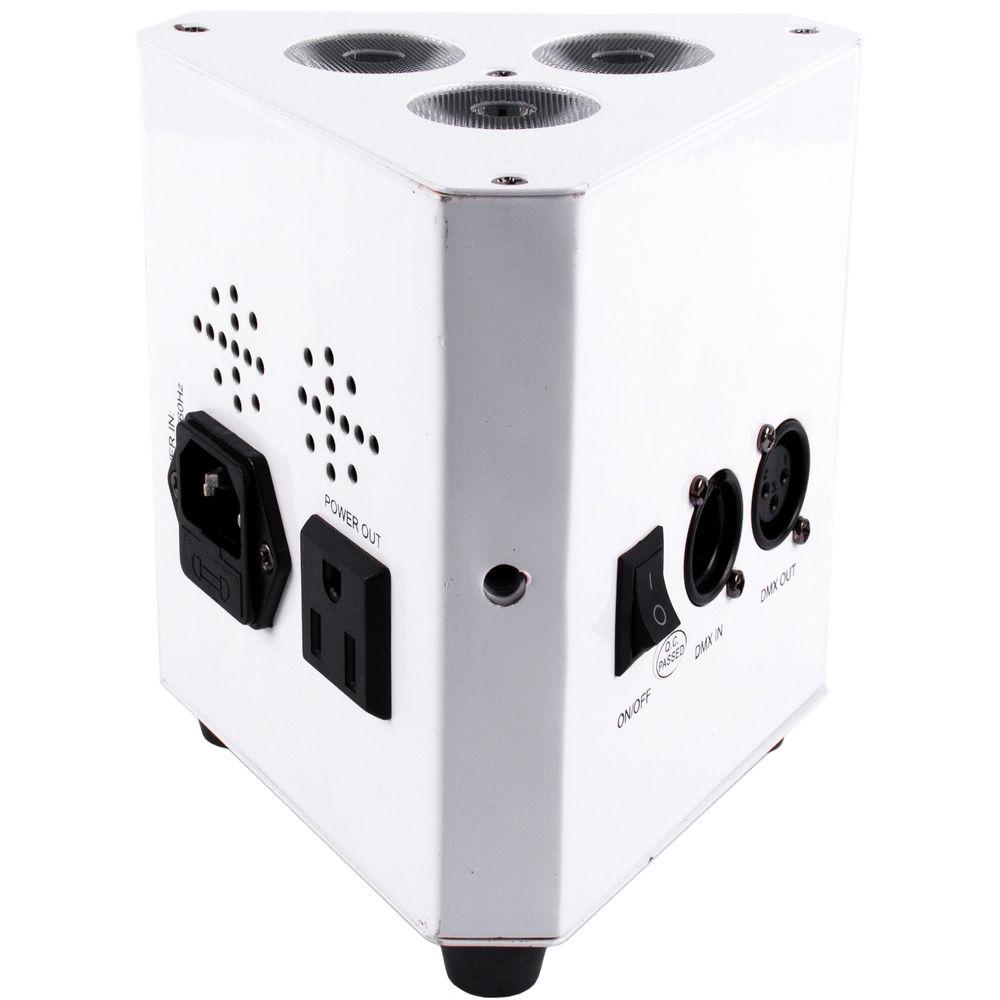

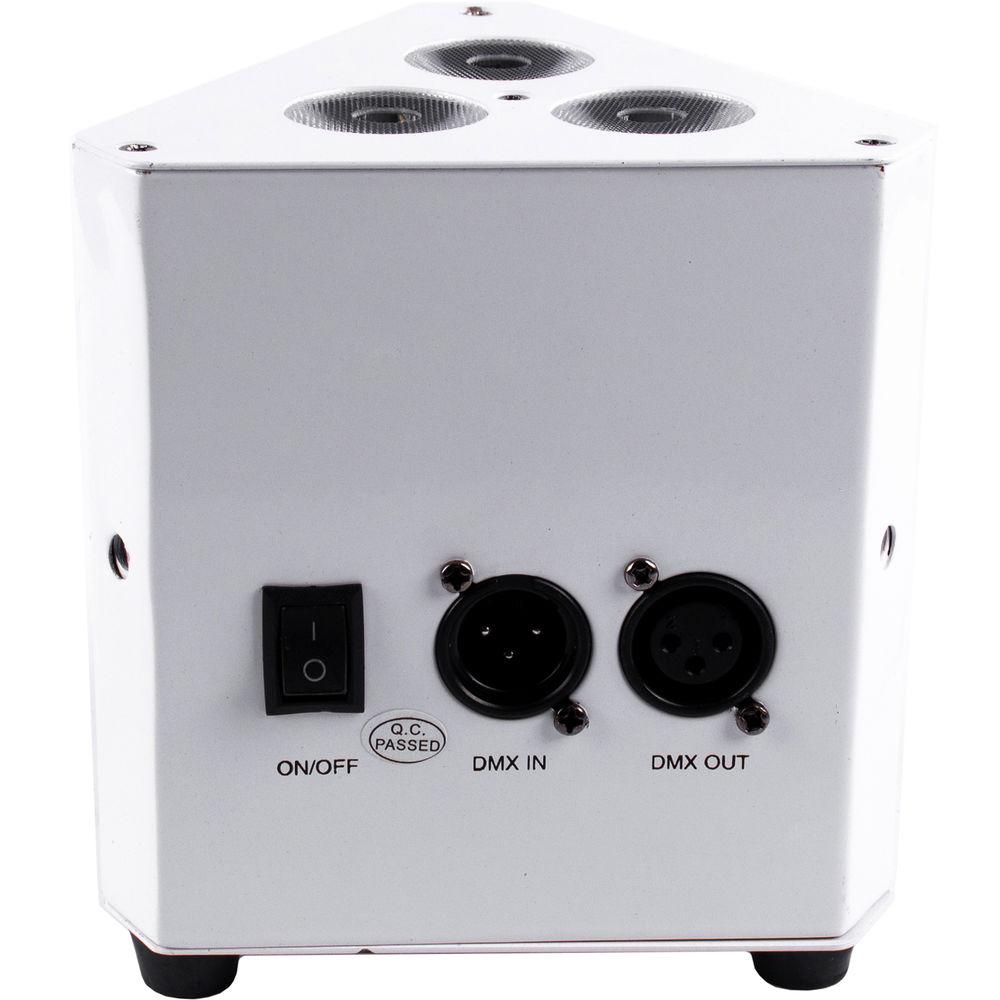

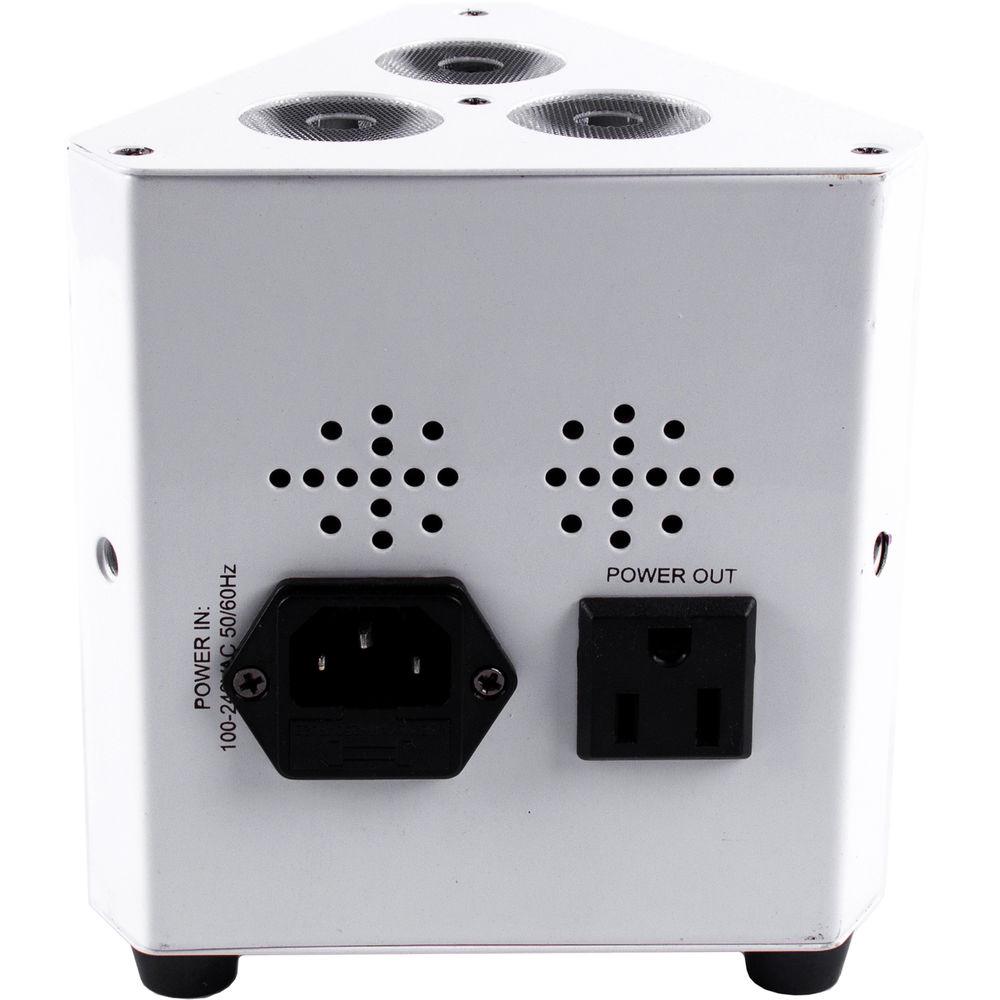

The ColorKey TrussPar QUAD 3 offers DMX control with 5 and 9 channel modes. There are 3-pin DMX input and output connectors for daisy chaining, as well as IEC power input and output for power chaining. An IRC remote is included and offers control over colors and programs.
    • Light Source: 3 x 10W RGBW LED’s
    • DMX Channels: 5 & 9
    • DMX Connectors: 3-pin XLR
    • Strobe Rate: 0-17 Hz
    • Beam Angle: 16°
    • Field Angle: 30°
    • Illuminance: 1,066 lux @ 6.6' / 2m
    • Lamp Life: Up to 50,000 hrs
UPC: 702706437219 In the Box ColorKey TrussPar QUAD 3 (White)
  • Power Cord
  • IRC Remote
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ColorKey TrussPar QUAD 3 in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Download User Manual

    The user manual for the ColorKey TrussPar QUAD 3 can be downloaded in PDF format at the link stated below.
    Download PDF user manual - ColorKey TrussPar QUAD 3Download PDF User Manual - https://www.search-manual.com/ upload/ colorkey-trusspar-quad-3-294175-user-manual.pdf
    (PDF file, 1.09 MB)


    Technical parameters

    ColorKey TrussPar Quad 3 Specs

    Light Source 3 x RGBW LEDs, 10 W
    (Red, green, blue, white)
    Life Expectancy Up to 50,000 hours
    Beam Angle 16°
    Field Angle 30°
    Illuminance 1,066 lux @ 6.6' / 2.0 m
    Color Mixing RGBW
    Built-In Programs Yes
    Sound Active Yes
    Master/Slave Support Yes
    Protocols DMX
    DMX Channels 5 and 9 channels
    DMX Connectors Input: 1 x XLR 3-pin
    Output: 1 x XLR 3-pin
    Remote Control Yes
    Display/Controls Four-button LED menu
    Input Voltage 100 to 240 VAC, 50-60 Hz
    Power Connector Input: Standard IEC
    Output: Standard Edison (for power chain)
    Dimensions (L x W x H) 4.3 x 4.3 x 5.3" / 109.2 x 109.2 x 134.6 mm
    Weight 1.8 lb / 0.8 kg
    Package Weight 2.455 lb
    Box Dimensions (LxWxH) 6.4 x 5.65 x 4.9"
