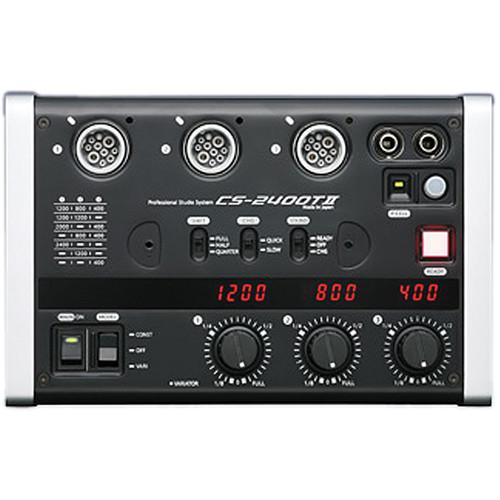

Product description The CS-2400T 2400W/s Power Supply from Comet has 3 individually controlled flash head outlets. Outlets 1 and 2 may be powered up to 1200 W/s each. The third outlet may be powered up to 400 W/s, when the other outlets are powered down. Each channel has its own digital power level readout in W/s. - Recycles to full power in 3 sec in fast mode or 4.5 sec in low power mode
- Built-in optical slave fires instantaneously with flash from other strobe devices
- Three-way modeling lamp options (full, variable based on power output level, off)
- Fan cooling guards prevents overheating
Table of Contents
|
Upload User Manual
Have you got an user manual for the Comet CS-2400T 2400W s Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComet CS-2400T Specs | Input Voltage | 110 VAC (60 Hz) | | Fuse Rating | Strobe 15 A x 2 / Model 8 A | | Recycle Time | Quick: 3 sec
Slow: 4.4 sec | | Max. Output Level | 2400 W | | Power Control | Flash Duration
Automatic connector sensing
Three independent Variators | | Socket Type | Head: 3 sockets CX type | | PC Control | Via built-in USB interface | | Output | Distribution by Connector:
1 Head: (1) 2400 W/s (2) 1200 W/s (3) 400 W/s
2 Heads: (1&2) 1,200 W/s each (1&3) 1,200 & 400 W/s (2&3) 800 & 400 W/s
3 Heads: (1,2&3) 1,200, 800, & 400 W/s | | Range | Variator: Full-1/8th (3 EV) I/6 EV or 1/2 EV stop | | Output | Display: Digital displays (3 sets) Function & Power control | | Lamp | Modelling: 3 x 250 W
Modelling Mode: Tracking / 100% / Off | | Connector | 2 x CR type | | Photocell | Built in with on/off | | Sound Mode | Charging / charge completion / off | | Warning | Flash Fail: Flash before recycle warning
Independent fail to flash alarms
Over Heating: Main switch lamp blinks and sounds continuously | | Cooling Fan | Built-in | | Dimensions (W x H x D) | 8.7 x 11.1 x 6.1" (221.0 x 282.0 x 154.0 mm) including handle | | Weight | 13.0 lb (5.8 kg) | | | | Package Weight | 17.45 lb | | Box Dimensions (LxWxH) | 13.8 x 11.4 x 8.2" |
