User Manual for Comica Audio CVM-AX3 Dual-Channel Audio Mixer for DSLRs Click to enlarge the picture
Contents of the user manual for the Comica Audio CVM-AX3 Dual-Channel Audio Mixer
- Product category: Camcorder XLR Adapters Comica Audio
- Brand: Comica Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comica Audio Camcorder XLR Adapters
|
User manual for the Comica Audio CVM-AX3 Dual-Channel Audio Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comica Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comica Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comica Audio product will considerably shorten its lifespan!
|

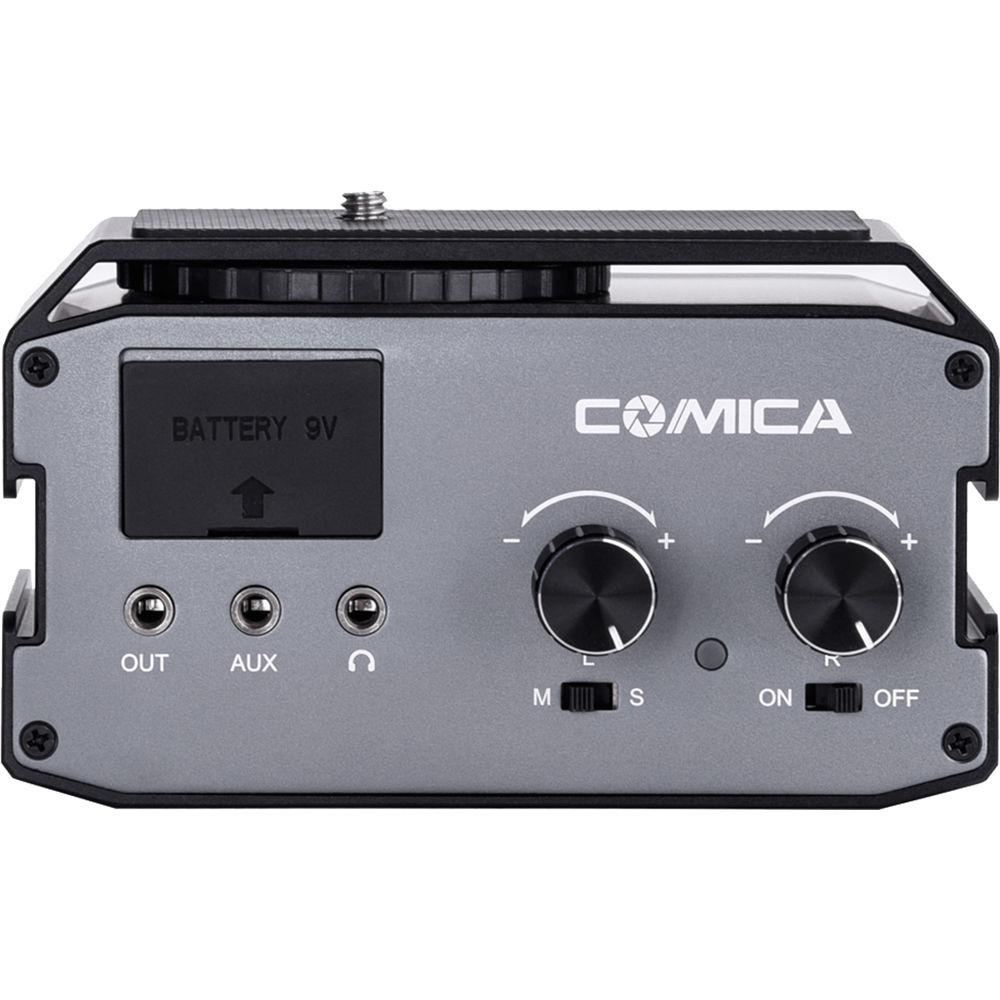

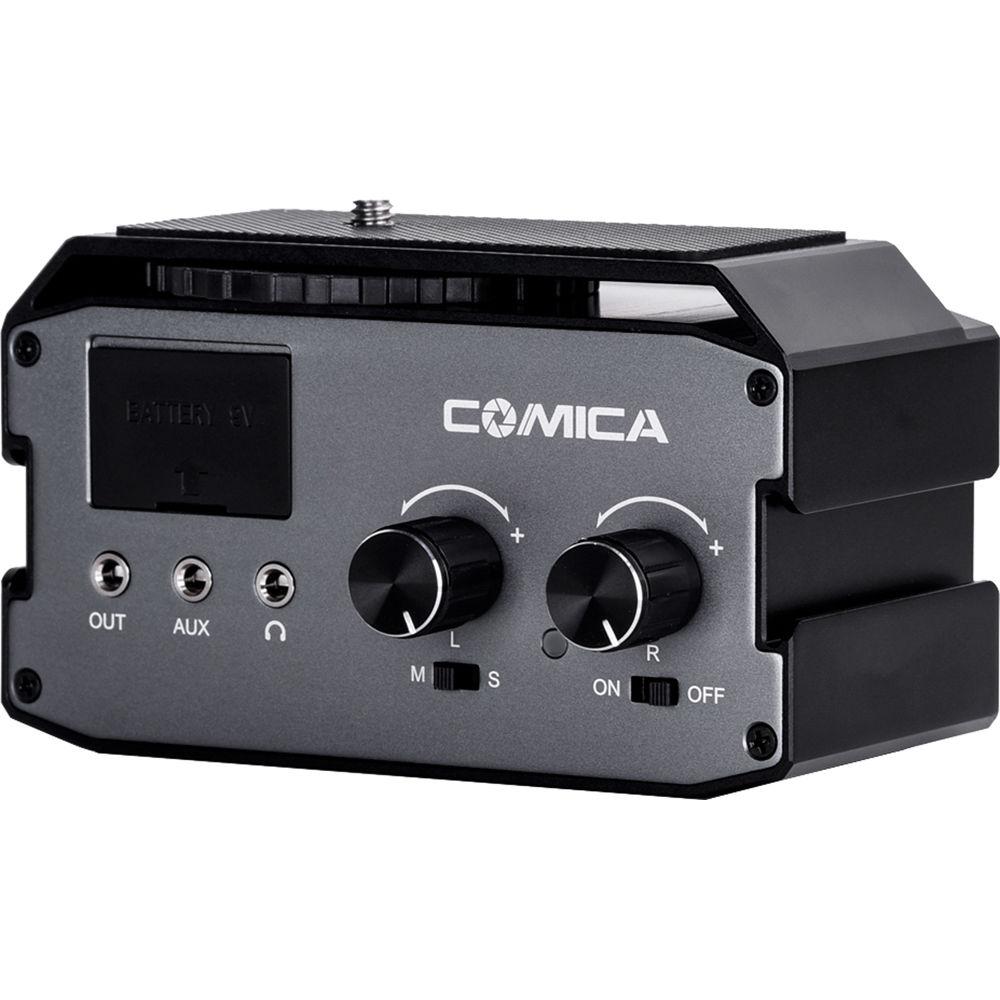

Product description Record microphones, instruments, or line-level signals into your DSLR with the Comica Audio CVM-AX3, a dual-channel mixer designed for use in video production, ENG, music videos, and more. Mount it to a camera or tripod then attach important accessories to its integrated cold shoe mounts. Dual gain control knobs adjust levels for the two built-in preamps, which can be fed by the XLR-1/4" combo jacks or 3.5mm mini-jack inputs. With selectable 48V phantom power and 3V plug-in power, the CVM-AX3 ensures compatibility with a variety of microphones such as traditional condensers, shotguns, and lavaliers. Thanks to 3.5mm main, aux, and headphone outputs, this mixer supports simultaneous routing to your camera's input, a backup recorder, and headphones for real-time monitoring. A mono/stereo switch allows the output signal to be optimized for your camera's input configuration. Powered by a single 9V battery, the CVM-AX3 offers up to 40 hours of battery life when phantom power is off, or up to six hours of operating time with phantom power engaged. - 1/4" and 3/8" threaded ports for versatile camera/tripod mounting
- Integrated cold shoe mounts for accessories such as a receiver/transmitter, light, microphone, or even a camera
- Dual XLR-1/4" combo inputs with selectable 48V phantom power accommodate dynamic/condenser mics, line-level signals, or electric instruments such as guitar, bass, or keyboard
- Three 3.5mm mini-jack inputs (two mono, one stereo) with selectable 3V plug-in power allow compatible hookup of lavalier microphones, mini shotgun mics, or line-level signals
- Two independent gain control knobs
- Selectable mono/stereo output mode
- Line, aux, and headphone 3.5mm outputs
- Up to six hours of battery life with phantom power on, or up to 40 hours of battery life with phantom power off
- Dedicated on/off switch for battery conservation
- Durable aluminum alloy construction
- Includes 3.5mm audio cable for easy mixer-to-camera connectivity
- Includes cold shoe mount for expanded installation versatility

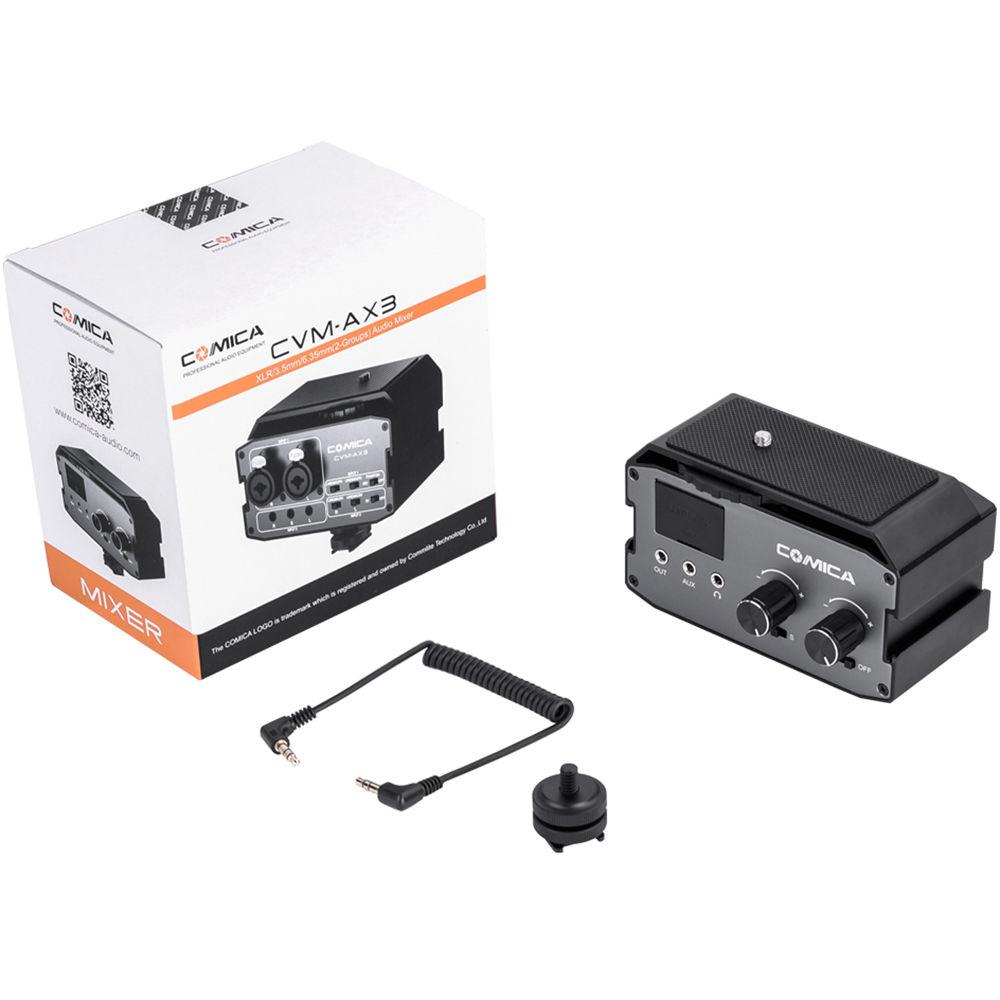

In the Box Comica Audio CVM-AX3 Dual-Channel Audio Mixer for DSLRs 3.5mm Audio Cable Cold Shoe Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comica Audio CVM-AX3 Dual-Channel Audio Mixer for DSLRs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComica Audio CVM-AX3 Specs Inputs | 2 x XLR-1/4" Combo 2 x 1/8" / 3.5 mm TS Mono 1 x 1/8" / 3.5 mm TRS Stereo | Outputs | 3 x 1/8" / 3.5 mm Mini Jacks | Frequency Response | 20 Hz to 20 kHz (
