User Manual for Comica Audio CVM-WM100 Camera-Mountable UHF Wireless System Click to enlarge the picture
Contents of the user manual for the Comica Audio CVM-WM100 Camera-Mountable UHF Wireless
- Product category: Wireless Systems Comica Audio
- Brand: Comica Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comica Audio Wireless Systems
 |
User manual for the Comica Audio CVM-WM100 Camera-Mountable UHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comica Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comica Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comica Audio product will considerably shorten its lifespan!
|

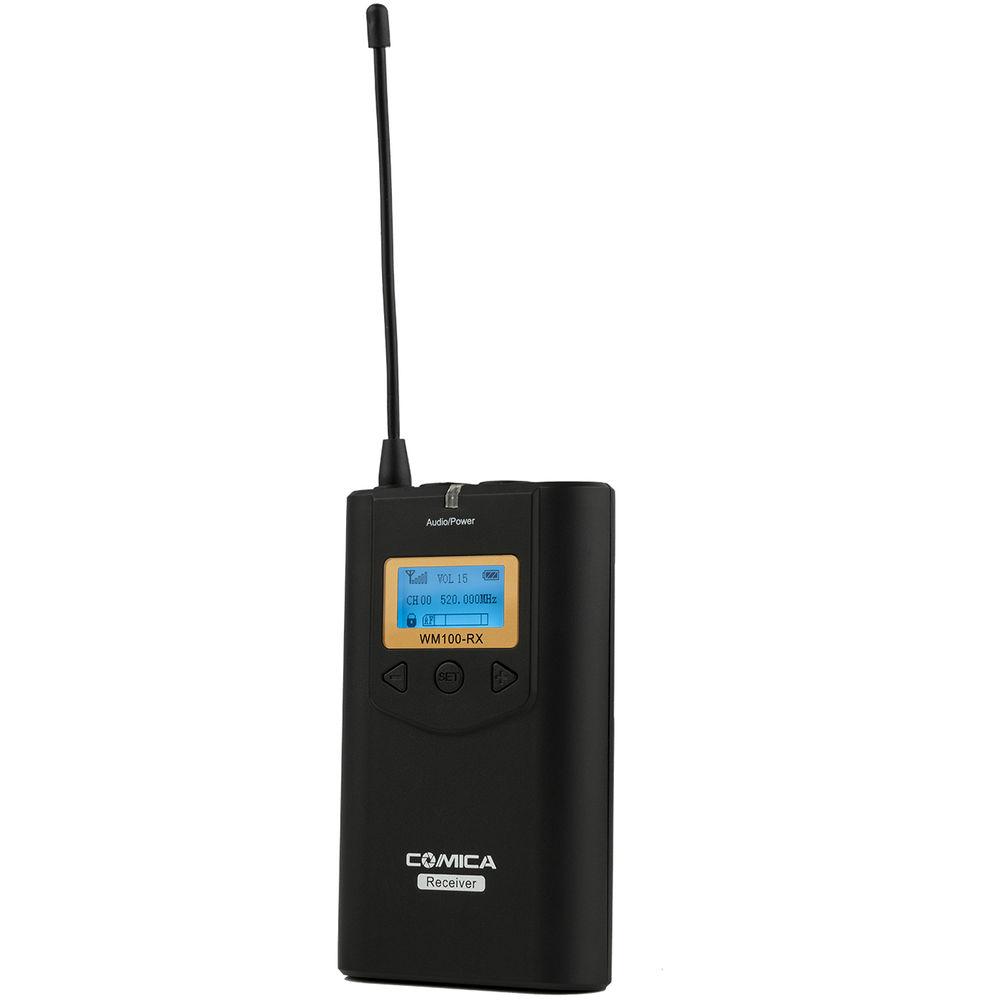

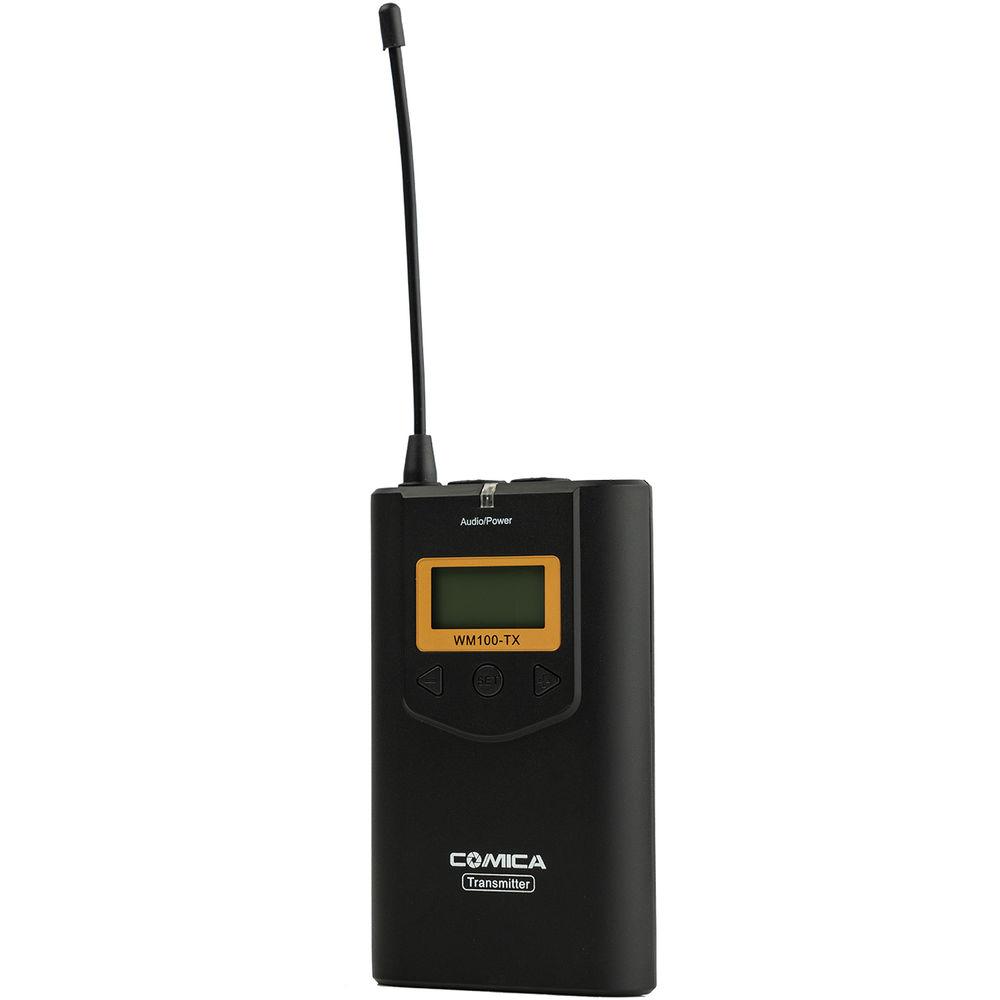

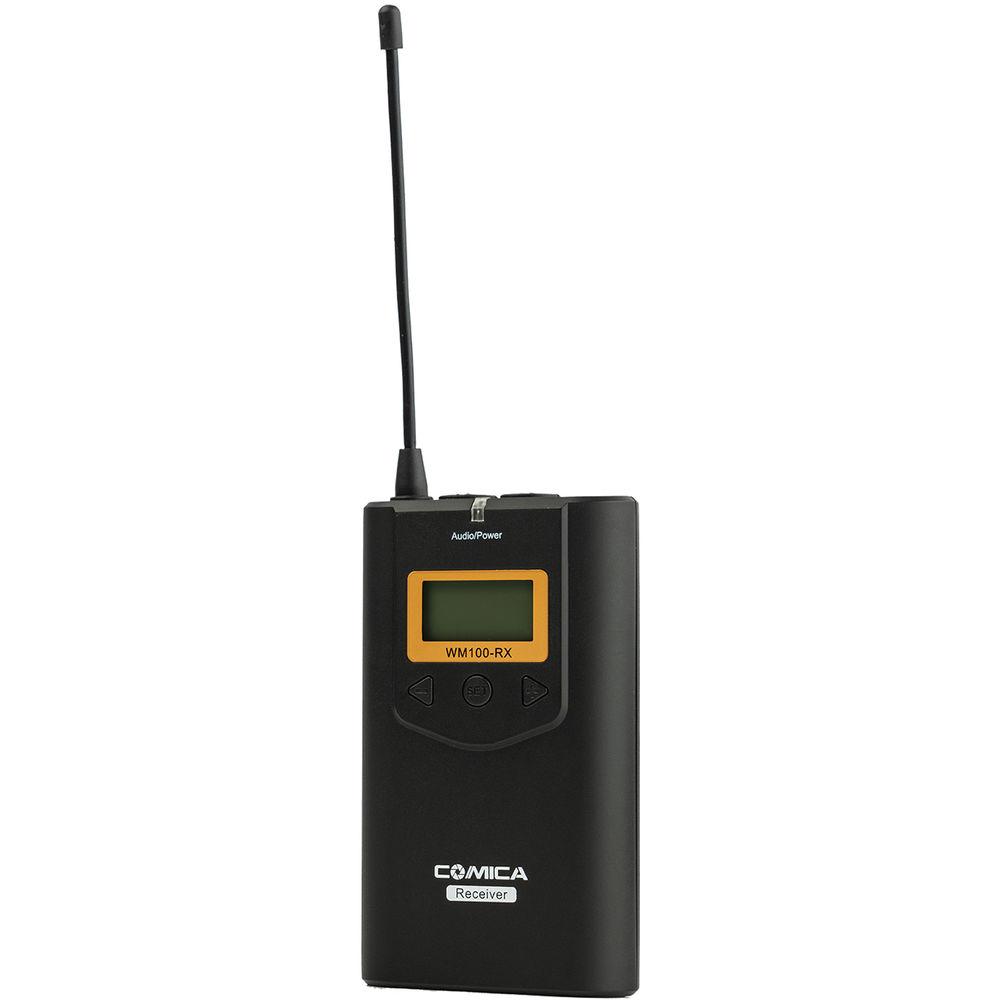

Product description Ideal for film and video production, the Comica Audio CVM-WM100 is a camera-mountable UHF wireless system that comprises a bodypack transmitter, a receiver, and a lavalier microphone with a wind muff. It offers 48 selectable channels with variable RF signal strength, allowing for multiple systems to work simultaneously with an operating range up to 328'. The transmitter is equipped with discrete line and mic inputs, while the receiver provides an audio output to the camera as well as a monitor output for real-time monitoring of your signal. The system is powered via AA batteries and ships with an 3.5mm and an XLR output cable, two waist belt clips, two camera-mount adapters, and a carry case. - Key Features
-
- Camera-mountable wireless system for film and video production
- Includes lavalier microphone with wind muff
- 48 channels allow for using multiple systems simultaneously
- Working distance up to 328' line of sight

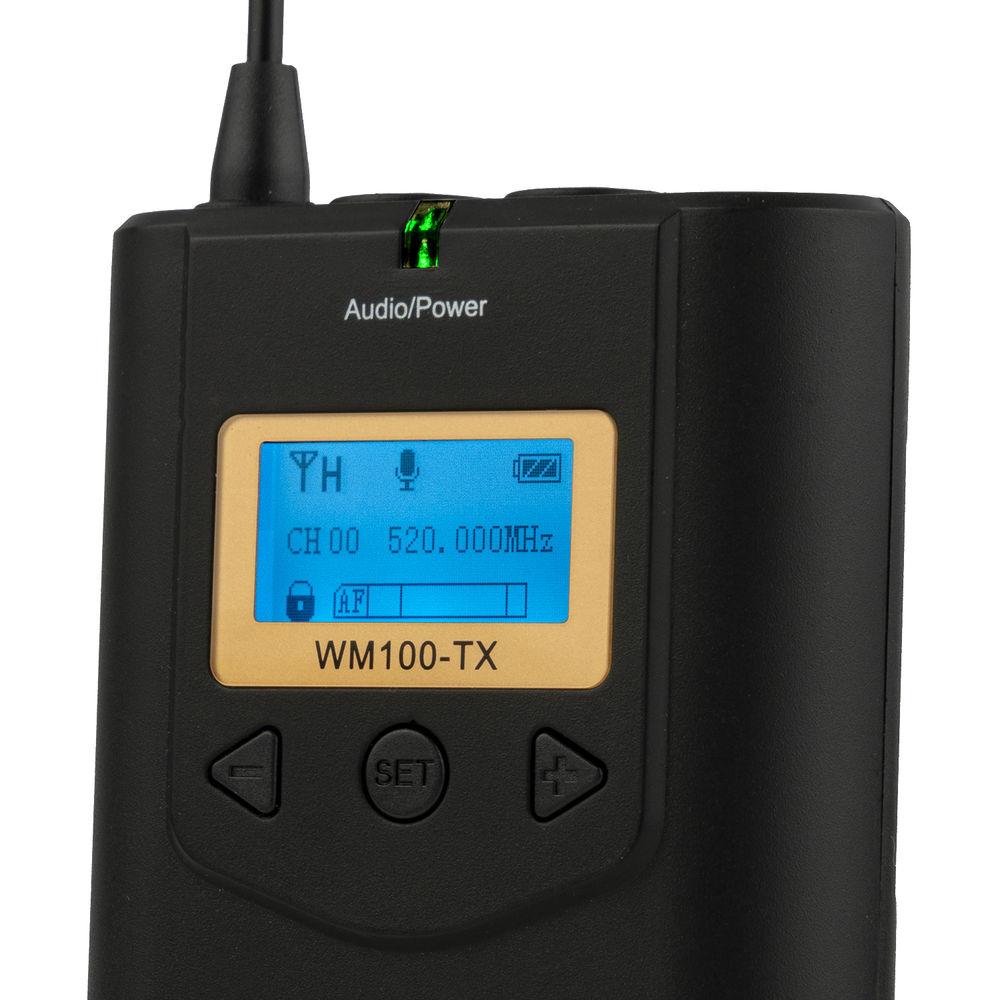

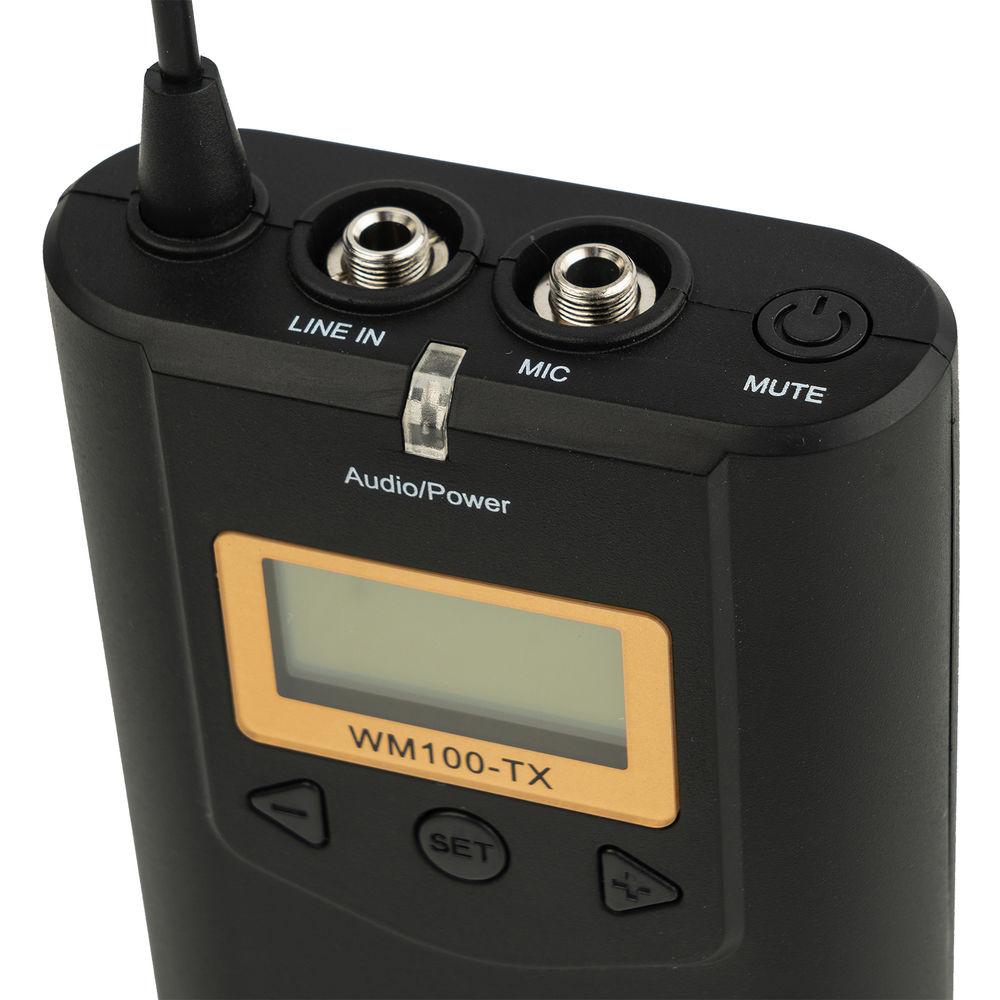

- Separate mic and line inputs on the transmitter

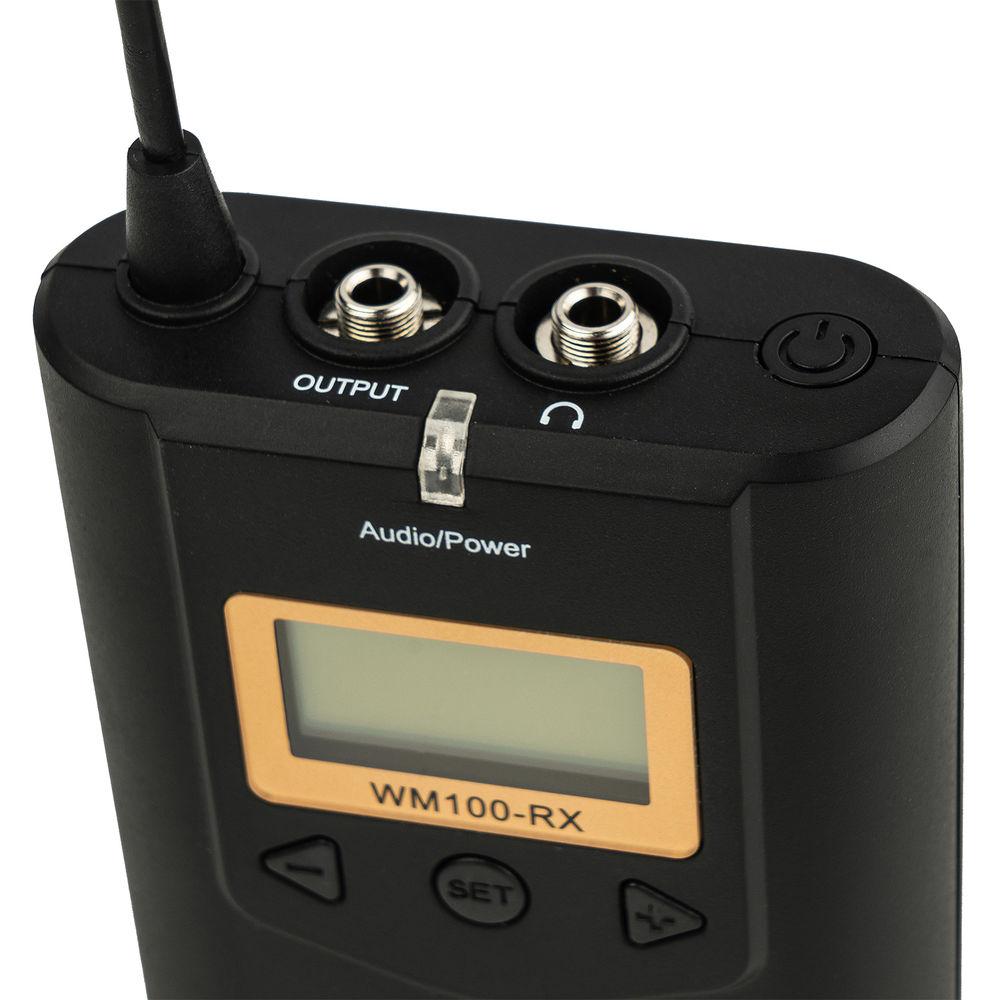

- Headphone output on receiver for real-time audio monitoring
- 16-level adjustable volume
- Local audio testing
- High/low RF signal strength adjusted in transmitter
- Muting mode

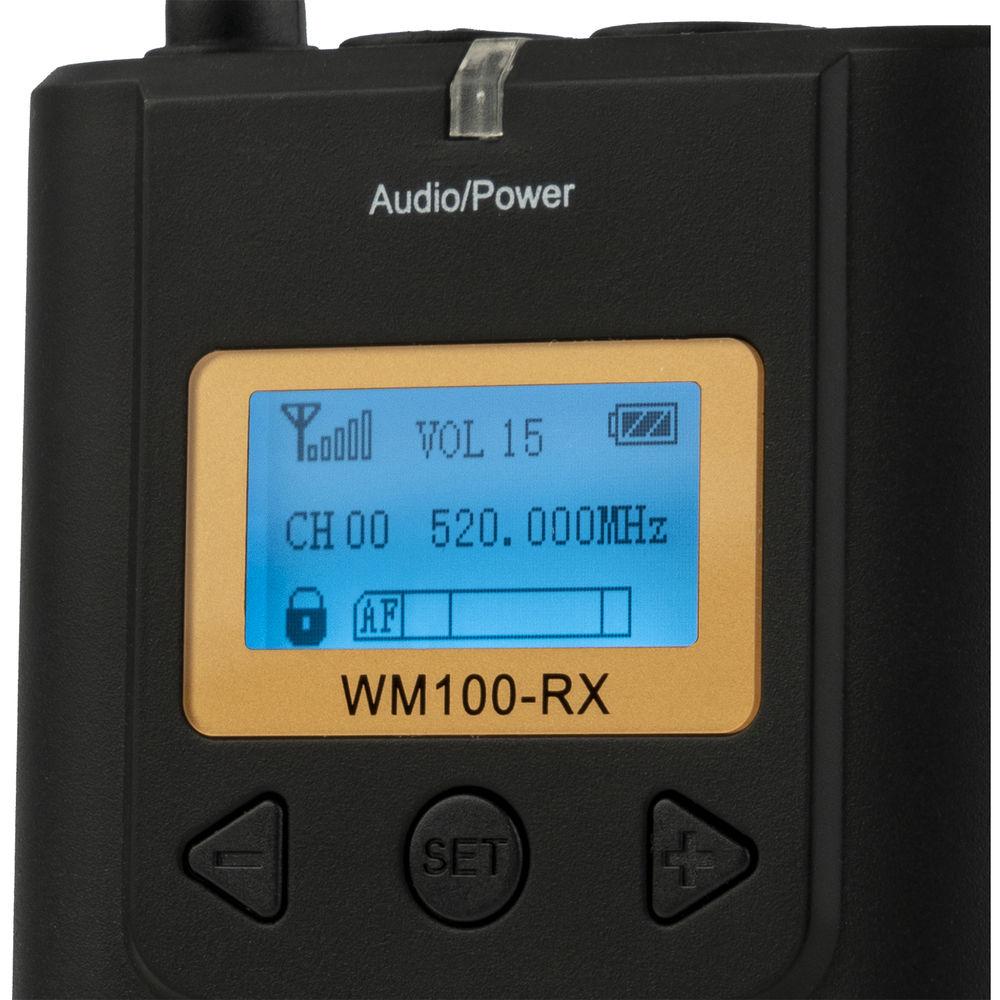

- Real-time audio status on receiver and transmitter
- High-resolution lattice LCD displays
- Powered with AA batteries
- Includes two adapters to mount transmitter and receiver on a camera via cold shoe
- 3.5mm and XLR output cables for connecting receiver to camera or recorder audio input
- Includes two waist belt clips

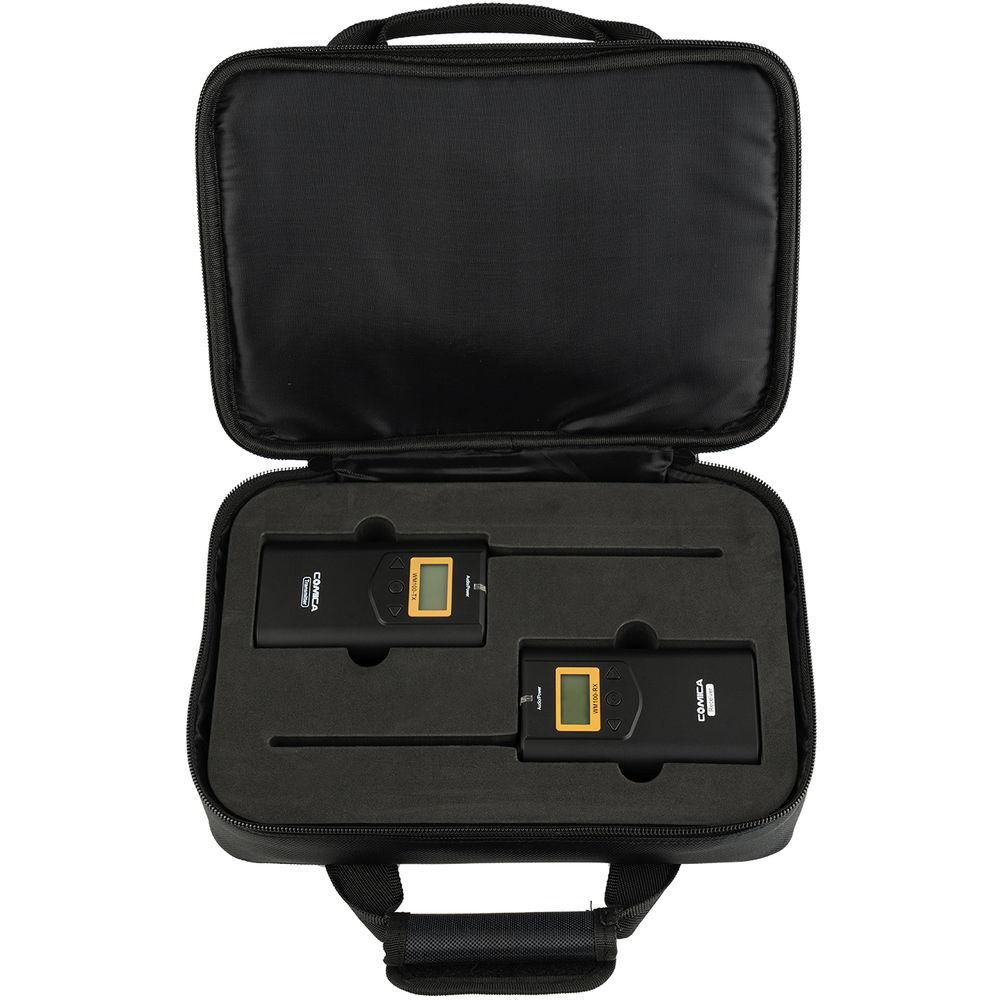

- Carrying case
In the Box Comica Audio CVM-WM100 Camera-Mountable UHF Wireless System (520.0 to 534.1 MHz) Transmitter TX Receiver RX Lavalier Microphone Male 3.5mm to Male 3.5mm Output Cable Male 3.5mm to Male XLR Output Cable 2 x Waist Belt Clips 2 x Camera Mount Adapters Wind Muff Carry Case Limited 1-Year Warranty User Manual PDF 27.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Comica Audio CVM-WM100 Camera-Mountable UHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComica Audio CVM-WM100 Specs | | | Channels | 48 | | Wireless Frequency | 520.0 to 534.1 MHz | | Range | 328' / 100 m unobstructed
197' / 60 m with obstruction | | Signal / Noise | >65 dB | | Antenna | 1/4 wavelength | | Transmitting Power | Low: 10 dBm
High: 15 dBm | | Stray Radiation | <-60 dBc | | Audio Delay | <20 ms | | Audio Distortion | <0.5% | | Inputs | 1/8" / 3.5 mm line input
1/8" / 3.5 mm mic input | | Power | 2 x AA batteries | | Working Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 4.4 x 2.6 x 1.0" / 111.5 x 65.0 x 25.3 mm | | | | Channels | 48 | | Wireless Frequency | 520.0 to 534.1 MHz | | Signal / Noise | >65 dB | | Antenna | 1/4 wavelength | | Receiving Sensitivity | -95 dBm | | Audio Delay | <20 ms | | Audio Distortion | <0.5% | | Frequency Range | 20 Hz to 18 kHz | | Outputs | 1/8" / 3.5 mm audio output
1/8" / 3.5 mm monitor output | | Power | 2 x AA batteries | | Working Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 4.4 x 2.6 x 1.0" / 111.5 x 65.0 x 25.3 mm | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 11.4 x 8.9 x 3.1" |
