Product description - 5 Audio Tech Tips with Comica Lavalier Microphones

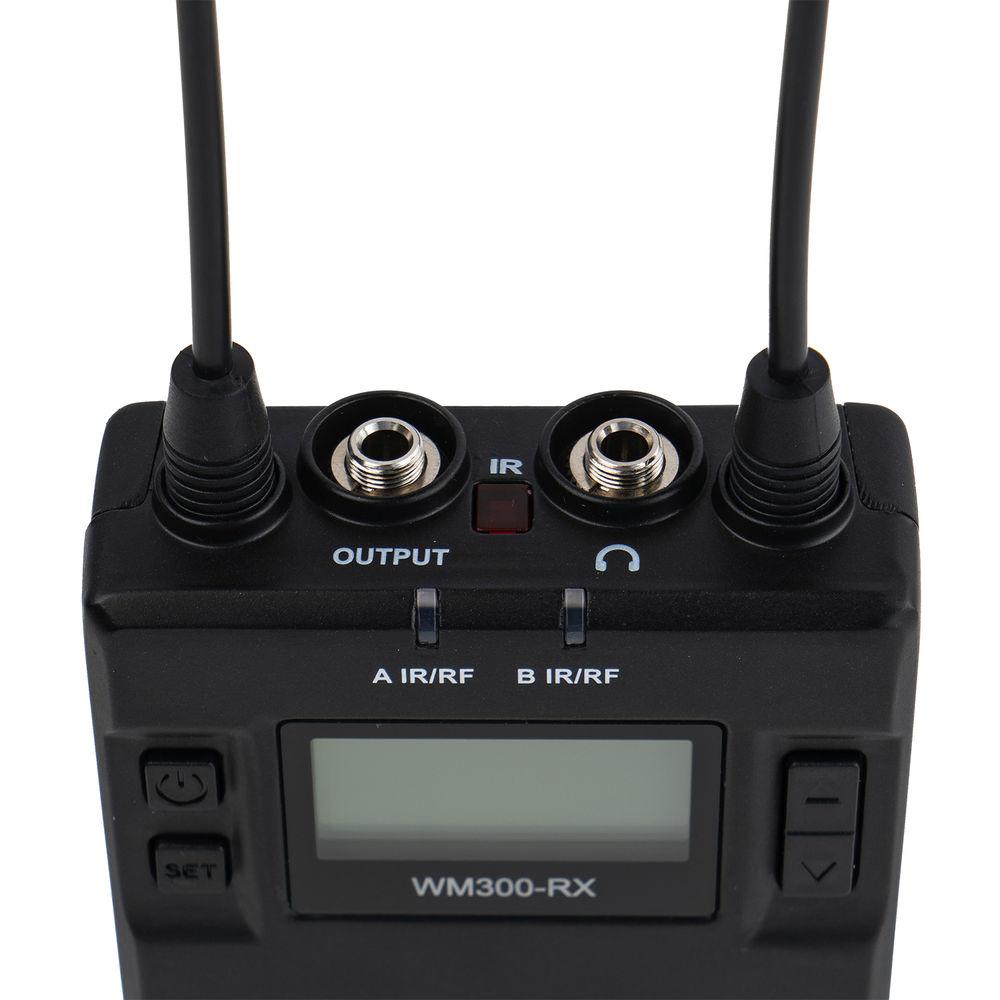

The Comica Audio CVM-WM300A is a 2-person, camera-mount wireless system that comprises two bodypack transmitters, a dual-channel receiver, and two omnidirectional lavalier microphones. It is powered via built-in, lithium-ion polymer rechargeable batteries, which provide 10 hours of standby time. The system allows you to transmit two mic or line audio signals simultaneously in mono or stereo mode, ideal for interviews or presentations with two speakers or for transmitting a mix when working on ENG, video, or music productions. The CVM-WM300A offers 96 selectable frequency channels that can be quickly changed to avoid signal interference and it lets you adjust the RF signal strength for reliable operation at a range up to 393.7'. The receiver provides an audio output to the camera as well as a monitor output for real-time monitoring of your signal. The unit ships with an 3.5mm and an XLR output cable, a USB charging cable, three belt clips, two wind muffs, three cold shoe mounts, and a carry case. - Key Features
-

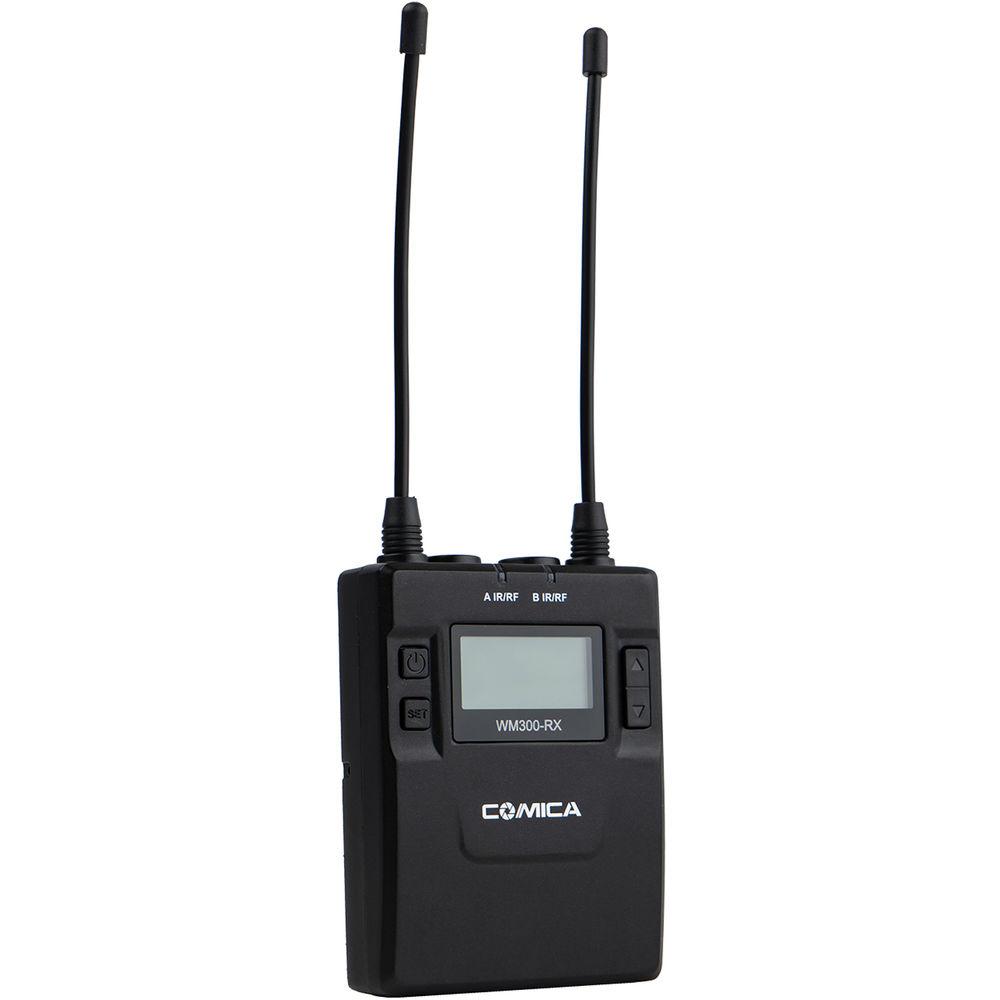

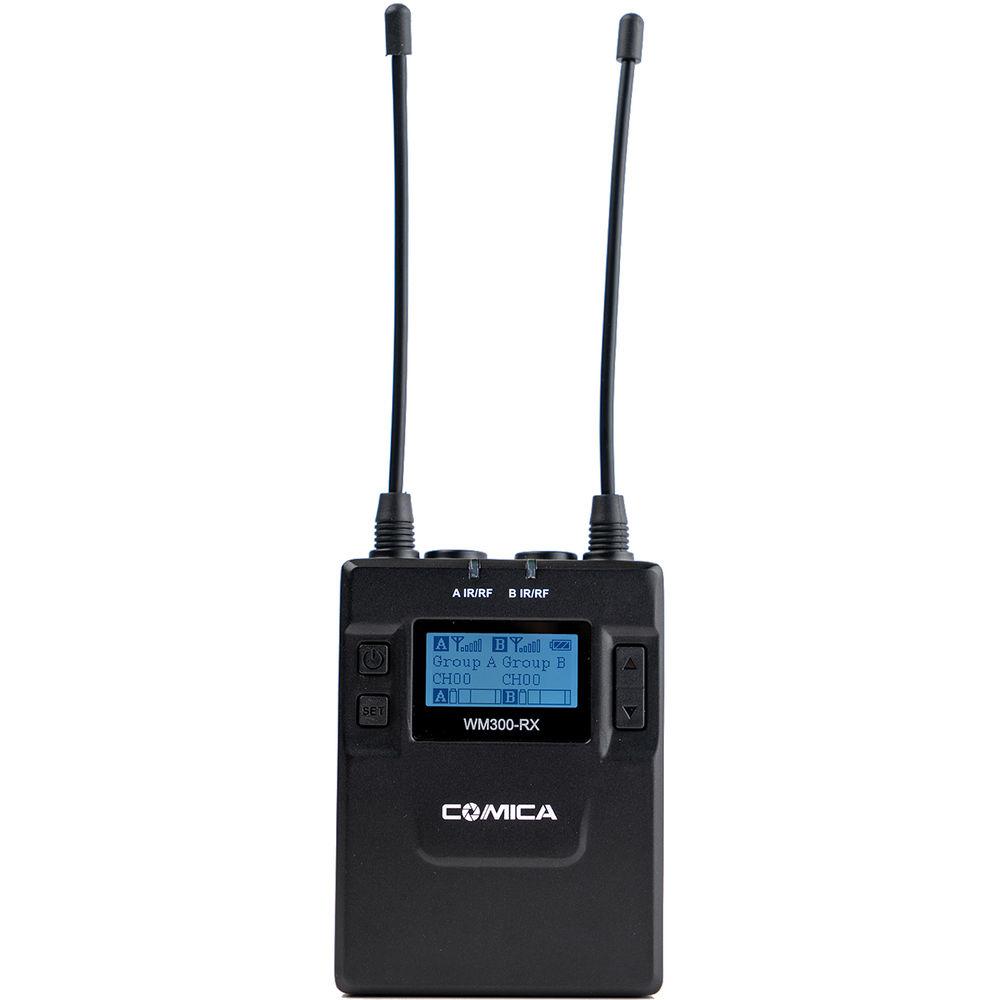

- Discrete two-channel camera-mount UHF receiver

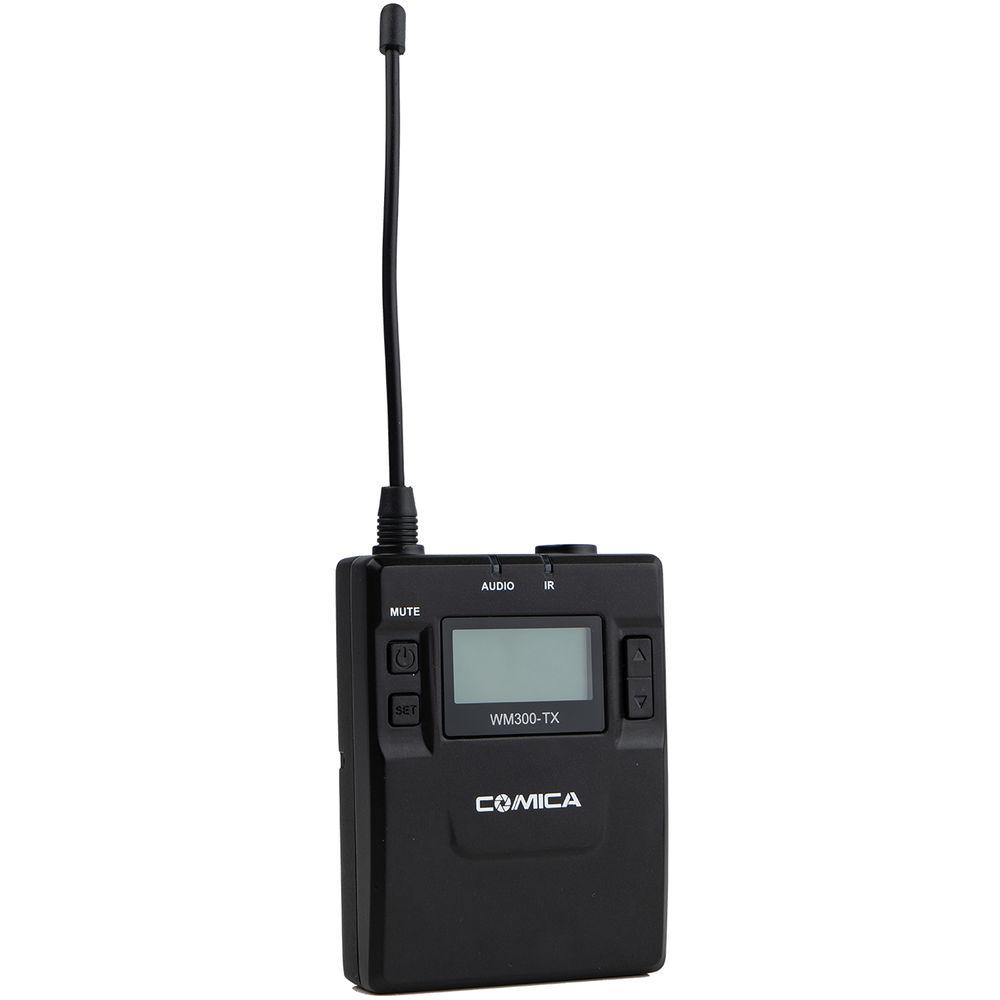

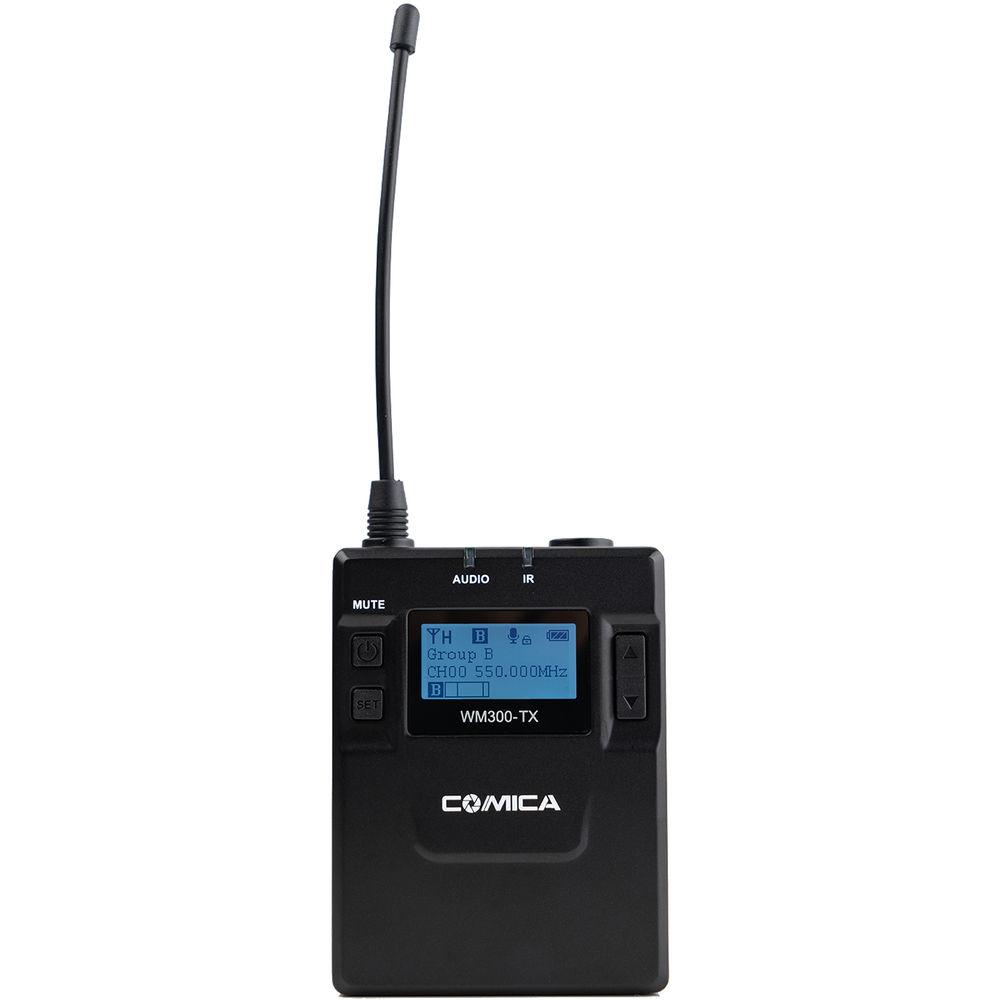

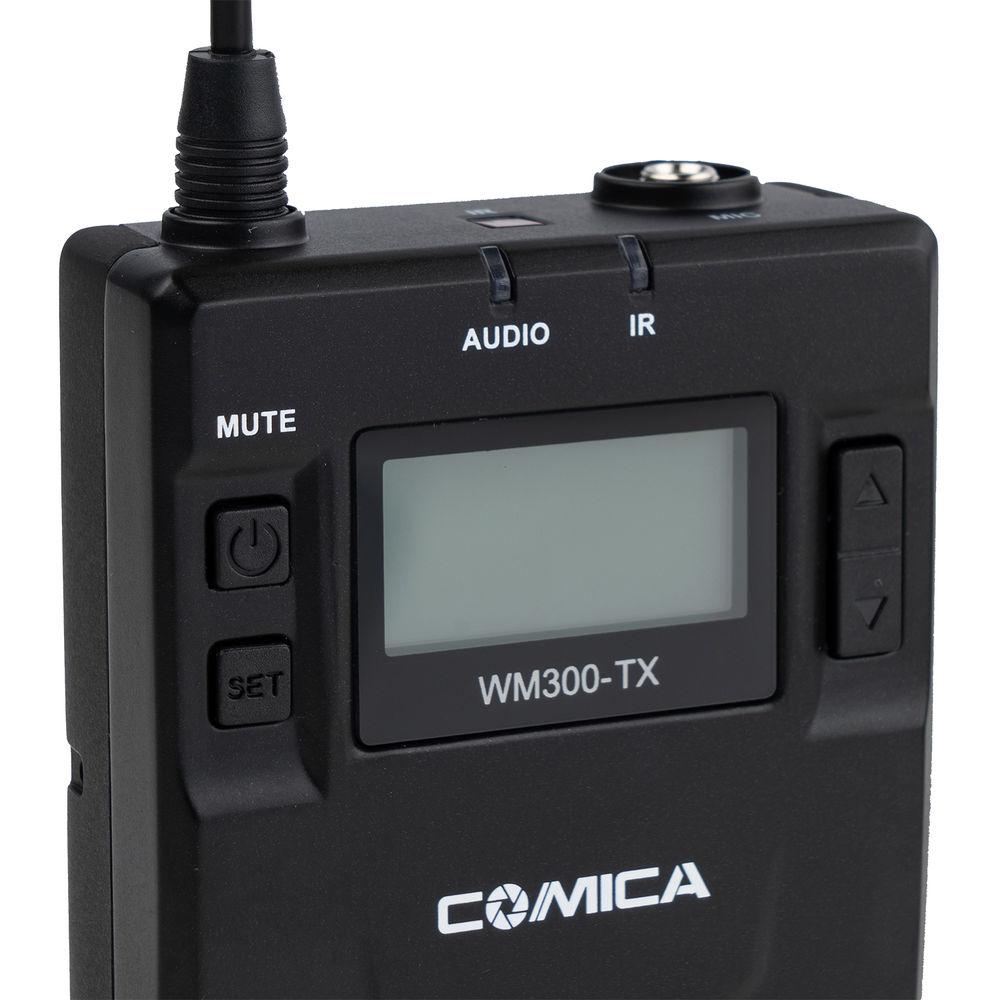

- Two bodypack transmitters with omnidirectional lavalier microphones and wind muffs
- 96 selectable channels can be quickly changed to avoid signal interference
- Receiver and transmitters each with a built-in battery rechargeable via USB Micro-B port
- 10 hours of standby time
- A/B wireless frequency group switch on each transmitter provides fast channel selection
- Group A: 520.0 to 548.5 MHz
- Group B: 550.0 to 578.5 MHz
- Working range up to 393.7' in open areas and 262.5' in obstructed areas
- Switchable mono or stereo output modes allow you to transmit a stereo signal or two independent mono signals
- Headphone output on receiver for real-time audio monitoring
- Receiver with two antennas, one for each A/B frequency group
- LCF low-cut filter mode helps reduce unwanted low rumble and wind noise for a clear sound
- Auto-scanning helps you quickly find interference-free channels at your location
- Manual or Auto IR mode enables you to easily sync transmitters with receiver
- High and low adjustable RF signal strength—low-consumption mode for extended standby time
- Built-in audio processing chip for sound optimization
- Audio dynamic display bar
- 16-level volume adjustment
- Transmitter power monitor
- High-resolution lattice LCD display
- Metal body construction provides efficient shielding against EMI
- 3.5mm and XLR output cables for connecting receiver to camera or recorder audio input
- USB Micro-B charging cable
- Includes three adapters to mount transmitters and receiver on a camera via cold shoe
- Includes three belt clips
- Carrying case

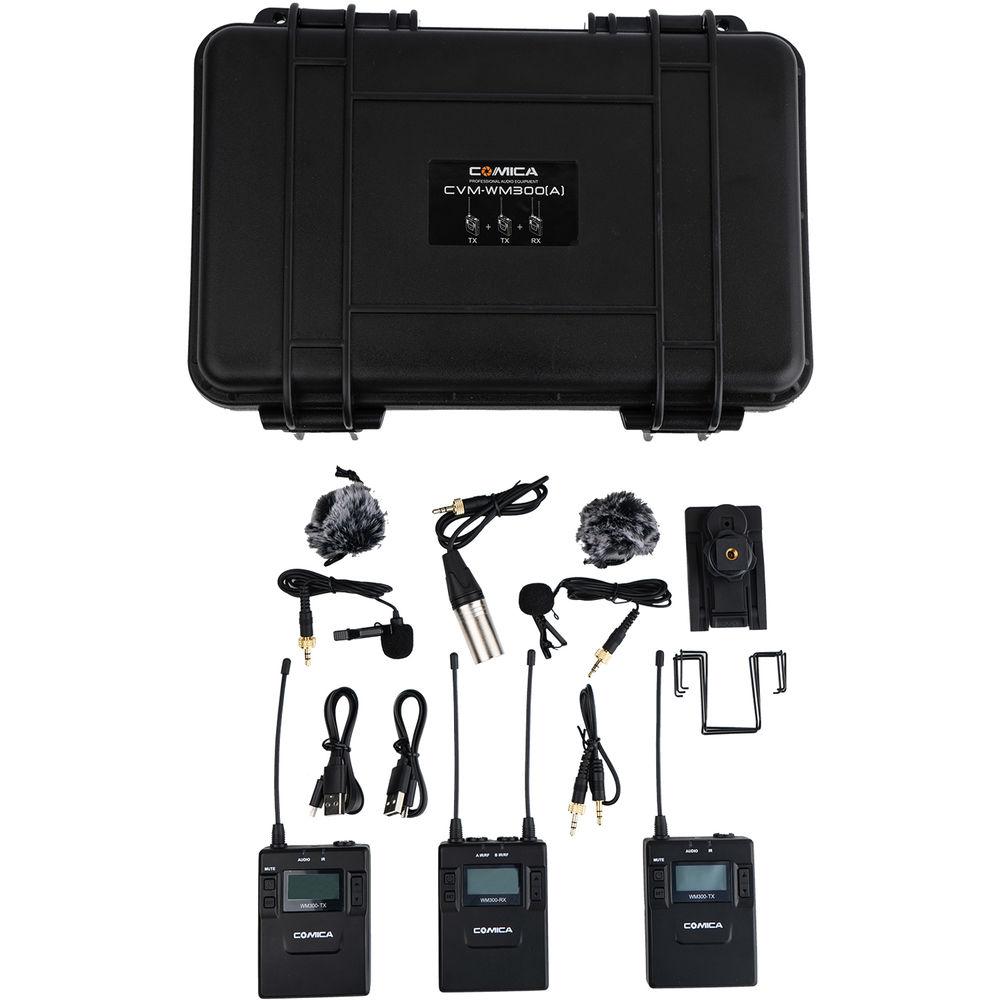

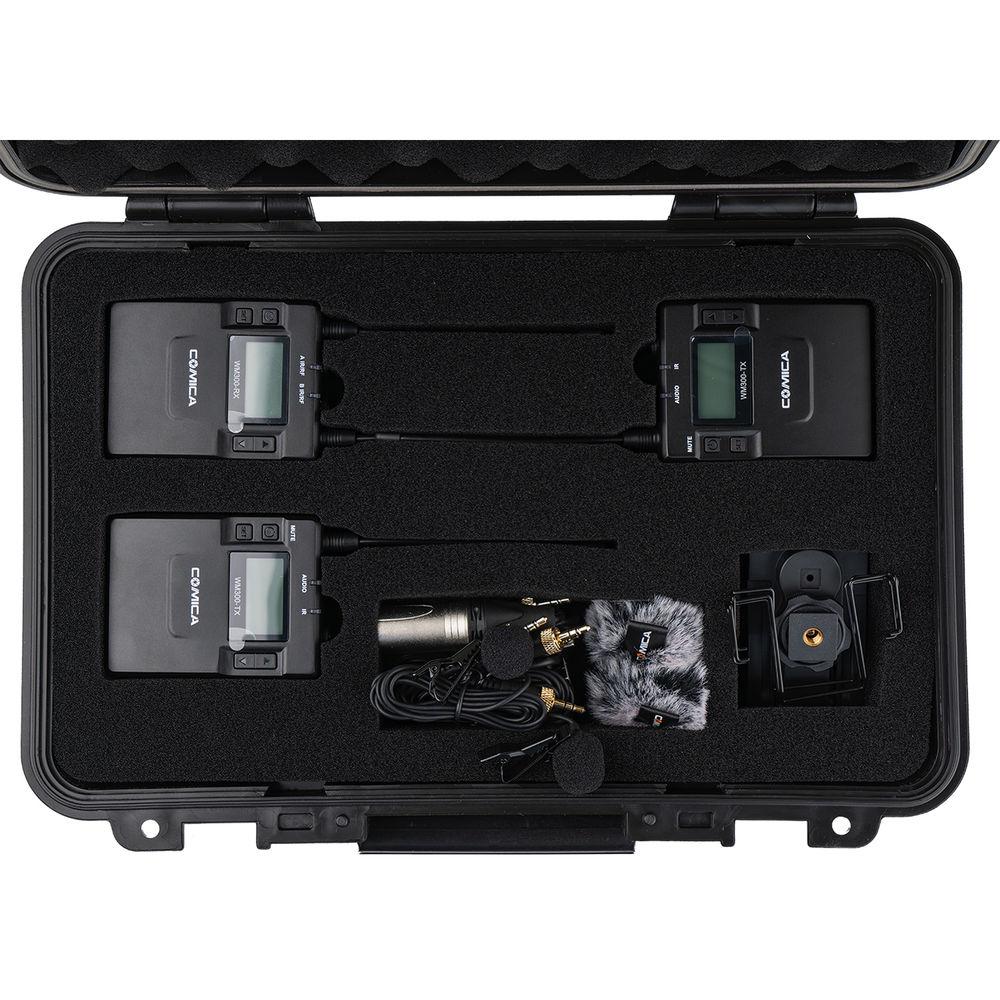

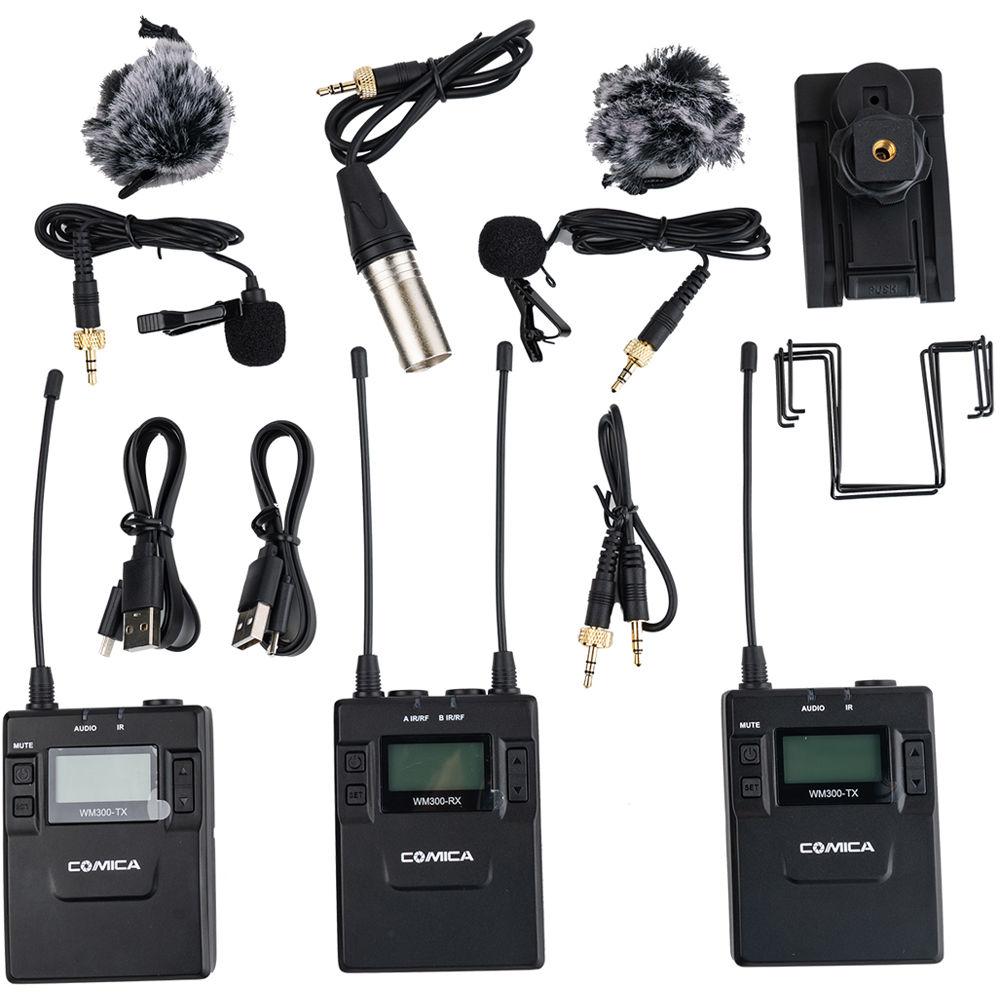

In the Box Comica Audio CVM-WM300A 2-Person Camera-Mount Wireless Omni Lavalier Microphone System with Rechargeable Batteries (520 to 578.5 MHz) 2 x Bodypack Transmitters Receiver 2 x Omnidirectional Lavalier Microphones 2 x Wind Muffs Male 3.5mm to Male 3.5mm Output Cable Male 3.5mm to Male XLR Output Cable 3 x Belt Clips 3 x Camera Cold Shoe Mounts USB Micro-B Charging Cable Carry Case Limited 1-Year Warranty User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Comica Audio CVM-WM300A 2-Person Camera-Mount Wireless Omni Lavalier Microphone System with Rechargeable Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComica Audio CVM-WM300A Specs | | | Channels | 96 | | Wireless Frequency | Group A: 520.0 to 548.5 MHz
Group B: 550.0 to 578.5 MHz | | Range | 393.7' / 120.0 m unobstructed
262.5' / 80.0 m with obstruction | | Signal / Noise | >65 dB | | Antenna | 1/4 wavelength wire antenna | | Transmitting Power | Low: 10 dBm
High: 15 dBm | | Stray Radiation | <-60 dBc | | Audio Delay | <20 ms | | Audio Distortion | <0.5% | | Inputs | 1/8" / 3.5 mm mic or line input | | Rechargeable Battery | Lithium-ion polymer battery, 3.7 V, 2000 mAh
Standby Time: 10 hours | | Working Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 3.3 x 2.5 x 0.9" / 84.0 x 63.5 x 23.0 mm | | | | Channels | 96 | | Wireless Frequency | Group A: 520.0 to 548.5 MHz
Group B: 550.0 to 578.5 MHz | | Signal / Noise | >65 dB | | Antenna | 1/4 wavelength wire antenna | | Receiving Sensitivity | -95 dBm | | Stray Radiation | <-60 dBc | | Audio Delay | <20 ms | | Audio Distortion | <0.5% | | Outputs | 1/8" / 3.5 mm audio output
1/8" / 3.5 mm monitor output | | Rechargeable Battery | Lithium-ion polymer battery, 3.7 V, 2000 mAh
Standby Time: 10 hours | | Working Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 3.3 x 2.5 x 0.9" / 84.0 x 63.5 x 23.0 mm | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 14.4 x 10.7 x 3.6" |
