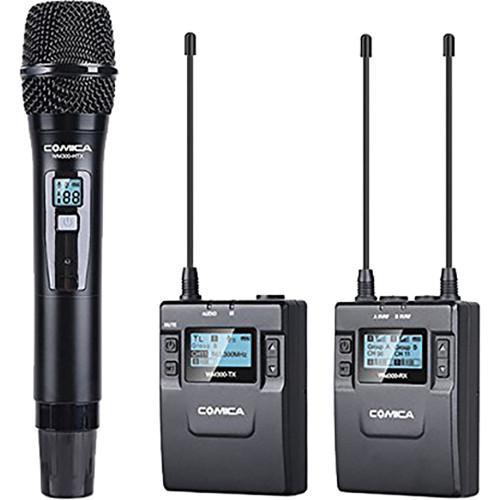

Product description Operating in the UHF spectrum (520 to 548.5 MHz for Group A, 550 to 578.5 MHz for Group B), the Comica Audio CVM-WM300B is a camera-mountable UHF wireless system that comprises a bodypack transmitter with a lavalier microphone, a wireless handheld microphone, a dual-channel receiver, and a host of accessories. The receiver and bodypack transmitter are powered via built-in, lithium-ion polymer rechargeable batteries, while the handheld mic transmitter is operated via two AA batteries. The system allows you to transmit two mic- or line-level audio signals simultaneously to the receiver, which can be set to mono or stereo output mode, making it ideal for interviews or presentations with two speakers, or for transmitting a mix when working on ENG, video, or music productions.The CVM-WM300B offers 96 selectable frequency channels that can be quickly changed to avoid signal interference, and it lets you adjust the RF signal strength for reliable operation at a maximum range of approximately 393 feet. The receiver provides an audio output to the camera as well as a monitor output for real-time monitoring of your signal. The CVM-WM300B is supplied with two output cables (one 3.5mm, one 3.5mm to XLR), a micro-USB charging cable, two belt clips, a wind muff, two cold shoe mounts, and a carry case. - Key Features
-
- Discrete camera-mount, two-channel UHF receiver
- Bodypack transmitter with lavalier microphone and wind muff
- Wireless handheld microphone with built-in transmitter
- 96 selectable channels can be quickly changed to avoid signal interference

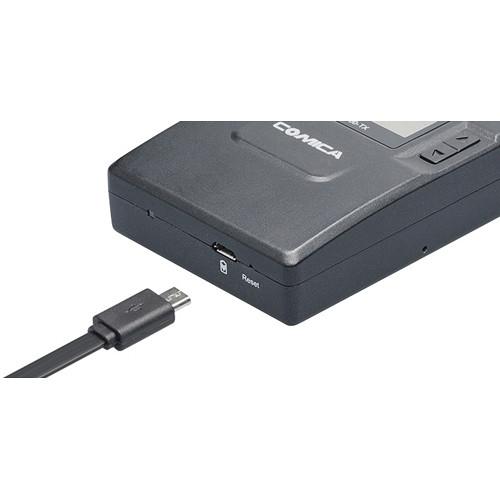

- Receiver and bodypack transmitter each utilize a built-in battery rechargeable via USB Micro-B port
- Handheld mic transmitter is powered via two AA batteries
- Rechargeable batteries yield up to eight hours of standby time
- A/B wireless frequency group switch on each transmitter provides fast channel selection
- Group A: 520.0 to 548.5 MHz
- Group B: 550.0 to 578.5 MHz
- Working range up to 393.7' in open areas and 262.5' in obstructed areas
- Switchable mono or stereo output modes allow you to transmit a stereo signal or two identical mono signals

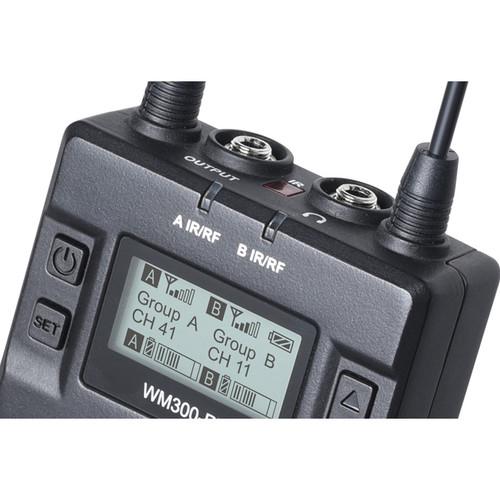

- Headphone output on receiver for real-time audio monitoring
- Receiver with two antennas, one for each A/B frequency group
- LCF low-cut filter mode helps reduce unwanted low rumble and wind noise for a clear sound
- Auto-scanning helps you quickly find interference-free channels at your location
- Manual or Auto IR mode enables you to easily sync transmitters with receiver
- High and low adjustable RF signal strength—low-consumption mode for extended standby time
- Built-in audio processing chip for sound optimization
- Audio dynamic display bar
- 16-level volume adjustment
- Transmitter power monitor
- High-resolution lattice LCD display
- Metal body construction provides efficient shielding against EMI
- 3.5mm and XLR output cables for connecting receiver to camera or recorder audio input
- USB Micro-B charging cable
- Includes two adapters to mount the receiver and bodypack transmitter on a camera via cold shoe
- Includes two belt clips

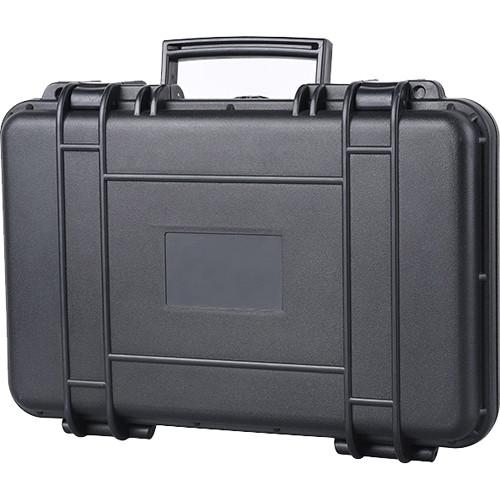

- Carrying case

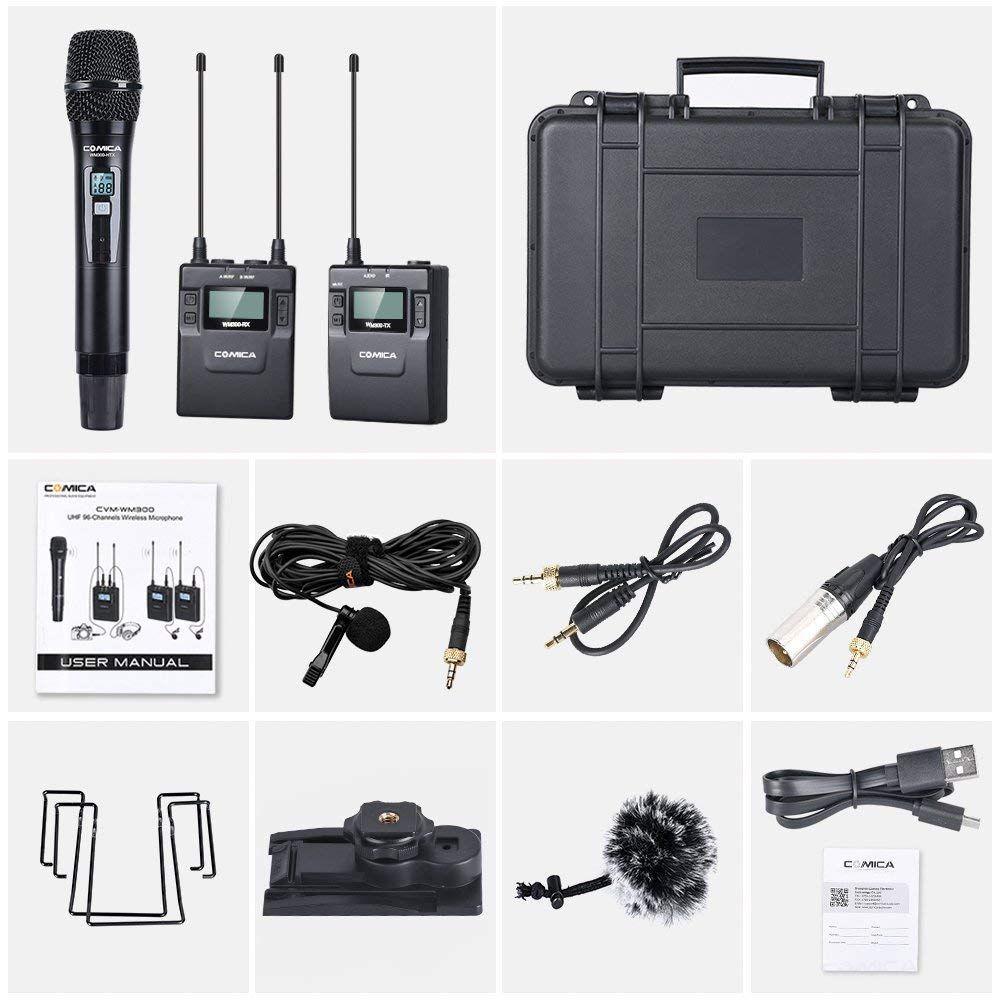

In the Box Comica Audio CVM-WM300B Camera-Mountable Dual-Transmitter UHF Wireless System with Lavalier and Handheld Mics (520 to 578.5 MHz) 3.5mm Male to 3.5mm Male Output Cable 3.5mm Male to XLR Male Output Cable USB Micro-B Charging Cable 2 x Belt Clips 2 x Cold Shoe Camera Mounts Wind Muff Carry Case Limited 1-Year Warranty User Manual PDF 1.9mbxvzbswazzsyy Table of Contents
|
Upload User Manual
Have you got an user manual for the Comica Audio CVM-WM300B Camera-Mountable Dual-Transmitter UHF Wireless System with Lavalier and Handheld Mics in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComica Audio CVM-WM300B Specs | | | Wireless Transmission | Digital UHF | | Number of RF Channels | 96 | | Included Transmitters | 1 x Bodypack with Microphone
1 x Handheld | | Diversity | Non-Diversity | | RF Frequency Band | A: 520 to 548.5 MHz
B: 550 to 578.5 MHz | | Max Operating Range | 393.7' / 120 m (Line of Sight)
262.5' / 80 m (with Obstruction) | | Latency | <40 ms | | Encryption | None | | | | Form Factor | Beltpack | | Mounting Options | Belt Clip or Shoe-Mount (with Included Hardware) | | Antenna | 2 x 1/4 Wave Wire, Fixed (Top-Mount) | | Number of Audio Channels | 2 | | Audio I/O | 2 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) | | Network I/O | None | | Network Protocols | None | | Word Clock I/O | None | | USB Port | 1 x Micro-USB (Charging) | | Approximate RF Sensitivity | -95 dBm | | Spurious | Emission: <-60 dBc | | Power Requirements | Battery | | Battery Type | 1 x Built-In Rechargeable (Included) | | Approx. Battery Life | 8 Hours (Rechargeable) | | Display & Indicators | 1 x Back-Lit LCD (AF Level, Battery Status, Channel, Group, RF Level)
2 x LED (Data Transmission)
1 x LED (Recharging) | | Housing | Metal | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 2.5 x 3.3 x 0.9" / 63.5 x 84.0 x 23.0 mm (without Antennas) | | | | Form Factor | Bodypack | | RF Output Power | 10 / 30 mW (Switchable) | | Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) | | Pad | None | | Signal Processing | High-Pass Filter:
| | Sync Method | IR | | Antenna | 1 x 1/4 Wave Wire, Fixed (Beltpack) | | Power Requirements | Battery | | Battery Type | 1 x Built-In Rechargeable (Included) | | Approx. Battery Life | 8 Hours | | USB Port | 1 x Micro-USB (Charging) | | Display & Indicators | 1 x Back-Lit Graphic LCD (Audio Level, Battery Status, Channel, Group, Mute, RF Output Power) | | Housing | Metal | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 2.5 x 3.3 x 0.9" / 63.5 x 84.0 x 23.0 mm (without Antennas) | | | | Form Factor | Lavalier | | Sound Field | Mono | | Output Connectors | 1 x 1/8" / 3.5 mm 3-Pin Male (Lockable) | | | | Form Factor | Handheld | | RF Output Power | 10 / 30 mW (Switchable) | | Audio I/O | None | | Pad | None | | Signal Processing | High-Pass Filter:
| | Sync Method | IR | | Antenna | 1 x Internal, Fixed | | Power Requirements | Battery | | Battery Type | 2 x AA (Not Included) | | USB Port | None | | Display & Indicators | 1 x Back-Lit Graphic LCD (Battery Status, Channel, Group, Mute, Power) | | Housing | Metal | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 2.1 x 10.0" / 53.5 x 253.0 mm | | | | Form Factor | Handheld Capsule | | Sound Field | Mono | | | | Package Weight | 5.61 lb | | Box Dimensions (LxWxH) | 14.5 x 10.4 x 3.5" |
