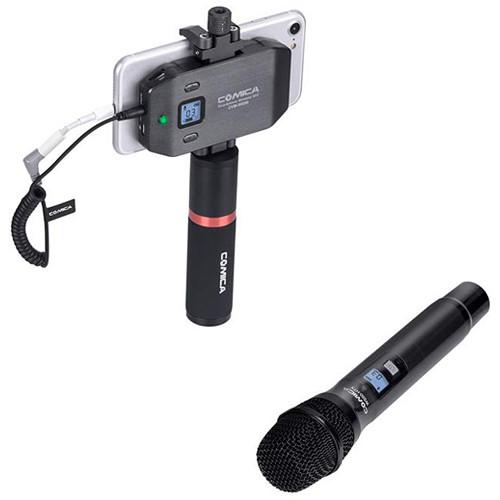

Product description The Comica Audio CVM-WS50H is a wireless handheld microphone bundle offering a complete solution for recording or streaming wireless audio to a smartphone, making it ideal for vlogging, ENG, mobile journalism, and content creation for the web. It includes a wireless receiver, a wireless handheld microphone, a simple handle, a micro-USB charging cable, a 3.5mm TRS to TRRS cable, a cleaning cloth, and a zippered soft carrying case. The handheld microphone is powered via two AA batteries (available separately), and can send wireless audio from up to 197' feet away. The wireless receiver features an integrated clamp to hold a smartphone or mobile device from 2.25 to 3.5" wide, and has a 1/4"-20 mount that securely attaches to the supplied simple handle. LCD screens on the transmitter and receiver enable clear indication of channel selection, audio levels, battery status, and mute position. Connect the wireless receiver to your smartphone via the 3.5mm TRS to TRRS cable, and simultaneously monitor audio in real time by plugging headphones into the receiver's dedicated 3.5mm headphone jack. The receiver is powered via a built-in battery, which recharges through a micro-USB connection. The entire kit packs neatly into the provided carrying case, simplifying transport between gigs and locations. - Complete solution for recording or streaming wireless audio to your smartphone
- Ideal for vloggers, interviewers, mobile journalists, and YouTubers

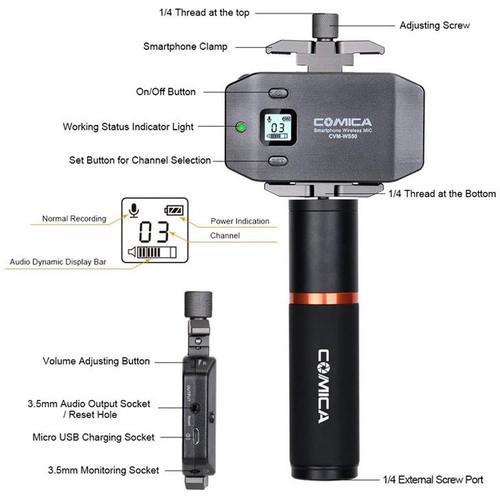

- Wireless receiver with integrated phone clamp that holds devices from 2.25 to 3.5 inches wide
- Wireless receiver utilizes a 1/4"-20 mount for attachment to the included simple handle or a tripod

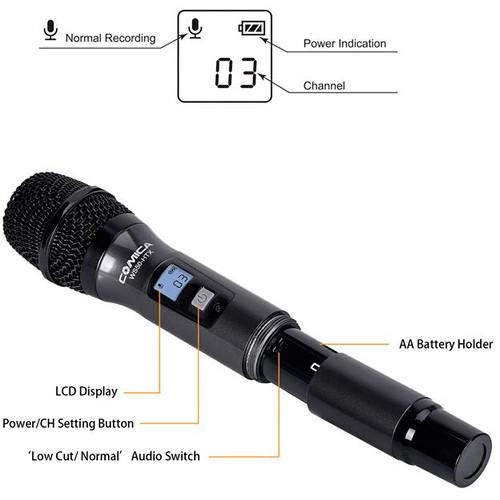

- Battery-powered wireless handheld microphone with selectable low-cut filter, power/channel button, and LCD screen
- Receiver's built-in lithium battery recharges via micro-USB connection
- LCD screens on the transmitter and receiver show audio level, battery status, and mute on/off state
- Stepless volume adjustment on receiver
- Separate 3.5mm outputs on receiver for connection to smartphone input and headphones
- Maximum working distance of 197'
- Six channels between 520 MHz and 526 MHz
- Includes soft carrying case for safe and simple storage and transport

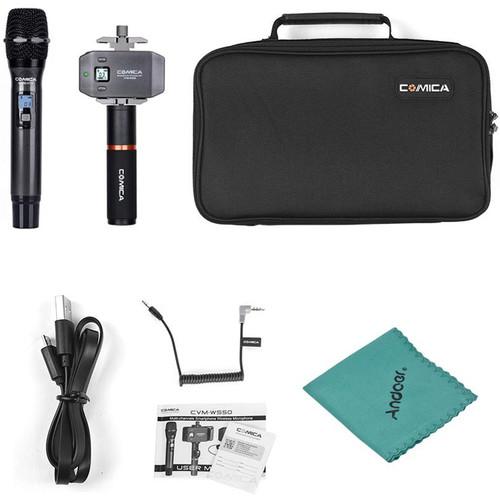

In the Box Comica Audio CVM-WS50H Wireless Handheld Microphone Bundle for Smartphones Soft Carrying Case Handle with 1/4-20 Mount 3.5mm TRS Male to 3.5mm TRRS Male Cable Micro-USB Charging Cable Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comica Audio CVM-WS50H Wireless Handheld Microphone Bundle for Smartphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComica Audio CVM-WS50H Specs | | | Channels | 6 (0 to 5) | | Wireless Frequency Range | 520 to 526 MHz | | Receiving Range | Maximum: 197' / 60 m
Optimal: 98.4' / 30 m | | Signal-to-Noise Ratio (SNR) | > 65 dB | | Antenna | 1/4 Wavelength Wire Antenna | | Receiving Sensitivity | -95 dBm | | Delay | < 20 ms | | Audio Distortion | < 0.5% | | Frequency Response | 20 Hz to 18 kHz | | Output Connector | 1 x 1/8" / 3.5 mm TRS Line
1 x 1/8" / 3.5 mm TRS Headphone | | Battery | LiPo (3.7 V, 1150 mAh) | | Battery Life | Up to 8 Hours | | Charging Port | Micro-USB | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (W x H x D) | 4.1 x 2.3 x 0.6" / 104.0 x 57.6 x 16.3 mm | | Weight | Not Specified by Manufacturer | | | | Channels | 6 (0 to 5) | | Wireless Frequency Range | 520 to 526 MHz | | Transmission Range | Maximum: 197' / 60 m
Optimal: 98.4' / 30 m | | Signal-to-Noise Ratio (SNR) | > 65 dB | | Antenna | PCB Antenna | | Stray Radiation | < -60 dBc | | Delay | < 20 ms | | Audio Distortion | < 0.5% | | Battery | 2 x AA Batteries (Available Separately) | | Battery Life | Up to 4 Hours | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (Diam. x L) | 2.1 x 9.8" / 5.4 x 24.8 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 2.04 lb | | Box Dimensions (LxWxH) | 12.1 x 8.2 x 3.0" |
