User Manual for Comica Audio UHF Metal Wireless XLR Transmitter Click to enlarge the picture
Contents of the user manual for the Comica Audio UHF Metal Wireless XLR
- Product category: Wireless Transmitters Comica Audio
- Brand: Comica Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comica Audio Wireless Transmitters
 |
User manual for the Comica Audio UHF Metal Wireless XLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comica Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comica Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comica Audio product will considerably shorten its lifespan!
|

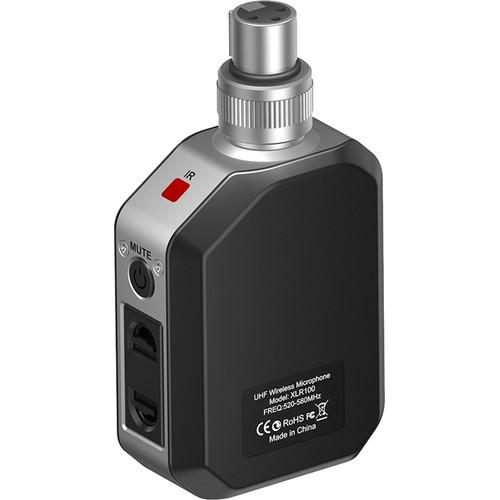

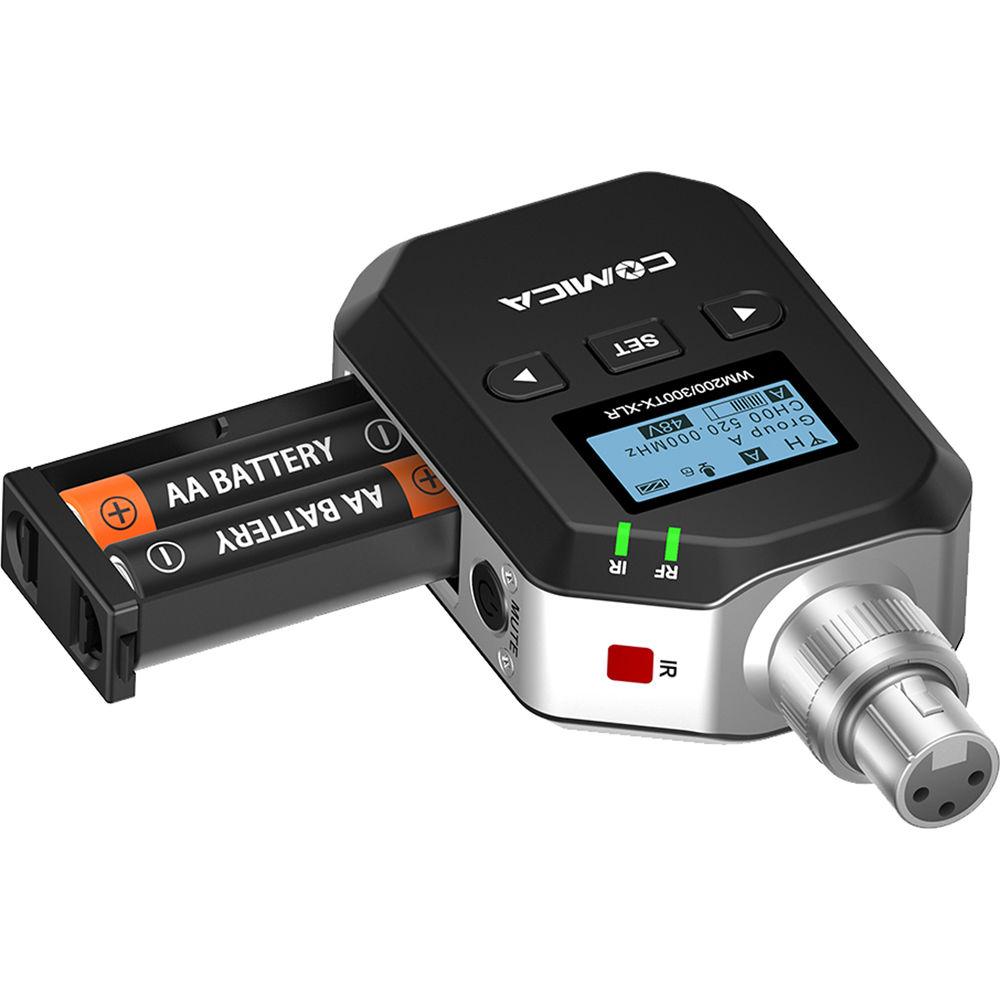

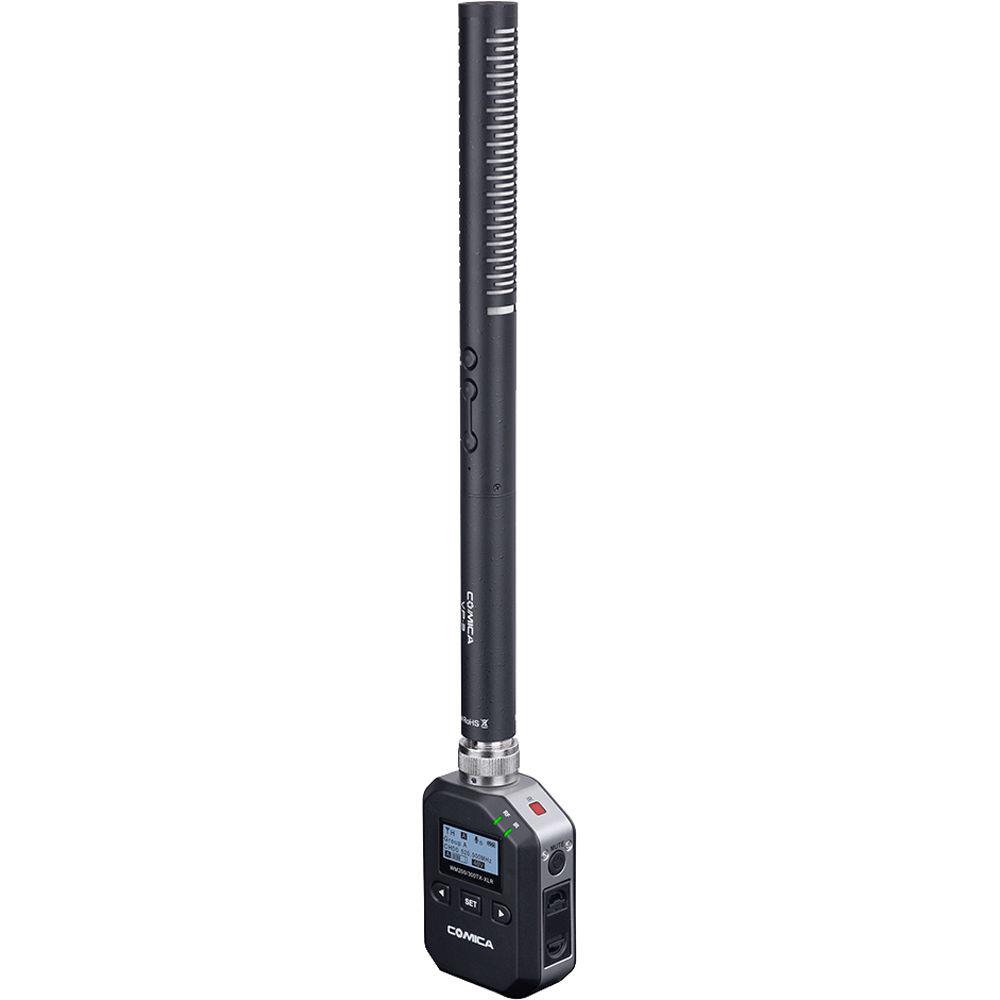

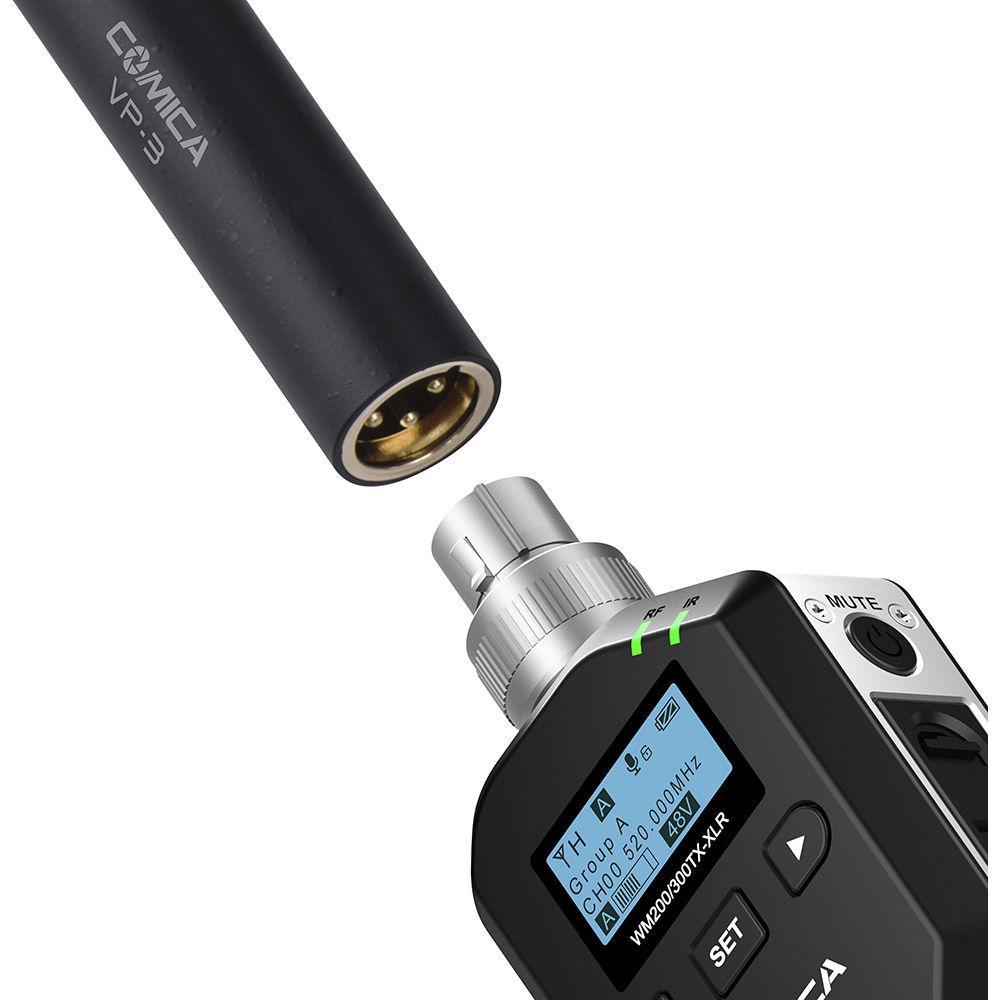

Product description The UHF Metal Wireless XLR Transmitter from Comica is a UHF multichannel all-metal wireless XLR transmitter. It can be used when paired with an XLR microphone and a CVM-WM200/300 wireless receiver (sold separately) to capture audio for interview and video applications.The XLR transmitter is powered by two AA batteries and supports 48V phantom power output. It utilizes UHF wireless FM technology and is built with an LCD high-resolution lattice screen. It offers 96-channel operation and is equipped with auto-scanning, auto IR channel-match, and RF signal strength adjustment.Other features include: mic/line input selection, low-cut filter, audio dynamic display bar, backlight adjustment, and a 196' operation range. Anti-interference is achieved via the all-metal housing. - 96-Channel Multiple Selection
- The code-matching function can be used in situations with multiple devices with no interference.
- Working Distance up to 196'
- 196' in open area providing smooth recordings with no staccato to meet the needs of various long-distance recordings.
- Supports 48V Phantom Power Output
- It can provide power for microphones that support 48V phantom input. Works longer than a microphone powered by a single mode.
- Auto-Scanning for Quick Channel Selection
- Unique auto-scanning function that helps you quickly find a channel with the least interference greatly improving the stability of wireless transmission.
- Low-Cut Filter Mode
- With this low-cut filter, it can effectively filter the noise of the low-frequency part of the signal and makes it sound more natural.
- Manual or Auto IR Sync
- Auto IR sync for channel matching that is simple and highly efficient.
- Adjustable RF Signal Strength
- When working at shorter distances, you can switch to low-strength mode and reduce power consumption. When working at longer distances, you can switch to high-strength mode to improve the signal stability.
- Optional Language Selection
- English and Chinese Bilingual switchable operation system.
- Low-Consumption, Super-Long Standby Time
- Low-consumption and super-long standby time; working duration up to 4 hours.

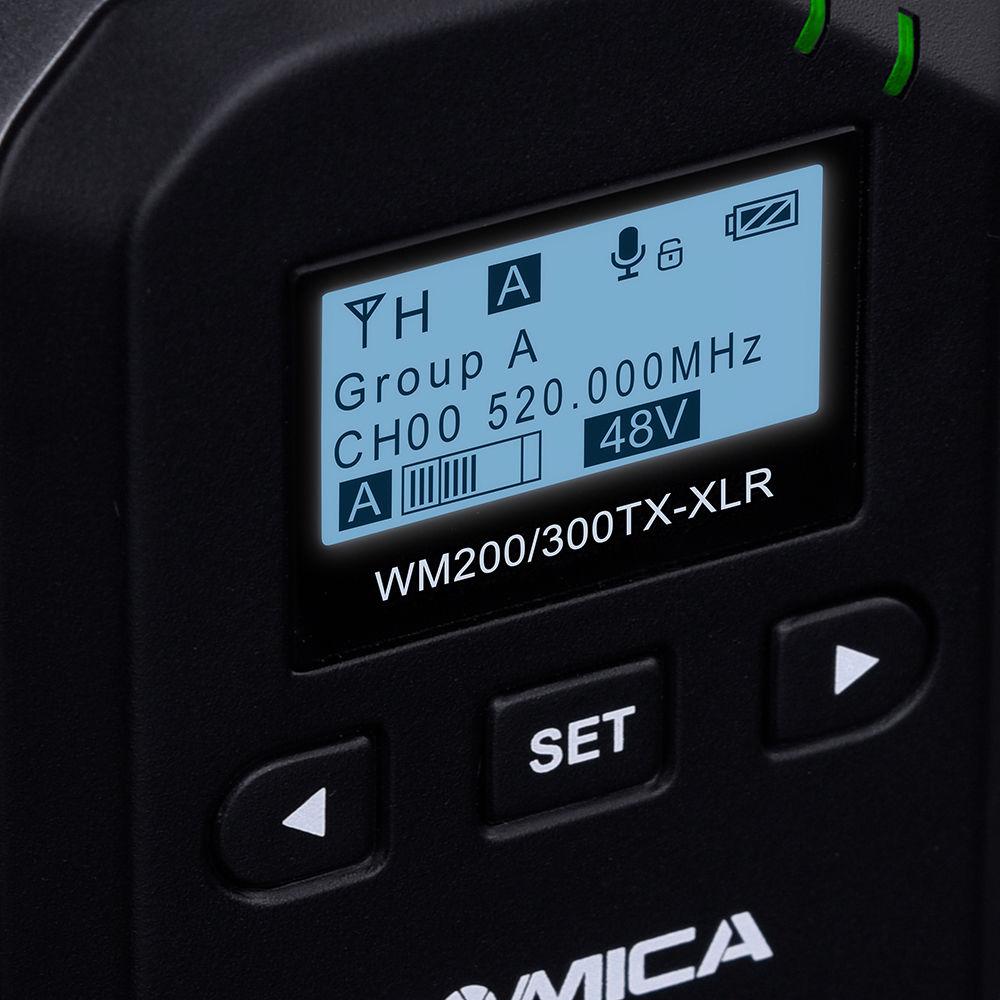

- Lattice LCD Display
- Lattice LCD with high-resolution, low-power display hardly affect the whole standby time. The screen's icons and fonts are concise, clear, and deliver real-time understanding of the equipment's operation status.
- Metal Manufacturing
- The design of the metal appearance greatly improves the anti-interference ability of the recording process and helps to eliminate interference of electronic signals.

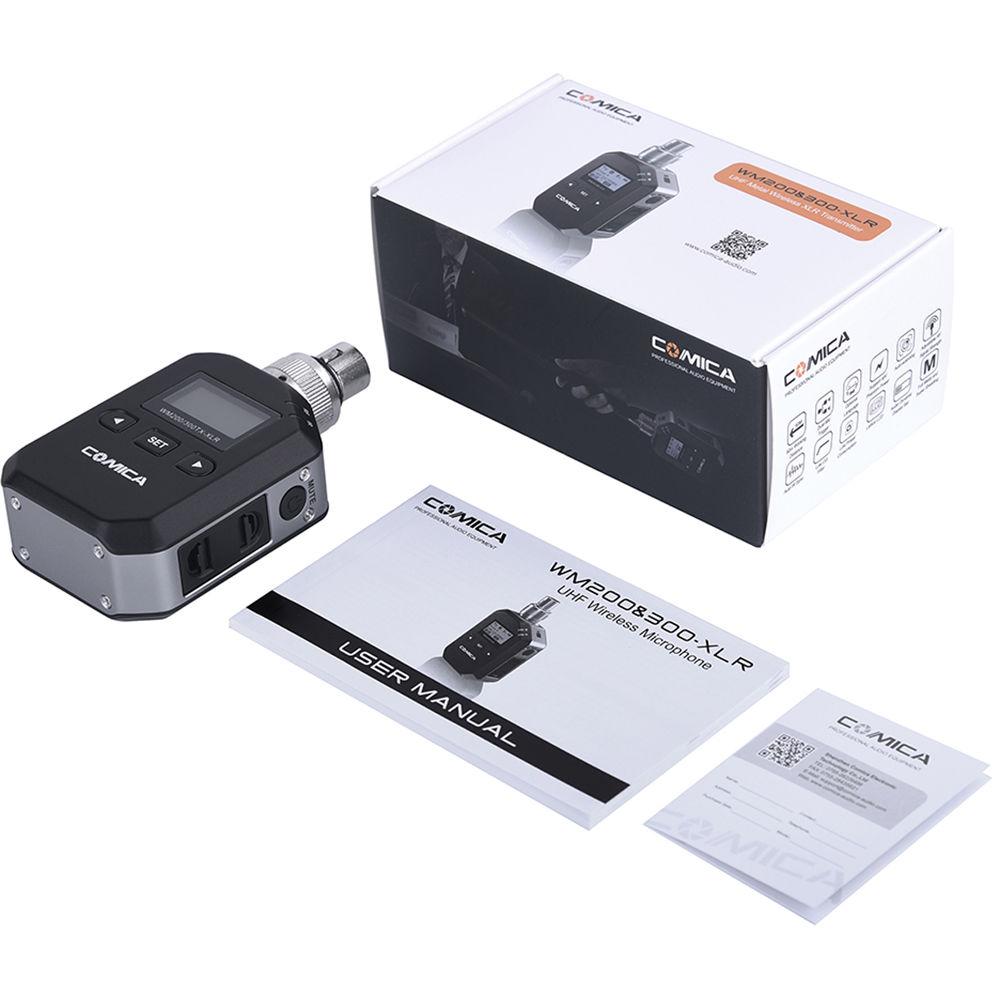

In the Box Comica Audio UHF Metal Wireless XLR Transmitter (520 to 578 MHz) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comica Audio UHF Metal Wireless XLR Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComica Audio CVM-WM200300XLR Specs | Frequency Bands | 520 to 578 MHz | | Duration | 4 Hours | | Antenna | Metal-Shielding Case Works as Antenna Component | | Stray Radiation | <-60 dBc | | Delay | <20 ms | | Distortion | <0.5% | | Signal to Noise | >65 dB | | Frequency Response | 20 Hz to 18 kHz | | Audio Input | 3-Pin XLR F | | Phantom Power | 48±2 V | | Battery | 2 x AA Batteries | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (L x W x H) | 4.5 x 2.5 x 1.4" / 11.5 x 6.2 x 3.4 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.49 lb | | Box Dimensions (LxWxH) | 5.9 x 3.5 x 2.6" |
