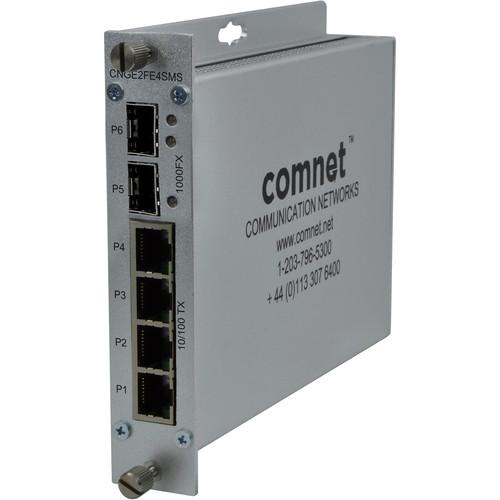

User Manual for COMNET 10 100 1000 MB s Drop Insert Repeat Gigabit Uplink Switch Click to enlarge the picture
Contents of the user manual for the COMNET 10 100 1000 MB s
- Product category: Network Switches, Bridges & Hubs COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Network Switches, Bridges & Hubs
|
User manual for the COMNET 10 100 1000 MB s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The 10/100/1000 MB/s Drop/Insert/Repeat Gigabit Uplink Switch from ComNet is a six-port self-managed switch with uplink management functionality. It provides four copper ports operating at 10/100 MB/s and two GB/s optical SFP ports. It is designed to combine four electrical ports and one Gbps SFP port into one of two optical SFP ports. The SFP ports then forwards this data to the next network device or can be configured for drop and insert operation. Since the switch comes pre-programmed, network video flooding with dip switch selection is prevented. - General
-
- 10/100/1000 MB/s Ethernet using 10/100 BASE-T/TX electrical ports & 1000 BASE-FX SFP ports for gigabit operation
- Electrical ports support auto-negotiation for 10 or 100 MB/s, full duplex, or half duplex data
- Optical port supports 1000 MB/s full duplex data
- Automatic MDI/MDI-X crossover
- Designed to meet full compliance with the environmental requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- No in-field optical adjustments required
- Power, activity, and port PoE status LED indicators confirm operating status of this device
- Hot-swappable rack modules
- IEEE 802.3 compliant
- Applications
-
- 10/100/1000 MB/s Ethernet
- High-speed computer links
- IP video
UPC: 999999440112 In the Box COMNET 10/100/1000 MB/s Drop/Insert/Repeat Gigabit Uplink Switch (6-Port) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 10 100 1000 MB s Drop Insert Repeat Gigabit Uplink Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET CNGE2FE4SMS Specs | | | Data Interface | Ethernet | | Data Rate | 10/100/1000 MB/s
IEEE 802.3 compliant
Full duplex or half duplex electrical ports/full
Duplex optical port | | Fiber Connectors | SFP Dependent
Power: Terminal block
Data: RJ45 | | PoE | RJ45 port supports IEEE 802.3at
End-point Positive (VCC+): RJ45 pin 1, 2 (RJ45 pin 1, 2)
Negative (VCC-): RJ45 pin 3, 6 (RJ45 pin 3, 6) | | LED Indicators | Optical link/data activity
Electrical link/data activity | | Operating Voltage | 12 to 24 VDC | | Current Draw | 1 A | | Mounting | Wall or flat surface screw attachment | | Current Protection | Automatic resettable solid-state current limiters | | MTBF | >100,000 hours | | Operating Environment | Operating Temperature: -40 to 167
