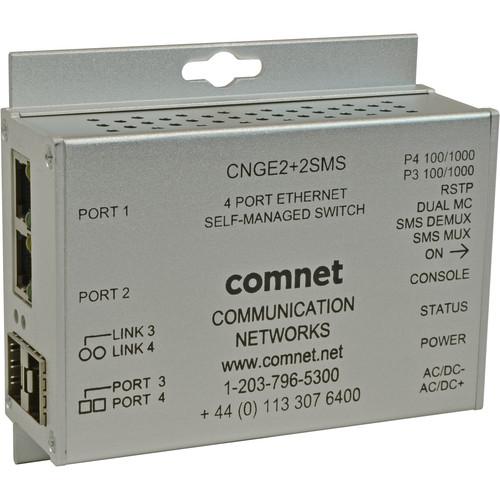

Product description The 4-port 10/100/1000 Mb/s Intelligent Redundant Ring Gigabit Switch from COMNET features two 10/100/1000Base-Tx copper ports and two 100/1000Base-FX SFP ports. It provides various functions like DIP switch-based operation of RSTP for creating redundant network topologies, preventing network video flooding of multicast traffic when used in a linear or star topology, and more. The switch is fully compatible with the ComNet CopperLine SFP modules for operation over extended distance UTP or Coax cable. - RSTP (Rapid Spanning Tree Protocol), Multicast Flooding Prevention (in Star/Linear topologies only), and dual redundant SFP mode can be enabled without programming
- Electrical ports support auto-negotiation for 10, 100, or 1000 Mb/s, full duplex or half duplex data
- SFP ports are compatible with CopperLine CL-SFP modules and supports 100 or 1000 Mbps full duplex data
- Automatic MDI/MDI-X crossover
- Event notification through SNMP traps and relay output
- Voltage transient protection on all power and signal input/output lines provide protection from power surges and other voltage transient events
- Supports LLDP (Link Layer Discovery Protocol)
- SNMP v1/v2c for network management
- Designed to meet full compliance with the environmental requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Redundant AC/DC inputs for uninterrupted operation in the event of a loss of operating power or a power supply failure
- Can be DIN-rail mounted using ComNet DINBKT2 or DINBKT4 adapters (not included)
In the Box COMNET 10/100/1000 Mb/s Intelligent Redundant Ring Gigabit Switch (4-Port) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 10 100 1000 Mb s Intelligent Redundant Ring Gigabit Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET CNGE2+2SMS Specs | | | Interface | Ethernet | | Data Rate | 10/100/1000 Mb/s
IEEE 802.3 compliant
Full duplex or half duplex electrical ports/full duplex optical port | | | | Optical | Requires SFP modules (sold-separately) | | Serial | Mini-USB | | I/O | Terminal block | | Power | Terminal block | | Data | RJ45 | | | | SNMP | SNMP V1/2c | | HTTP Browser Access (WAN) | Web GUI configuration interface | | CLI | Serial command line interface | | | | Operating Voltage | 9 to 36 VDC or 24 VAC | | Current Draw | 6 W maximum | | Current Protection | Automatic resettable solid-state current limiters | | | | Latency | Switching: 7 μs | | Bandwidth | 8 Gb/s | | MAC Table Size | 1K | | Processing | Store-and-forward | | Pin Assignments | RJ45 port supports IEEE 802.3at
End-point Positive (VCC+):
RJ45 pin 1, 2 (RJ45 pin 1,2 and 4,5 on 60 W ports)
Negative (VCC-):
RJ45 pin 3, 6 (RJ45 pin 3,6 and 7,8 on 60 W ports) | | LEDs | Optical link/data activity
Electrical link/data activity
Power PoE status | | Circuit Board | Meets IPC standard | | MTBF | Up to 100,000 hours | | Standards | IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX and 100BASE-FX
IEEE 802.3z for 1000BASE-X
IEEE 802.3ab for 1000BASE-T
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3at for Power Sourcing Equipment (PSE) and PoE (≤30 W per port)
IEEE 802.3x Flow Control and Back Pressure | | Operating Temperature | -40 to 167°F / -40 to 75°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Relative Humidity | 0 to 95% (non-condensing) | | Mounting | Can be moutned on a wall or a flat surface | | Dimensions | 4.1 × 3.7 × 1.46" / 10.4 × 9.4 × 3.7 cm | | Weight | 1 lb / 0.45 kg |
