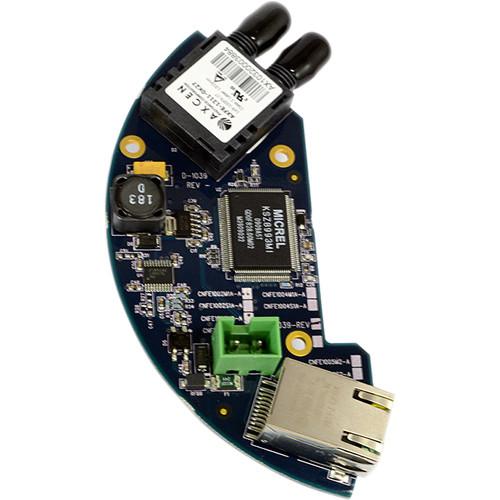

User Manual for COMNET 10 100 Mbps Ethernet Transceiver for Aigis Dome over Multi-Mode Fiber Click to enlarge the picture
Contents of the user manual for the COMNET 10 100 Mbps Ethernet Transceiver
- Product category: Ethernet Media Converters COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Ethernet Media Converters
|
User manual for the COMNET 10 100 Mbps Ethernet Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet™ series of Ethernet media converters are designed to transmit and receive 10/100 Mbps data over one or two multimode or single mode optical fibers. They are designed to be mounted within an Aigis dome and provide optical Ethernet connectivity.
The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. The series is environmentally hardened to operate in extreme temperatures. An LED indicator confirms equipment operating status. In the Box COMNET 10/100 Mbps Ethernet Transceiver for Aigis Dome over Multi-Mode Fiber (1310/1550 nm, SC Connector, 1.9 mi) Lifetime Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 10 100 Mbps Ethernet Transceiver for Aigis Dome over Multi-Mode Fiber in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET CNFE1004M1A-A Specs | | | Total Number of Ports | 2 | | Network (RJ-45) | Yes | | DVI | No | | USB | No | | Management Port | No | | Number of Network (RJ-45) Ports | 1 | | Number of SC Ports | 1 | | SC Port Type | Duplex | | | | Media Type Supported | Optical Fiber
Twisted Pair | | Fiber Mode Supported | Multi-mode | | Fiber Optic Wavelength | 1310 nm
1550 nm | | Maximum Distance Supported | 1.86 Mile | | Fiber Optic Cable Standard | 62.5/125 µm | | | | Ethernet Technology | Fast Ethernet | | Network Technology | 10/100Base-TX
100Base-FX | | | | Height | 1.5" | | Width | 2.8" | | Depth | 2.9" | | | | Environmentally Friendly | Yes | | Environmental Certification | RoHS
WEEE | | Country of Origin | United States |
