User Manual for COMNET 10-Bit Digital Video with Bidirectional Data Transmitter for Pelco Spectra III IV Dome Cameras Click to enlarge the picture
Contents of the user manual for the COMNET 10-Bit Digital Video with Bidirectional
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET 10-Bit Digital Video with Bidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|

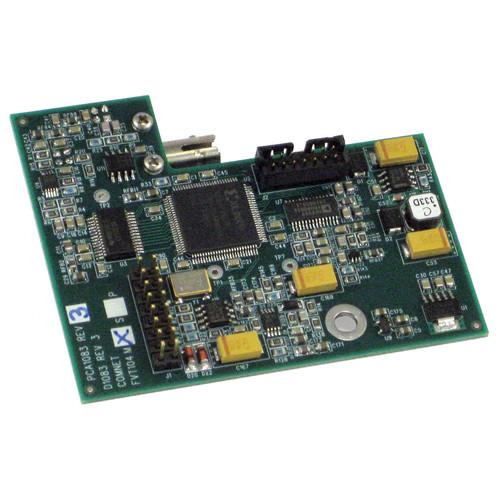

Product description The 10-Bit Digital Video with Bidirectional Data Transmitter from ComNet supports simultaneous broadcast-quality video transmission of 10-bit digital video and bidirectional RS-422 data over one multimode optical fiber. The transmitter is designed to plug directly into the Pelco Spectra III/IV dome and connects with power, video input, and two-way data via a Pelco electrical connector. -
- 10-bit digital video transmission
- Meets all requirements for RS-250C short-haul transmission
- Compatible with the Pelco Spectra III/IV Dome Cameras
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Designed to meet full compliance with environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Distances up to 37 miles
- Designed for internal mounting within a Pelco Spectra Dome
- Ideal for high-performance CCTV with PTZ control
In the Box COMNET 10-Bit Digital Video with Bidirectional Data Transmitter for Pelco Spectra III/IV Dome Cameras Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 10-Bit Digital Video with Bidirectional Data Transmitter for Pelco Spectra III IV Dome Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT1031M1P Specs | Video Input | 1 V p-p (75 Ohms) | | Overload | >1.5 V p-p | | Video Input/Output | 8 channels | | Bandwidth | 5 Hz to 6.5 MHz | | Differential Gain | <2% | | Differential Phase | <0.7° | | Tilt | <1% | | Signal-to-Noise Ratio | 67 dB at maximum optical loss budget | | Coaxial | Range: 300' / 100 m camera to fiber optic module to maintain 6 MHz bandwidth | | Data Format | RS-422 | | Data Rate | DC-115 kb/s (NRZ) | | Wavelength | 1310/1550 nm | | Number of Fibers | 1 | | Cladding | 62.5/125 μm | | Maximum Distance | 2 miles / 3 km | | Optical Emitter | Laser diode | | Optical Connector | ST | | Power | Terminal block | | Power | 8 to 15 VDC, 80 mA from dome | | Power Consumption | 4 W | | Current Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC standard | | MTBF | >100,000 hours | | Operating Temperature | -40 to 167°F / -40 to 75°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Relative Humidity | 0 to 95% (non-condensing) | | Dimensions | 4.0 x 2.5" / 10 x 6.4 cm | | Weight | 1.0 lb / 0.4 kg |
