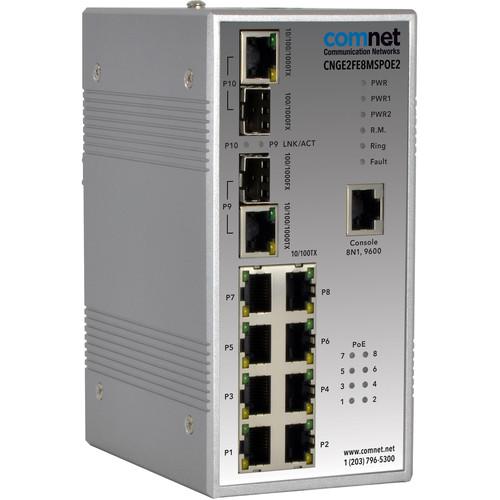

Product description The 10-Port PoE Environmentally Hardened Managed Ethernet Switch from ComNet provides IEEE 802.3af (15W) PoE to eight 10/100BASE-TX and has two gigabit combination SFP or RJ-45 ports. Up to 120W of PoE power is available for distribution across all eight 10/100BASE-TX ports. The SFP ports utilize ComNet SFP modules (available separately) for fiber and connector type and distance. This unit is a redundant switch offering multiple Ethernet redundancy protocols, C-Ring (recovery time <10ms over 250 units of connection), comring, and mstp> Network management is supported by eConsole, a powerful, easy-to-use Windows-based utility, as well as Web-based telnet, and Console (CLI) configurations. This environmentally hardened switch is designed for direct deployment in difficult out-of-plant or roadside operating environments. - 5.6 Gb/s switching bandwidth: Eight 10/100BASE-TX ports and two 10/100/1000BASE-TX/FX combo gigabit ports
- Fully compliant with IEEE 802.3af, up to 120W of PoE power is available for distribution across all eight 10/100BASE-TX ports
- Complies with the environmental requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment, such as ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic & Port Trunking for ease of bandwidth management
- Easy implementation of point-to-point, linear add-drop, drop-and-repeat, star, or true self-healing ring and mesh network system architectures
- Operates at temperatures ranging from -40 to 167˚F (-40 to 75˚C) and can withstand high temperature of up to 185˚F (85˚C)
- ComNet's C-Ring fast recovery technology protects mission-critical applications from network interruptions or temporary malfunctions
- Recovery time is less that 10ms with more than 250 switches within the ring
- Redundant DC inputs for uninterrupted operation in the event of a loss of operating power or a power supply failure
- Centralized management via Windows utility, eConsole, configurable via browser, or by Telnet and console (CLI) ports
- Supports Link Layer Discovery Protocol (LLDP)
- Event notification through Syslog, E-mail, SNMP trap, and Relay Output
- Port lock to prevent access from unauthorized MAC address
- SNMP v1/v2c/v3 for secure network management
- Precision Time Protocol (PTP) client for clock synchronization
- C-RSTP supports network applications with complex topology
- Rigid aluminum housing design provides for DIN-rail or wall mounting
- Applications include 10/100/1000 Mb/s Ethernet and ITS networks with streaming video
In the Box COMNET 10-Port PoE Environmentally Hardened Managed Ethernet Switch with Eight 10/100BASE-TX & Two 10/100/1000BASE-TX/FX Combo Ports Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 10-Port PoE Environmentally Hardened Managed Ethernet Switch with Eight 10 100BASE-TX & Two 10 100 1000BASE-TX FX Combo Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET CNGE2FE8MSPOE2 Specs | Connectors | 8 x 10/100BASE-TX ports in RJ45 with auto MDI/MDIX
Gigabit combo ports with 2 x 10/100/1000BASE-TX & 2 x 100/1000BASE-X SFP | | Redundancy | Network Redundancy:
ComRing
C-Ring
Legacy Ring
C-RSTP
STP
RSTP
MSTP | | Latency | Switching Latency: 7µs | | Switching Bandwidth | 5.6 Gb/s | | Maximum Number of VLANs | 4096 (available) | | Multicast Groups | IGMP Multicast Groups: 1024 | | Rate Limiting | Port Rate Limiting: User-defined | | MAC Table Size | 8192 MAC addresses | | Priority Queues | 4 | | Processing | Store-and-Forward | | Security Features | Enable/Disable Ports, MAC based port security
Port-Based Network Access Control: 802.1x
VLAN (802.1Q): To segregate and secure network traffic
Supports Q-in-Q VLAN for performance & security to expand the VLAN space
Radius Centralized Password Management
SNMPv3 Encrypted Authentication and Access
Security | | Software Features | STP / RSTP / MSTP (IEEE 802.1D/w/s)
C-Ring Redundant Ring: Recovery time <10 ms, with over 250 units
TOS/Diffserv supported
Quality of service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP snooping for multicast filtering
Port configuration, status, statistics, monitoring, and security
DHCP server / client support
Port trunk support
MVR (multicast VLAN registration) support | | Standards | IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX and 100BASE-FX
IEEE 802.3z for 1000BASE-X
IEEE 802.3ab for 1000BASE-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
IEEE 802.3at for Power Sourcing Equipment (PSE) and PoE (up to 15.4 W per port) | | Alarms / Monitoring / Control | Relay Output: For fault event alarming
Syslog Server / Client: To record and view events
SMTP: For event warning notifications via email
Serial Console Port: RS-232 @ 9,600 b/s in RJ45 connector with console cable | | LED Indication | 3 x power indicators
Ring master indicator
C-Ring indicator
Fault indicator
10/100BASE-TX RJ45 port indicator
100/1000BASE-X SFP port indicator
PSE power output indicator | | Pin Assignments | PoE Pin Assignment:
RJ45 port #1 to #8 support IEEE 802.3af end-point
Alternative A mode
Positive (VCC+): RJ45 pin 1, 2
Negative (VCC-): RJ45 pin 3, 6 | | | | Power Input | Redundant Input Power: Dual 48 to 57 VDC input terminal block | | Typical Power Consumption | Maximum 132 W with PoE on all ports
Maximum 9 W without PoE | | Protection | Overload current protection | | | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Operating Humidity | 5 to 95% non-condensing | | MTBF | >100,000 hours | | Regulatory Compliance | EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock: IEC60068-2-27
Free Fall: IEC60068-2-32
Vibration: IEC60068-2-6
Safety: EN60950-1
Fully compliant with the environmental requirements of NEMA TS-1/TS-2 and the Caltrans specification for Traffic Signal Control Equipment | | | | Installation | DIN-rail (35 mm track) or wall mount | | Dimensions (W x D x H) | 2.93 x 4.3 x 6.05" (7.4 x 10.9 x 15.3 cm) | | Weight | 2.4 lb (1.1 kg) |
