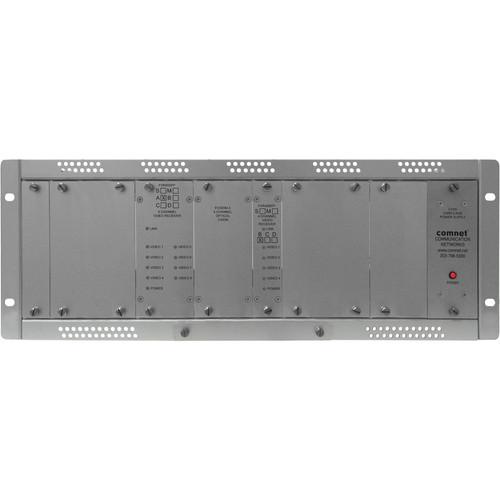

User Manual for COMNET 12-Channel Single Mode 10-Bit Digital Short Haul Video Receiver Click to enlarge the picture
Contents of the user manual for the COMNET 12-Channel Single Mode 10-Bit Digital
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET 12-Channel Single Mode 10-Bit Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVT/FVR120 series video transmitter and video receiver utilize 10-bit digital encoding and decoding for high-quality video transmission that exceeds the requirements of EIA RS-250C for shorthaul video transmission. These environmentally hardened units provide transmission of 12 independent video channels over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. These units are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems. Plug-and-Play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status.
- Key Features
-
- 10-Bit digitally encoded video transmission, transmits 12 real-time/full frame color video signals
- Exceeds all requirements for EIA RS-250C short-haul transmission: Extremely high video performance
- Exceptionally low video distortion with zero Performance Variation vs. Optical Path Loss
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 12-Channel Single Mode 10-Bit Digital Short Haul Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR120S1 Specs | | | Device Type | Video extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Max Transfer Distance | 33.6 miles | | Status Indicators | Power, line synchronization, carrier detect | | | | Interfaces | 12 x video - BNC
1 x network - ST single-mode | | | | MTBF | 100,000 hours | | Compliant Standards | FCC, RoHS, WEEE, cULus | | | | Voltage Required | AC 90 - 264 V | | | | Width | 18.9 in | | Depth | 7.5 in | | Height | 5.9 in | | Weight | 7.94 lbs | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
