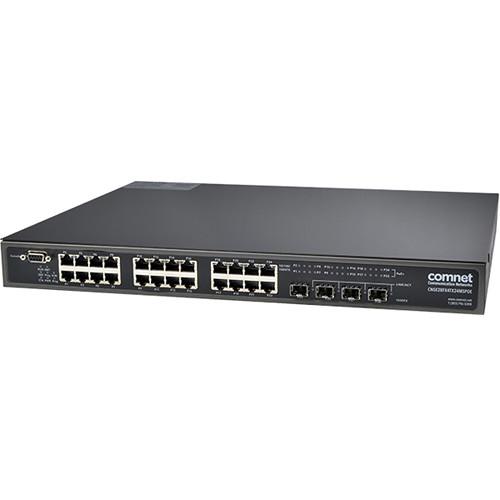

User Manual for COMNET 24-Port Ethernet Managed Switch with 4 SFP Ports and PoE Click to enlarge the picture
Contents of the user manual for the COMNET 24-Port Ethernet Managed Switch with
- Product category: Network Switches, Bridges & Hubs COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Network Switches, Bridges & Hubs
|
User manual for the COMNET 24-Port Ethernet Managed Switch with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet™ CNGE28FX4TX24MSPOE+ Layer 2 Managed 28 Port Ethernet Switch supports twenty-four (24) 10/100/1000 BASE-TX ports and four (4) 1000BASE-FX ports of Ethernet data. PoE+ power is available for distribution across all 24 BASE-TX ports. The four 1000BASE-FX combination ports are 1000TX or SFP* configurable for fiber type (multimode or single-mode), connector type and distance. The exclusive C-Ring redundant ring feature protects networks from interruptions or temporary malfunctions with its fast recovery technology. The electrical ports support the 10/100/1000 Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are included. The CNGE28FX4TX24MSPOE+ are optically (1000BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet device and are hardened for use in harsh operating environments. In the Box COMNET 24-Port Ethernet Managed Switch with 4 SFP Ports and PoE CNGE28FX4TX24MSPOE+ Ethernet Switch Rack-mount Installation Kit Console Cable AC Power Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 24-Port Ethernet Managed Switch with 4 SFP Ports and PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET CNGE28FX4TX24MSPOE+ Specs | | | Total Number of Network Ports | 24 | | Token Ring Port | No | | LRE Port | No | | Management Port | Yes | | USB | No | | Number of PoE+ (RJ-45) Ports | 24 | | Stack Port | No | | Port/Expansion Slot Details | 24 x Gigabit Ethernet Network
4 x Gigabit Ethernet Expansion Slot | | | | Media Type Supported | Optical Fiber
Twisted Pair | | Ethernet Technology | Gigabit Ethernet | | Network Technology | 10/100/1000Base-T
1000Base-FX | | | | Number of Total Expansion Slots | 4 | | Expansion Slot Type | SFP | | Number of SFP Slots | 4 | | | | Manageable | Yes | | Management | - SNMP v1/v2c/v3
- CLI
- VLAN
- Telnet
- RMON
- Syslog
- DHCP
- Web Based Management
| | | | PoE (RJ-45) Port | No | | Input Voltage | 120 V AC
230 V AC | | Power Source | Power Supply | | | | Compatible Rack Unit | 1U | | Form Factor | Desktop
Rack-mountable | | Height | 1.7" | | Width | 17" | | Depth | 13.5" | | | | Certifications & Standards | - FCC
- CE
- C-Tick
- cUL
- EMI FCC Part 15, CISPR (EN55022) Class A
- EMS EN61000-4-2
- ESD EN61000-4-3
- RS EN61000-4-4
- EFT EN61000-4-5
- Electrical Surge EN61000-4-6
- CS EN61000-4-8, EN61000-4-11
- Mechanical Shock IEC60068-2-27
- Free Fall IEC60068-2-32
- Vibration IEC60068-2-6
Standards:
- 802.3af
- 802.3 for 10Base-T
- 802.3u for 100Base-TX and 100Base-FX
- 802.3z for 1000Base-X
- 802.3ab for 1000Base-T
- 802.3at for Power Sourcing Equipment (PSE) and PoE (up to 30 watts per port)
- 802.3x for Flow control
- 802.3ad for LACP (Link Aggregation Control Protocol)
- 802.1D for STP (Spanning Tree Protocol)
- 802.1p for COS (Class of Service)
- 802.1Q for VLAN Tagging
- 802.1w for RSTP (Rapid Spanning Tree Protocol)
- 802.1s for MSTP (Multiple Spanning Tree Protocol)
- 802.1x for Authentication
- 802.1AB for LLDP (Link Layer Discovery Protocol)
| | Environmentally Friendly | Yes | | Environmental Certification | RoHS
WEEE | | Country of Origin | United States |
