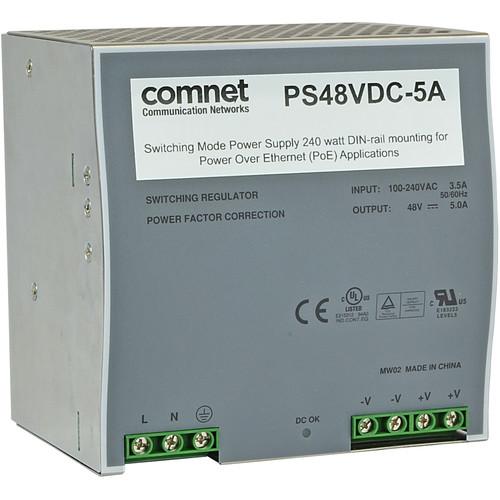

User Manual for COMNET 240W Switching Mode Power Supply with DIN-Rail Mounting for PoE Applications Click to enlarge the picture
Contents of the user manual for the COMNET 240W Switching Mode Power Supply
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET 240W Switching Mode Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The Switching Mode 240W Power Supply from ComNet is a high-quality and low-noise power supply suited to applications requiring PoE. This rugged unit may be either DIN-rail or shelf-mounted, providing an identical mounting configuration to the mating PoE switch. Up to 10 PoE devices can be powered from a single supply, and the high output current capacity provides an adequate safety margin. A wide ambient operating temperature range permits installation in most out of-plant and unconditioned environments, such as those found in intelligent transportation systems or factory automation/industrial control applications. Unconditional line and load protection is provided. -
- Mounts on standard 7.5 or 15mm DIN-rail
- Automatic power factor correction (PFC)
- High operating efficiency; up to 85%
- Small package for limited space installations
- Natural convection cooling; no troublesome fans
UPC: 845770004670 In the Box COMNET 240W Switching Mode Power Supply with DIN-Rail Mounting for PoE Applications Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 240W Switching Mode Power Supply with DIN-Rail Mounting for PoE Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET PS48VDC-5A Specs | Line Regulation | ±0.5% | | Output Voltage | +1% (factory adjusted) | | Ripple and Noise | 150 mV peak to peak | | Hold Up Time | 24 ms | | Minimum Load | 0% | | Input Voltage | AC: 90 to 264 VAC
DC: 120 to 370 VDC | | Input Current | 2.8/1.4 A | | Frequency Range | 47 to 63 Hz | | Inrush Current | 115 VAC 22
230 VAC 45 | | Cooling | Natural air convection
Allow 25 mm of free space along all sides to ensure adequate cooling | | Screw | 10 to 24 AWG flexible or solid cable | | Plugins | 10 to 24 AWG flexible or solid cable | | Fuse | T5A/250 VAC internal | | Overvoltage Protection | 54 to 60 VDC | | Short Circuit Protection | Current limit | | Overload Protection | 105 to 150% | | Environmental | Ambient Operating Temperature: 14 to 158°F / -10 to 70°C
Derating: >133 to 160°F / 56 to 71°C ±2.5%
Ambient Humidity: 20 to 90% RH, non-condensing
Storage: -4 to 185°F / -20 to 85°C | | Dimensions (L x W x D) | 4.0 x 5.0 x 5.0" / 10 x 13 x 13 cm | | Weight | 1.0 lb / 0.4 kg | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 10.4 x 8.4 x 6.1" |
