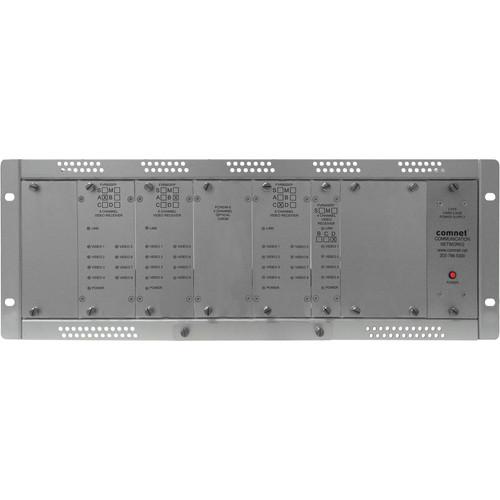

Product description The 28-Channel Single-Mode 10-Bit Digital Video Receiver from ComNet utilizes 10-bit digital encoding and decoding for high-quality video transmission that meets the requirements of EIA RS-250C short-haul video transmission. It receives 28 real-time/full frame color video signals over one single-mode optical fiber. This environmentally hardened unit is suitable for use in unconditioned roadside or out-of-plant installations. It is universally compatible with any NTSC, PAL, or SECAM CCTV camera systems. Its plug-and-play design ensures ease of installation without any electrical or optical adjustments. It features bi-color (red/green) LED indicators for rapidly ascertaining equipment operating status. - Compatible with
- All NTSC, PAL, or SECAM CCTV camera systems
- 10-bit digital video transmission—receives 28 real-time/full frame color video signals on one optical fiber up to 35 mi (54 km)
- High video performance—meets the requirements of EIA RS-250C short-haul transmission
- Low video distortion with zero performance variation verses optical path loss
- Complies with the environmental requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment, such as ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Robust design ensures high reliability in unconditioned out-of-plant environments
- Bi-color (red/green) LED status indicators provide rapid indication of critical operating parameters
- Application includes high-performance CCTV (fixed video)
In the Box COMNET 28-Channel Single-Mode 10-Bit Digital Video Receiver Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 28-Channel Single-Mode 10-Bit Digital Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR280S1 Specs | Video Input | 1 V p-p (75 Ohms) | | Overload | >1.5 V p-p | | Number of Channels | Input/Output: 28 | | Bandwidth | 10 Hz to 6.5 MHz per channel | | Differential Gain | <2% | | Differential Phase | <0.7° | | Tilt | <1% | | Signal-to-Noise Ratio (SNR) | 67 dB (typical) | | Maximum Distance | Maximum RG-59 Coax Distance: 300' (100 m) camera to fiber optic module to maintain 6 MHz bandwidth | | Wavelength | Single-mode, 9/125 µm | | Number of Fibers | 1 | | Maximum Distance | 35 mi (54 km) | | Optical Power Budget | 18 dB | | LED Indicators | Video sync presence for each video channel
Optical carrier detect
Power | | Optical Emitter | Laser diode | | Optical Connector | ST | | Power Connector | Terminal block | | Video Connector | BNC (Gold-plated center-pin) | | Input Voltage | 90 to 264 VAC @ 70 W maximum | | Output Voltage | 9 VDC ± 5% at 6.5 A @ 167°F (75°C) | | Fuse | 1.25 A slow blow (rack power supply)
Plug-in module individually electronically fused | | Current Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC standard | | MTBF | >100,000 hours | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity | 0 to 95% (non-condensing) | | Dimensions (L x W x H) | 19 x 7.5 x 6" (48 x 19 x 15 cm) | | Weight | Not specified by the manufacturer |
