User Manual for COMNET 4-Channel 10-Bit Digital Video Transmitter with Two Bi-Directional Data, SFP Ports, 100Mb Ethernet and Aiphone Intercom Click to enlarge the picture
Contents of the user manual for the COMNET 4-Channel 10-Bit Digital Video Transmitter
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET 4-Channel 10-Bit Digital Video Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|

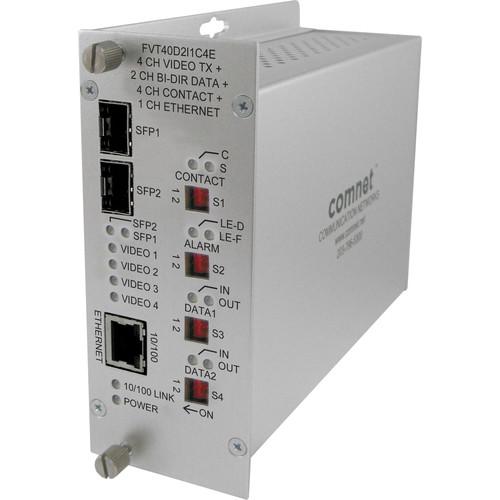

Product description Provided by third party: The ComNet FVT/FVR40D2I1C4E environmentally hardened units provide transmission of four independent video channels and two bi-directional data channels. They also provide transmission of one Aiphone intercom channel and four contact closure channels with tamper supervision in addition to one 10/100Mbps Ethernet channel. The FVT/FVR40D2I1C4E has dual SFP optical ports to provide a redundant point-to-point fail safe topology in the event of loss of one fiber or one optical module. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
- Key Features
-
- 4 channels of 10-bit digital video encoding and decoding for high-quality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission
- 2 Bi-directional data channels supporting RS232, RS422, and 2 or 4-wire RS485 with tri-state data interfaces
- Duplex Aiphone intercom channel
- Four contact closure channels with supervision
- True 100Mb Ethernet channel
- Dual SFP optical ports redundant Point-to-Point configuration
- Exceeds all requirements for RS-250C short-haul transmission
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters in addition to alarm contacts for fault monitoring
- Operational status monitored via web management interface through the addition of the ComNet network managed chassis and network management interface module
- Hot-Swappable Modules
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 4-Channel 10-Bit Digital Video Transmitter with Two Bi-Directional Data, SFP Ports, 100Mb Ethernet and Aiphone Intercom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT40D2I1C4E Specs | | | Device Type | Video/serial/contact closure extender | | Form Factor | External - 2U | | Built-In Devices | LED panel | | | | Connectivity Technology | Wired | | Data Link Protocol | 10Mb LAN, 100Mb LAN | | Status Indicators | Power, link/activity, video | | | | Interfaces | 2 x RS-232/422/485
2 x network - SFP
2 x contact closure - RJ-45
1 x Ethernet 10/100 - RJ-45
1 x video - BNC | | | | MTBF | 100,000 hours | | Compliant Standards | FCC, RoHS, cULus | | | | Power Device | External power adapter | | Power Consumption Operational | 4 Watt | | | | Width | 6.1 in | | Depth | 5.3 in | | Height | 2.2 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
