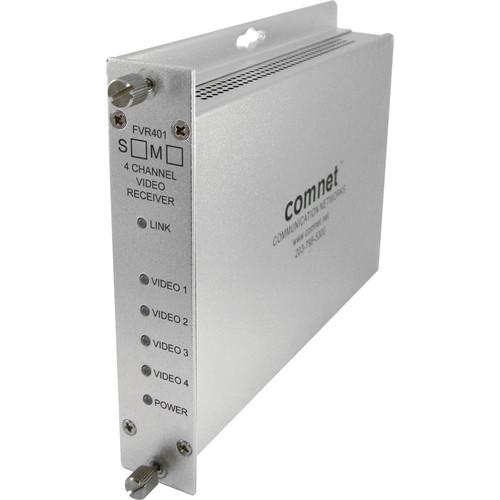

User Manual for COMNET 4-Channel Single Mode 1310nm Video Receiver Click to enlarge the picture
Contents of the user manual for the COMNET 4-Channel Single Mode 1310nm Video
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET 4-Channel Single Mode 1310nm Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVR401S1 video receiver simultaneously transmits four channels of video over one optical fiber utilizing 10-bit digital encoding and decoding for high-quality video transmission. This environmentally hardened unit is ideal for use in unconditioned roadside or out-of-plant installations. It is universally compatible with any NTSC, PAL, or SECAM CCTV camera systems. Plug-and-Play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color LED indicators are provided for rapidly ascertaining equipment operating status.
- Key Features
-
- 10-bit digital video transmission: transmits 4 real-time color video signals on one optical fiber
- Extremely high video performance
- Exceptionally low video distortion
- Ideally suited to networks requiring multiple physical layers where video degradation may be a problem
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Wide optical dynamic range: optical attenuators are never required
- Full compliance with the environmental requirements
- Voltage transient protection on all power and signal input / output lines provides unconditional protection from power surges and other voltage transient events
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- Bi-color LED status indicators provide rapid indication of critical operating parameters
- Automatic resettable solid-state current limiters
UPC: 845770002775 Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 4-Channel Single Mode 1310nm Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR401S1 Specs | | | Device Type | Video extender | | Form Factor | Rack-mountable - 1U | | | | Connectivity Technology | Wired | | Optical Wave Length | 1310 nm | | Max Transfer Distance | 42.9 miles | | Status Indicators | Power, line synchronization, carrier detect | | | | Interfaces | 4 x video (output) - BNC
1 x network - ST single-mode | | | | MTBF | 100,000 hours | | Compliant Standards | FCC Part 15, RoHS, cULus | | | | Power Device | External power adapter | | Voltage Required | DC 8 - 15 V | | Power Consumption Operational | 3 Watt | | | | Width | 6.1 in | | Depth | 5.3 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
