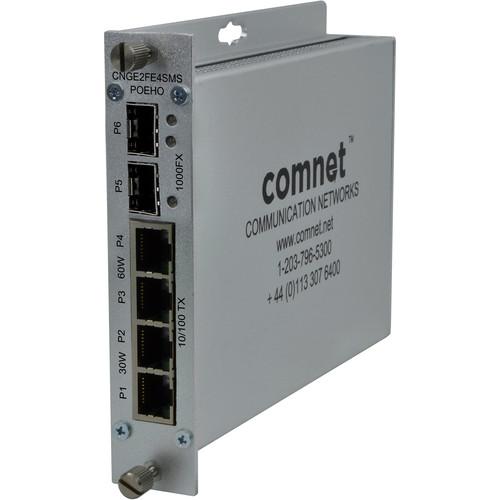

Product description The 6-Port Gigabit Ethernet Self-Managed Switch from ComNet is a six-port self-managed switch with uplink management functionality and provides 4 copper ports operating at 10/100 MB/s and two GB/s optical SFP ports. It is designed to combine four electrical ports and one GB/s SFP port into one of the two optical SFP ports. The two SFP ports forward this data to the next network device or can be configured for drop and insert operation. The switch uses ComNet SFPs for connector and distance options. It comes pre-programmed, preventing network video flooding with dip switch selection of fiber ports as uplink or as an unmanaged switch. The switch can supply up to 30W of PoE from ports 1 and 2 and up to 60W of PoE from ports 3 and 4. - General
-
- No Programming Required
- 10/100/1000 MB/s Ethernet using 10/100 BASE-T/TX electrical ports & 1000 BASE-FX SFP ports for gigabit operation
- Electrical ports support auto-negotiation for 10 or 100 MB/s, full duplex or half duplex data
- Optical port supports 1000 MB/s full duplex data
- IEEE802.3at Power over Ethernet (PoE+)
- Up to 30W PoE+ on Ports 1 and 2
- Up to 60W PoE+ on Ports 3 and 4
- Automatic MDI/MDI-X crossover
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- No in-field optical adjustments required
- Power, activity, and port PoE status LED indicators confirm operating status of this device
- Hot-swappable rack modules
- IEEE 802.3 compliant
- Applications
-
- 10/100/1000 MB/s Ethernet
- High-speed computer links
- IP video
UPC: 845770010862 In the Box COMNET 6-Port Gigabit Ethernet Self-Managed Switch with 50W of PoE+ Power (High Output) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 6-Port Gigabit Ethernet Self-Managed Switch with 50W of PoE Power in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET CNGE2FE4SMSPOEHO Specs | | | Data Interface | Ethernet | | Data Rate | 10/100/1000 MB/s
IEEE 802.3 compliant
Full duplex or half duplex electrical ports/full
Duplex optical port | | Electrical | Ports 1 and 2: 30 W Maximum
Ports 3 and 4: 60 W Maximum | | Fiber Connectors | SFP Dependent
Power: Terminal block
Data: RJ45 | | PoE | RJ45 port supports IEEE802.3at
End-point Positive (VCC+): RJ45 pin 1, 2 (RJ45 pin 1, 2 and 4, 5 on 60 W ports)
Negative (VCC-): RJ45 pin 3, 6 (RJ45 pin 3, 6 and 7, 8 on 60 W ports) | | LED Indicators | Optical link/data activity
Electrical link/data activity PoE powered | | Operating Voltage | 48 to 57 VDC PoE, 12 to 24 VDC non-PoE | | Current Draw | 5 A maximum with PoE
1 A without PoE | | Mounting | Wall or flat surface screw attachment | | Current Protection | Automatic resettable solid-state current limiters | | MTBF | >100,000 hours | | Operating Environment | Operating Temperature: -40 to 167˚F (-40 to 75˚C)
Storage Temperature: -40 to 185˚F (-40 to 85˚C)
Relative Humidity: 0 to 95% (non-condensing) | | Dimensions | 6.1 x 5.3 x 1.1" (16 x 14 x 2.8 cm) | | Weight | 2.0 lb (0.9 kg) |
