Product description

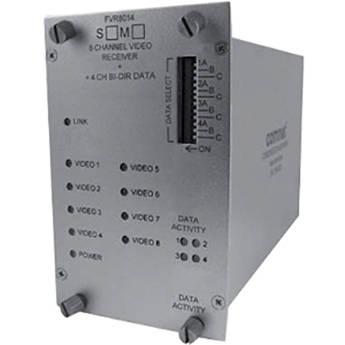

The 8-Channel Video Receiver + 4-Channel Bi-Directional Data Transceiver from ComNet receives eight channels of 10-bit digital video along with four channels of bi-directional data over one single-mode fiber. The video quality exceeds RS-250C for medium-haul video transmission. This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of-plant installations. The transceiver is compatible with NTSC, PAL, and SECAM video transmission protocols and supports bidirectional RS232, 422, and RS485 (2 & 4 Wire) data.Plug-and-play design ensures ease of installation and no electrical or optical adjustments are required. Bi-color LED indicators are provided to indicate the status of the system, video, and data. Packaged in the ComNet ComFit housing, this unit can be either wall/rack-mounted. It does not require any additional parts or power supplies.
    • Receives 8 channels of 10-bit real-time digital color video and 4 channels of bi-directional data on a single optical fiber
    • Supports RS232, RS422, and 2 or 4-wire RS485
    • Meets all requirements for EIA RS-250C medium-haul transmission
    • Compatible with all NTSC, PAL, or SECAM CCTV camera systems
    • Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
    • Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
    • Robust design ensures high reliability in unconditioned out-of-plant environments
    • Bi-color (red/green) LED status indicators provide rapid indication of critical operating parameters
    • Hot-swappable rack modules
    • Can be installed as both standalone or rack mount
In the Box COMNET 8-Channel 10-Bit Video Receiver + Bi-Directional Data Transceiver
  • DC Plug-In Power Supply
  • RJ45 to RJ45 Breakout Wiring Kit
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the COMNET 8-Channel 10-Bit Video Receiver Bi-Directional Data Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    COMNET FVR8014S1 Specs

    Video Input 1 Vpp (75 Ohms)
    Overload >1.5 Vpp
    Video Input / Output 8 channels
    Bandwidth 10 Hz to 6.5 MHz per channel
    Differential Gain <2%
    Differential Phase < 0.7°
    Tilt <1%
    Signal-to-Noise Ratio 67 dB @ maximum optical loss budget
    COAX Distance: 300' (100 m) camera to fiber optic module to maintain 6 MHz bandwidth
    Data Channels 4
    Data Interface RS232, RS422, and RS485 (2 W/4 W)
    Data Format NRZ, NRZI, Manchester, Bi-Phase and Sensornet
    Data Rate DC-250 kbps (NRZ)
    Bit Error Rate <1 in 10-9 @ Maximum optical loss budget
    Operating Mode Simplex or Full-Duplex
    Wavelength 1550 nm
    Number of Fibers 1
    Cladding 9/125 µm
    Maximum Distance 30 mi (48 km)
    LED Indicators Video Sync Presence for Each Video Channel
    Received Data
    Optical Carrier Detect
    Optical Emitter Laser Diode
    Optical Connector ST
    Optical Power Budget 16 dB
    Power Terminal block
    Video BNC (Gold-plated center-pin)
    Data 5 x RJ45 (included)
    Power 8 to 15 VDC
    Power Consumption 4 W
    Rack Mount From rack
    Number of Slots: 3
    Current Protection Automatic resettable solid-state current limiters
    Circuit Board Meets IPC standard
    MTBF >100,000 hours
    Operating Temperature -40 to 167˚F (-40 to 75˚C)
    Storage Temperature -40 to 185˚F (-40 to 85˚C)
    Relative Humidity 0 to 95% (non-condensing)
    Dimensions (L x W x H) 6.1 x 5.3 x 3.3" (15.5 x 13.5 x 8.3 cm)
    Weight 1.0 lb (0.4 kg)
