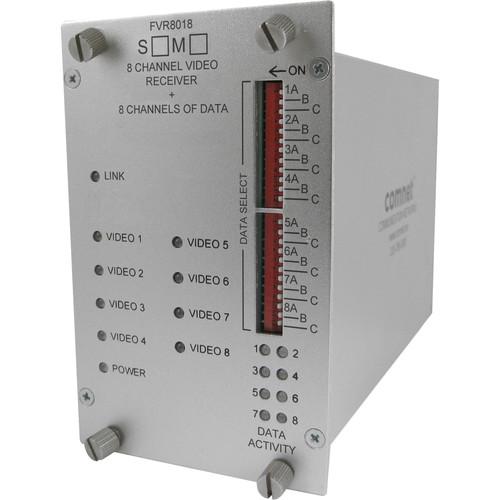

User Manual for COMNET 8-Channel 10-Bit Video Receiver Bi-Directional Data Transceiver Click to enlarge the picture
Contents of the user manual for the COMNET 8-Channel 10-Bit Video Receiver Bi-Directional
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET 8-Channel 10-Bit Video Receiver Bi-Directional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The 8-Channel Digital Video Receiver + 8-Channel Bi-Directional Data Transceiver from ComNet receives eight channels of 10-bit digital video along with eight channels of bi-directional data over a single-mode optical fiber. The video quality meets the requirements of RS-250C for short-haul video transmission. This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of-plant installations.The unit is compatible with NTSC, PAL, and SECAM video transmission protocols and supports bidirectional RS232, 422, and RS485 (2- & 4-wire) data. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are required. Bi-Color (red/green) LED indicators are provided to indicate the status of the system, video, and data. Packaged in a ComNet ComFit housing, this unit can be either wall or rack mounted. -
- Receives 8 channels of 10-bit digital real-time color video and 8 channels bi-directional data on a single-mode optical fiber
- Supports RS232, RS422, and 2- or 4-wire RS485
- Meets all requirements for EIA RS-250C short-haul transmission
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Tested and certified for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Robust design ensures high reliability in unconditioned out-of-plant environments
- Bi-color (red/green) LED status indicators provide rapid indication of critical operating parameters
- Hot-swappable rack modules
- Can be either installed standalone or rack mounted
- Ideal for high-performance CCTV (fixed video)
In the Box COMNET 8-Channel 10-Bit Video Receiver + Bi-Directional Data Transceiver DC Plug-In Power Supply RJ45 to RJ45 Breakout Wiring Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 8-Channel 10-Bit Video Receiver Bi-Directional Data Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR8018S1 Specs | Video Input | 1 Vpp (75 Ohms) | | Overload | >1.5 Vpp | | Video Input / Output | 8 channels | | Bandwidth | 10 Hz to 6.5 MHz per channel | | Differential Gain | <2% | | Differential Phase | < 0.7° | | Tilt | <1% | | Signal-to-Noise Ratio | 67 dB @ maximum optical loss budget | | COAX | Distance: 300' (100 m) camera to fiber optic module to maintain 6 MHz bandwidth | | Data Channels | 8 | | Data Interface | RS232, RS422, and RS485 (2 W/4 W) | | Data Format | NRZ, NRZI, Manchester, Bi-Phase and Sensornet | | Data Rate | DC-250 kbps (NRZ) | | Bit Error Rate | <1 in 10-9 @ Maximum optical loss budget | | Operating Mode | Simplex or Full-Duplex | | Wavelength | 1550 nm | | Number of Fibers | 1 | | Cladding | 9/125 µm | | Maximum Distance | 30 mi (48 km) | | LED Indicators | Video Sync Presence for Each Video Channel
Received Data
Optical Carrier Detect | | Optical Emitter | Laser Diode | | Optical Connector | ST | | Optical Power Budget | 16 dB | | Power | Terminal block | | Video | BNC (Gold-plated center-pin) | | Data | 5 x RJ45 (included) | | Power | 8 to 15 VDC | | Power Consumption | 4 W | | Rack Mount | From rack
Number of Slots: 3 | | Current Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC standard | | MTBF | >100,000 hours | | Operating Temperature | -40 to 167˚F (-40 to 75˚C) | | Storage Temperature | -40 to 185˚F (-40 to 85˚C) | | Relative Humidity | 0 to 95% (non-condensing) | | Dimensions (L x W x H) | 6.1 x 5.3 x 3.3" (15.5 x 13.5 x 8.3 cm) | | Weight | Not specified by the manufacturer |
