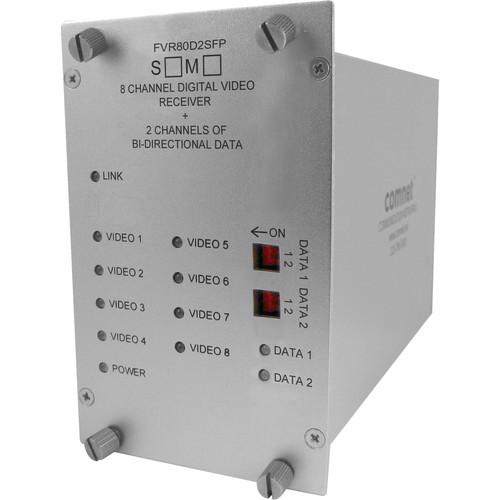

Product description The 8-Channel Video, 2-Channel Data/1-Channel Contact Closure Receiver from ComNet receives eight 10-bit short-haul quality digital video channels, two bi-directional data channels, and one bi-directional contact-closure channel through a selectable small form factor pluggable module (SFP). The data channels support RS232, RS422, and 2-wire & 4-wire RS485. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. -
- Receives up to eight 10-bit digital video channels
- Two bidirectional data channels
- One bidirectional contact closure channel
- Uses interchangeable SFPs for fiber type, distance and connector
- Exceeds all requirements for RS-250C short-haul transmission
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40 to 167°F ambient)
- Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment
- Bi-color LED status indicators confirm operating status
- Hot-swappable rack modules
In the Box COMNET 8-Channel Video, 2-Channel Bidirectional Data/1-Channel Bidirectional Contact Closure Receiver Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 8-Channel Video, 2-Channel Bidirectional Data 1-Channel Bidirectional Contact Closure Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR80D2SFP Specs | Video Input | 1 Vpp (75 Ohms) | | Overload | >1.5 Vpp | | Bandwidth | 5 Hz to 6.5 MHz | | Differential Gain | <2% | | Differential Phase | <0.7° | | Tilt | <1% | | Signal-to-Noise Ratio | 67 dB @ maximum optical loss budget | | COAX | Distance: 300' (100 m) camera to fiber optic module to maintain 6 MHz bandwidth | | Data Interface | RS232, RS422, and RS485 (2 W/4 W) | | Data Format | NRZ, NRZI, Manchester, Bi-phase and Sensornet | | Data Rate | DC-250 kbps (NRZ) | | Contact Closure | Response Time: 0.5 msec
Input: Dry Contact Closure
Output: SPST Relay, 0.5 A Contact Rating - normally open | | LED Indicators | Fiber Status, Video Sync Presence, Received Data, Transmitted Data, and Power | | Connectors | Optical: SFP modules
Power: Terminal Block
Video: BNC
Data: Terminal Block
Contact Closure: Terminal Block | | Data | 5 x RJ45 (included) | | Power | 8 to 15 VDC (surface mount) | | Power Consumption | 5 W | | Rack Mount | From rack | | Number of Rack Slots | 3 | | Current Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC standard | | MTBF | >100,000 hours | | Operating Temperature | -40 to 167˚F (-40 to 75˚C) | | Storage Temperature | -40 to 185˚F (-40 to 85˚C) | | Relative Humidity | 0 to 95% (non-condensing) | | Dimensions (L x W x H) | 6.1 x 5.3 x 2.2" (16 x 14 x 5.6 cm) | | Weight | Not specified by manufacturer |
