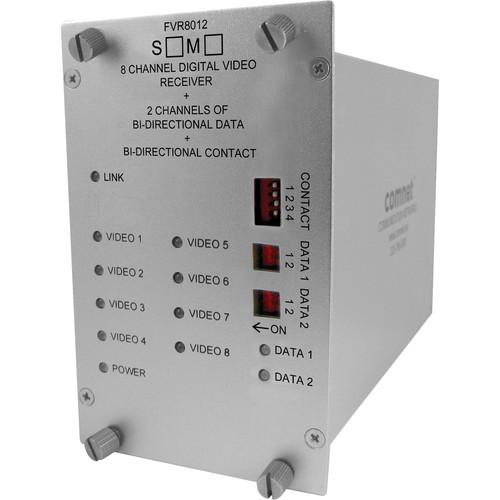

User Manual for COMNET 8 Video 2 Bi-Directional Data 1 Contact Closure Single Mode Receiver Click to enlarge the picture
Contents of the user manual for the COMNET 8 Video 2 Bi-Directional Data
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET 8 Video 2 Bi-Directional Data contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet extender transmits eight channels of video utilizing state of the art 10-bit digital encoding and decoding for very high quality video transmission, along with two channels of bi-directional data and one bi-directional contact closure over one single mode or multimode optical fiber. This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations.
- Key Features
-
- 10-bit digitally encoded video transmission: transmits 8 real-time color video signals and 2 bi-directional data signals on one optical fiber
- Exceeds all requirements for RS-250C Short Haul transmission: high quality video performance
- Supports RS 232, RS 422, and 2- or 4-wire RS 485
- One bi-directional contact closure
- Compatible with all NTS C, PAL, or SE CAM CCTV camera systems
UPC: 845770004960 Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 8 Video 2 Bi-Directional Data 1 Contact Closure Single Mode Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR8012S1 Specs | | | Device Type | Video/serial/contact closure extender | | Form Factor | External - 2U | | Built-In Devices | LED panel | | | | Connectivity Technology | Wired | | Optical Wave Length | 1310 nm / 1550 nm | | Max Transfer Distance | 42.9 miles | | Status Indicators | Transmit, receive, video | | | | Interfaces | 2 x RS-232/422/485 - terminal block
1 x network - ST single-mode
8 x video - BNC
1 x contact closure | | | | MTBF | 100,000 hours | | Compliant Standards | FCC, RoHS, cULus | | | | Power Consumption Operational | 4 Watt | | | | Width | 6.1 in | | Depth | 5.3 in | | Height | 3.3 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
