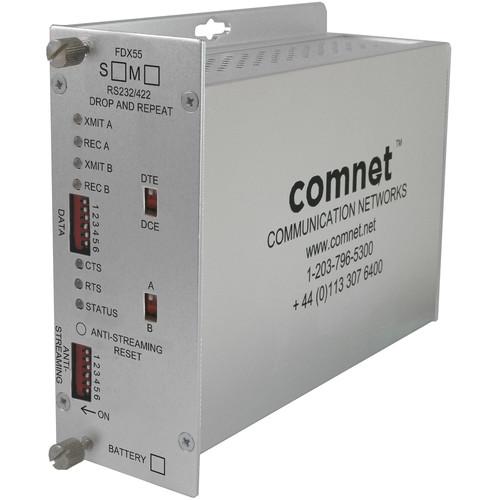

Product description The Anti-Streaming RS-232/422 Drop-and-Repeat Data Multimode Transceiver from ComNet is designed for implementing full-duplex RS232 drop-and-repeat poll-and-respond traffic signalization/communications data networks utilizing two optical fibers. This environmentally-hardened unit is suitable for use in unconditioned out-of-plant or roadside installations. The master-configured transceiver unit may be located anywhere within the network. This makes it suitable for applications involving on-street master controllers with upstream and downstream communication requirements. The Anti-Streaming RS-232/422 Drop-and-Repeat Data transceiver is compatible with the FDX50, FDX51 and FDX52 Series of optical modems (not included). Manually resettable anti-streaming is included for unparalleled network protection. Plug-and-play design ensures ease of installation as no electrical or optical adjustments are required. -
- Meets EIA RS232C/D specifications
- NTCIP compatible
- Tested and certified for NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Robust design
- User-selectable DTE or DCE interface ensures ease of installation and maximum versatility
- Supports Request to Send (RTS) and Clear to Send (CTS) signals
- RJ-11 expansion port provides network branching capability by electrically linking co-located transceiver units
- Voltage transient protection on all power and signal input/output lines provide protection from power surges and other voltage transient events
- Wide optical dynamic range
- User-configurable optical and electrical Anti-Streaming provides network protection against faulty streaming controller operation
- Indicating LEDs display equipment operating status
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use
- Can be DIN-rail mounted by the addition of ComNet model DINBKT1 or DINBKT4 adapter plate
In the Box COMNET Anti-Streaming RS-232/422 Drop-and-Repeat Data Multimode Transceiver (850nm) DC Plug-in Power Supply Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Anti-Streaming RS-232 422 Drop-and-Repeat Data Multimode Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FDX55M28 Specs | Data Format | RS-232, RS-422 | | Data Rate | 0 to 115 kbps | | Operating Mode | Asynchronous, simplex, or full duplex | | Bit Error Rate | Up to 1 in 10-9 @ maximum optical loss budget | | Timeout Selection | Anti-Streaming Time-out:
4, 8, 16, 64 sec or infinity (disabled) | | Wavelength | 850 nm | | Mode | Multimode | | Number of Fibers | 2 x Input
2 x Output | | Optical Power Budget | 14 dB | | Maximum Operating Distance | 1.8 miles (3 km) | | Optical Emitter | Laser | | LED Indicators | Transmit Data
Receive Data
Clear to Send (CTS)
Request to Send (RTS)
Fault/Anti-Streaming Activate | | Connectors | Optical: ST
Power: Terminal block
Data: Type DB-25S
Expansion Port: RJ-11 | | Power | 9 to 30 VDC | | Power Consumption | 2.5 W | | Number of Rack Slots | 2 | | Current Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC standard | | MTBF | Up to 100,000 hours | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity | 0 to 95% (non-condensing) | | Dimensions | 6.1 x 5.3 x 2.2" (15.5 × 13.2 × 5.6 cm) | | Weight | Not specified by the manufacturer |
