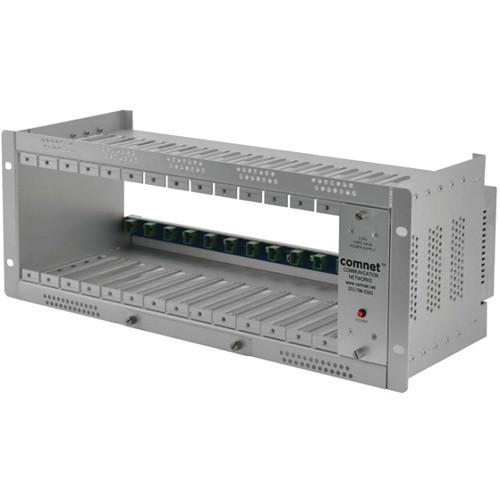

User Manual for COMNET C1US 19" Rack Mount Card Cage with Power Supply Click to enlarge the picture
Contents of the user manual for the COMNET C1US 19" Rack Mount Card
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET C1US 19" Rack Mount Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The COMNET C1US Rack Mount Card Cage with Power Supply features the C1-CH Card Cage Rack Unit and C1PS Modular Power Supply. This setup provides for the elimination of a single-point failure in the event of a major fault within any module located within the chassis rack. This is accomplished through the use of automatic electronic current limiting within each rack-mountable module (available separately), rather than providing the current limiting within the power supply unit, which supports the power requirements for equipment located within the rack. The automatic current limiting feature is also self-resetting, should the fault or overload be of a temporary or intermittent nature.
The innovative design concept eliminates the possibility of a major fault in a module located within the chassis rack, which results in the power supply unit going into a current limiting condition causing all of the modules within the rack to shut down. As only the faulty module shuts down, the operation of the other modules within the rack continues unimpaired.
Furthermore, all modules located within the chassis rack are hot-swappable, so that it is not necessary to power down the rack when removing or replacing modules. - Automatic electronic current limiting
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Fourteen 1" rack slots available
- All modules placed within the chassis rack are hot-swappable 1
Please Note: Modules not included close UPC: 845770000924 In the Box COMNET C1US 19" Rack Mount Card Cage with Power Supply 90 to 264VAC Power Supply Power Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET C1US 19" Rack Mount Card Cage with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET C1-US Specs | Electrical | Input Voltage: 90 to 264 VAC @ 70 W maximum
Output Voltage: 9 VDC +/- 5% @ 6.5 A @ 167˚F (75˚C) | | Fuse | 1.25 A slow blow (rack power supply)
Plug-in modules individually electronically fused
Each power supply unit is individually fused | | Power Indicators | Red LED | | AC Line Power | Detachable, IEC-connected. Allows easy field replacement or exchange for various worldwide AC power plug configurations. | | MTBF | > 100,000 hrs | | Operating Temperature | -40 to 167˚F (-40 to 75˚C) | | Storage Temperature | 104 to 185˚F (40 to 85˚C) | | Heat Output | 240 BTU | | Dimensions (L x W x H) | Rack Mount: 19.0 x 7.5 x 6.9" (48.2 x 19.0 x 17.5 cm)
Rack Slots (14): 1.0" ( 2.5 cm) each | | Weight | 5.0 lb (2.1 kg) | | | | Package Weight | 7.25 lb | | Box Dimensions (LxWxH) | 21.9 x 10.0 x 9.7" |
