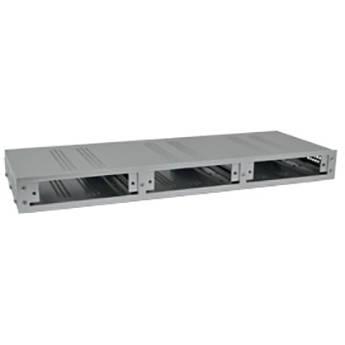

User Manual for COMNET C3 1RU 19" Rack-Mountable Card Cage Unit Click to enlarge the picture
Contents of the user manual for the COMNET C3 1RU 19" Rack-Mountable Card
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET C3 1RU 19" Rack-Mountable Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The silver C3 1RU 19” Rack-Mountable Card Cage Unit from ComNet is capable of mounting up to three ComNet ComFit 1” wide modules. It is suitable for those applications where rack space is limited. The C3 is used in desktop installations by the addition of user-installed rubber feet on the bottom of the cage and removal of the two rack-mount adapter brackets. It is provided with one external 120 to 240 VAC power supply with a 12 VDC at 2A output, and includes reverse polarity protection. Two separate isolated DC inputs are provided for mission critical/high reliability applications where power supply redundancy is required.
ComNet ComFit PoE (Power over Ethernet) modules can also be used, by replacing the power supply with a +48 VDC unit, and connecting the supply output to the DC power input of each PoE module. Cooling is by natural air convection, eliminating the need for unreliable and noisy cooling fans, or periodic air filter maintenance. It is designed for long-term reliable operation in harsh industrial environments, and may be deployed in most out-of-plant installations, such as those found in intelligent transportation systems and factory automation/control applications. Plug-and-play design ensures ease of installation, and any module may be hot-swapped without any impact to the operation of the other modules within the card cage. - General
- Mounts up to three ComNet ComFit 1" wide modules
- 1RU (1.75") height requires minimal equipment rack space and may also be desktop mounted
- Two separate isolated DC inputs for power supply redundancy, for mission critical/high reliability applications
- Fully compliant with the requirements of NEMA TS-1/TS-2 for use in ITS-specific or other difficult out-of-plant applications
- Hot swappable modules & plug-and-play operation
- External 120 to 240 VAC power supply unit included
- Applications
- Industrial Security
- Video monitoring and surveillance -Surveillance of petrochemical, refinery, and other major critical-asset infrastructure installations
- Ethernet, serial data, audio, and contact closure transmission networks
- ITS/Transportation
- Traffic Operations Center (TOC)/head-end rack & desktop mounted transmission equipment
- Intersection/roadway, toll barrier, and bridge and tunnel monitoring and surveillance systems
- Railroad and Light Rail Transportation (LRT) systems
In the Box COMNET C3 1RU 19" Rack-Mountable Card Cage Unit (Silver) 120 to 240 VAC Power Supply Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET C3 1RU 19" Rack-Mountable Card Cage Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET C3 Specs | Number of Rack Slots | 3 x 1 RU | | Input Voltage | 90 to 264 VAC @ 70 W maximum | | Output Voltage | 12 VDC @ 2.0 A @ 75°C | | MTBF | >100,000 hours | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Dimensions (L x W x H) | 19 x 7.5 x 1.75" (48.2 x 19 x 4.5 cm) | | Weight | 2.8 lb (1.3 kg) |
