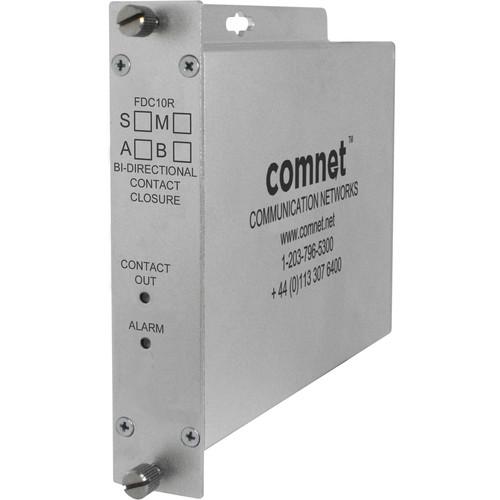

User Manual for COMNET ComFit Contact Closure Multimode Transceiver Click to enlarge the picture
Contents of the user manual for the COMNET ComFit Contact Closure Multimode Transceiver
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET ComFit Contact Closure Multimode Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FDC10 Series bi-directional contact closure transceiver provides bi-directional transmission of contact closure over one multimode or single mode optical fiber. The transceiver has a contact input and a 0.5 amp contact output. The bi-directional contact closure module has two relay outputs and one relay input. One relay output follows the "relay input" at the remote end. When the remote "relay input" is shorted, the local relay output is closed and vice-versa. The second relay output is closed when "carrier" is detected from the remote end, this indicates that the optical fiber is connected and that the remote end has power and is operating.
- Key Features
-
- Transmits a single contact closure in one or two directions
- 30 VDC, 0.5 amp relay output, normally open
- Point-to-Point transmission architecture
- Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments
- Relay contact for carrier detect (normally closed with carrier present)
- Automatic resettable solid-state current limiters
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET ComFit Contact Closure Multimode Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FDC10RM1B Specs | | | Device Type | Contact closure extender | | Form Factor | Surface-mountable | | | | Connectivity Technology | Wired | | Optical Wave Length | 1550 nm / 1310 nm | | Max Transfer Distance | 9.9 miles | | | | MTBF | 100,000 hours | | Compliant Standards | FCC Part 15, RoHS, cULus, EN 12464 | | | | Voltage Required | DC 8 - 15 V | | Power Consumption Operational | 2 Watt | | | | Width | 6.1 in | | Depth | 5.3 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
