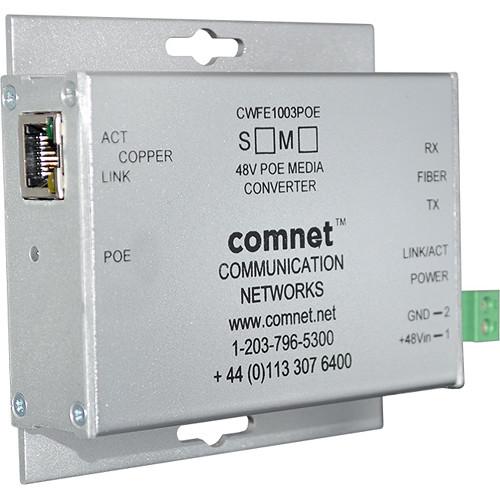

Product description The A unit Commercial Grade Mini 10/100 Mbps Ethernet 60W Media Converter from COMNET provides full-duplex fiber optic transmission of a single channel of 10/100BaseTX data through multimode optical fiber when paired with the B unit (sold separately). It provides full compliance with IEEE 802.3at as Power Sourcing Equipment (PSE), with a maximum power of 60W, making it suitable for applications where the remote equipment draws significant power. The Ethernet electrical interface auto-negotiates to either 10 or 100 Mbps without the need for any user selection, and the optical interface operates at 100 Mbps. Packaged in a rugged, compact sized housing, the unit is designed for shelf or stand-alone mounting, or may be DIN-rail mounted using the DINBKT2 Adapter Plate Kit (sold separately). LED indicators are provided to instantly check the operating status of the device. A power supply providing 48 VDC at 1.25A is provided with the converter. Plug-and-play design ensures ease of operation, and no optical adjustments are ever required. - Exceeds the requirements of the latest PoE+ standard (IEEE 802.3at)
- Provides 60W at 48 VDC, for high output demand applications of remote Ethernet equipment
- Automatic resettable solid state current limiters for unconditional modem protection
- Bi-color (red/green) status indicating LEDs provide rapid indication of critical operating parameters
- Packaged in a rugged, compact sized housing
- Designed for shelf or stand-alone mounting, or may be DIN-rail mounted using the DINBKT2 Adapter Plate Kit (sold separately)
- Applications: PoE Plus operation of IP cameras with pan-tilt-zoom capability and those with heated/cooled housings, remote telemetry and sensing devices for industrial/SCADA networks, transportation-specific/ITS field equipment, and any 10/100 Mbps Ethernet-compatible field device where high power consumption is required
In the Box COMNET Commercial Grade Mini 10/100 Mbps Ethernet 2-Port 60W Media Converter with 48V PoE Plus (Multimode, ST, A Unit) 48 VDC / 1.25A Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Commercial Grade Mini 10 100 Mbps Ethernet 2-Port 60W Media Converter with 48V PoE Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET CWFE1002APOEMHO/M Specs | | | Interface | Ethernet | | Rate | 10/100 Mbps, IEEE 802.3 compliant | | Ports | Electrical: Full / half duplex
Optical: Full duplex | | | | Optical | ST | | Power | Terminal block | | Electrical | RJ45 (supports IEEE802.3at) | | | | Pin Assignments | End-Point Positive (VCC+): RJ45 pin 1, 2 or 4, 5
Negative (VCC-): RJ45 pin 3, 6 or 7, 8 data (1, 2, 3, 6) | | Current | Maximum: 600 mA continuous | | | | Operating Power | 48 VDC @ 1.25 A | | Current Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC standard | | | | Operating Temperature | 32 to 122°F (0 to 50°C) at 30 / 60 W PoE output
-4 to 140°F (-20 to 60°C) at 15 W PoE output | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity, Non-Condensing | 0 to 95% | | | | LED Indicators | Optical link/data activity, power, PoE | | Compliance | FCC, CE, cULus, RoHS, C-Tick | | MTBF | >100,000 hours | | Dimensions | 4.0 x 3.7 x 1.0" (10.4 x 9.5 x 2.7 cm) |
