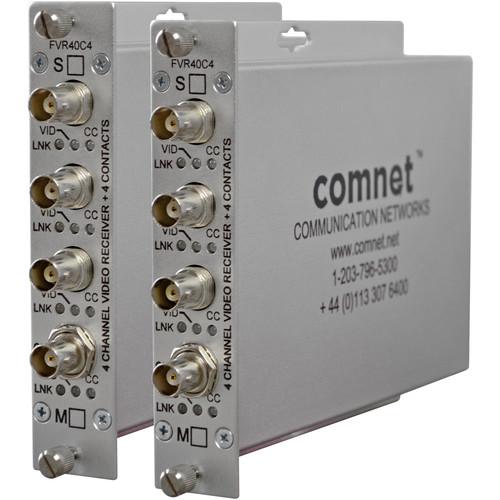

User Manual for COMNET FVR4C4B Video and Contact Closure Receiver Unit Click to enlarge the picture
Contents of the user manual for the COMNET FVR4C4B Video and Contact Closure
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET FVR4C4B Video and Contact Closure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The FVR4C4B Video and Contact Closure Receiver Unit from COMNET includes one FVR4C4BS4 4-channel video + contact receiver and four FVT1C1BS1-M single channel video/contact transmitters. The FVT1C1B-M video mini-transmitter supports transmission of a fixed video and a contact closure signal using an 8-bit digitally encoded signal on one multimode or single mode fiber optic cable. The 8-bit digital decoding is utilized for the four video channels. The contact closure channels may be used with triggered-event CCTV camera systems, or other applications such as access controlled gates, doors, or other equipment requiring remote actuation and control. Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are required. - Single Mode 1310nm 8-Bit Digitally Encoded Mini Video Transmitter with Contact Closure (Up to 33 mi) Provided by third party: The ComNet video transmitter supports transmission of one analog video signal and a single simplex contact closure over one multimode or single mode optical fiber. The contact closure channel may be used with triggered-event CCTV camera systems, or other applications such as access controlled gates, doors, or other equipment requiring remote actuation and control. This module is universally compatible with all major CCTV camera manufacturers. Housed in a compact, rugged, and lightweight package, this surface/shelf-mount unit is ideal for those installations where space may be limited. Plug-and-Play design ensures ease of installation, and no electrical or optical adjustments are ever required.
- Key Features
-
- 8-bit digitally encoded video, and contact closure transmission
- One simplex dry contact closure channel
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Full color compatibility
- No in-field electrical or optical adjustments required
- Single Mode 4-Channel Video with 4-Channel Contact Closure Receiver (Up to 33 mi)
In the Box Bundle Items Single Mode 4-Channel Video with 4-Channel Contact Closure Receiver (Up to 33 mi) evdcvqaxzrxayd 4 x Single Mode 1310nm 8-Bit Digitally Encoded Mini Video Transmitter with Contact Closure (Up to 33 mi)
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET FVR4C4B Video and Contact Closure Receiver Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Single Mode 1310nm 8-Bit Digitally Encoded Mini Video Transmitter with Contact Closure (Up to 33 mi)
| | | Device Type | Video extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Optical Wave Length | 1310 nm | | Max Transfer Distance | 33.6 miles | | Status Indicators | Power, video | | | | Interfaces | 1 x video - BNC
1 x network - ST single-mode female
1 x contact closure - terminal block | | | | MTBF | 100,000 hours | | Compliant Standards | FCC Part 15, RoHS, cULus | | | | Width | 3.3 in | | Depth | 2.5 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
